Pixel FlexLED 5V RGB High Frequency

SKU I5VRGB300APA1025P
by MossLED
$195.69
IP Rating
Pixel Density
Connector Type
Accessories

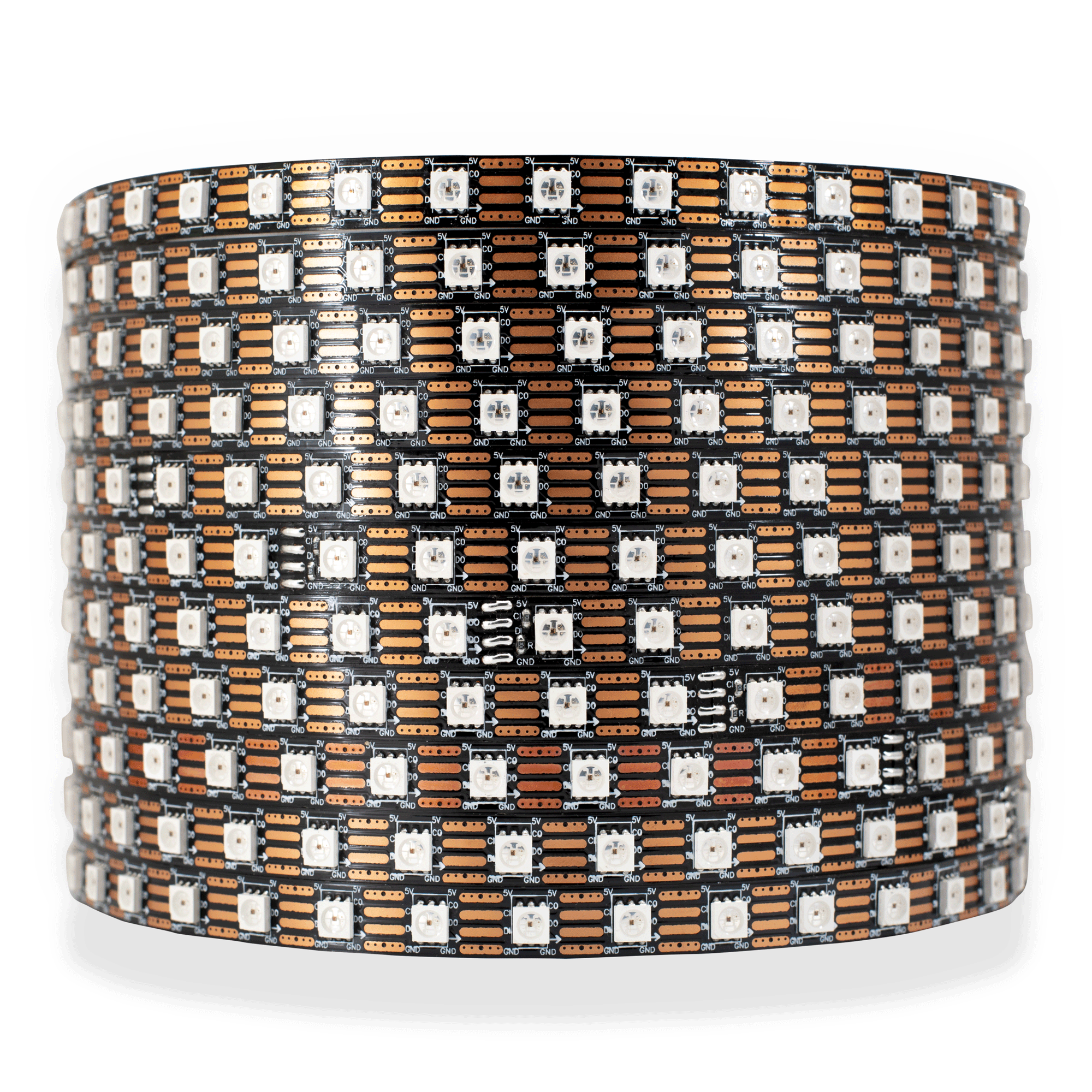

60, 72, and 144 LED/Meter PixelFlex LED Tape in 5V DC

High frequency and high quality APA-102C chips provide individual control to each pixel for dazzling effects and endless possibilities. Control these strips with our PixlArt 416 controller via ArtNet or sACN data signals.
Suitable for on-camera use and flicker-free up to 1000 fps at most camera settings.

Please Note :

Due to voltage drop, our 144 LED/meter is manufactured in 1 meter in lengths.
60 and 72 LED/meter are standard 5 meters in length.


Pixel Product Installation Notes:

  • The PWM frequency (dimming frequency) is baked into the pixel and cannot be changed.  You must ensure you choose the right pixel strip for your application.  If you are unsure of what camera settings are going to be in use, it is best to go with high frequency pixel tape (8khz or higher / GS8208 or APA102)
  • Avoid voltage drop by positioning a power supply close to the LED strip and/or powering the LED strip from multiple locations (or via multiple power supplies)
  • The power supply that is providing power to the controller (PixlArt416) does not need to be the same power supply that is powering the LED strip.
  • During testing ensure that the pixel strip is receiving the required voltage by doing a volt meter test at the contact pads of the LED strip.


Soldering Guidelines:

Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Other Notes:

  • Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
  • Waterproof strips require mounting via silicone glue or mechanical hardware
  • Controller, power supply and extension cables are sold separately based on your project
  • Quantity discounts available
  • Custom colour temperatures, pixel densities, and PCB colour are available
  • Please contact us for more information

Pricing is for 5 meters (16.4')



SPECIFICATIONS - INDOOR PRODUCT

Product Type : 60 LED/meter 72 LED/meter 144 LED/meter
Product Code : I5VRGB300APA102 I5VRGB360APA102 I5VRGB144APA102
CRI : N/A N/A N/A
Kelvin : RGB RGB RGB
PCB Color : Black Black Black
Current, Rating : 3.6 A / meter 4.32 A / meter 7.6 A / meter
Voltage : 5 VDC 5 VDC 5 VDC
Wattage : 18 W / meter 21.6 W / meter 38 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 216 260 518
Lumen / Watt : 12 12 12
Lifetime* : 30,000 hours 30,000 hours 30,000 hours
Cutting Length : Individual LED Individual LED - 1.3 CM Individual LED
LED Quantity : 60 LED / meter 72 LED / meter 144 LED / meter
Number of Contacts : 4 4 4
LED Type : APA-102C APA-102C APA-102C
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 10 MM 10 MM 10 MM
Maximum Recommended Length : 5 meters 5 meters 1 meter
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : 3M 300MP 3M 300MP 3M 300MP
Wavelength A : 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm
Wavelength B : 522 ~ 525nm 522 ~ 525nm 522 ~ 525nm
Wavelength C : 467.5 ~ 470nm 467.5 ~ 470nm 467.5 ~ 470nm
Wavelength D : N/A N/A N/A
Data Transmission Speed : 1 MHZ 1 MHZ 1 MHZ
Refresh Rate : 30 FPS 30 FPS 30 FPS
Bit Rate : 32 Bit 32 Bit 32 Bit
Data Clock Frequency : 0 ~ 5 MHZ 0 ~ 5 MHZ 0 ~ 5 MHZ
PWM Frequency : 20kHz 20kHz 20kHz

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location
