Featured
LuxDrive8 V4 - 32 Channel Dimmer
$3,799.00 CAD $3,999.00 CAD
V 4.0 HAS BEEN LAUNCHED!
SAVE $200 OFF LIST PRICE
LIMITED TIME ONLY
What's new!?
-
Smaller 2U design (Only 3.5")
-
Powerful 1200 Watt (50 AMP) at 24V output across 32 channels of dimming
-
8 outputs each at 150 Watt OR combine outputs infinitely to create one large 1200 Watt Output
-
Frequency mode selection from 7.2kHz to 28kHz for Flicker-Free operation at most camera settings.
-
Only 2 ultra-quiet fans for on-set use
-

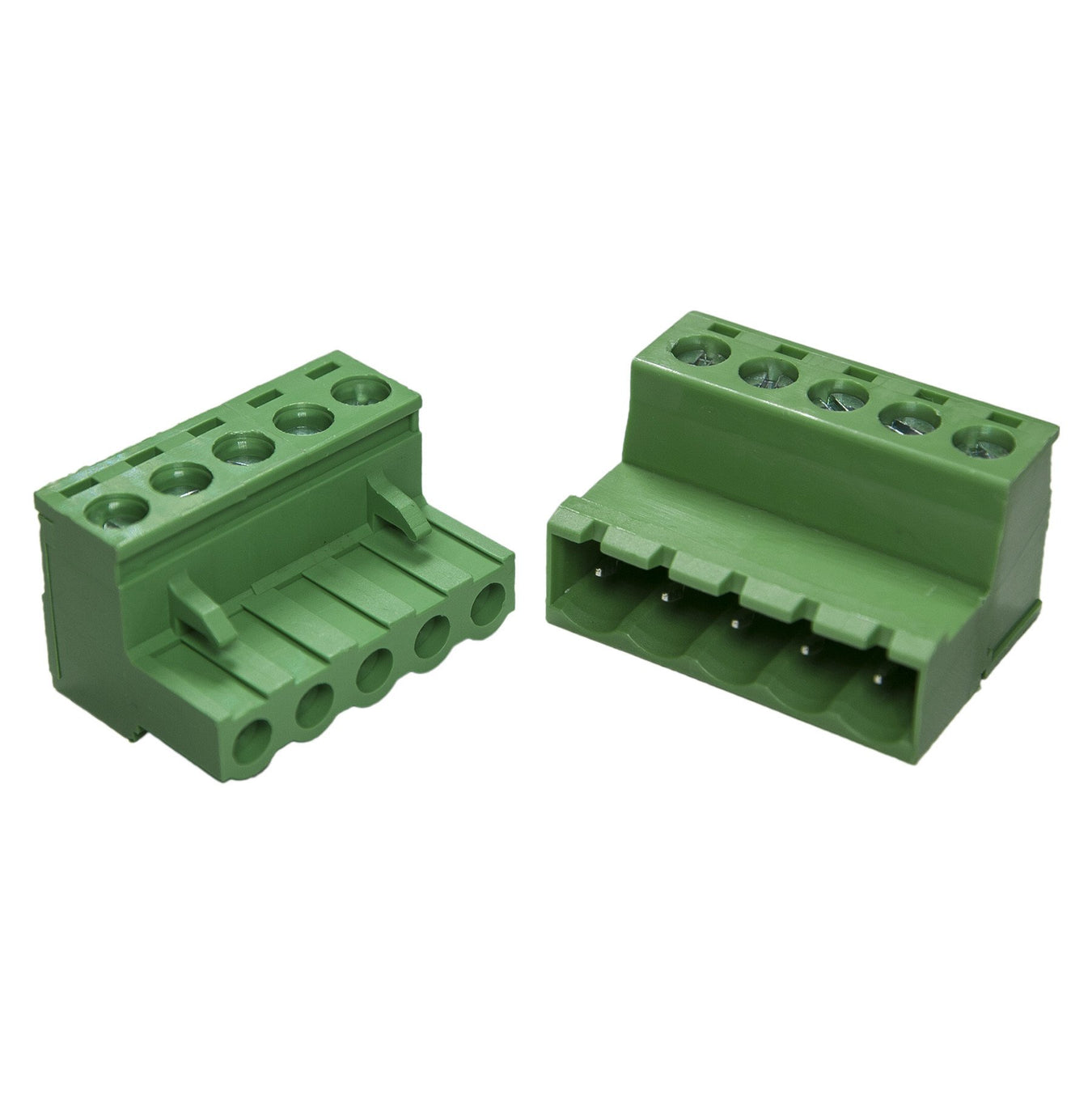

Terminal Block and Twist-lock output connectors for ease-of-use and on-site wiring
-
32 individually fused channels for maximum protection
-
New rugged thicker aluminum housing for long-term durable use for all industries.
-
New mounting brackets for easy hanging, surface mount, and safety chain connections.
-
Rear lip protection over output connectors designed to protect all rear components
-
Recessed front controls allow for protection of components and accidental activation of functions
-
New TrueCon power input and output locking connectors allow for power breaking under load
-
Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.
Professional DMX controlled multi-channel LED controller with built-in power supply.
No more separate power supplies!
Approved for use anywhere in the world!
Contact us for pricing details for large quantity orders or for rental options.
The LUXDRIVE8 is a power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape / LED ribbon industry. Compatible with any of our RGB, RGBA, Dual White, Or Single Color LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR. Neutrik TrueCon pass-thru allows for power connections to down-stream devices. On-board addressing controls for control via a lighting console. Test mode allows for manual control from the LUXDRIVE8 for testing and setting scenes without the use of a lighting board.
Pound per wattage output, this unit is extremely powerful!There are options for mounting the rack ears to the top or the side of the unit for ease of transport as well as for screwing to the back of set walls.
SPECIFICATIONS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DOWNLOADS |
Quad-LED DMX - 4 Channel Dimmer
$129.98 CAD
Quad-LED Dimmer
It has all the features our film, television, and theatrical friends have been asking for. A simple, four channel plug n play DMX controller with manual mode and variable frequency.
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into four dimmable channels.
- Uses RJ45 Ethernet cables to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape.
- LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Technical Parameters
- Supply Voltage: 12V - 24V DC
- Output: 4 Channels
- Output Current: 4 CH @ 5A/CH = Max 20A
- Output Power: 240W @ 12V / 480W @ 24V
- PWM Frequency: 2400Hz / 4800Hz / 9600Hz
- Bit Rate: 8 Bit
- External Dimension (mm): L170*W65*H22
- Gross Weight: 300g
- Working Temperature: 0C to +70C
- IP Rating: IP40
**Connector Tails Not Included**
DOWNLOADS
View full product details
Cinque-LED DMX Dimmer
$165.00 CAD $0.00 CAD
Introducing our most advanced standalone DMX Controller ever
- now with NEW PROTECT-A-FET technology -
The upgraded Cinque now includes integrated circuit protection on each output dimmer channel. This ensures that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use AND no internal damage will result.
Simply put, the Cinque-LED DMX Dimmer is fantastic.
It has all the features our film, television, and theatrical friends have been asking for. It is an extremely durable metal, rugged housing with professional-grade XLR 5-Pin In/Out and RJ45 In/Out for DMX signal. The terminal blocks used for the input have two spaces for Voltage + and two spaces for GND which allow for the huge current capability this unit has 5 X 8A = 40 AMPS of power!
This unit also has a easy-to-read LED display for setting address and manual mode settings. The Cinque-LED DMX Dimmer has 8 bit and 16 bit resolution modes as well as output PWM frequency adjustable settings from 500Hz to 30kHz. On top of all of that there is ALSO a gamma curve value which adjusts the dimming curve of the unit so you can have an extremely high resolution low end or an extremely high resolution high end. It's entirely up to you!
The Cinque-LED DMX Dimmer is BY FAR the most advanced standalone DMX Decoder controller unit on the market, EVER!
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into five dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors?to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
- LED Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
- Supply Voltage: 12V - 24V DC
- Output: 5 Channels
- Output Current: 5 CH @ 8A/CH = Max 40A
- Output Power: 480W @ 12V / 960W @ 24V
- PWM Frequency: 500Hz to 30kHz
- Bit Rate: 8 Bit & 16 Bit
- External Dimension (mm): L164*W73*H38
- Gross Weight: 220g
- Working Temperature: -20? to +70?
- IP Rating: IP40
DOWNLOADS
View full product details
ML24 Panel FlexLED
$118.58 CAD
MultiLine 24-Way FlexLED Panel
Our most high density panel. Extremely bright.
TLCI and CRI of 96 - 98!
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
For applications where color and intensity output consistency is required
3M double-sided tape on the back makes installation as easy as peel n' stick.
Controller, Power supply and Extension Cables sold separately
Custom Color Temperatures available. Please call to inquire.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color Cuttable Panel |
| Product Code | : | 24VML24BC500MMW (0.5 Meter with Bare End Wire) |
| CRI | : | <95 |
| Kelvin | : | 3000k - 5600k OR 2700k - 5600k |
| PCB Color | : | White |
| Current, Rating | : | 4.83 A / 0.5 meter panel |
| Voltage | : | 24 VDC |
| Wattage | : | 116 W / 0.5 meter panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full WW/CW | : | TBD |
| Lumen / Watt | : | 71 LM/Watt |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 120MM X 20MM Rectangles |
| LED Quantity | : | 720 X 5600k, 720 X 3000k (or 2700k) |
| Number of Contacts | : | 3 (6 common, 4 WW, 4 CW) |
| LED Type | : | 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 500MM X 240MM |
| Maximum Recommended Combined Panel | : | 8 Panels |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M adhesive tape |
DOWNLOADS
View full product details
ML12 Panel FlexLED
$159.13 CAD
MultiLine 12-Way FlexLED Panel (45.35" X 8.97")
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
For applications where color and intensity output consistency is required
3M double-sided tape on the back makes installation as easy as peel n' stick.
Controller, Power supply and Extension Cables sold separately
Custom Color Temperatures available. Please call to inquire.
|
|
||||||||||||||||||||
DOWNLOADS |
View full product details
FlexLED Bi-Color 3000K - 5600K 24V (CCT Adjustable)
$182.04 CAD
Color Temperature adjustable high density FlexLED Tape
3000K - 5600K CRI <95
Two versions of our bi-color FlexLED are now available. 120 LED/meter (12MM Width) standard as well as 196 LED/meter (10MM Width) high output version. The 196 LED/meter is ideally suited for areas where high output in a very tight space is required. The 196 LED/meter is designed to be installed onto a metal heat sink for longevity purposes. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
Both versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 |
Bi-Color 196 |
| Product Code | : | I24VBC30566003528 | I24VBC30569803528 |
| CRI | : | ≥95 | ≥95 |
| Kelvin | : | 3000k - 5600k | 3000k - 5600k |
| PCB Color | : | White | White |
| Current, Rating | : | 0.79 A / meter | 1.4 A / meter |
| Voltage | : | 24 VDC | 24 VDC |
| Wattage | : | 19.2 W / meter | 33.6 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 |
| Lumens @ Full | : | 1800 lm / meter | 3,600 lm/meter |
| Lumen / Watt | : | 94 | 94 |
| Lifetime* | : | 50,000 hours | 30,000 hours |
| Cutting Length | : | 10CM | 7CM |
| LED Quantity | : | 120 LED / meter | 196 LED / meter |
| Number of Contacts | : | 3 | 3 |
| LED Type | : | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | CE, RoHS |
| PCB Width | : | 12MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 |
DOWNLOADS
View full product details
FlexLED 60 White 24V
$138.30 CAD $172.88 CAD
Industry Standard 3000k, 4100k, and 5600k High CRI >95
60 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)
Suitable for on-camera use, or anywhere a high-quality white light is required.
High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Neutral White | Cool White |
| Product Code | : | I24VWW323005050 | I24VNW413005050 | I24VCW563005050 |
| CRI | : | <95 | <95 | <95 |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.6 A / meter | 0.6 A / meter | 0.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 14.4 W / meter | 14.4 W / meter | 14.4 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 1000 lm / meter | 1000 lm / meter | 1000 lm / meter |
| Lumen / Watt | : | 69.4 | 69.4 | 69.4 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours |
| Cutting Length | : | 10CM | 10CM | 10CM |
| LED Quantity | : | 60 LED / meter | 60 LED / meter | 60 LED / meter |
| Number of Contacts | : | 2 | 2 | 2 |
| LED Type | : | 5050 | 5050 | 5050 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 ?C | 70 ?C | 70 ?C |
| Temperature, Operating, Minimum | : | -40 ?C | -40 ?C | -40 ?C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 10 meters | 10 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
*nominal lifetime - dependent on installation location
FlexLED RGB 24V
$135.42 CAD
High Output Color Changing LED strips 12V or 24V.
Now available in three different pixel pitch positions.
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof FlexLED must be mounted using silicone (not provided)
Controller, Power supply and Extension Cables sold separately
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Please find 12V product version here:
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB 72 12V | RGB 60 24V |
RGB 96 24V |
RGB 120 24V |
| Kelvin | : | Color Changing | Color Changing | Color Changing | Color Changing |
| PCB Color | : | White | White | White | White |
| Current, Rating | : | 1.43 A / meter | 0.6 A / meter | 0.96 A / meter | 1.2 A / meter |
| Voltage | : | 12 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 17.2 W / meter | 14.4 W / meter | 23.04 W / meter | 28.8W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 | IP20 |
| Lumens @ Full | : | 1000 lm / meter | 1800 lm / meter | 2000 lm / meter | |
| Lumen / Watt | : | 69 | 78 | 69 | |
| Lifetime* | : | 50,000 hours | 30,000 hours | 50,000 hours | |
| Cutting Length | : | 10CM | 6.2CM | 10CM | |
| LED Quantity | : | 72 LED / meter | 60 LED / meter | 96 LED / meter | 120 LED / meter |
| Number of Contacts | : | 4 | 4 | 4 | 4 |
| LED Type | : | 5060 | 5060 | 5060 | 3535 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM | 12MM |
| Maximum Recommended Length | : | 5 meters | 10 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 200MP 3M | 200MP 3M | TESA 3965 | 200MP 3M |
| Cutting Length | : | 3 LEDs 4.16CM | 6 LEDs 10CM | 6 LEDs 6CM | 6 LEDs 5CM |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
FlexLED 96 RGB + White 24V
$188.51 CAD
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + Warm White | RGB + Neutral White | RGB + Cool White |
| Product Code | : | I24VRGBW304805050 | I24VRGBW414805050 | I24VRGBW304805050 |
| CRI | : | 95 | 95 | 95 |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.96 A / meter | 0.96 A / meter | 0.96 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 23 W / meter | 23 W / meter | 23 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 1500 lm / meter | 1500 lm / meter | 1500 lm / meter |
| Lumen / Watt | : | 65 | 65 | 65 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours |
| Cutting Length | : | 12.5CM | 12.5CM | 12.5CM |
| LED Quantity | : | 96 LED / meter | 96 LED / meter | 96 LED / meter |
| Number of Contacts | : | 5 | 5 | 5 |
| LED Type | : | 5050 | 5050 | 5050 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM | 12MM | 12MM |
| Maximum Recommended Length | : | 7 meters | 7 meters | 7 meters |
| Viewing Angle | : | 120 | 120 | 120 |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
Controller, Power supply and Extension Cables sold separately
*nominal lifetime - dependent on installation location
View full product details
ML6 Panel FlexLED
$11.25 CAD
? MultiLine 6-Way FlexLED Panel
? Suitable for residential, television, industrial, and commercial applications
? Extremely flexible, allowing it to be used in a variety of applications.
? High CRI (Colour Rendering Index - No Green Spike & No Colour Spectrum Deficiencies)
? For applications where colour and output consistency is required
? 3M double-sided tape on the back makes installation as easy as peel n stick.
? Controller, Power supply and Extension Cables sold separately
? Custom Colour Temperatures available.? Please call to inquire.
?
SPECIFICATIONS
? ? DOWNLOADS? |
ML4 Panel FlexLED
$6.80 CAD
MultiLine 4-Way FlexLED Panel
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Colour Rendering Index - No Green Spike & No Colour Spectrum Deficiencies)
For applications where colour and output consistency is required
3M double-sided tape on the back makes installation as easy as peel n stick.
Controller, Power supply and Extension Cables sold separately
Custom Colour Temperatures available. Please call to inquire.
SPECIFICATIONS
|
||||||||||||||||||
DOWNLOADS |
FlexLED 210 RGB+WW+CW 24V
$291.04 CAD
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + WW + CW |
| Product Code | : | I24VRGBWCW305610505050 |
| CRI | : | 95 |
| Kelvin | : | 3000k +/-100k AND 5600k +/- 100k AND RGB |
| PCB Color | : | White |
| Current, Rating | : | 1.8 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 43.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 3000 lm / meter |
| Lumen / Watt | : | 69.4 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | TBD |
| LED Quantity | : | 210 LED / meter |
| Number of Contacts | : | 6 |
| LED Type | : | 5050 + 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL Pending, CE, RoHS |
| PCB Width | : | 20MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
-
Specification Sheet Pending
*nominal lifetime - dependent on installation location
View full product details
ML2 Panel FlexLED
$4.64 CAD
MultiLine 2-Way FlexLED Panel
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Colour Rendering Index - No Green Spike & No Colour Spectrum Deficiencies)
For applications where colour and output consistency is required
3M double-sided tape on the back makes installation as easy as peel n stick.
Controller, Power supply and Extension Cables sold separately
Custom Colour Temperatures available. Please call to inquire.
SPECIFICATIONS
|
||||||||||||||||
DOWNLOADS |
FlexLED 70 Step-Up 24V (Angle Adjustable)
$182.04 CAD
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Cool White | RGB Step Up |
| Product Code | : | I24VSUWW304803528 | I24VSUCW564803528 | I24VSURGB4805050 |
| CRI | : | ≥95 | ≥95 | N/A |
| Kelvin | : | 3000k +/-100k | 5600k +/-100k | N/A |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.19 A / meter | 0.19 A / meter | 0.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 4.8 W / meter | 4.8 W / meter | 14.4 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP20 | IP20 | IP20 |
| Lumens @ Full | : | 300 lm / meter | 300 lm / meter | 1000 lm / meter |
| Lumen / Watt | : | 62.5 | 62.5 | 69.4 |
| Lifetime* | : | 40,000 hours | 40,000 hours | 40,000 hours |
| Cutting Length | : | 10CM | 10CM | 10CM |
| LED Quantity | : | 70 LED / meter | 70 LED / meter | 70 LED / meter |
| Number of Contacts | : | 2 | 2 | 4 |
| LED Type | : | 3528 | 3528 | 5630 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - pending, CE, RoHS | UL - pending, CE, RoHS | UL - pending, CE, RoHS |
| PCB Width | : | 5+8MM | 5+8MM | 5+8MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 200MP 3M | 200MP 3M | 200MP 3M |
DOWNLOADS
View full product details
FlexLED 60 UV 24V
$158.19 CAD
UV FlexLED - 365 ~ 410nm
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 6.7m (22')
Controller, Power supply and Extension Cables sold separately
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | FlexLED 60 UV 24V |
| Product Code | : | I24VUV3005050 |
| CRI | : | N/A |
| Kelvin | : | N/A 365nm - 410nm |
| PCB Color | : | White |
| Current, Rating | : | 0.6 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 14.4 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 960 lm / meter |
| Lumen / Watt | : | 66.6 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 60 LED / meter |
| Number of Contacts | : | 2 |
| LED Type | : | 5050 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
LuxDrive16 DMX - 32 Channel Dimmer
$3,100.00 CAD
Professional DMX controlled multi-channel LED controller with built-in power supply.
No more wiring!
No more separate power supplies!
No more phoenix connectors!
Approved for use anywhere in the world!
Contact us for pricing details for large quantity orders or for rental options.
The LÜXDRIVE16 is an installation-grade power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape industry. Compatible with any of our Bi-Color, Or Single Color LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR. Powercon locking input power cables. Internal DMX addressing controls for control via a lighting console.
Technical Paramaters
- 16 X Bi-Color Outputs or Single Color White Options
- Max Input: 2 X 20A @ 120 VAC
- Max Output: 67.2A @ 24VDC
- Protections: short circuit / over temperature / overload / over voltage
- Extremely fast PWM dimming at 14.4kHz allows for flicker free operation with most camera settings
- Certified by Intertek to CSA standards
- Forced-air cooling by built-in fans
- 5-year limited warranty
- 3.5U standard rack spaces
View full product details
XLR 5-PIN to RJ45 (Ethernet)
$19.99 CAD
XLRJ45 is an adapter to convert a DMX512 XLR connector to a RJ45 connector.
The XLRJ45 adapter makes it possible to use any ordinary, low cost CAT-5 ethernet cable as a DMX512 cable.
XLRJ45 is available in two versions, 5-pin male or female XLR.
XLRJ45 is very useful for making a DMX512 cable quickly and at a very low cost.
DOWNLOADS
View full product details
FlexLED 196 White 24V
$263.25 CAD
Industry Standard 3000k, 4100k, and 5600k High CRI >95
196 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)
The 196 LED/meter is extremely high density and narrow width at only 10MM. It is ideally suited for areas where high output in a very tight space is required. This product is designed to be installed onto a metal heat sink for longevity purposes.
Suitable for on-camera use, or anywhere a high-quality white light is required.
High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Neutral White | Cool White |
| Product Code | : | I24VWW309803528 | I24VNW419803528 | I24VCW569803528 |
| CRI | : | 95+ | 95+ | 95+ |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 1.4 A / meter | 1.4 A / meter | 1.4 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 33.6 W / meter | 33.6 W / meter | 33.6 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 3600 lm / meter | 3600 lm / meter | 3600 lm / meter |
| Lumen / Watt | : | 107.1 | 107.1 | 107.1 |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours |
| Cutting Length | : | 3.5CM | 3.5CM | 3.5CM |
| LED Quantity | : | 196 LED / meter | 196 LED / meter | 196 LED / meter |
| Number of Contacts | : | 2 | 2 | 2 |
| LED Type | : | 2835 | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
-
Specification Sheet
UL Certificate of Compliance
*nominal lifetime - dependent on installation location
LUXBOX 3 - 2 Channel Dimmer LUXBOX 3 - 2 Channel Dimmer
$346.45 CAD
High precision dual channel dimmer which provides beautifully smooth dimming for on-camera purposes. High frequency, flicker free dimmer with Protect-A-Fet technology. This is the most rugged two-channel hand-held dimmer on the market.
For use with any of our Tungsten, Daylight, or Bi-Color LED Strips and LUXLines.
- High-frequency flicker free dimming
- Consistent 0 - 100% dimming control
- LCD Readout gives precise percentage
- Digital push-button encoders allow for Fine, Medium, and Coarse dimming options
- 2 Modes:
Dimmer & Color Temperature Adjustment
2-Channel Mode - Tamper-proof recessed black-out button
- Locking 5-pin DC output connector - use our 5-pin connectors OR use a 5-pin connector tail for bare wire access
- Rated 15A 12-24VDC input
- Locking 4-Pin DC Connector and standard DC plug input works with any of our table-top power supplies or MeanWell power supplies.
- Dimmer for all of our low voltage LEDs
- Rugged metal construction for durability
- Easily mountable using the built-in screw holes
- Belt clip available for versatility.
- Extremely compact unit
|
DIMENSIONS L 6.24" X W 3.56" X H 1.55" |
DOWNLOADS
|
**Connector Tails Not Included**
View full product details
VentiQuattro-LED DMX - 24 Channel Dimmer
$299.00 CAD $399.00 CAD
Introducing our most advanced standalone DMX Controller ever
- now with NEW PROTECT-A-FET technology -
Building off of the successes from the Cinque-LED DMX Dimmer, we are now introducing a 24-channel version of the controller. It features the same high precision dimming from 0 - 100% with smooth low-end dimming. It includes Protect-A-Fet protection on each output channel allowing for short circuit protection on each dimming channel. This ensures that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use AND no internal damage will result.
The VentiQuattro LED Dimmer has all the features our film, television, and theatrical friends have been asking for. It is an extremely durable metal, rugged housing with professional-grade XLR 5-Pin In/Out and RJ45 In/Out for DMX signal. The terminal blocks used for the input have two spaces for Voltage + and two spaces for GND which allow for the huge current capability this unit has 24 X 4A = 96 AMPS of power!Need more power per output? No problem. Just change the settings to group some of the output channels together.
This unit also has a easy-to-read LED display for setting address and manual mode settings. The VentiQuattro-LED DMX Dimmer has 8 bit and 16 bit resolution modes as well as output PWM frequency adjustable settings from 500Hz to 35kHz. On top of all of that there is ALSO a gamma curve value which adjusts the dimming curve of the unit so you can have an extremely high resolution low end or an extremely high resolution high end. It's entirely up to you!
The Venti-Quattro-LED DMX Dimmer is BY FAR the most advanced standalone DMX Decoder controller unit on the market, EVER!
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into five dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors?to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
- LED Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
- Supply Voltage: 12V - 24V DC
- Output: 24 Channels
- Output Current: 24 CH @ 4A/CH = Max 96A
- Output Power: 1152W @ 12V / 2304W @ 24V
- PWM Frequency: 500Hz to 35kHz
- Bit Rate: 8 Bit & 16 Bit
- External Dimension (mm): L235*W82*H40
- Gross Weight: 350g
- Working Temperature: -20C to +70C
- IP Rating: IP40
DOWNLOADS
View full product details
FlexLED Bi-Color 2700K - 5600K 12V (CCT Adjustable)
$168.68 CAD
Color Temperature adjustable high density FlexLED Tape
2700K - 5600K CRI <95 TLCI <98.
Two versions of our bi-color FlexLED are now available. 120 LED/meter (12MM Width) standard. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
This version is suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 12 Volt |
Bi-Color 196 24 Volt |
| Product Code | : | I12VBC27566003528 | I24VBC30569803528 |
| CRI | : | ≥95 | ≥95 |
| Kelvin | : | 2700k - 5600k | 3000k - 5600k |
| PCB Color | : | White | White |
| Current, Rating | : | 1.59 A / meter | 1.4 A / meter |
| Voltage | : | 12 VDC | 24 VDC |
| Wattage | : | 19.2 W / meter | 33.6 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 |
| Lumens @ Full | : | 1800 lm / meter | 3,600 lm/meter |
| Lumen / Watt | : | 94 | 94 |
| Lifetime* | : | 50,000 hours | 30,000 hours |
| Cutting Length | : | 5CM | 7CM |
| LED Quantity | : | 120 LED / meter | 196 LED / meter |
| Number of Contacts | : | 3 | 3 |
| LED Type | : | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | CE, RoHS |
| PCB Width | : | 12MM | 10MM |
| Maximum Recommended Length | : | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 |
DOWNLOADS
View full product details
FlexLED RGB 12V
$135.42 CAD
