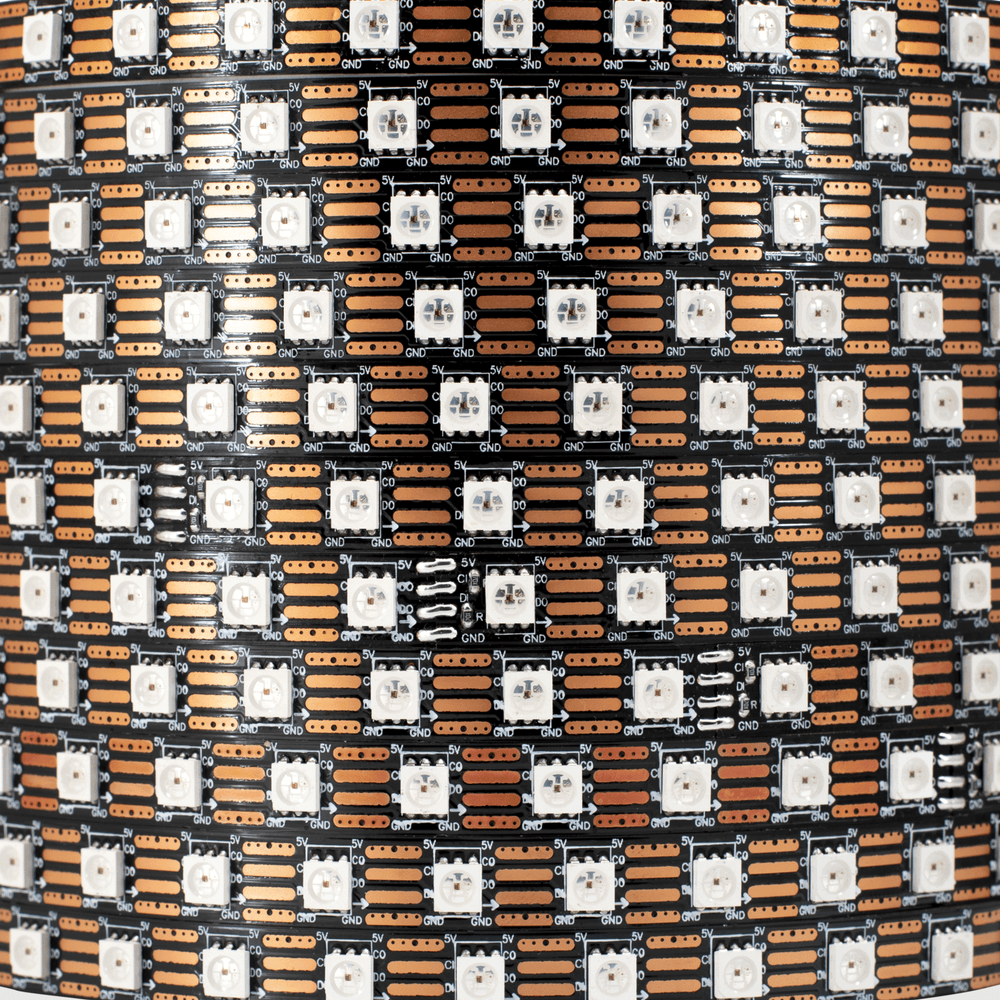

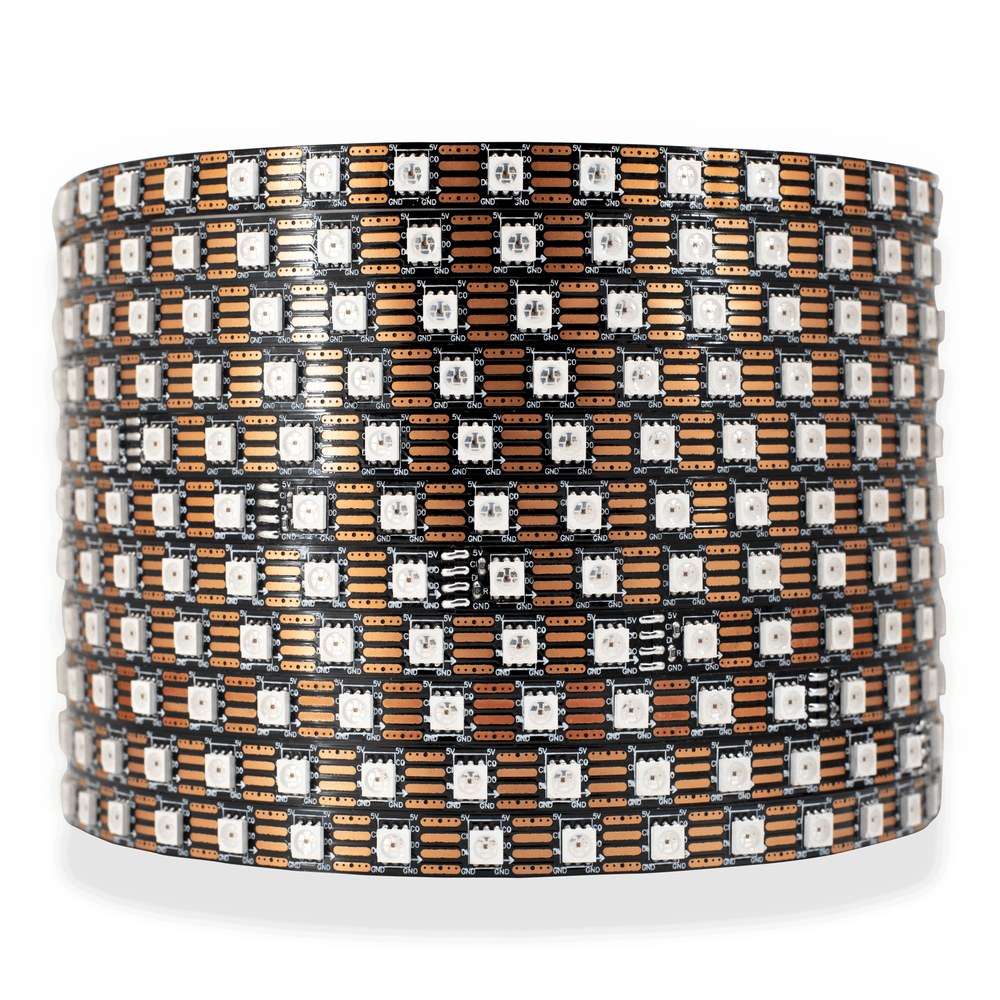

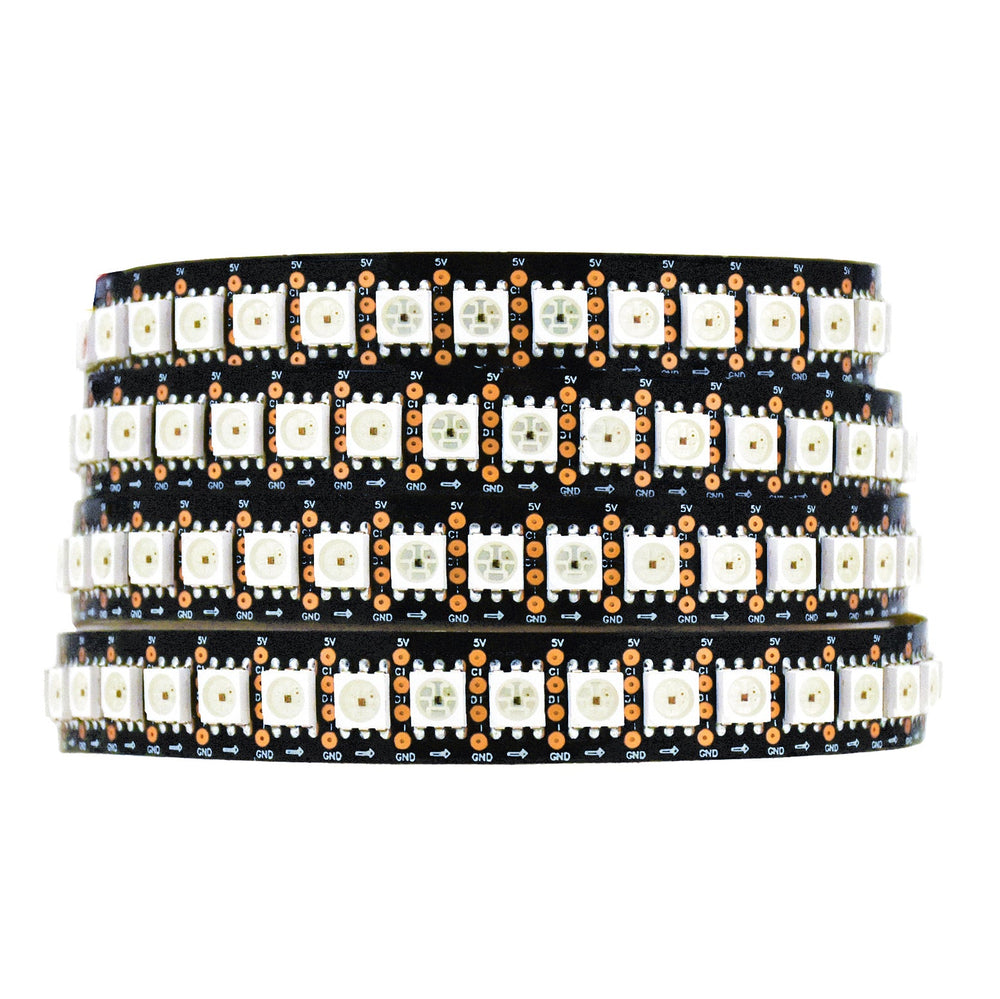

60, 72, and 144 LED/Meter PixelFlex LED Tape in 5V DC
High frequency and high quality APA-102C chips provide individual control to each pixel for dazzling effects and endless possibilities. Control these strips with our PixlArt 416 controller via ArtNet or sACN data signals.
Suitable for on-camera use and flicker-free up to 1000 fps at most camera settings.
Please Note :
Due to voltage drop, our 144 LED/meter is manufactured in 1 meter in lengths.
60 and 72 LED/meter are standard 5 meters in length.
Pixel Product Installation Notes:
- The PWM frequency (dimming frequency) is baked into the pixel and cannot be changed. You must ensure you choose the right pixel strip for your application. If you are unsure of what camera settings are going to be in use, it is best to go with high frequency pixel tape (8khz or higher / GS8208 or APA102)
- Avoid voltage drop by positioning a power supply close to the LED strip and/or powering the LED strip from multiple locations (or via multiple power supplies)
- The power supply that is providing power to the controller (PixlArt416) does not need to be the same power supply that is powering the LED strip.
- During testing ensure that the pixel strip is receiving the required voltage by doing a volt meter test at the contact pads of the LED strip.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Other Notes:
- Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
- Waterproof strips require mounting via silicone glue or mechanical hardware
- Controller, power supply and extension cables are sold separately based on your project
- Quantity discounts available
- Custom colour temperatures, pixel densities, and PCB colour are available
- Please contact us for more information
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | 60 LED/meter | 72 LED/meter | 144 LED/meter |

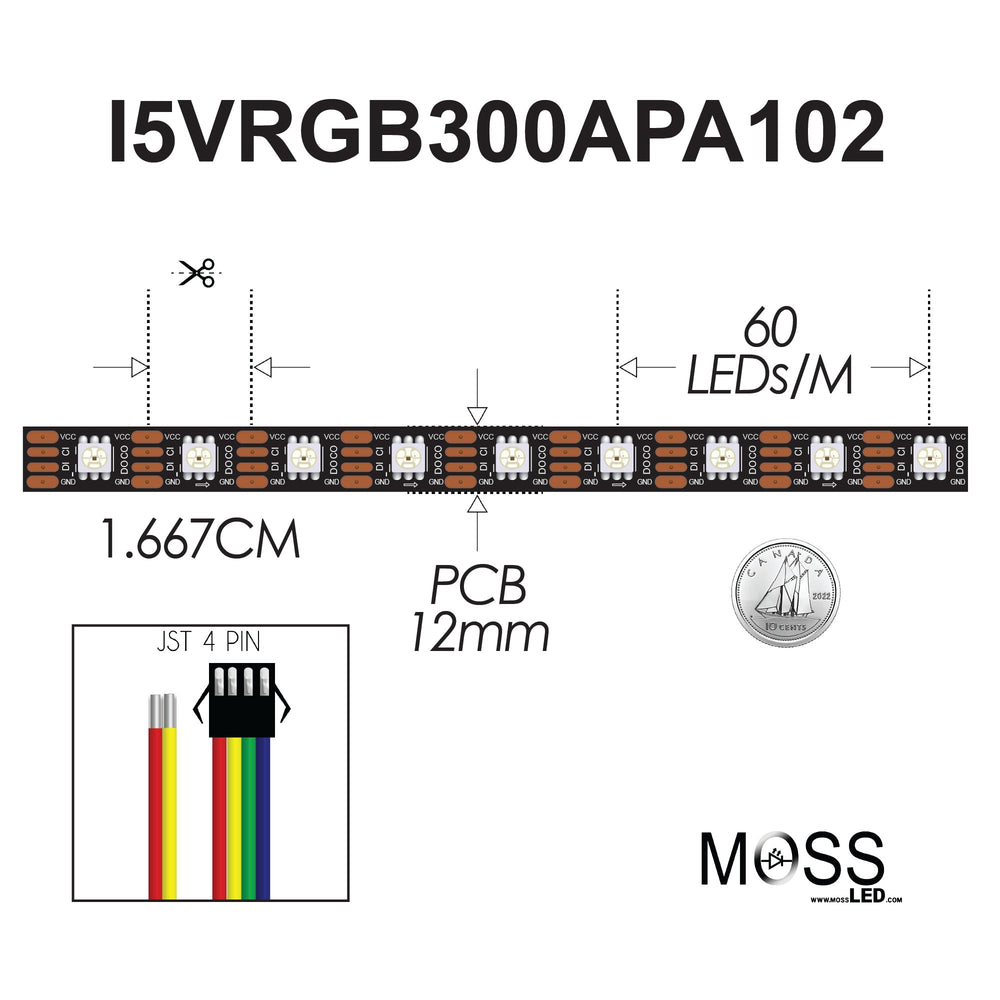

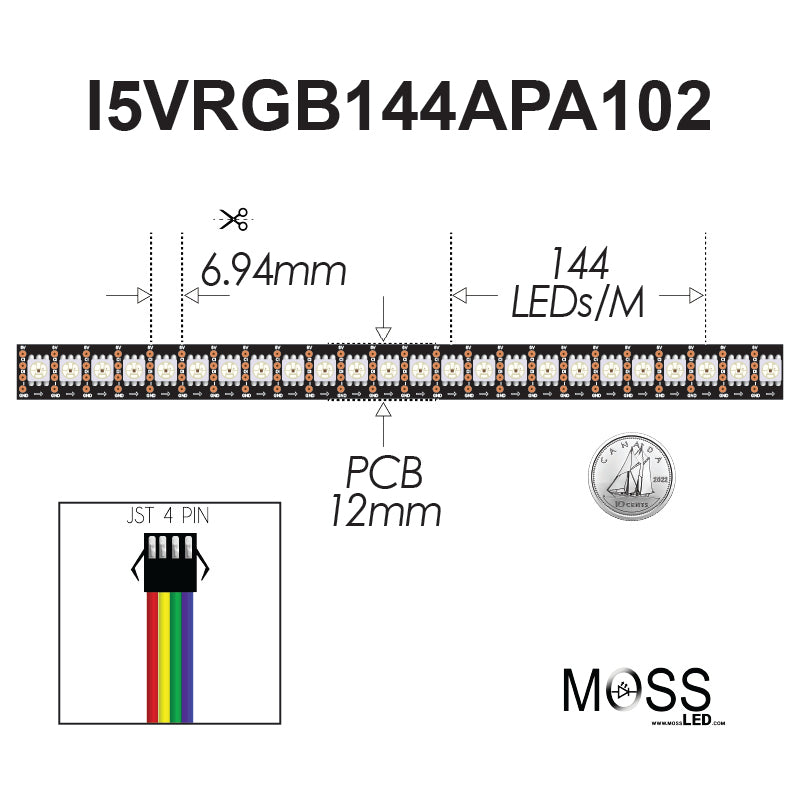

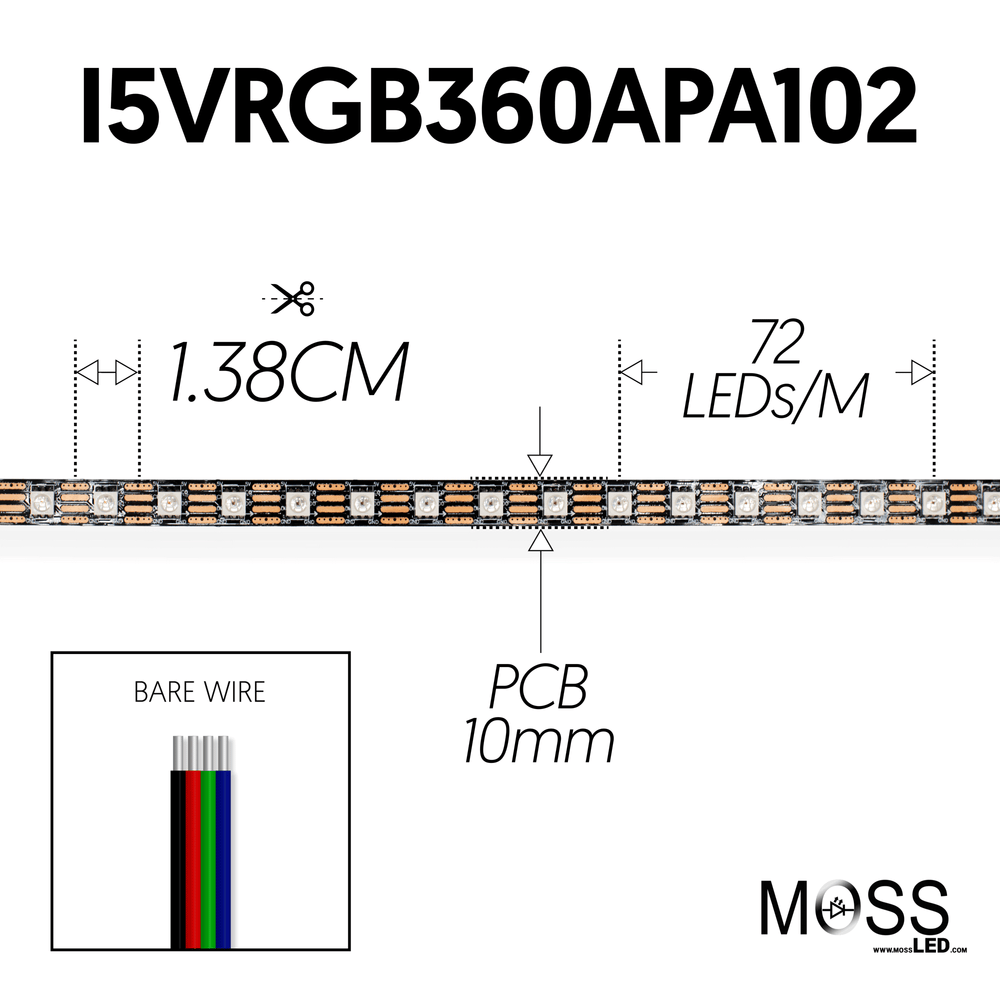

| Product Code | : | I5VRGB300APA102 | I5VRGB360APA102 | I5VRGB144APA102 |
| CRI | : | N/A | N/A | N/A |
| Kelvin | : | RGB | RGB | RGB |
| PCB Color | : | Black | Black | Black |
| Current, Rating | : | 3.6 A / meter | 4.32 A / meter | 7.6 A / meter |
| Voltage | : | 5 VDC | 5 VDC | 5 VDC |
| Wattage | : | 18 W / meter | 21.6 W / meter | 38 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 216 | 260 | 518 |
| Lumen / Watt | : | 12 | 12 | 12 |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours |
| Cutting Length | : | Individual LED | Individual LED - 1.3 CM | Individual LED |
| LED Quantity | : | 60 LED / meter | 72 LED / meter | 144 LED / meter |
| Number of Contacts | : | 4 | 4 | 4 |
| LED Type | : | APA-102C | APA-102C | APA-102C |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10 MM | 10 MM | 10 MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 1 meter |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 3M 300MP | 3M 300MP | 3M 300MP |
| Wavelength A | : | 620 ~ 625nm | 620 ~ 625nm | 620 ~ 625nm |
| Wavelength B | : | 522 ~ 525nm | 522 ~ 525nm | 522 ~ 525nm |
| Wavelength C | : | 467.5 ~ 470nm | 467.5 ~ 470nm | 467.5 ~ 470nm |
| Wavelength D | : | N/A | N/A | N/A |
| Data Transmission Speed | : | 1 MHZ | 1 MHZ | 1 MHZ |
| Refresh Rate | : | 30 FPS | 30 FPS | 30 FPS |
| Bit Rate | : | 32 Bit | 32 Bit | 32 Bit |
| Data Clock Frequency | : | 0 ~ 5 MHZ | 0 ~ 5 MHZ | 0 ~ 5 MHZ |
| PWM Frequency | : | 20kHz | 20kHz | 20kHz |
DOWNLOADS
-
Specification Sheet
UL Certificate of Compliance
Specification Sheet*nominal lifetime - dependent on installation location
