10" Round Aluminum LED Panel

Sold Out $136.50

High output rigid LED panel with excellent output with only a 42W draw Rigid aluminum panel acts as a heat-sink and protects longevity of LEDs...

12V Pixel Dots

$4.20

Individually controlled pixel dots.

This is a highly responsive RGB  pixel product.  Each pixel dot can change colour independent of one another.
12 Volt, WS2801.  Compatible with our LXFXBX & PixlArt416 controllers or theoretically any device that outputs WS2801 pixel protocol.

• Specifications
• Downloads
• Accessories

•

  SPECIFICATIONS - WEATHERPROOF (IP66) PRODUCT

  Product Type	:	RGB Diffused Pixel Module
  Product Code	:	O-12V-MOD-5050-D4PD-RGB-WS2801
  CRI	:	N/A
  Kelvin	:	N/A
  PCB Color	:	White
  Current, Rating	:	0.06A / Pixel
  Voltage	:	12 VDC
  Wattage	:	0.72 W / Pixel
  CC / CV	:	Constant Voltage
  IP Rating	:	IP66
  Lumens @ Full	:	N/A
  Lumen / Watt	:	N/A
  Lifetime*	:	30,000 hours
  Pixel Pitch	:	3.93" / 10CM
  LED Quantity	:	3 X RGB LEDs
  Number of Contacts	:	4
  LED Type	:	5050
  Copper Quantity	:	3 Oz.
  Temperature, Operating, Maximum	:	60℃
  Temperature, Operating, Minimum	:	-20℃
  Agency Ratings	:	CE, RoHS
  Dimensions	:	30MM Diameter
  Maximum Recommended Length	:	200 Pixel Dots (Power Injection Required Every 50 Dots)
  Viewing Angle	:	180 degree
  Adhesion	:	Mechanical Fastener Required





•

  DOWNLOADS

  1. Specification Sheet (Pending)

  2.  RoHS Test Report





•

24V Battery Holder

$9.99 $10.68

2 X 23A / A23 Battery Holder 24V Battery Pack Holds (2) 23A 12V Batteries and outputs 24V DC Powers 10 centimeters of FlexLED 24V...

24V RGB+W 4100k Panel 1x1

Sold Out $94.99

A high output RGB+W 1' x 1' panel.  49 X RGB and 98 X 4100k LEDs provide a nice even output for backlighting and downlighting....

3.5MM Stereo Cable (for Gantom fixtures)

$4.17

3.5mm Stereo Plug/Plug M/M Cable - Black This is a brand new high quality 3.5mm (1/8" headphone jack size) stereo audio male to male cable....

3.5MM Stereo Y Cable (for Gantom fixtures)

$4.23

3.5mm Stereo 1M to 2F Cable - Black This is a brand new high quality 3.5mm (1/8" headphone jack size) stereo audio 1 male to...

5V - 50W - 10A Power Supply

$63.85

Our smallest desk-top power supply can power our line of 5V Original Single-Color FlexLED Tapes.  WS812B and APA102 both operate off of 5V Power. Suitable...

5V Pixel Dots

$2.45

Individual controlled pixel dots. 5 Volt, APA 102 Chips.  Compatible with our LXFXBX & PixlArt416 controllers.   SPECIFICATIONS - WEATHERPROOF (IP66) PRODUCT Product Type :...

ALH-5858 Channel Only - 2 Meter

$79.00

Aluminum Channel MOSS-ALH-5858 Channel only.  No clips or end caps.  2 Meters

Aluminum Channel - MOSS-ALH-1212

$29.00

Aluminum Profile designed for mounting 8MM glass shelf. Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 2 Meter Lengths (Available in 0.5 - 3...

Aluminum Channel - MOSS-ALH-5858

$89.00

Aluminum Profile designed for mounting 8MM glass shelf. Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 2 Meter Lengths (Available in 0.5 - 3...

Aluminum Channel - MOSS-ALJ-1617

Sold Out $38.96

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) Brackets (2), (1) Cover, and (2)...

Aluminum Channel - MOSS-ALJ-2210-2208

$22.09

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALJ-2210-2208

$22.09

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALJ-2232

$224.99

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Hangers, and (2) End-Pieces included...

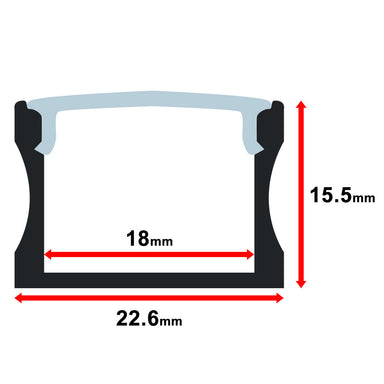

Aluminum Channel - MOSS-ALJ-2316

Sold Out $20.54

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALJ-3028

$60.60

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (1) Cover, and (2) End-Pieces included...

Aluminum Channel - MOSS-ALLL-5035-D

$161.19

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 2 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (1) Milky Cover, and (2) Aluminum...

Aluminum Channel - MOSS-ALM-1506

$17.21

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) Brackets (2), (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1520

$69.24

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1612

Sold Out $13.88

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1707

$34.80

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1707F

Sold Out $13.88

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 2 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1715

Sold Out $36.64

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (2) Brackets, (1) Cover, and (2) End-Pieces included in each 1 Meter Length...

Aluminum Channel - MOSS-ALM-1815

$38.92

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) Brackets (2), (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-1919

Sold Out $49.99

*DISCONTINUED* REPLACED WITH ALQ-1919H Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets,...

Aluminum Channel - MOSS-ALM-1919

$18.76

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2016B

$75.69

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2019

$23.31

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Hangers, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2020

$41.63

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2027

$109.80

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (1) Cover, and (2) End-Pieces included...

Aluminum Channel - MOSS-ALM-2212

Sold Out $17.06

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2310

Sold Out $79.25

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 2 Meter Lengths) Brackets (2), (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2507

$24.20

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 2 Meter Lengths) (2) Brackets, (1) Cover, and (2)...

Aluminum Channel - MOSS-ALM-2515

$22.61

Beautifully Crafted Aluminum Channel for our Flexible LED Strips Standard 1 Meter Lengths (2) Brackets, (1) Cover, and (2) End-Pieces included in each 1 Metre...

Aluminum Channel - MOSS-ALM-2618

$31.67

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (1) Cover, and (2) End-Pieces included...

Aluminum Channel - MOSS-ALM-2618B

$68.55

Beautifully Crafted Aluminum Channel for our FlexLED Strips Standard 1 Meter Lengths (Available in 0.5 - 3 Meter Lengths) (1) Cover, and (2) End-Pieces included...
