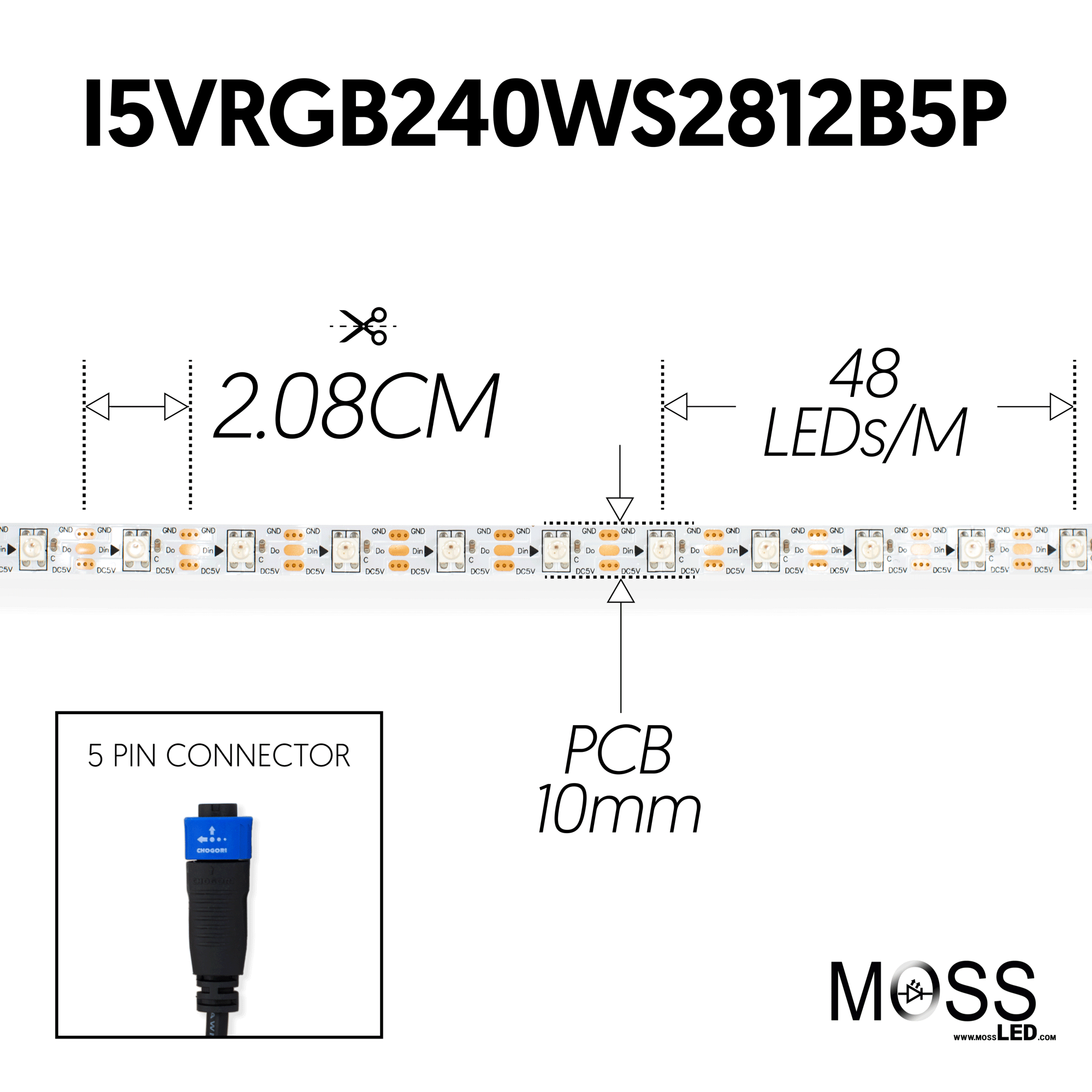

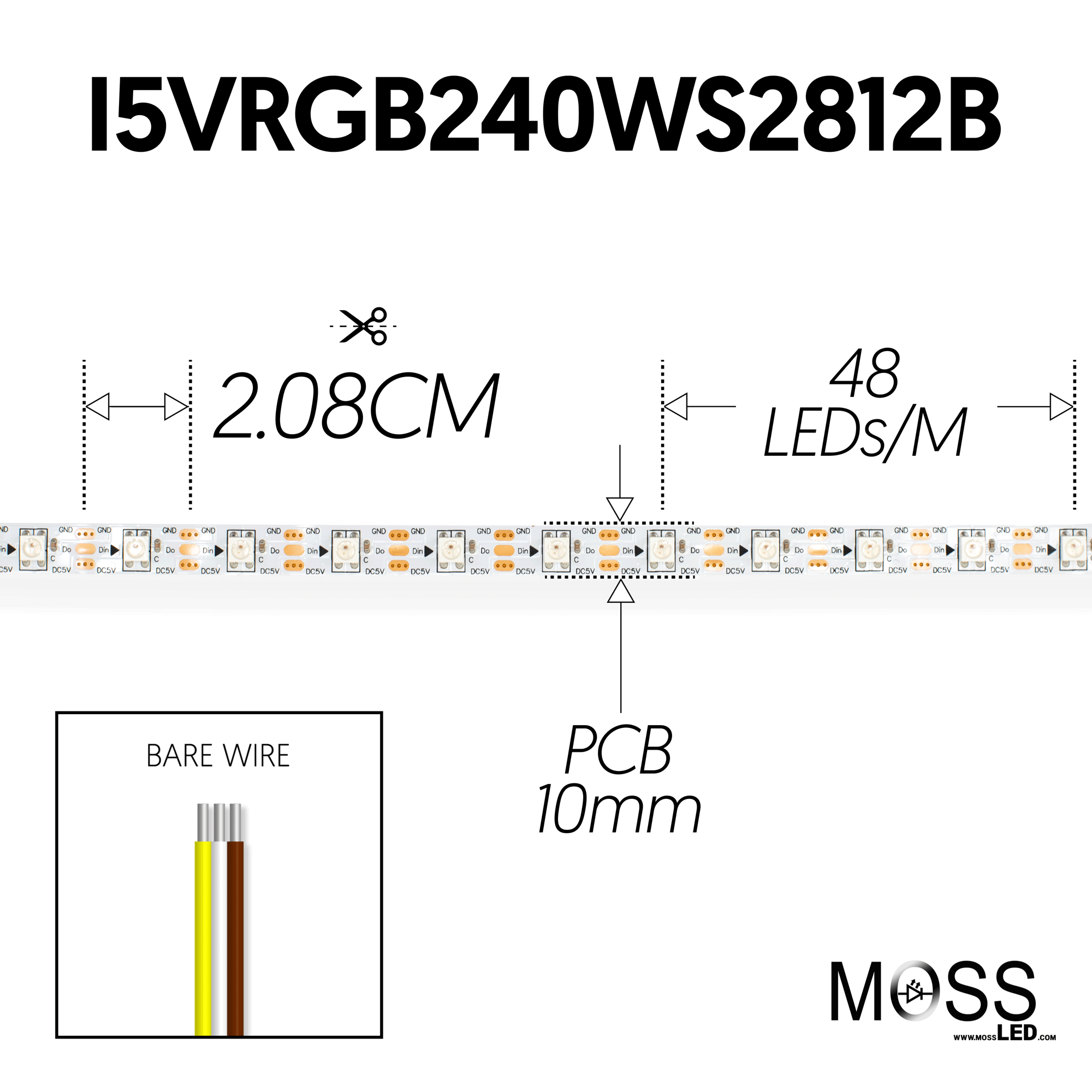

Moss LED Pixel FlexLED 5V RGB WS2812B specification drawing 2.08cm cut interval 48 LEDs per meter 10mm PCB bare wire

Pixel FlexLED 5V RGB Low Frequency - WS2812B

SKU I5VRGB240WS2812B
by MossLED

Qty Discount
5 5%
10 10%
21 15%
The more you buy, the more you save!
Save 63%
$164.97
$60.48
IP Rating
Pixel Density
Voltage

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

8 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 8 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

THIS PRODUCT IS DISCONTINUED AFTER REMAINING INVENTORY SOLD
48, 60 & 72 LED/Meter PixelFlex LED Tape RGB in 5V DC

Mid frequency and high quality WS-2812-B chips provide individual control to each pixel for dazzling effects and endless possibilities. Control these strips with our PixlArt 416 controller via ArtNet or sACN data signals.

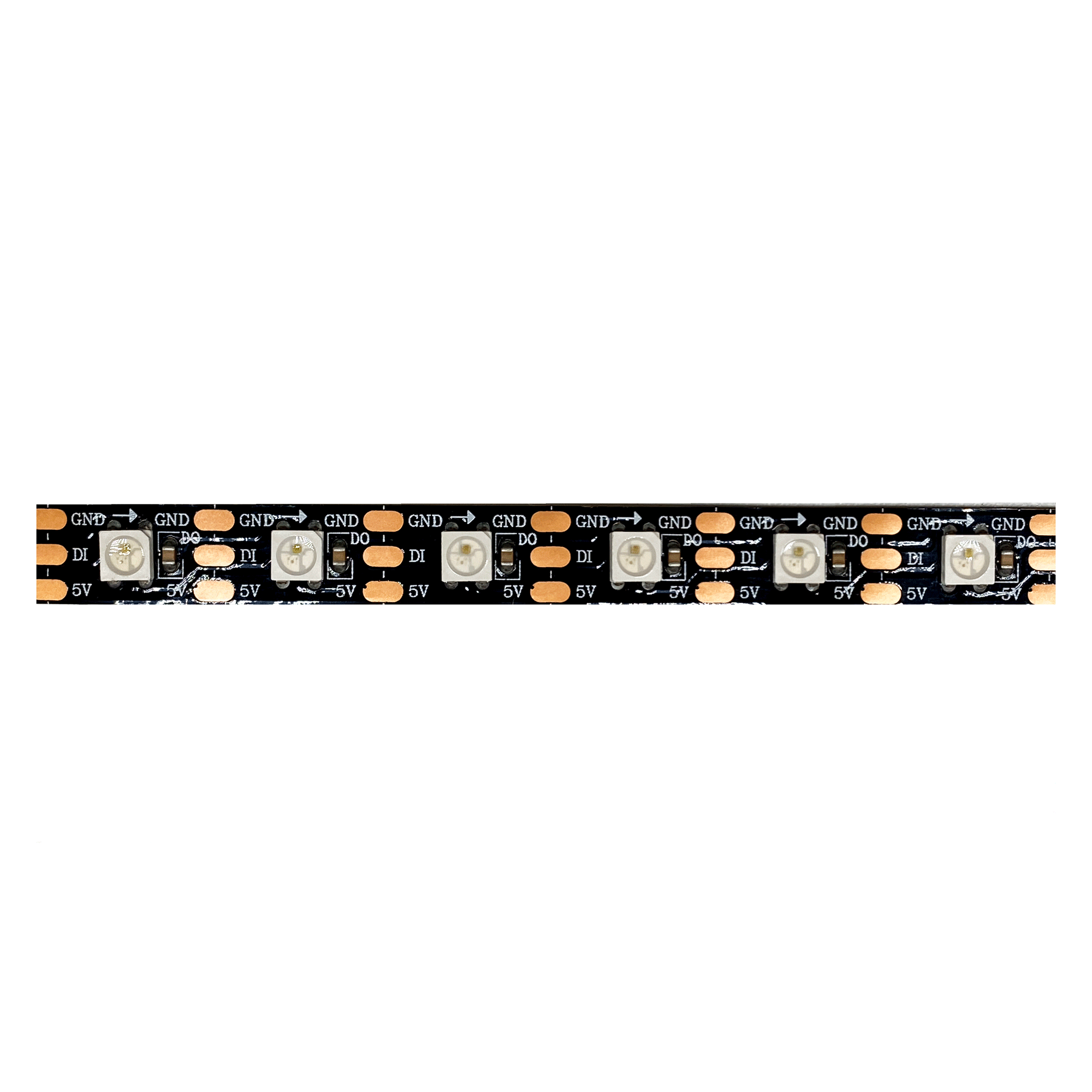

Suitable for some on-camera use and flicker-free up to 60 fps at most camera settings. 2 kHz operating frequency. 60 LED/meter currently available in Black PCB.

Pixel Product Installation Notes:

  • The PWM frequency (dimming frequency) is baked into the pixel and cannot be changed.  You must ensure you choose the right pixel strip for your application.  If you are unsure of what camera settings are going to be in use, it is best to go with high frequency pixel tape (8khz or higher / GS8208 or APA102)
  • Avoid voltage drop by positioning a power supply close to the LED strip and/or powering the LED strip from multiple locations (or via multiple power supplies)
  • The power supply that is providing power to the controller (PixlArt416) does not need to be the same power supply that is powering the LED strip.
  • During testing ensure that the pixel strip is receiving the required voltage by doing a volt meter test at the contact pads of the LED strip.


Soldering Guidelines:

Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Other Notes:

  • Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
  • Waterproof strips require mounting via silicone glue or mechanical hardware
  • Controller, power supply and extension cables are sold separately based on your project
  • Quantity discounts available
  • Custom colour temperatures, pixel densities, and PCB colour are available
  • Please contact us for more information

Pricing is for 5 meters (16.4')





SPECIFICATIONS - INDOOR PRODUCT

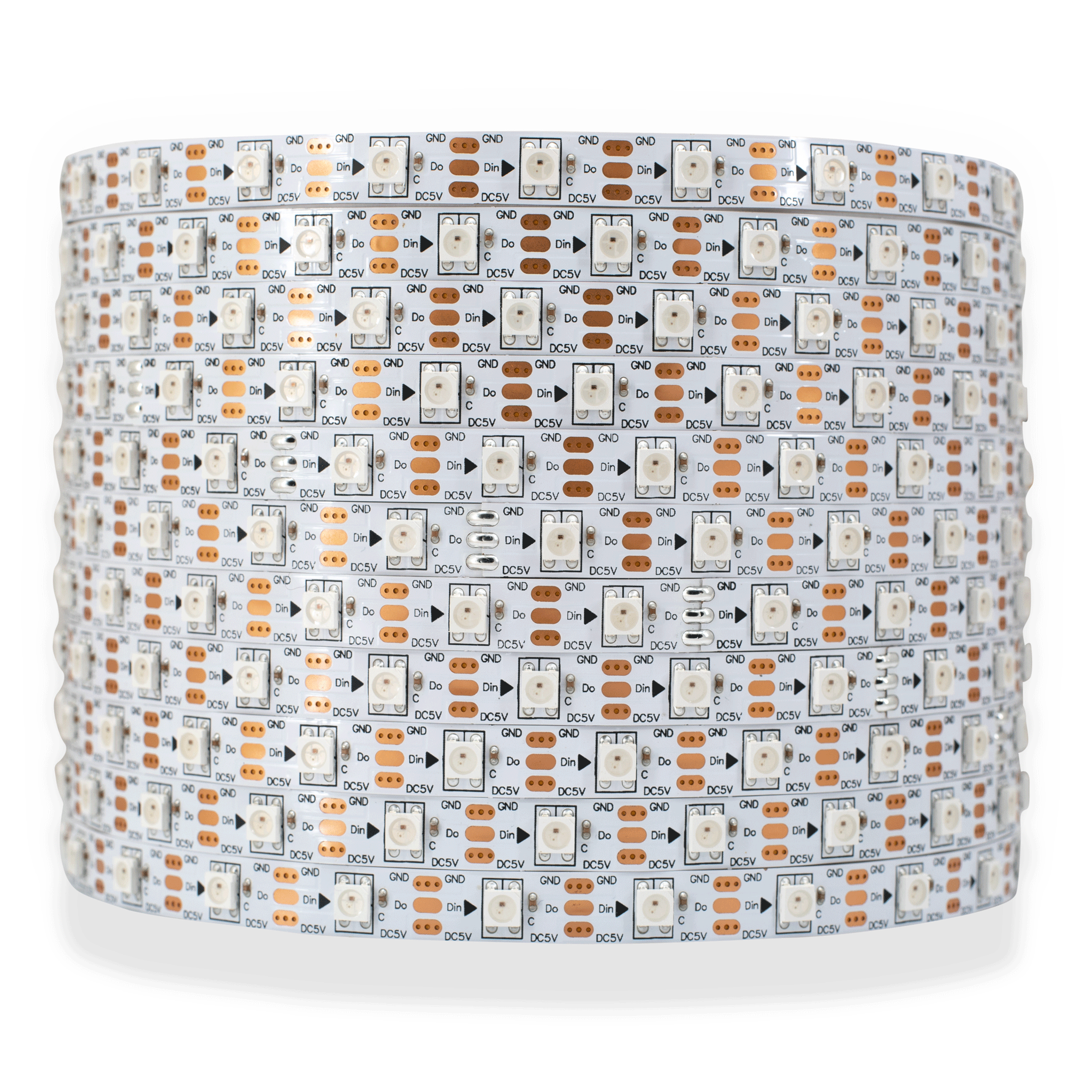

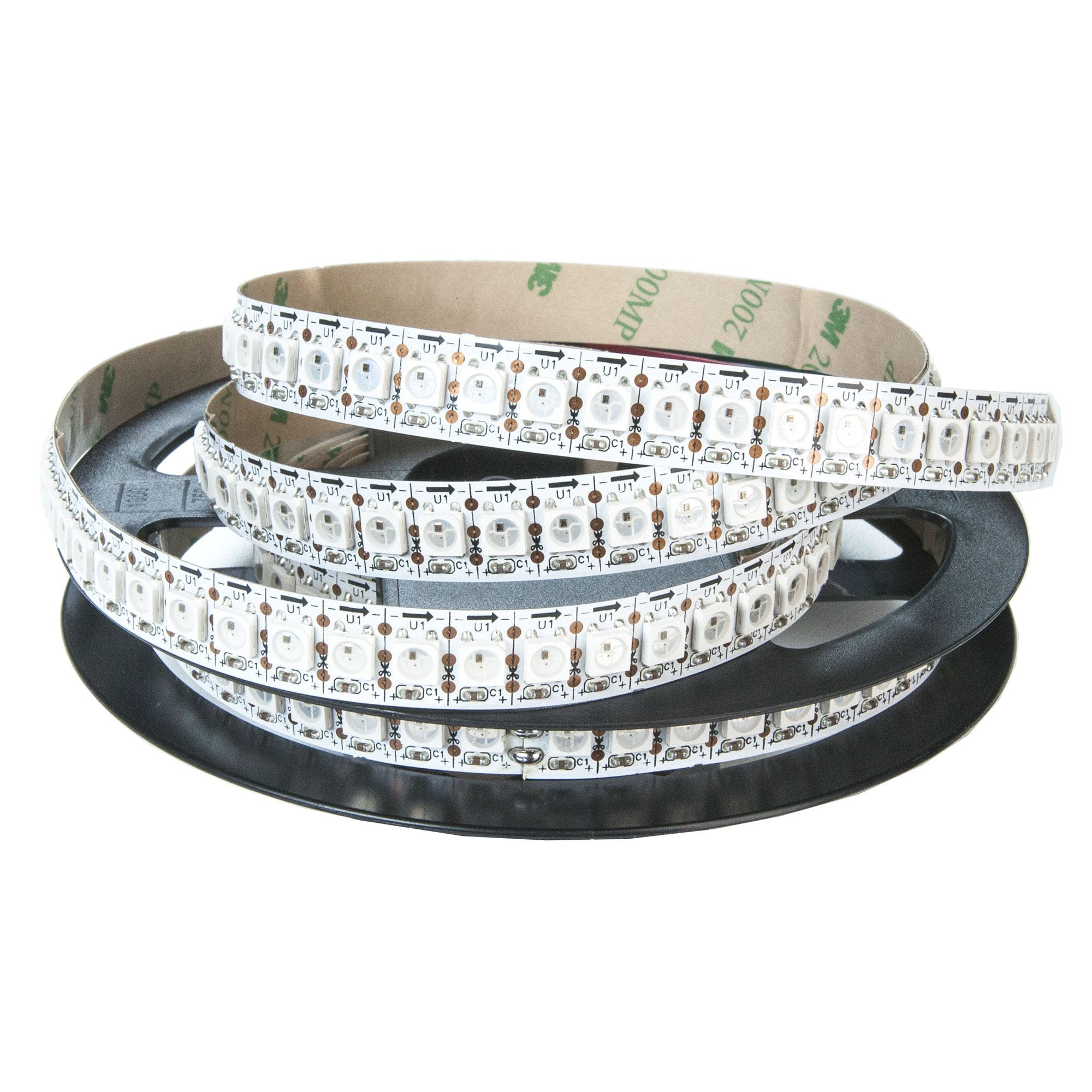

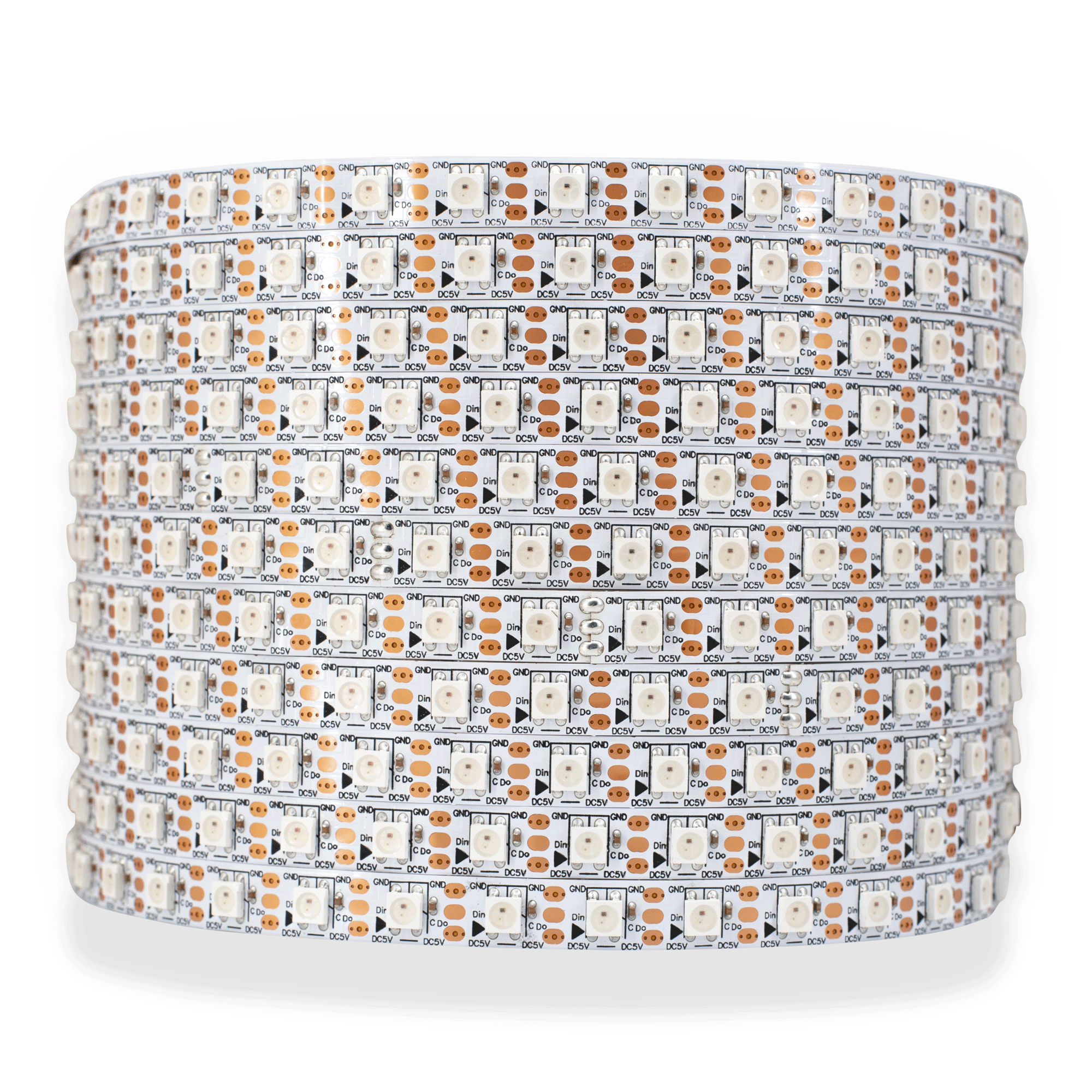

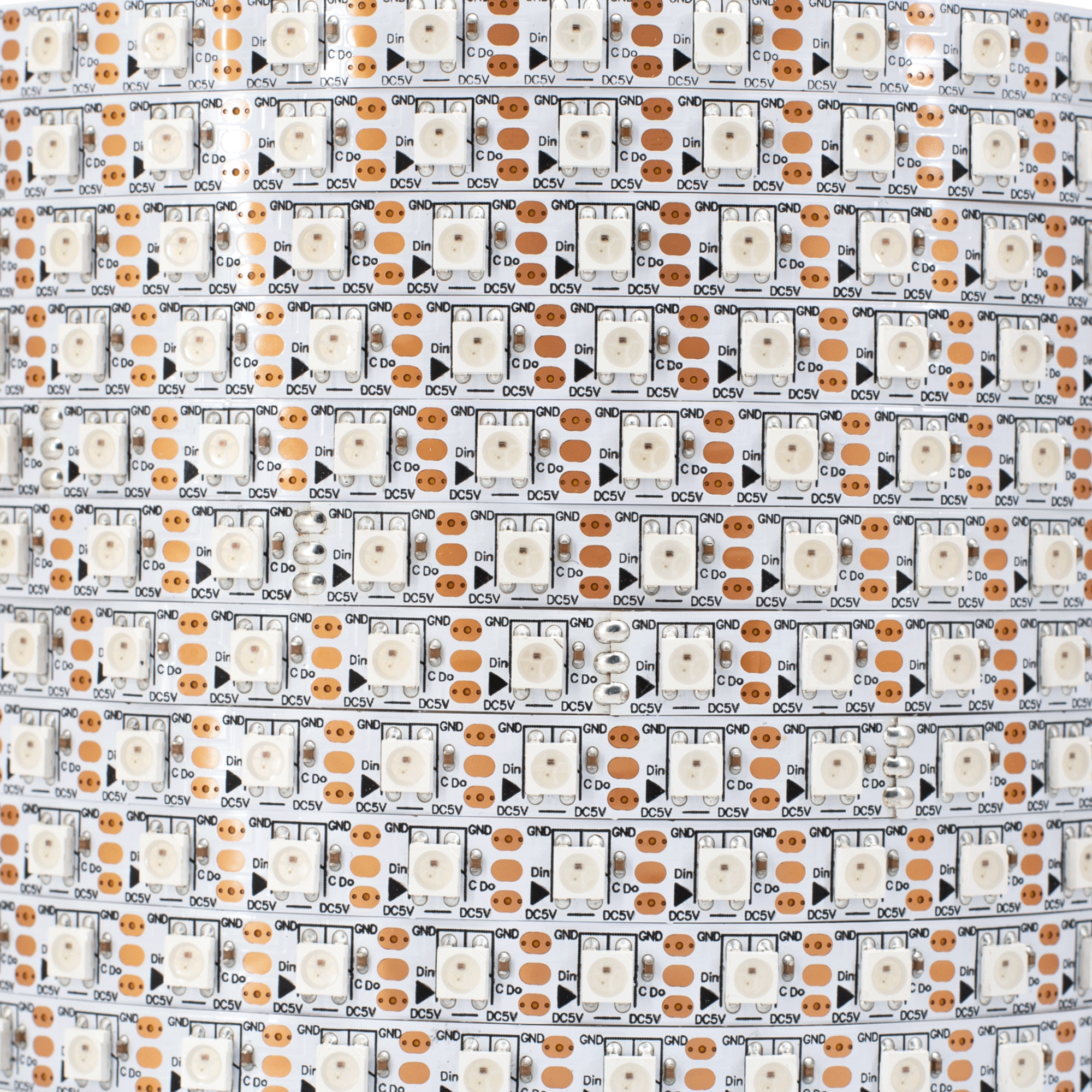

Product Type : 48 LED/meter 60 LED/meter 72 LED/meter 96 LED/meter
Product Code : I5VRGB240WS2812B I5VRGB3005050-WS2812B I5VRGB360WS2812B I5VRGB480WS2812B
CRI : N/A N/A N/A N/A
Kelvin : N/A N/A N/A N/A
PCB Color : White Black White White
Current, Rating : 2.88 A / meter 3.6 A / meter 4.32 A / meter 5.76 A / meter
Voltage : 4.5 ~ 5.5 VDC 4.5 ~ 5.5 VDC 4.5 ~ 5.5 VDC 4.5 ~ 5.5 VDC
Wattage : 14.4 W / meter 18 W / meter 21.6 W / meter 28.8 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43 IP43
Lumens @ Full : 64.3 80.8 96.48 124.8
Lumen / Watt : 4.46 4.46 4.46 4.46
Lifetime* : 30,000 hours 30,000 hours 30,000 hours 30,000 hours

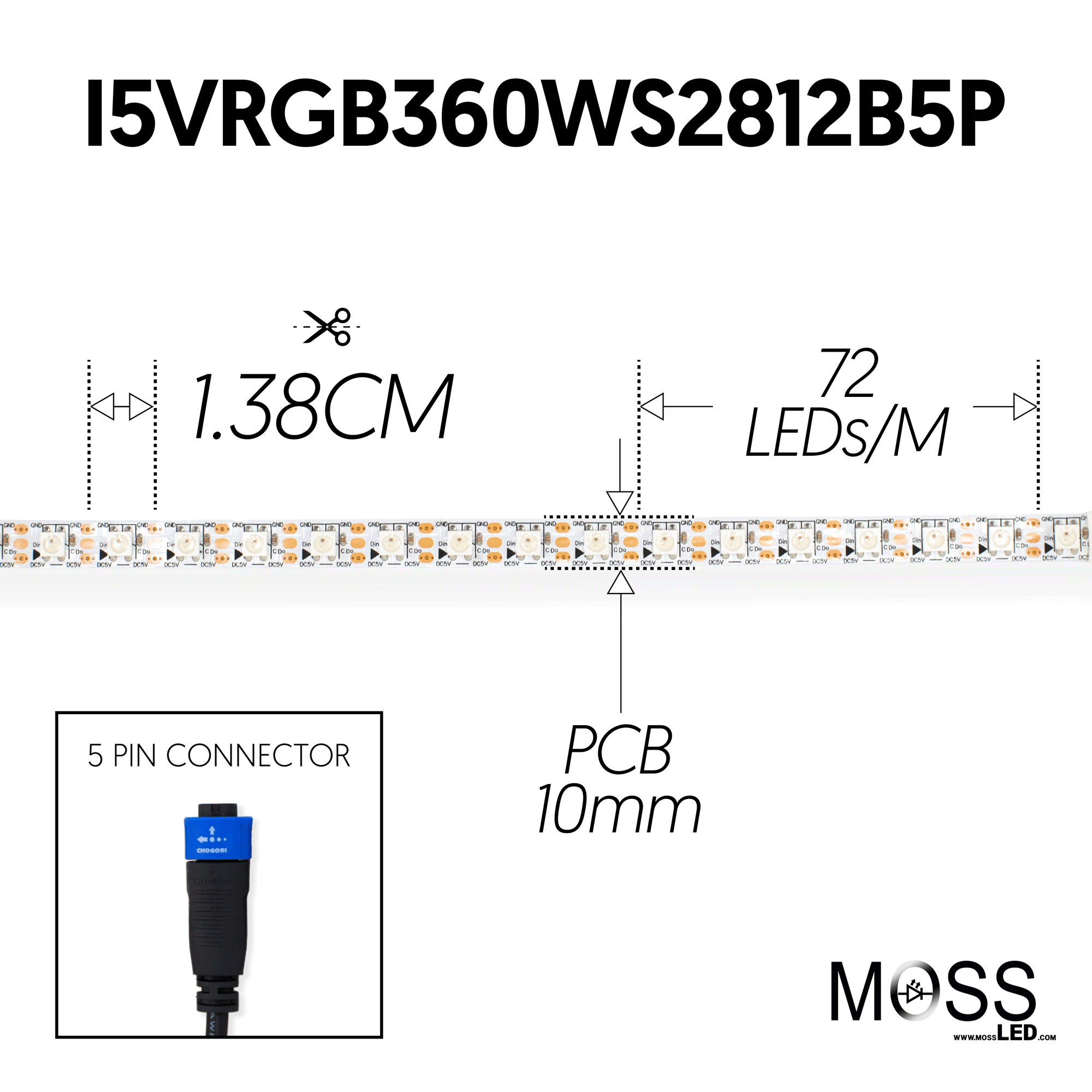

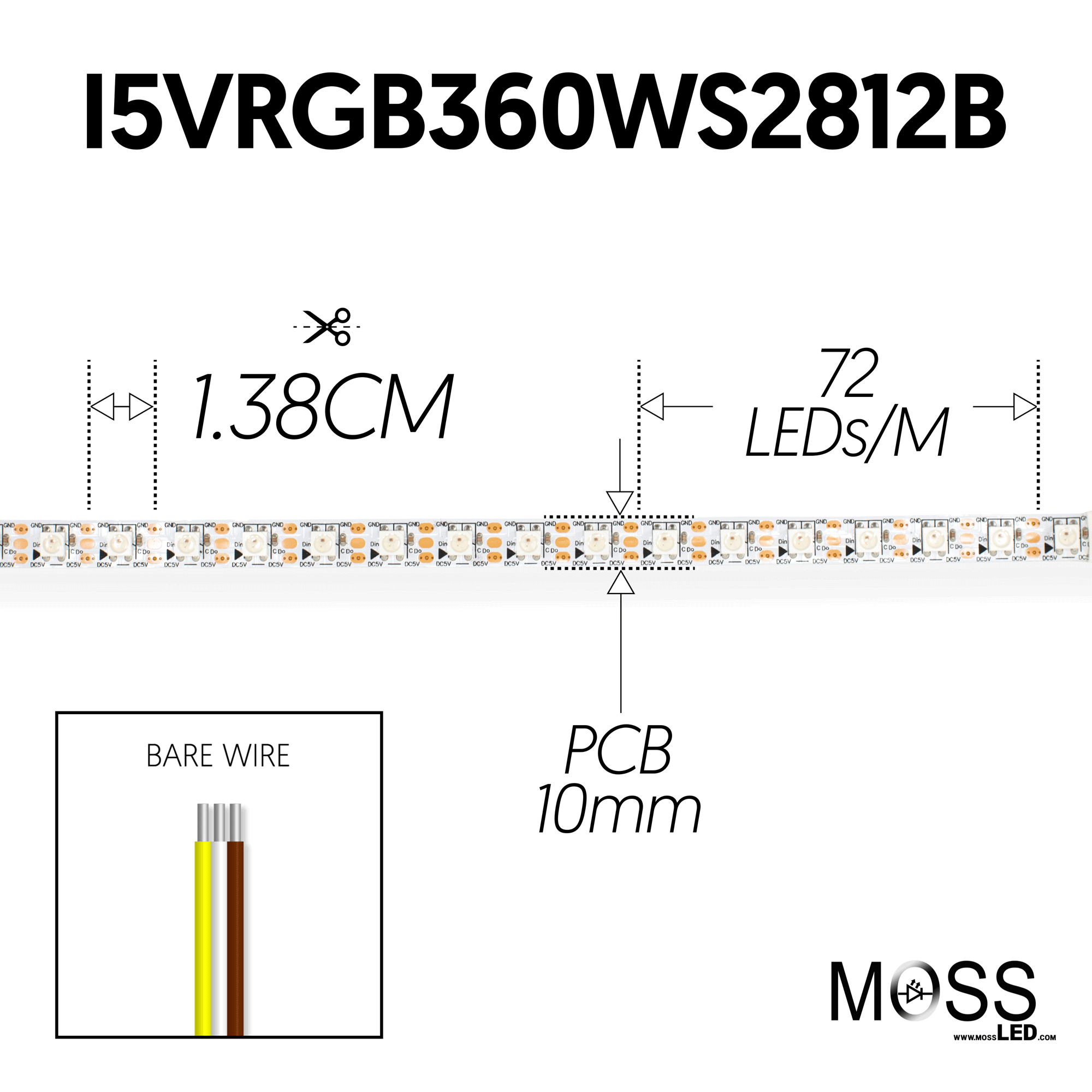

Cutting Length : Individual LED Individual LED - 1.65 CM Individual LED - 1.3 CM Individual LED - 1.3 CM
LED Quantity : 48 LED / meter 60 LED / meter 72 LED / meter 96 LED / meter
Number of Contacts : 3 3 3 3
LED Type : WS2812B WS2812B WS2812B WS2812B
Copper Quantity : 3 Oz. 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 10 MM 10 MM 10 MM 10 MM
Maximum Recommended Length : 5 meters 5 meters 5 meters 2.5 meters
Viewing Angle : 120 degree 120 degree 120 degree 120 degree
Adhesion : 3M 300LSE 3M 300LSE 3M 300LSE 3M 300LSE
Operating Frequency : 2 kHz 2 kHz 2 kHz 2 kHz
Wavelength A : 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm 620 ~ 625nm
Wavelength B : 522 ~ 525nm 522 ~ 525nm 522 ~ 525nm 522 ~ 525nm
Wavelength C : 465 ~ 467nm 465 ~ 467nm 465 ~ 467nm 465 ~ 467nm
Wavelength D : N/A N/A N/A N/A
Data Transmission Speed : 800 kHz 800 kHz 800 kHz 800 kHz
Refresh Rate : 30 FPS 30 FPS 30 FPS 30 FPS
Bit Rate : 24 Bit 24 Bit 24 Bit 24 Bit

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location
