FlexLED Tape PRO
Flexible LED tape with unparalleled quality, light output, and color rendering. Consistent, Color Correct, and a High CRI of 90 - 98.
FlexLED 196 White 24V
$263.25 CAD
Industry Standard 3000k, 4100k, and 5600k High CRI >95
196 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)
Suitable for on-camera use, or anywhere a high-quality white light is required.
High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Neutral White | Cool White |
| Product Code | : | I24VWW309803528 | I24VNW419803528 | I24VCW569803528 |
| CRI | : | <95 | <95 | <95 |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 1.4 A / meter | 1.4 A / meter | 1.4 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 33.6 W / meter | 33.6 W / meter | 33.6 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 3600 lm / meter | 3600 lm / meter | 3600 lm / meter |
| Lumen / Watt | : | 107.1 | 107.1 | 107.1 |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours |
| Cutting Length | : | 3.5CM | 3.5CM | 3.5CM |
| LED Quantity | : | 196 LED / meter | 196 LED / meter | 196 LED / meter |
| Number of Contacts | : | 2 | 2 | 2 |
| LED Type | : | 2835 | 2835 | 2835 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
-
Specification Sheet
UL Certificate of Compliance
Specification Sheet*nominal lifetime - dependent on installation location
FlexLED 60 White 24V
$172.88 CAD
Industry Standard 3000k, 4100k, and 5600k High CRI >95
60 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)
Suitable for on-camera use, or anywhere a high-quality white light is required.
High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Neutral White | Cool White |
| Product Code | : | I24VWW323005050 | I24VNW413005050 | I24VCW563005050 |
| CRI | : | <95 | <95 | <95 |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.6 A / meter | 0.6 A / meter | 0.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 14.4 W / meter | 14.4 W / meter | 14.4 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 1000 lm / meter | 1000 lm / meter | 1000 lm / meter |
| Lumen / Watt | : | 69.4 | 69.4 | 69.4 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours |
| Cutting Length | : | 10CM | 10CM | 10CM |
| LED Quantity | : | 60 LED / meter | 60 LED / meter | 60 LED / meter |
| Number of Contacts | : | 2 | 2 | 2 |
| LED Type | : | 5050 | 5050 | 5050 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 ?C | 70 ?C | 70 ?C |
| Temperature, Operating, Minimum | : | -40 ?C | -40 ?C | -40 ?C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 10 meters | 10 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
*nominal lifetime - dependent on installation location
FlexLED 60 UV 24V
$158.19 CAD
UV FlexLED - 365 ~ 410nm
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 6.7m (22')
Controller, Power supply and Extension Cables sold separately
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | FlexLED 60 UV 24V |
| Product Code | : | I24VUV3005050 |
| CRI | : | N/A |
| Kelvin | : | N/A 365nm - 410nm |
| PCB Color | : | White |
| Current, Rating | : | 0.6 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 14.4 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 960 lm / meter |
| Lumen / Watt | : | 66.6 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 60 LED / meter |
| Number of Contacts | : | 2 |
| LED Type | : | 5050 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
FlexLED Chameleon 24V (Fully Bendable)
$153.35 CAD
Bendable FlexLED Tape
Suitable for residential, television, industrial, and commercial applications
Available in 3000k/4200k/6000k/RGB/RGBA/RGBW
Bendable in all directions
Great for use in sign channeling
3M double-sided tape on the back makes installation as easy as peel n stick.
Controller, power supply and extension cables sold separately
Custom color temperatures available. Please call to inquire.
*Certain colors are non-stock items and may take 3 - 4 weeks for delivery.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Chameleon 3000k | Chameleon 4100k | Chameleon 5600k | Chameleon RGB | Chameleon RGBA | Chameleon RGBW |
| Product Code | : | I24VCHAM301443528 | I24VCHAM411443528 | I24VCHAM561443528 | I24VCHAMRGB2105050 | I24VCHAMRGBA2405050 | I24VCHAMRGBW2405050 |
| CRI | : | ≥90 | ≥90 | ≥90 | N/A | N/A | ≥80 |
| Kelvin | : | 3000k | 4100k | 5600k | N/A | N/A | Custom CCT |
| PCB Color | : | White | White | White | White | White | White |
| Current, Rating | : | 0.6 A / meter | |||||
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 8.64 W / meter | 8.64W / meter | 8.64W / meter | 10.08W / meter | 15.36W / meter | 15.36W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 |
| Lumens @ Full | : | XX lm / meter | XX lm / meter | XX lm / meter | XX lm / meter | XX lm / meter | XX lm / meter |
| Lumen / Watt | : | N/A | N/A | N/A | N/A | N/A | N/A |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |
| Cutting Length | : | 10 CM | 10 CM | 10 CM | 10 CM | 10 CM | 10 CM |
| LED Quantity | : | 72 LED / meter | 72 LED / meter | 72 LED / meter | 42 LED / meter | 48 LED / meter | 48 LED / meter |
| Number of Contacts | : | 2 | 2 | 2 | 4 | 5 | 5 |
| LED Type | : | 2835 | 2835 | 2835 | 5050 | 5050 | 5050 |
| Copper Quantity | : | 1 Oz. | 1 Oz. | 1 Oz. | 1 Oz. | 1 Oz. | 1 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS | UL - Pending, CE, RoHS |
| PCB Width | : | 6.5MM | 6.5MM | 6.5MM | 12MM | 12MM | 12MM |
| Maximum Recommended Length | : | 2 meters | 2 meters | 2 meters | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 200MP 3M | 200MP 3M | 200MP 3M | 200MP 3M | 200MP 3M | 200MP 3M |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
FlexLED Bi-Color 3000K - 5600K 24V (CCT Adjustable)
$182.04 CAD
Color Temperature adjustable high density FlexLED Tape
3000K - 5600K CRI <95
Two versions of our bi-color FlexLED are now available. 120 LED/meter (12MM Width) standard as well as 196 LED/meter (10MM Width) high output version. The 196 LED/meter is ideally suited for areas where high output in a very tight space is required. The 196 LED/meter is designed to be installed onto a metal heat sink for longevity purposes. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
Both versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 |
Bi-Color 196 |
| Product Code | : | I24VBC30566003528 | I24VBC30569803528 |
| CRI | : | ≥95 | ≥95 |
| Kelvin | : | 3000k - 5600k | 3000k - 5600k |
| PCB Color | : | White | White |
| Current, Rating | : | 0.79 A / meter | 1.4 A / meter |
| Voltage | : | 24 VDC | 24 VDC |
| Wattage | : | 19.2 W / meter | 33.6 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 |
| Lumens @ Full | : | 1800 lm / meter | 3,600 lm/meter |
| Lumen / Watt | : | 94 | 94 |
| Lifetime* | : | 50,000 hours | 30,000 hours |
| Cutting Length | : | 10CM | 7CM |
| LED Quantity | : | 120 LED / meter | 196 LED / meter |
| Number of Contacts | : | 3 | 3 |
| LED Type | : | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | CE, RoHS |
| PCB Width | : | 12MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 |
DOWNLOADS
View full product details
FlexLED RGB 24V
$135.42 CAD
High Output Color Changing LED strips
Now available in three different pixel pitch positions.
Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof FlexLED must be mounted using silicone (not provided)
Controller, Power supply and Extension Cables sold separately
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB 60 | RGB 96 | RGB 120 |
| Kelvin | : | Color Changing | Color Changing | Color Changing |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.6 A / meter | 0.96 A / meter | 1.2 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 14.4 W / meter | 23.04 W / meter | 28.8W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP20 |
| Lumens @ Full | : | 1000 lm / meter | 1800 lm / meter | 2000 lm / meter |
| Lumen / Watt | : | 69 | 78 | 69 |
| Lifetime* | : | 50,000 hours | 30,000 hours | 50,000 hours |
| Cutting Length | : | 10CM | 6.2CM | 10CM |
| LED Quantity | : | 60 LED / meter | 96 LED / meter | 120 LED / meter |
| Number of Contacts | : | 4 | 4 | 4 |
| LED Type | : | 5060 | 5060 | 3535 |
| Copper Quantity | : | 2 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | CE, RoHS |
| PCB Width | : | 10MM | 10MM | 12MM |
| Maximum Recommended Length | : | 10 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 200MP 3M | TESA 3965 | 200MP 3M |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
FlexLED 96 RGB + White 24V
$188.51 CAD
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT ???
| Product Type | : | RGB + Warm White | RGB + Neutral White | RGB + Cool White |
| Product Code | : | I24VRGBW304805050 | I24VRGBW414805050 | I24VRGBW304805050 |
| CRI | : | ?95 | ?95 | ?95 |
| Kelvin | : | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.96 A / meter | 0.96 A / meter | 0.96 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 23 W / meter | 23 W / meter | 23 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 1500 lm / meter | 1500 lm / meter | 1500 lm / meter |
| Lumen / Watt | : | 65 | 65 | 65 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours |
| Cutting Length | : | 12.5CM | 12.5CM | 12.5CM |
| LED Quantity | : | 96 LED / meter | 96 LED / meter | 96 LED / meter |
| Number of Contacts | : | 5 | 5 | 5 |
| LED Type | : | 5050 | 5050 | 5050 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 ?C | 70 ?C | 70 ?C |
| Temperature, Operating, Minimum | : | -40 ?C | -40 ?C | -40 ?C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM | 12MM | 12MM |
| Maximum Recommended Length | : | 7 meters | 7 meters | 7 meters |
| Viewing Angle | : | 120? | 120? | 120? |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
? Controller, Power supply and Extension Cables sold separately
*nominal lifetime - dependent on installation location
View full product details

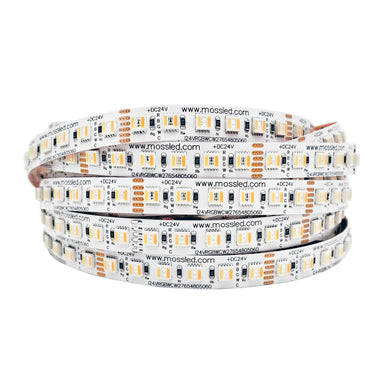

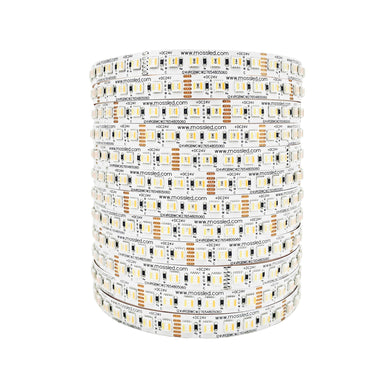

FlexLED 210 RGB+WW+CW 24V
$291.04 CAD
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + WW + CW |
| Product Code | : | I24VRGBWCW305610505050 |
| CRI | : | 95 |
| Kelvin | : | 3000k +/-100k AND 5600k +/- 100k AND RGB |
| PCB Color | : | White |
| Current, Rating | : | 1.8 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 43.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 3000 lm / meter |
| Lumen / Watt | : | 69.4 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | TBD |
| LED Quantity | : | 210 LED / meter |
| Number of Contacts | : | 6 |
| LED Type | : | 5050 + 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL Pending, CE, RoHS |
| PCB Width | : | 20MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
-
Specification Sheet Pending
*nominal lifetime - dependent on installation location
View full product details
FlexLED 240 RGBA 24V (Individual Diodes)
$179.38 CAD
Extremely bright RGBA color changing FlexLED Tape
Suitable for on-camera use, or anywhere a high-quality LED product is required.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 5m. (16.4')
Controller, Power supply and Extension Cables sold separately
Controller, power supply and extension cables sold separately
Quantity discounts available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | 240 RGBA 24V (Individual Diodes) |
| Product Code | : | I24VRGBA12001210 |
| CRI | : | N/A |
| Kelvin | : | RGBA |
| PCB Color | : | White |
| Current, Rating | : | 0.79 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 19.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1300 lm / meter |
| Lumen / Watt | : | 67.7 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 240 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 1210 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 14MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
View full product details
FlexLED 60 RGBA 24V (All-In-One Diode)
$165.50 CAD
Our Brightest FlexLED Tape (Sold in 5 meter lengths)
Customized Lengths Available.
Suitable for on-camera use, or anywhere a high-quality LED product is required.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 5m. (16.4')
Controller, Power supply and Extension Cables sold separately
Quantity Discounts and Custom Colors available. Please call to inquire.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | 60 RGBA 24V (All-In-One Diode) |
| Product Code | : | I24VRGBA30050605P |
| CRI | : | N/A |
| Kelvin | : | RGBA |
| PCB Color | : | White |
| Current, Rating | : | 0.79 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 19.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1300 lm / meter |
| Lumen / Watt | : | 67.7 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 60 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 5060 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M |
DOWNLOADS
*nominal lifetime - dependent on installation location
View full product details
FlexLED 70 Step-Up 24V (Angle Adjustable)
$182.04 CAD
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Warm White | Cool White | RGB Step Up |
| Product Code | : | I24VSUWW304803528 | I24VSUCW564803528 | I24VSURGB4805050 |
| CRI | : | ≥95 | ≥95 | N/A |
| Kelvin | : | 3000k +/-100k | 5600k +/-100k | N/A |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.19 A / meter | 0.19 A / meter | 0.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 4.8 W / meter | 4.8 W / meter | 14.4 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP20 | IP20 | IP20 |
| Lumens @ Full | : | 300 lm / meter | 300 lm / meter | 1000 lm / meter |
| Lumen / Watt | : | 62.5 | 62.5 | 69.4 |
| Lifetime* | : | 40,000 hours | 40,000 hours | 40,000 hours |
| Cutting Length | : | 10CM | 10CM | 10CM |
| LED Quantity | : | 70 LED / meter | 70 LED / meter | 70 LED / meter |
| Number of Contacts | : | 2 | 2 | 4 |
| LED Type | : | 3528 | 3528 | 5630 |
| Copper Quantity | : | 2 Oz. | 2 Oz. | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - pending, CE, RoHS | UL - pending, CE, RoHS | UL - pending, CE, RoHS |
| PCB Width | : | 5+8MM | 5+8MM | 5+8MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | 200MP 3M | 200MP 3M | 200MP 3M |
DOWNLOADS
View full product details
FlexLED 30 12V
$62.99 CAD
Our original Flex LED Tape (Sold in 5 meter lengths)
Suitable for Residential purposes and places that don't require lots of illumination
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 6.7m (22')
Controller, Power supply and Extension Cables sold separately
SPECIFICATIONS
|
||||||||||||||||||||||||||||||||||||
FlexLED 60 12V
$147.61 CAD
60 LED/Meter Flex LED Tape in 12V DC (Sold in 5 meter lengths)
Suitable for residential, television, industrial, and commercial applications
High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
Custom Color-Temperatures Available. Call to inquire.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 5m (16'4")
Bare end wires included.
SPECIFICATIONS
|
||||||||||||||||||||||||||||||||||||
- Head Cable, Controller, Power supply and Extension Cables sold separately

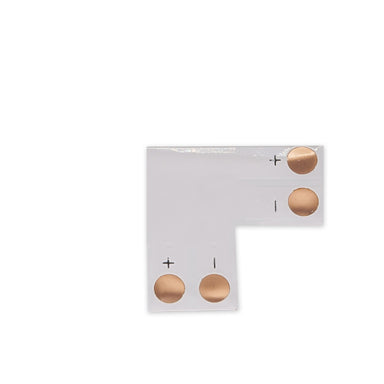

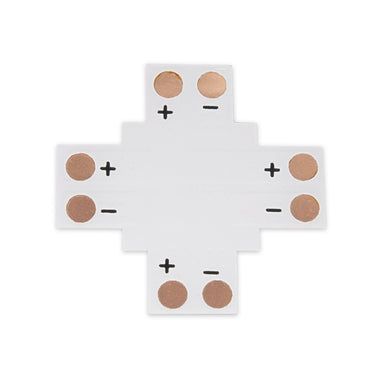

FlexLED Connectors PCB
$1.02 CAD
- High Quality PCB with large copper quantity provides a convenient way of making corners in our FlexLED Products.? Large solder pads for optimum connectivity.
- Provides a convenient method of connecting FlexLED Products.?
- Solder Connections? for our Tungsten, Daylite, and RGB FlexLED Products.
- Works with 10MM width FlexLED products.
SPECIFICATIONS
|
FlexLED Connectors QwikClips
$2.73 CAD
- Solderless QwikClip connections
- High Quality PCB with large copper quantity provides a convenient way of making corners in our FlexLED Products.?
- Provides a convenient method of connecting FlexLED Products.?
- Quick Clamps for our Tungsten, Daylite, and RGB FlexLED Products.
- Works with 10MM width FlexLED products.
SPECIFICATIONSExtremely Useful & Great Price II |
DiffuseFlex LED
$224.10 CAD
BRAND NEW FOR 2017!
Pre-Diffused FlexLED Tape. You asked for it and now it's here! Tired of the pixelized look of our classic FlexLED Tape?! Our DiffuseFlex LED is the solution! Beautiful uniform look provides seamless, even output across a full 5 meters. IP65 rated for outdoor use and 35,000 hour lifespan.
- Suitable for on-camera use, or anywhere a high-quality white light is required.
- High CRI (Color Rendering Index) >95. No green spike or color spectrum deficiencies.
- 3M double-sided tape on the back makes installation as easy as peel n' stick.
- Maximum recommended length in order to prevent line-loss is 10M (32').
- Controller, power supply and extension cables sold separately.
- Quantity discounts and custom color temperatures (CCT) available. Please call to inquire.
SPECIFICATIONS
|
|||||||||||||||||||||||||||
DOWNLOADS |
View full product details
