FlexLED 60 RGBA 24V (All-In-One Diode)

SKU I24VRGBA3005060
by MossLED
$187.74
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 161 in stock, ready to be shipped

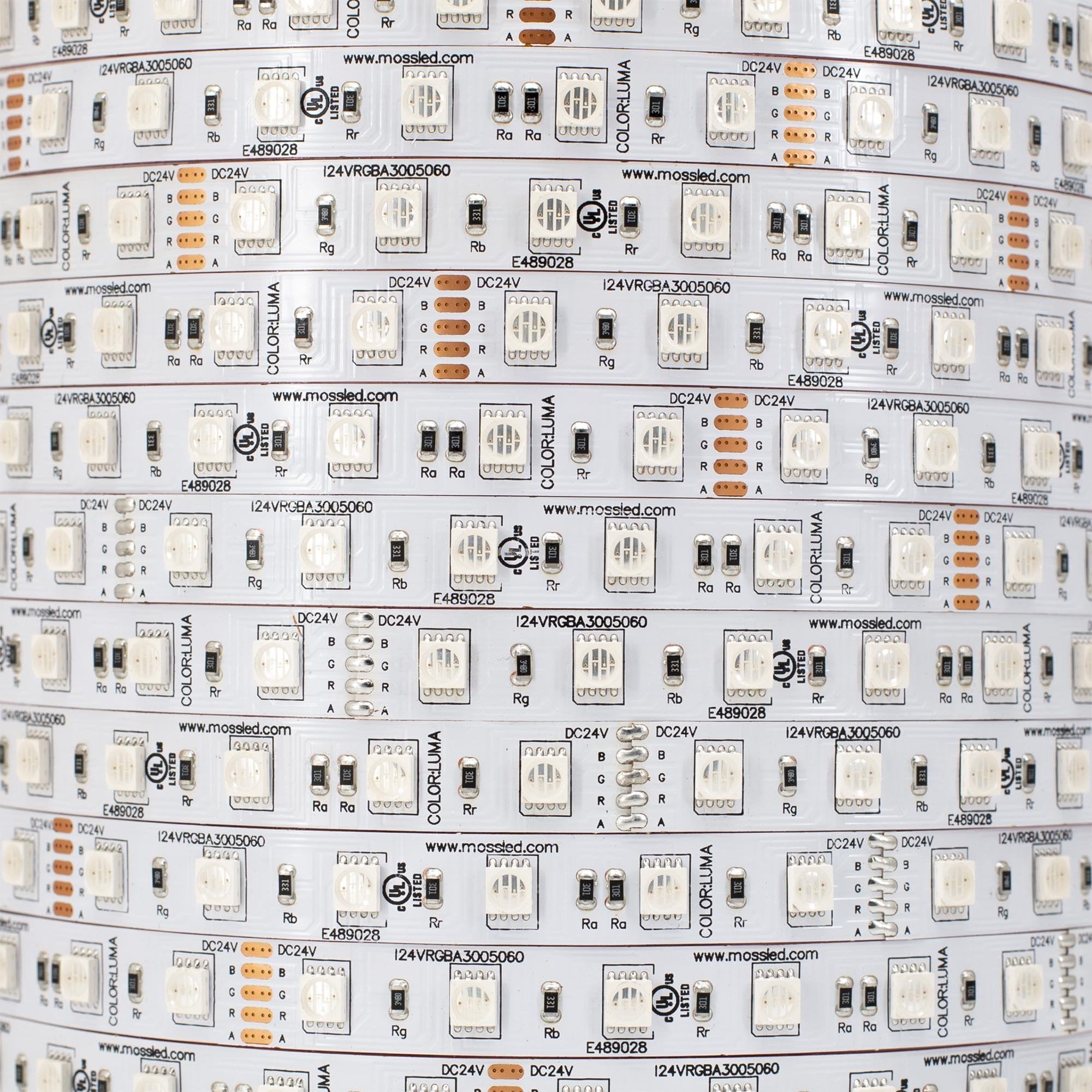

RGBA All-In-One Diode is extremely advantageous over the previous individual RGBA as the diodes are much closer together and in one chip package.
This allows for no rainbow effect when viewed from an angle or when installed close to a surface.

Customized Lengths Available.

Suitable for on-camera use, or anywhere a high-quality LED product is required.
Indoor and weatherproof strips have 3M 200MP double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone.
Maximum recommended length in order to prevent line-loss is 5m. (16.4')
Controller, Power supply and Extension Cables sold separately

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Pricing is for 5 meters (16.4')

SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGBA 60 24V (All-In-One Diode)
Product Code : I24VRGBA3005060
CRI : N/A
Kelvin : RGBA
PCB Color : White
Current, Rating : 0.79 A / meter
Voltage : 24 VDC
Wattage : 19.2 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 1300 lm / meter
Lumen / Watt : 67.7
Lifetime* : 50,000 hours

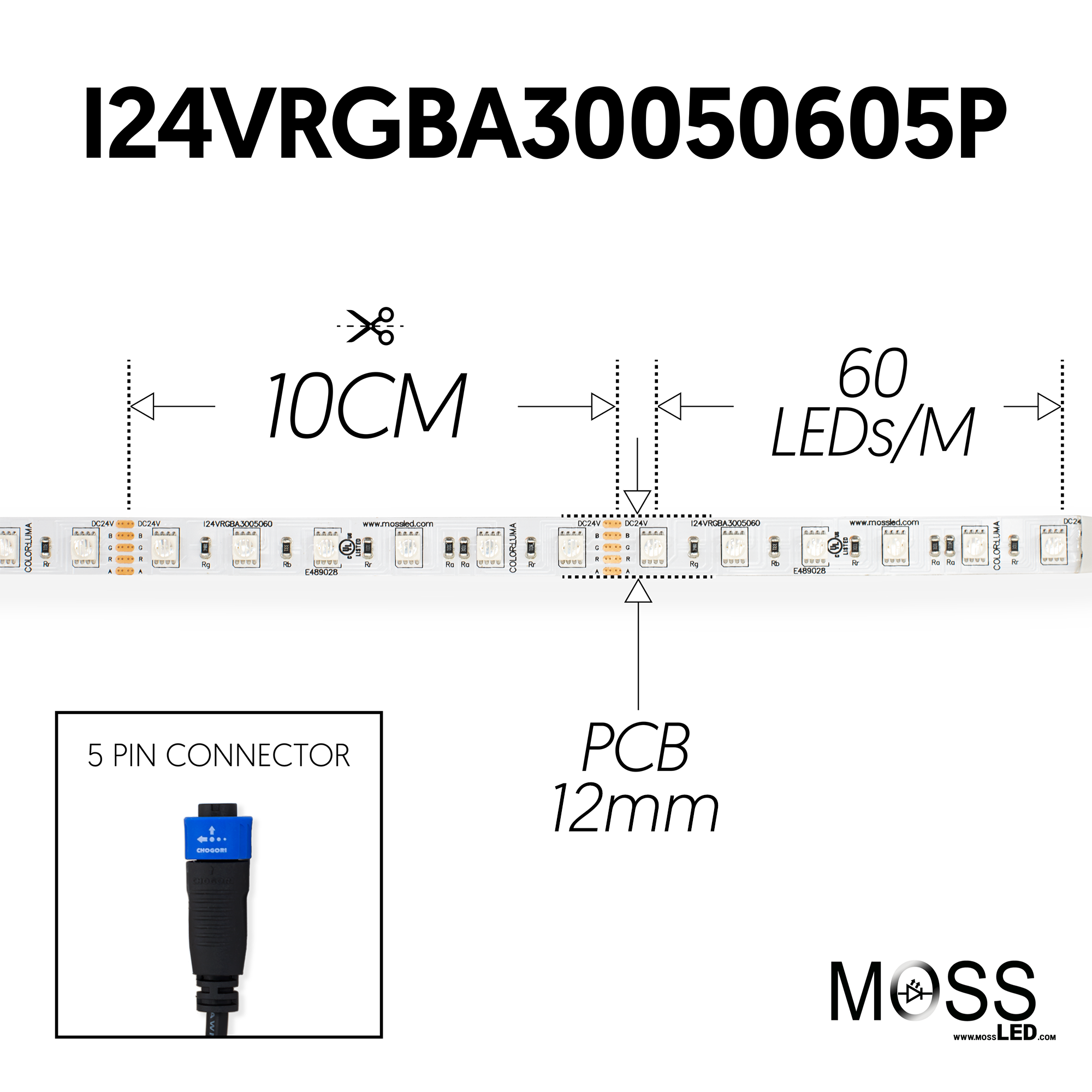

Cutting Length : 10 CM
LED Quantity : 60 LED / meter
Number of Contacts : 5
LED Type : 5060
Copper Quantity : 2 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : 200MP 3M
Wavelength A Red : 620 ~ 625nm
Wavelength B Green : 520 ~ 525nm
Wavelength C Blue : 465 ~ 470nm
Wavelength D Amber : 590 ~ 595nm
*nominal lifetime - dependent on installation location

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
