FlexLED RGB 24V

SKU I24VRGB3005050
by MossLED
$87.00
IP Rating
Pixel Density
Connector Type
Availability: translation missing: en.general.icons.icon_check_circle icon 462 in stock, ready to be shipped
Accessories

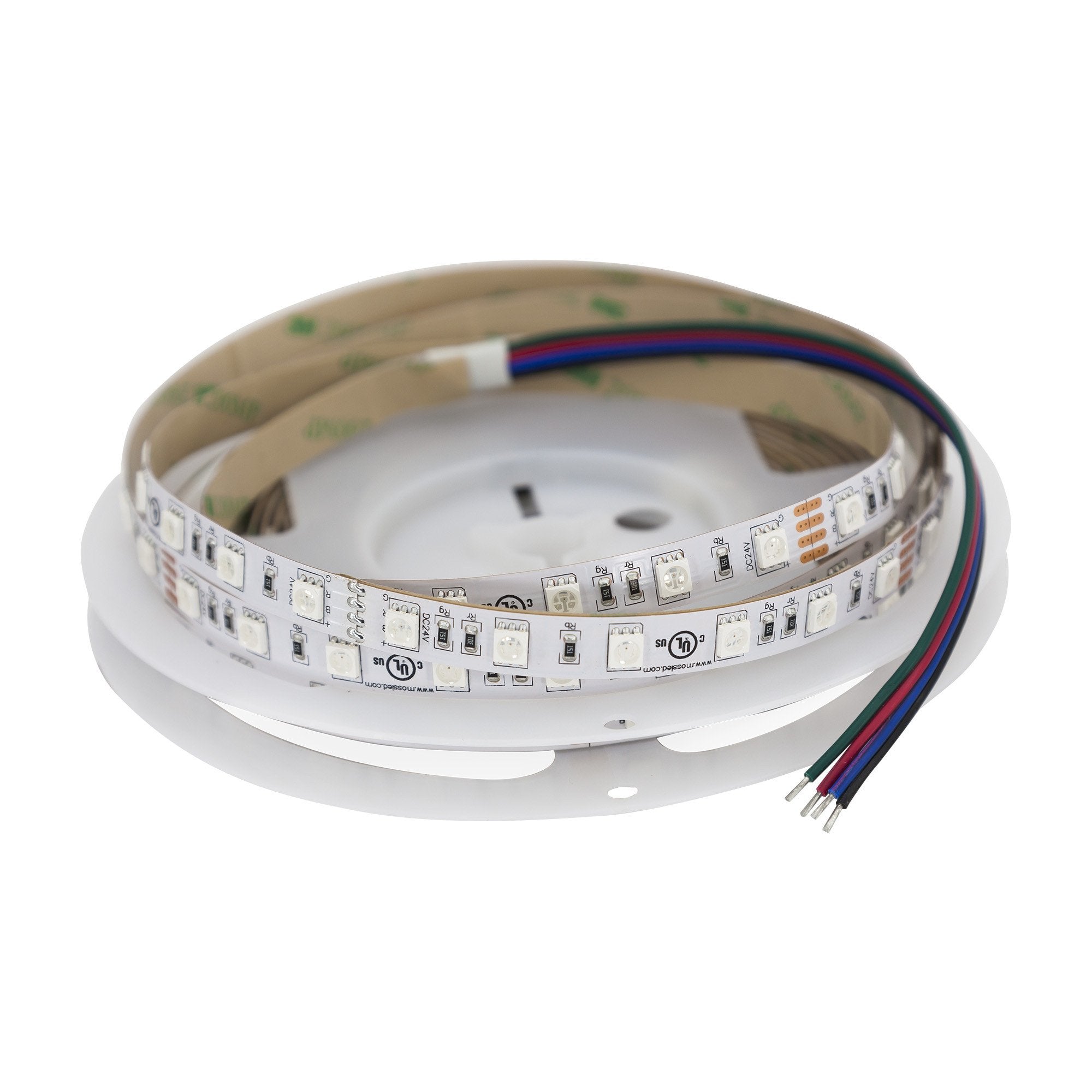

High Output Color Changing RGB LED strips

Our RGB LED ribbon is available in two different densities, 60 LED/meter, and 96 LED/meter. Both versions utilize the same high brightness and high efficiency 5050 chip. Both come standard with 3M 200MP double-sided adhesive that makes installation as easy a peel n' stick. Installing onto a clean, dry surface in room temperature ensures the product will stay where you install it for many years to come.

The 60 LED/meter is ideally suited for most applications, however when very bright RGB output is required, the 96 LED/meter is available and produces a 60% increase in brightness over the 60 LED/meter.

The 60 LED/meter at 5 meters falls into a class 2 specification drawing only 14.4 watts / meter (72 watts when powered from both ends) (64.3 watts when powered from one end)

The 96 LED/meter at 5 meters falls above a class 2 specification drawing 23 watts / meter (115 watts when powered from both ends) (100 watts when powered from one end)

Suitable for residential, television, industrial, and commercial applications or anywhere RGB LED lighting is required.

*Controller, Power supply and Extension Cables sold separately

SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGB 60 RGB 96
Kelvin : Color Changing Color Changing
PCB Color : White White
Current, Rating : 0.6 A / meter 0.96 A / meter
Voltage : 24 VDC 24 VDC
Wattage : 14.4 W / meter 23 W / meter
Wattage @ 5 Meters (Powered at one end) 64.3 W 100 W
Wattage @ 5 Meters (Powered at both ends) 72 W 115 W
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP 43 IP43
Lumens @ Full : 1000 lm / meter 1600 lm / meter
Lumen / Watt : 69 69
Lifetime* : 50,000 hours 50,000 hours
Cutting Length : 10 CM 6.25 CM
LED Quantity : 60 LED / meter 96 LED / meter
Number of Contacts : 4 4
LED Type : 5050 5050
Copper Quantity : 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 10MM 10MM
Maximum Recommended Length : 10 meters 5 meters
Viewing Angle : 120 120
Adhesion : 200MP 3M 200MP 3M
Wavelength A Red : 620 ~ 625nm 620 ~ 625nm
Wavelength B Green : 515 ~ 520nm 515 ~ 520nm
Wavelength C Blue : 465 ~ 470nm 465 ~ 470nm

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location

Installation Notes

  • Follow all instructions on bag label
  • Install indoor product in dry locations only
  • Weatherproof is rated at IP67 and Waterproof is rated at IP68.
  • Waterproof FlexLED must be mounted using silicone (not provided)


Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
