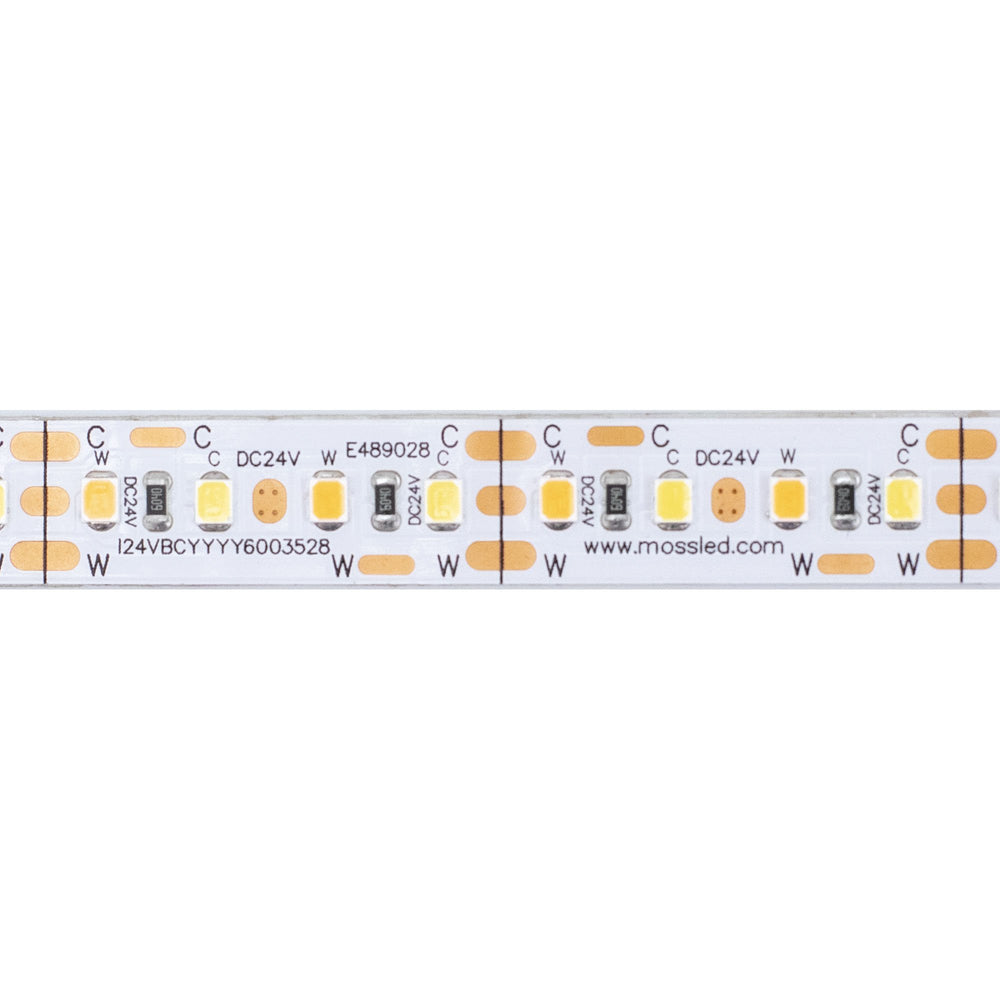

Moss LED ShortCut FlexLED Bi-Colour 2700K 6000K 24V spec diagram 120 LEDs per meter 33mm cut point 12mm PCB bare wire

ShortCut FlexLED Bi-Colour 2700K - 6000K 24V (CCT Adjustable)

SKU SC-I24VBC27606003528
by MossLED

Qty Discount
5 5%
10 10%
21 15%
The more you buy, the more you save!
$191.75
IP Rating
Pixel Density
Colour

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

50 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 50 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

The ShortCut FlexLED Bi-Colour 2700K - 6000K 24V combines the benefits of 24V technology—lower current and reduced voltage drop—with the short cut points typically found in 12V strips, offering unparalleled flexibility for precision installations. Featuring CRI, TLCI, and R9 values above 95, this LED strip ensures true-to-life colour rendering with seamless warm-to-cool white tuning. Utilizing a tri-chip design, each emitter contains 3 LEDs creating a 30% brighter LED than our standard white LED chips. 108 lumens/watt for the 6000k chip and 104 lumens/watt for the 2700k chip means no compromising between energy efficiency and superior colour rendering.

Key Features:

  • Short Cut Points with 24V Efficiency – Allows precise customization while maintaining lower current draw.
  • 30% brighter than our standard white LED chips
  • Adjustable White Light (2700K - 6000K) – Smooth transitions between warm and cool tones.
  • Two Density Options – 120 LED/m (standard) and 240 LED/m (high-output).
  • High CRI (95+) – Delivers accurate, high-quality illumination.
  • Optimized Performance – 240 LED/m version requires a metal heat sink for longevity.
  • Easy Installation – TESA 4965 adhesive backing ensures secure mounting.

Installation & Handling Considerations:

  • Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
  • Waterproof versions require mounting via silicone (not included).

Soldering Guidelines:

  • Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
  • Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.

Additional Details:

  • Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
  • Controller, power supply, and extension cables sold separately.
  • Quantity discounts and custom colour temperatures available.
  • Pricing is for 5 meters (16.4’) - custom lengths available

The ShortCut FlexLED Bi-Colour 2700K - 6000K 24V delivers precision control, high-output performance, and exceptional white light quality, making it the ideal solution for professional lighting applications.

Need a custom solution? Contact us today!

SPECIFICATIONS - INDOOR PRODUCT

Product Type : Bi-Color 120 Short Cut
 Bi-Color 240 Short Cut
Product Code : SC-I24VBC27606003528 SC-I24VBC276012003528
CRI : 95+ 95+
Kelvin : 2700k - 6000k 2700k - 6000k
PCB Color : White White
Current, Rating : 0.79 A / meter  1.6 A / meter
Voltage : 24 VDC 24 VDC
Wattage : 19.2 W / meter  38.4 W / meter
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP43 IP43
Lumens @ Full / meter : 2700k: 1104lm
6000k: 1234lm
Combined 4000k: 2324lm		 2700K: 2184lm
6000k: 2445lm
Combined 4000k: 4553lm
Lumen / Watt : 130 130
Lifetime* : 50,000 hours  30,000 hours
Cutting Length : 33.3 MM  16.7 MM
LED Quantity : 120 LED / meter  240 LED / meter
Number of Contacts : 3 3
LED Type : 2835 2835
Copper Quantity : 3 Oz. 4 Oz.
Temperature, Operating, Maximum : 70°C 70°C
Temperature, Operating, Minimum : -40°C -40°C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 12MM
Maximum Recommended Length : 10 meters  5 meters
Viewing Angle : 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965
Bend Radius
 :
 10MM 12MM

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
