Pixel RawModule 1-LED RGB- Sold in Sets of 20

SKU I-12V-MOD-5050-B1PD-RGB-GS8208
by MossLED
$44.31
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 90 in stock, ready to be shipped
Accessories

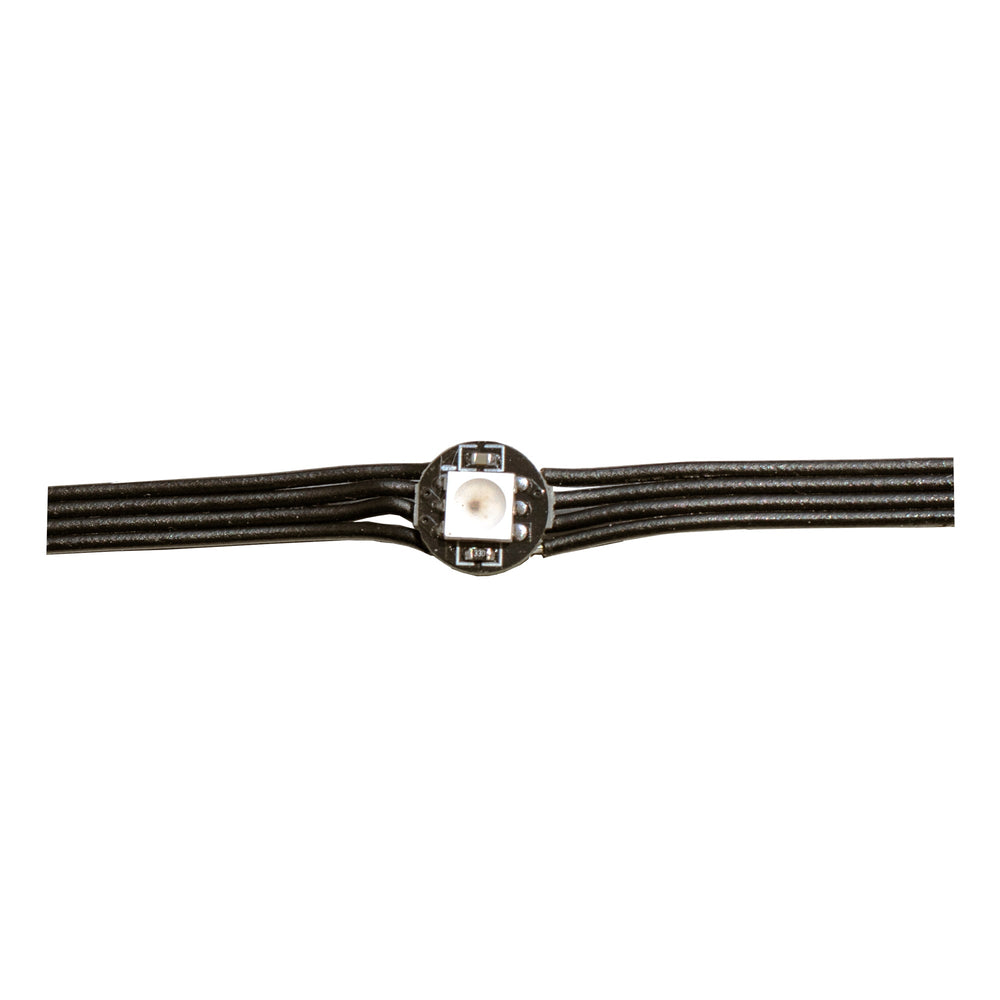

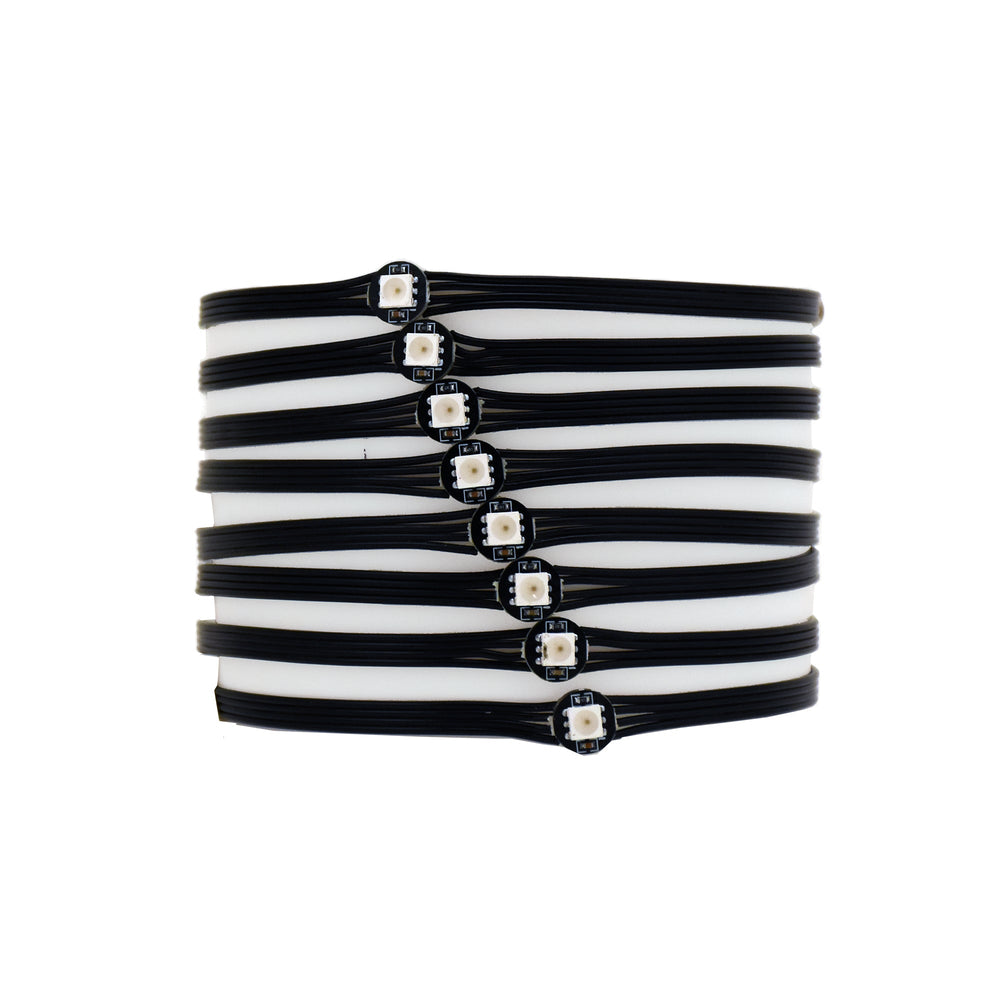

Individually controlled raw PCB RGB pixel dots

This is a highly responsive 8khz PWM frequency RGB pixel product. Each pixel dot can change colour independent of one another. Perfect for replacing indicator lights. 12 Volt, GS8208. Compatible with our LXFXBX & PixlArt416 controllers or theoretically any device that outputs GS8208 pixel protocol.

Pricing is for 20 dots.

Pixel Product Installation Notes: The PWM frequency (dimming frequency) is baked into the pixel and cannot be changed. You must ensure you choose the right pixel for your application. If you are unsure of what camera settings are going to be in use, it is best to go with high frequency pixel tape (8khz or higher / GS8208 or APA102 or UCS7804H) Avoid voltage drop by positioning a power supply close to the LED strip and/or powering the LED from multiple locations (and/or via multiple power supplies) The power supply that is providing power to the controller (PixlArt416) does not need to be the same power supply that is powering the LED strip. During testing ensure that the pixel LED is receiving the required voltage (12 Volts DC) by doing a volt meter test at the contact pads of the LED strip.

Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur. Other Notes: Indoor use only There is no double-sided adhesive on the backside in case you need to solder onto the back contact pads. However we recommend a non-conductive double-sided adhesive.

Controller, power supply and extension cables are sold separately based on your project Quantity discounts available Please contact us for more information



SPECIFICATIONS - INDOOR PRODUCT

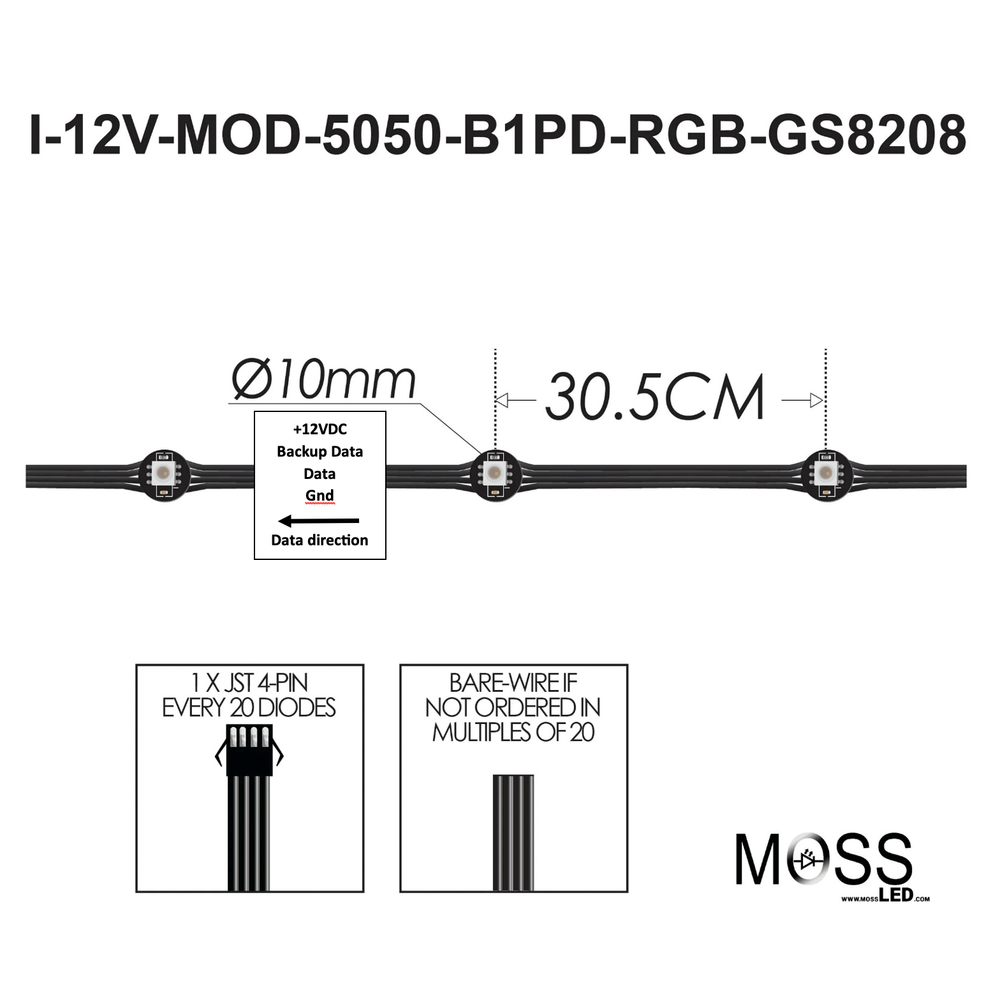

Product Type : Pixel Dots 10MM RGB Raw PCB - 30.5CM Pixel Pitch - Black Wire - Black PCB
Product Code : I-12V-MOD-5050-B1PD-RGB-GS8208
CRI : N/A
Kelvin : N/A
PCB Color : Black
Current, Rating : 0.02A / Pixel
Voltage : 12 VDC
Wattage : 0.2 W / Pixel
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : N/A
Lumen / Watt : N/A
Lifetime* : 30,000 hours
Pixel Pitch : 12" / 30.5CM
LED Quantity : 1 X RGB LEDs
Number of Contacts : 4
LED Type : 5050
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 60℃
Temperature, Operating, Minimum : -20℃
Agency Ratings : CE, RoHS
Dimensions : 10MM Diameter
Maximum Recommended Length : 480 Pixel Dots (Power Injection Required Every 50 Dots)
Viewing Angle : 180 degree
Adhesion : Mechanical Fastener Required
Pixel Protocol : GS8208
PWM Frequency : 8 kHz
UPC Code / Barcode : 055841501490
