Three white points of 2700k - 6000k and 2700k - 5600k and 3000k - 5600k to choose from.
We offer these three different versions so that you can match to any existing products you are already using.

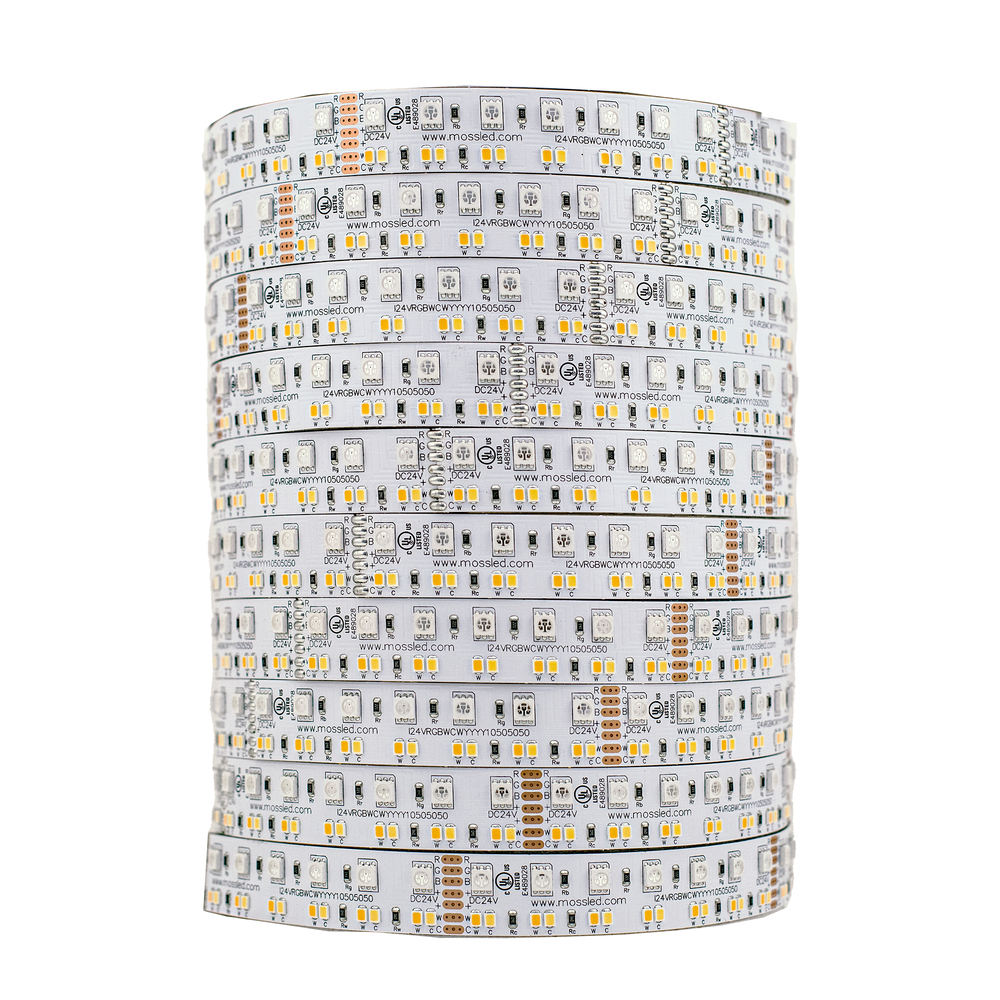

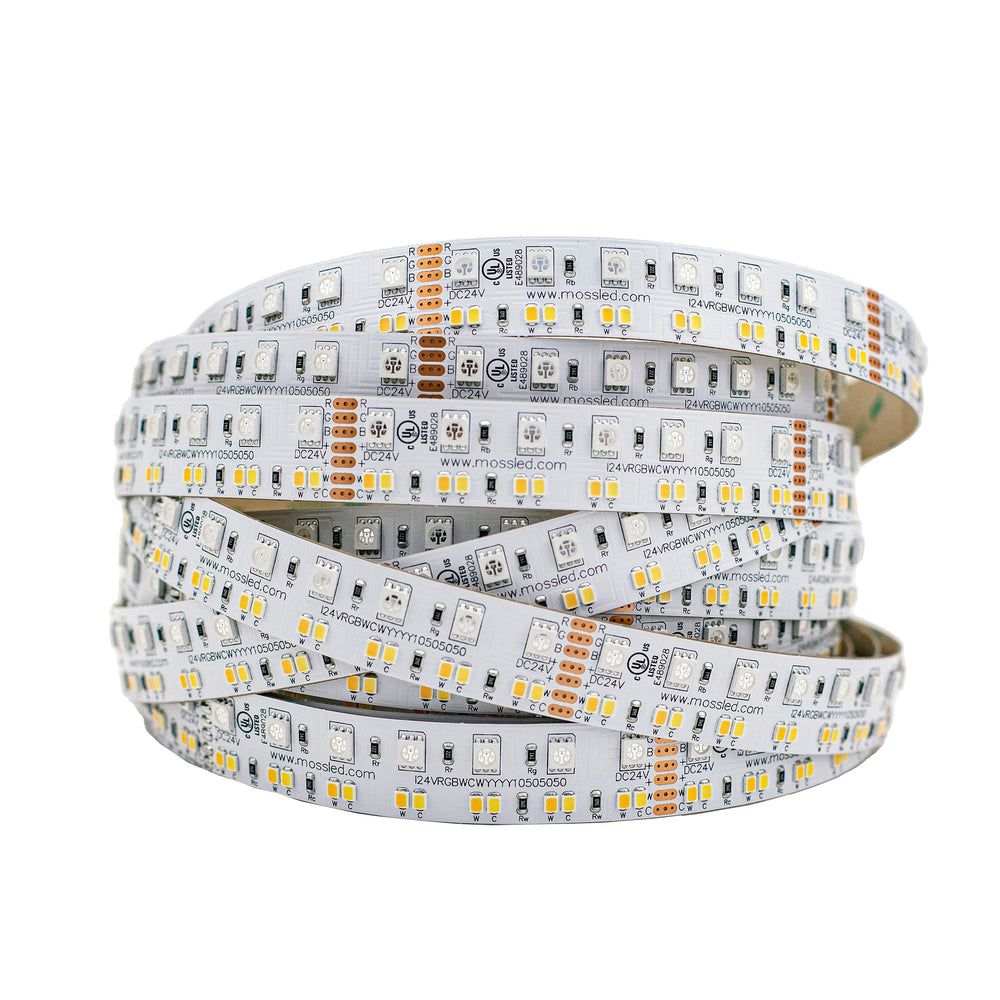

Our Brightest FlexLED Tape (Sold in 5 metre lengths)

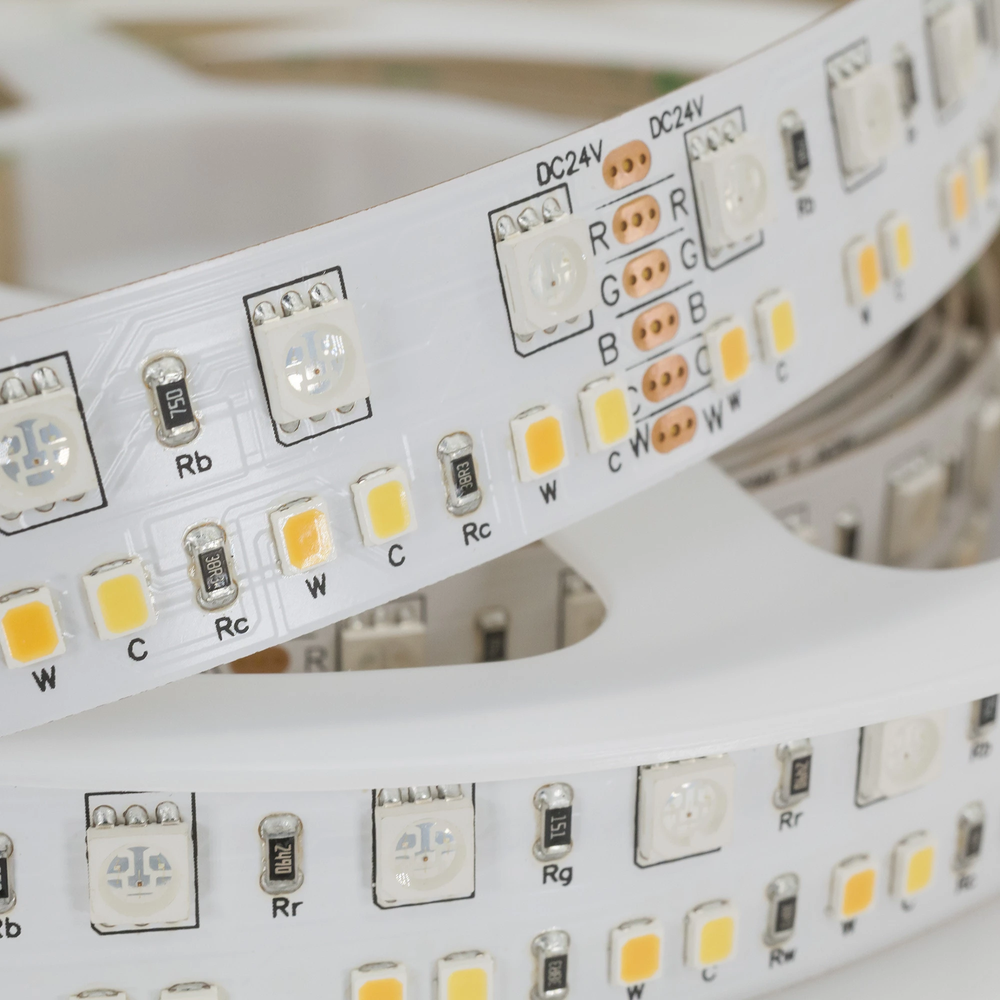

With the development of this LED strip now comes the end of compromising for the color you desire. Two full spectrum emitters tuned to specific CCT allows high CRI, & high output white alongside a full all-in-one color changing RGB chip.
This strip is specifically designed to work with our newly re-designed 5-channel Cinque LED DMX dimmer.
Suitable for residential, television, industrial, and commercial applications

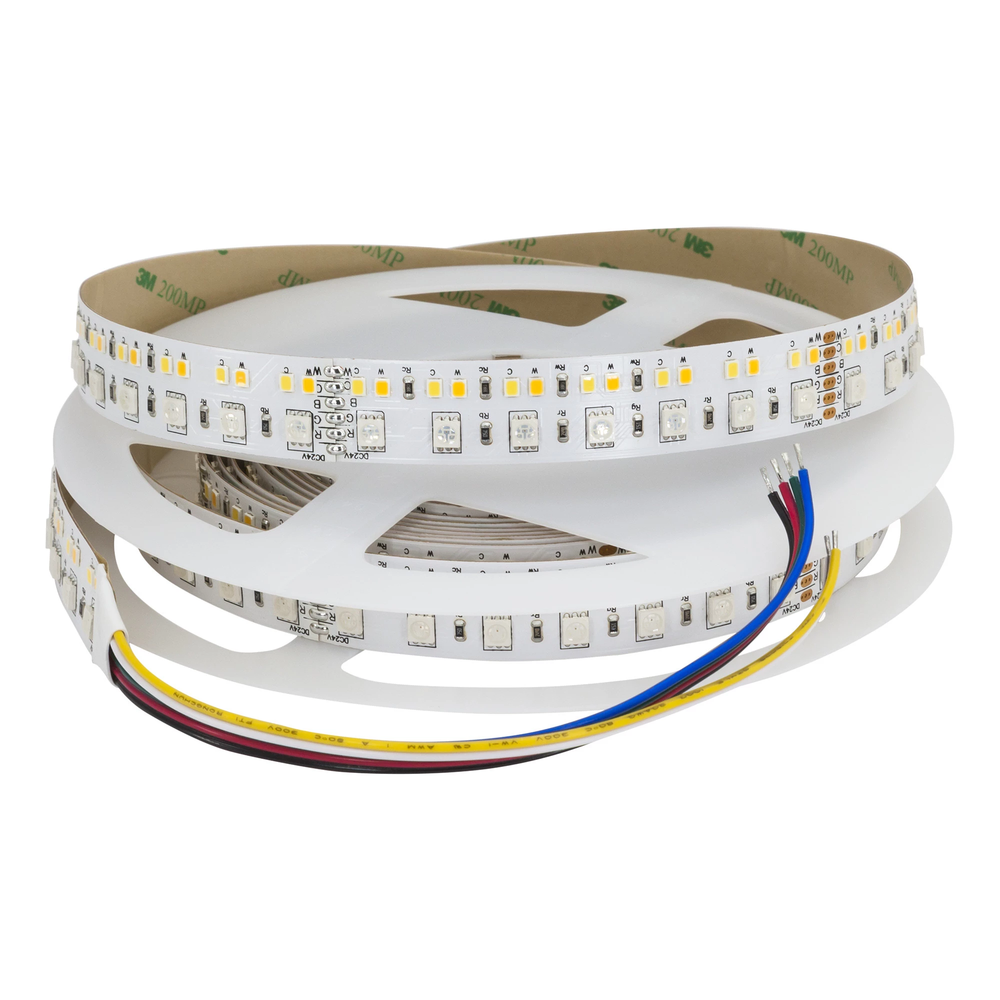

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel and stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Pricing is for 5 meters (16.4')
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + WW + CW 14MM | RGB + WW + CW 20MM | RGB + WW + CW 20MM | RGB + WW + CW 20MM |

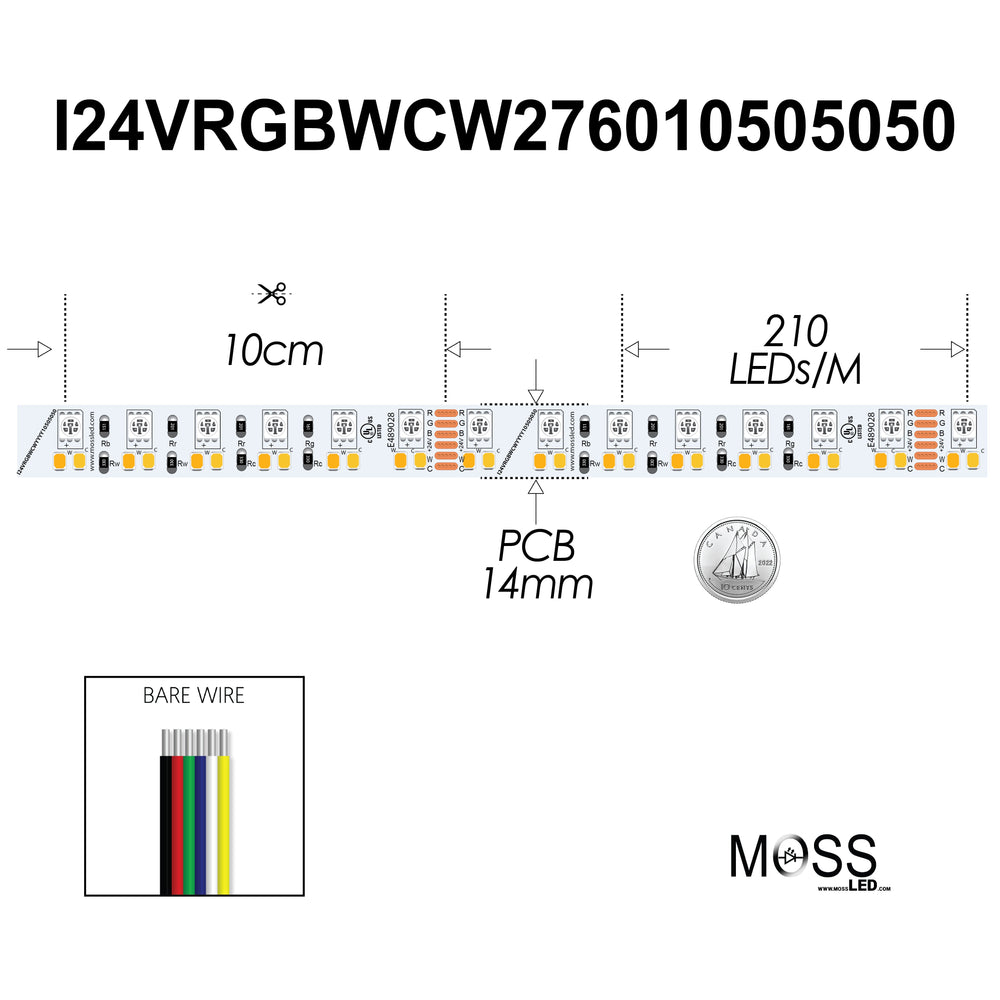

| Product Code | : | I24VRGBWCW276010505050-14MM | I24VRGBWCW276010505050 | I24VRGBWCW275610505050 | I24VRGBWCW305610505050 |
| CRI | : | 95 | 95 | 95 | 95 |
| Kelvin | : | 2700k +/-100k AND 6000k +/- 100k AND RGB | 2700k +/-100k AND 6000k +/- 100k AND RGB | 2700k +/-100k AND 5600k +/- 100k AND RGB | 3000k +/-100k AND 5600k +/- 100k AND RGB |
| PCB Color | : | White | White | White | White |
| Current, Rating | : | 1.8 A / meter | 1.8 A / meter | 1.8 A / meter | 1.8 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 43.2 W / meter | 43.2 W / meter | 43.2 W / meter | 43.2 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 3000 lm / meter | 3000 lm / meter | 3000 lm / meter | 3000 lm / meter |
| Lumen / Watt | : | 69.4 | 69.4 | 69.4 | 69.4 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |

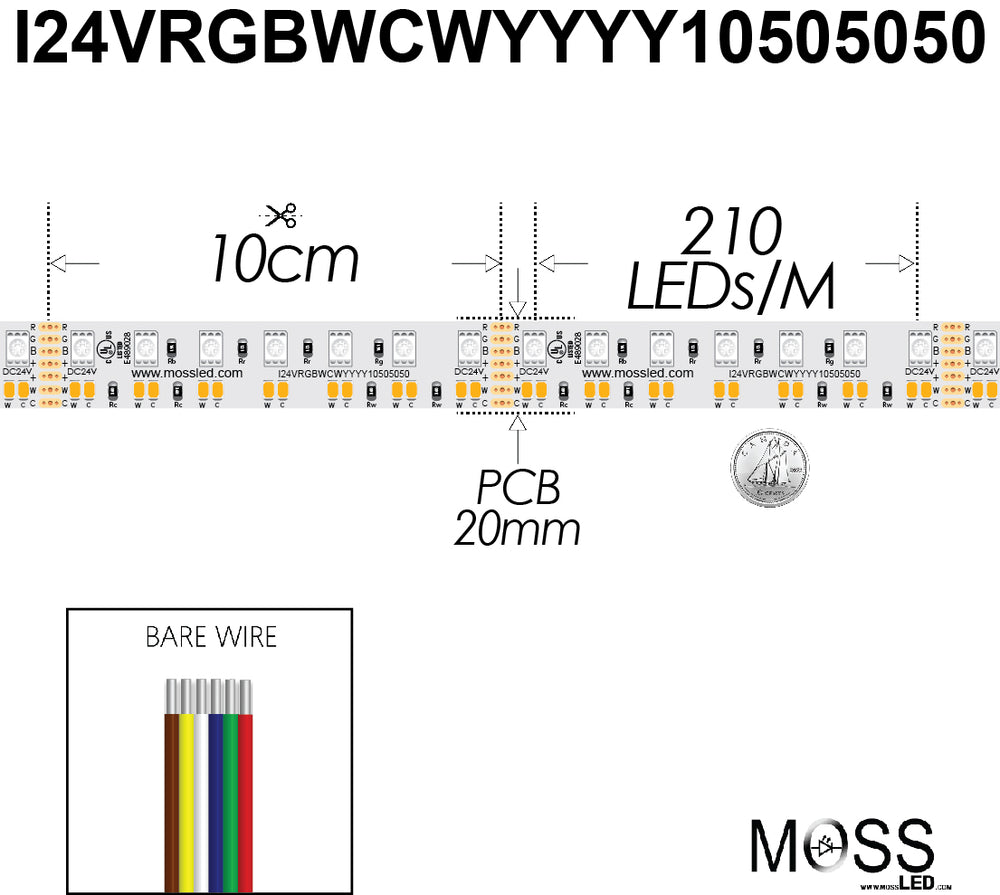

| Cutting Length | : | 10 CM | 10 CM | 10 CM | 10 CM |
| LED Quantity | : | 210 LED / meter | 210 LED / meter | 210 LED / meter | 210 LED / meter |
| Number of Contacts | : | 6 | 6 | 6 | 6 |
| LED Type | : | 5050 + 2835 | 5050 + 2835 | 5050 + 2835 | 5050 + 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 50 C | 50 C | 50 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL E489028, CE, RoHS | UL E489028, CE, RoHS | UL E489028, CE, RoHS | UL E489028, CE, RoHS |
| PCB Width | : | 14MM | 20MM | 20MM | 20MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 | 120 | 120 | 120 |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 | TESA 4965 |
DOWNLOADS
Specification Sheet
*nominal lifetime - dependent on installation location
