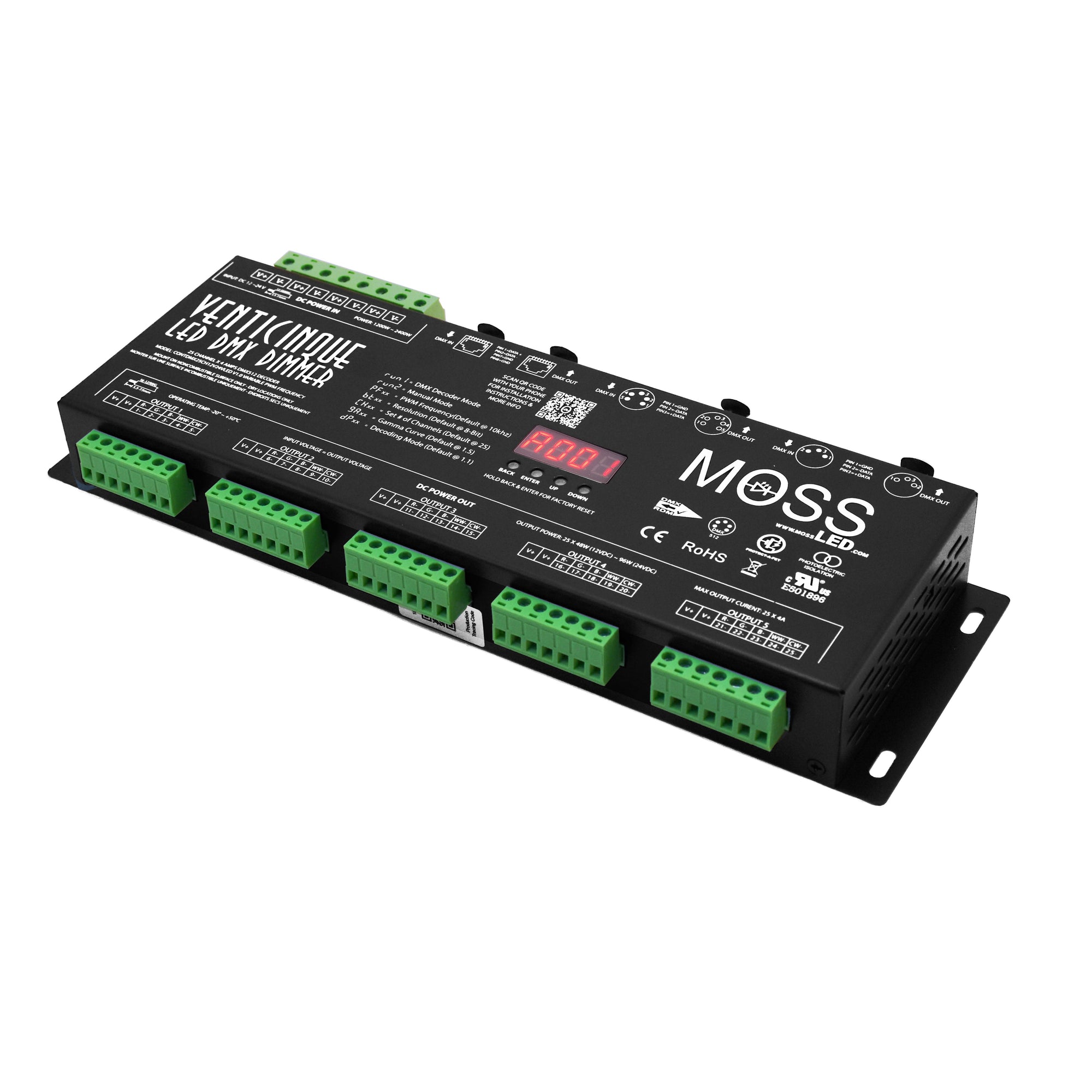

VentiCinque-LED DMX - 25 Channel Dimmer

SKU CONTDMX25CH12V24VLED
by MossLED
$276.96
Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 46 in stock, ready to be shipped
Accessories

COMING SPRING 2023


25-channel DMX controller with RDM built from the same feature-rich, extremely popular 5-channel Cinque dimmer. Features include:

  • High-precision dimming from 0 - 100% with precise low-end dimming
  • Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
  • Protect-A-FET technology on each output channel allowing for short individual channel circuit protection. Ensuring that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage will result.
  • Default PWM frequency set to 10KHZ allowing for out-of-the-box flicker-free performance. For non-standard camera settings, PWM frequency can be adjusted between 500hz and 35khz.
  • Durable metal, rugged housing
  • DMX-512/1990 decoding via RJ45 / 5-Pin XLR / 3-Pin XLR
  • 8-bit or16-bit DMX control
  • 8-Position High-Current Input Terminal Block 100A Capacity
  • Gamma curve adjustment
  • Decoding mode allows for grouping of channels as well as master and strobe effects
  • Easy-to-read display provides easy functionality for DMX addressing as well as full manual mode & test control options.
  • RDM control allows for remote addressing, PWM adjustment, and gamma curve adjustment.

    Technical Specifications

    Output Current (A)

    :

    25 CH @ 4A/CH = Max 100A

    Output Power (W)

    :

    1200W @ 12V / 2400W @ 24V

    Supply Voltage

    :

    12V - 24V DC

    Size (MM)

    :

    293.2 X 92.2 X 36

    Working Temperature

    :

    -20°C to + 50 °C

    Weight

    :

    350g

    PWM Frequency

    :

    500Hz to 35kHz

    IP Rating

    :

    IP40

    Flicker Free

    :

    YES

    Bit Rate

    :

    8 Bit & 16 Bit






      DOWNLOADS

      1. UL Certificate of Compliance (pending
      2.  VentiQuattro Manual V1.1 (pending)
      3.  VentiQuattro Installation Manual (pending
      4.  RoHS Certificate (pending)
      5.  Output Terminal Block Specification (pending)
      6. CE Certificate of Conformiity (pending)
      7.  EU Certificate of Conformity (pending)
