VentiDrive - 24 Channel Dimmer

VENTIDRIVE24

14 items left


Collections: DMX Dimmers, Featured, NEW

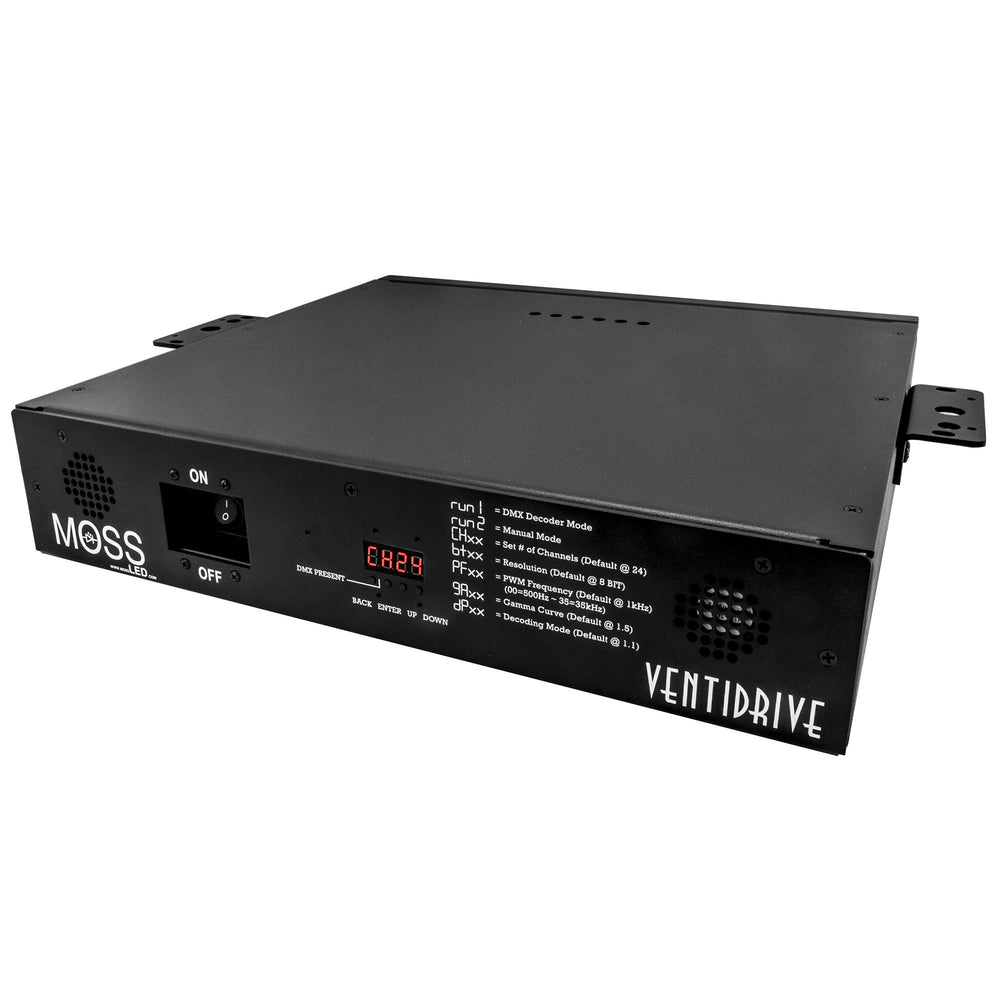

The VentiDrive is a 24 channel LED dimmer with 1200 watts
of output capacity.  Its design allows  for fast plug’n’play
connectivity and allows you to be up and running in no time. It
features precision dimming from 0 - 100%, 8-bit or 16-bit modes, PWM frequency
adjustment from 500Hz to 35kHz, full manual control, and dimming curve adjustments.
Each channel has a maximum power output of 4A (96 watts @ 24VDC or 48 Watts @ 12VDC)  The VentiDrive is available in either 12VDC or 24VDC models.  Its rugged chassis is capable of being mounted via clamps, in a rack, stacked on top of each-other, or screwed into a wall and allows it to be placed in virtually any location.  Industry-standard 5-position terminal plugs allow for universal connectivity to as many LED products as possible.  TRUE1 connectors & auto-switching internal power supplies allow for power input from 90 - 250VAC.  Whisper-quiet 16dB fans keep the unit cool in any location and to top it all off the VentiDrive can be remotely addressed via RDM.  Delivering 50A @ 24VDC or 100A @ 12VDC this is the most powerful LED dimmer on the market!



  • Small 2U design (Only 3.5")
  • Powerful 1200 Watt (50 AMP) at 24V output across 24 channels of dimming
  • 6 outputs of 4 channels each at 200 Watt OR combine outputs infinitely to create one large 1200 Watt Output
  • Frequency mode selection from 500Hz to 35kHz for Flicker-Free operation at almost every camera setting.
  • Only 2 ultra-quiet 16dB fans for on-set use

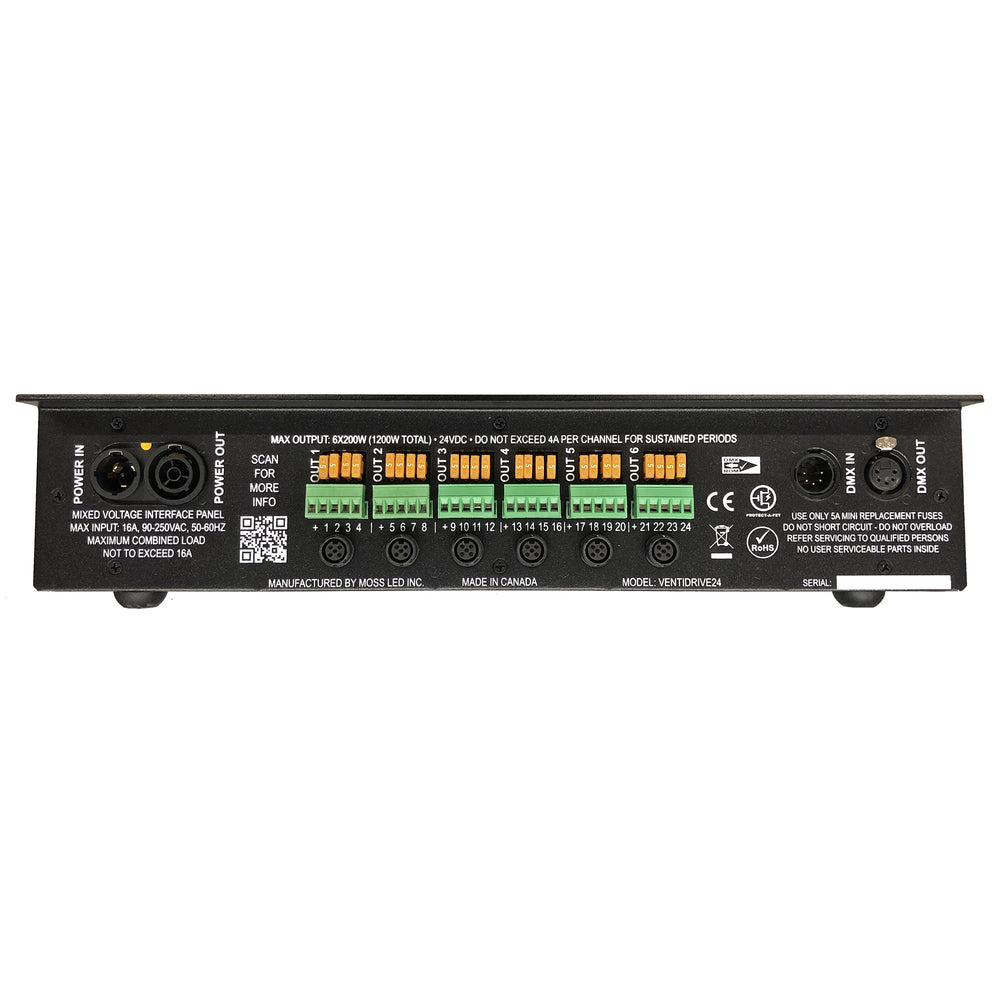

  • Terminal Block output connectors for ease-of-use and on-site wiring
  • 24 individually fused channels for maximum protection
  • New rugged thicker aluminum housing for long-term durable use for all industries.
  • New mounting brackets for easy hanging, surface mount, and safety chain connections.
  • Rear lip protection over output connectors designed to protect all rear components

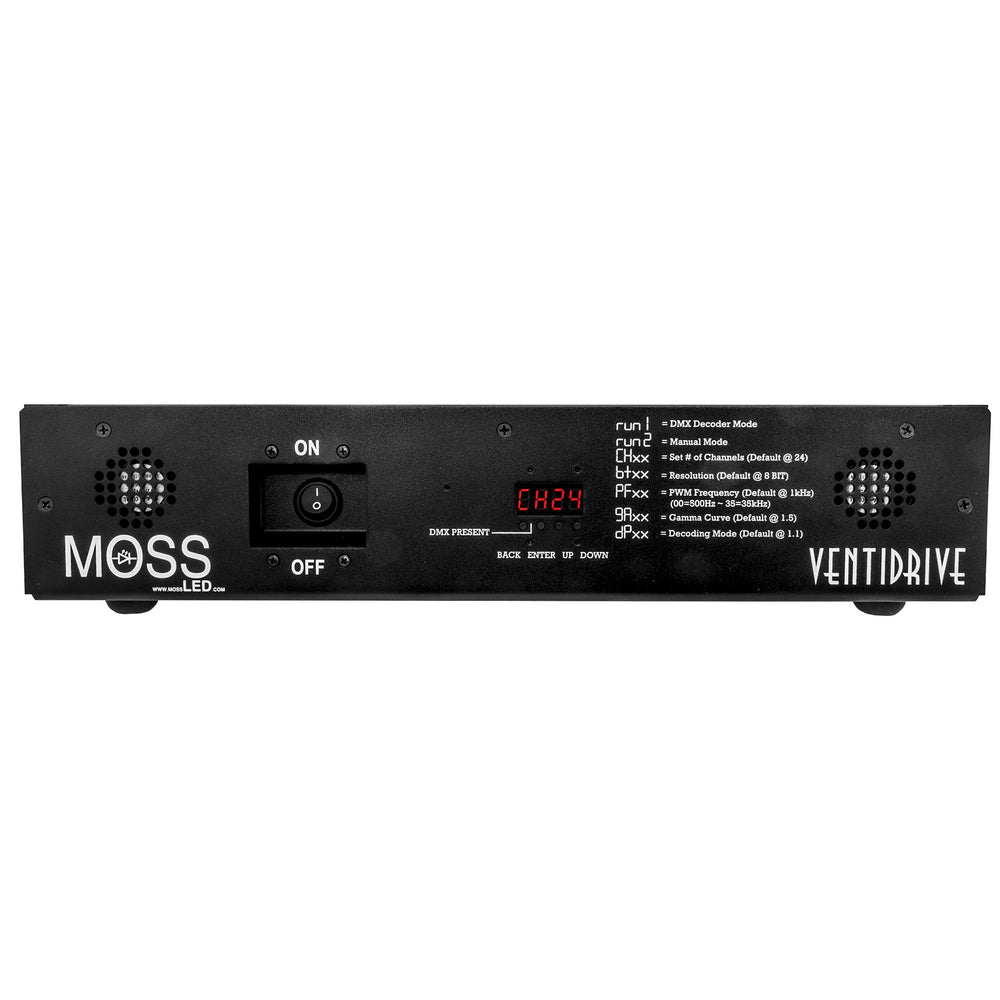

  • Recessed front power switch allow for protection of components and accidental activation of functions
  • New Neutrik True1 power input and output locking connectors allow for power breaking under load
  • Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.
  •           VentiQuattro dimming engine inside.

Professional DMX controlled multi-channel LED controller with built-in power supply.

No more separate power supplies!
Approved for use anywhere in the world!

 Contact us for pricing details for large quantity orders or for rental options.

Output Voltage (V)

:

24V DC

Output Current (A)

:

50A (6 X 8.34A)

Output Power (W)

:

1200 W

Agency Approvals

:

CE/RoHS/cETL (field evaluated)

Size (inches)

:

17L  X 15.75W X 3.5H

PWM Frequency

:

7.2kHz or 28kHz

Dimmers

:

24 Channels

Line & Load Regulation ()

:

0.5%

PSU Efficiency

:

95%

Frequency Range

:

47 ~ 63 Hz

Universal AC input

:

90 ~ 305VAC 127 ~ 431VDC

Low leakage current

:

.75mA

Protections:

:

short circuit, over voltage, overload, over current, over temp

AC Input Connector

:

Neutrik True1 Input & Pass-Thru

Housing

:

Fully enclosed aluminum housing

Medical safety approved

:

2 x MOPP between primary and secondary

Class

:

Class 2 power (24 channels @ 4A each)

Indicator

:

Front LCD Screen - See Specification Sheet for Details

Standby Power Consumption

:

< 10 watts

Output Connector Type

:

5 Position Terminal Block

Output Connector Lock

:

No

Output Polarity

:

Refer to Specification Sheet

Weight

:

24.2 lbs

Mounting Options

:

Movable Rack Ears (Front & Top) Front for Rack Mount & Top for Hanging.  Rubber Feet on Bottom for Stacking

Cooling

:

Forced Air via 2 Whisper-Quiet 16db Fans

Product Type

:

Multi-Channel LED Dimmer W/On-Board Power Supply

MFR Product Family

:

VENTIDRIVE

Operating Temperature

:

-40C to 90C

Chassis Color

:

Black

Wiring Color Codes Output

:

*Refer to Specification Sheet
