Titan Tube - Sold without AC Power Adapter

AST-FP1


Collections: Astera

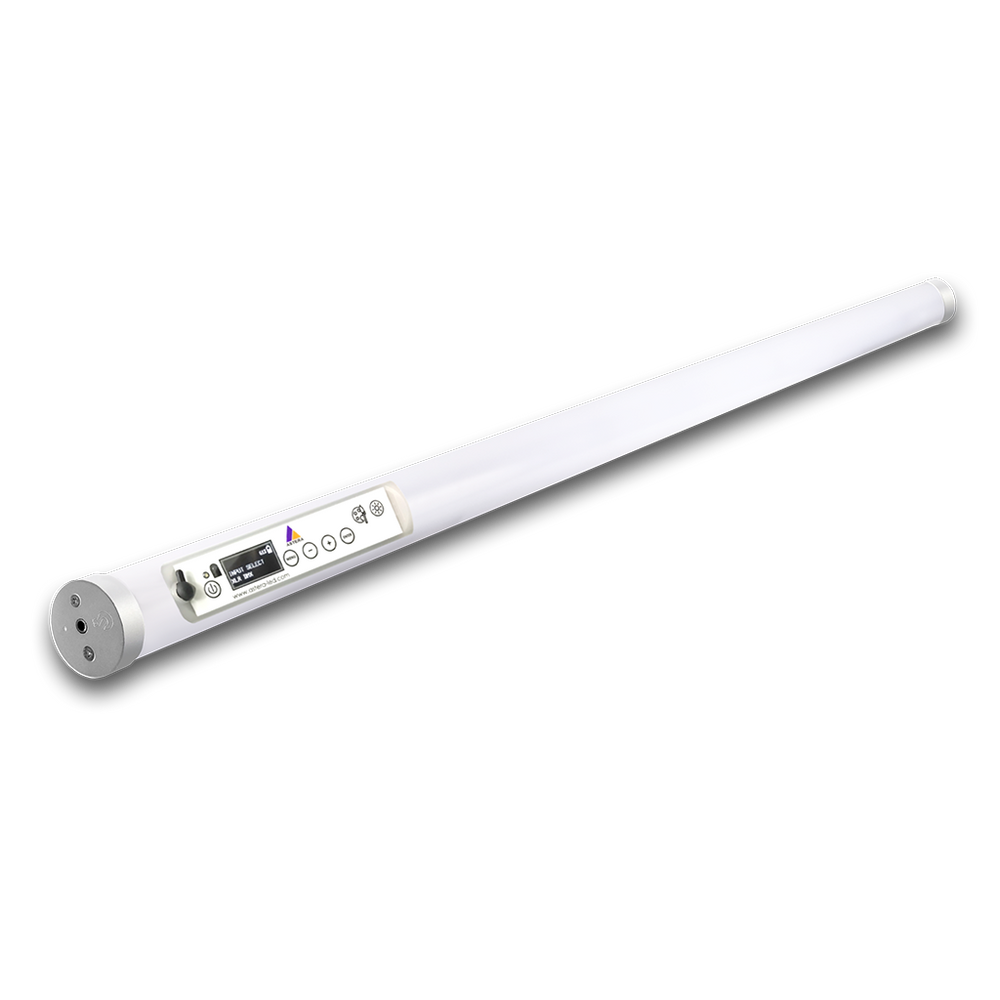

The ultimate battery-powered lighting tube for TV, cinema & photography

Film Lighting Tube | Titan Tube was especially designed for the Film, Broadcasting and Cinema industries. Optimized for an ultra-high TLCI, a very high CRI and peak brightness, colors as well as Hue, Saturation and Intensity can be set directly on the tube. In addition, the Titan Tube now accepts wired DMX via a special power/data combination cable.

  • Maximum 20 hour battery time
  • Mobile app control
  • Wireless DMX
  • IP65 (outdoor rated)

 Features unique to Titan Tube


Icon Text Image

Talkback+

Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.

Icon Text Image

Seamless Runtime

Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.

Icon Text Image

Other Features

The AsteraApp™ is packed with many additional items and new features are frequently added via software update.

Icon Text Image

TruColor Calibration

Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.

Icon Text Image

Effects

Quickly build programs out of colors and effects, trigger them or make them match a beat.

Icon Text Image

DJ Feature

Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.

Icon Text Image

Flicker Free

Scrambled PWM technology to avoid flickering when filming.

Icon Text Image

Green/Magenta Correction

Adjust green/magenta during content creation to reduce postproduction work.

Icon Text Image

Emergency Lights

Switches to white light when AC power is cut to keep your event safe

Icon Text Image

Scheduled StandBy

Switch lights into power-saving standby and schedule them to wake up when the production starts.

Icon Text Image

Dynamic PowerBoost

This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.

Icon Text Image

Anti-Theft

The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.


SPECIFICATIONS

Optical (Colours) : Red, Green, Blue, Mint, Amber
Total LED Power : 72W
Maximum Power Draw : 48W
TLCI & CRI : ≥96
Luminous Flux : 2900 Lm
Emittance @ 1 M : 785 Lx
Strobe : 0 - 25Hz
Beam Angle : 120
Field Angle : 180
Pixels : 16
Electrical (Battery) : LG Chemos Lithium-ion
Battery Lifetime : 70% After 300 Cycles
Battery Runtime : Up to 20 hours
LED Lifetime : 50,000 Hours
Charging Time (Nominal) : 3 Hours
Input Voltage 24V 2A

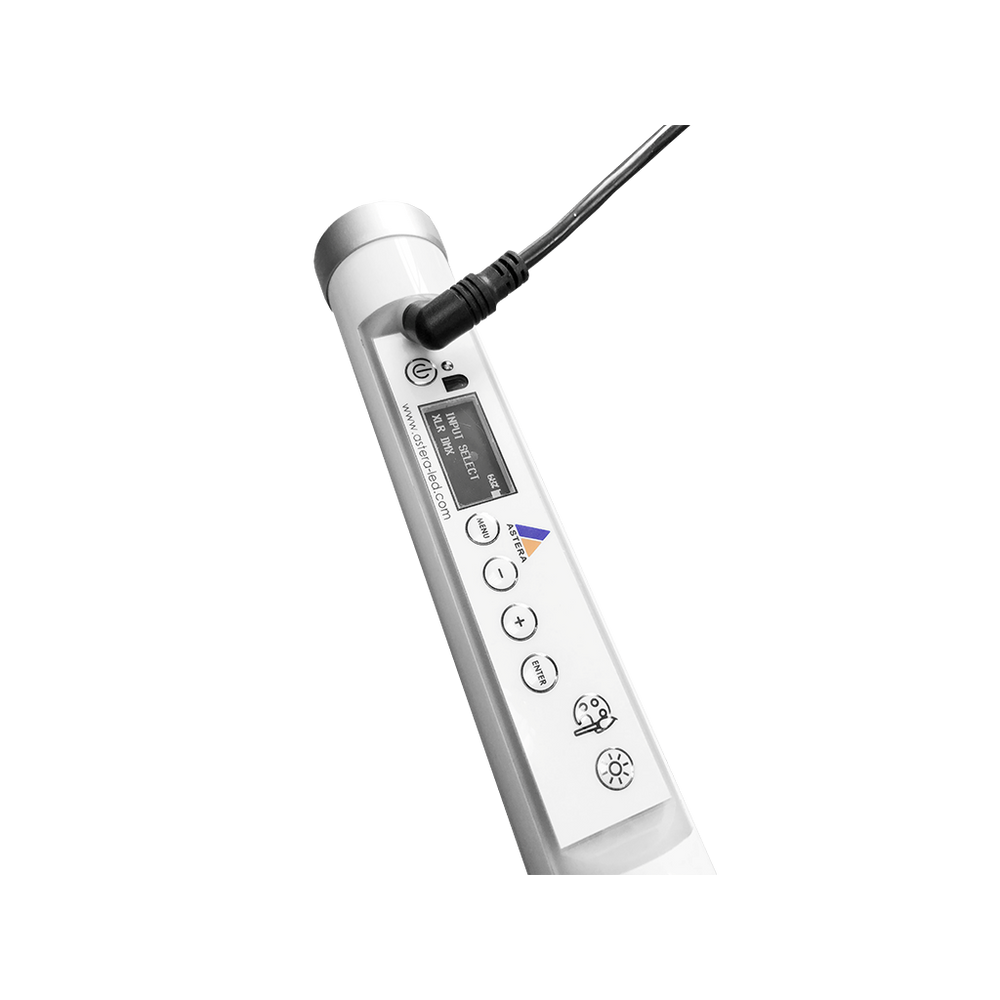

Control  Backside Display with HSI Control
Infrared : Separate Controller
Wireless Modules : 865 - 870 MHz | 902.928 MHz | 2.4GHz
Range : 300M | 330 Yards
Wired DMX : Supported via Astera PowerBox
Wireless DMX : CRMX & Others, excluding W-DMX G5, City Theatrical
Construction : Polycarbonate, Metal End Cap
IP Rating : IP 65
Relative Humidity : 0-100%
Operating Temperature : 0-40C | 32-104F
Weight : 1.35kg | 3LBS
Dimensions : Ø42 x 1035mm | Ø1.6” x H40.7”



DOWNLOADS

  1.  Product Cut Sheet
  2.  Data Sheet
  3.  User Manual
  4.  Titan 3200k at Full Power Spectrometer Report
  5. Titan 5500k at Full Power Spectrometer Report
