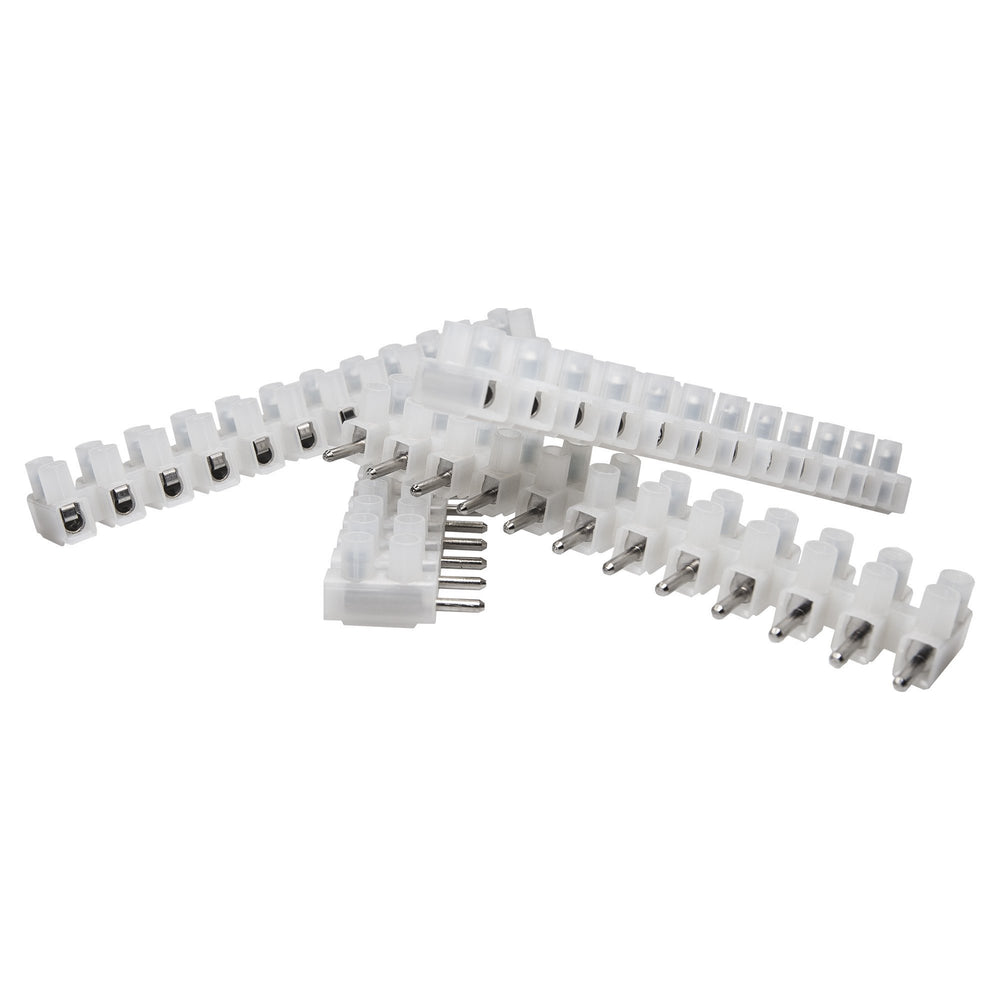

12 Position Terminal Blocks
Extremely useful terminal blocks. Available in pluggable versions as well as feed-thru style for more-permanent connection of two wires.
- Quick & Convenient Connection of Wires
- Requires flat-head screw driver for assembly

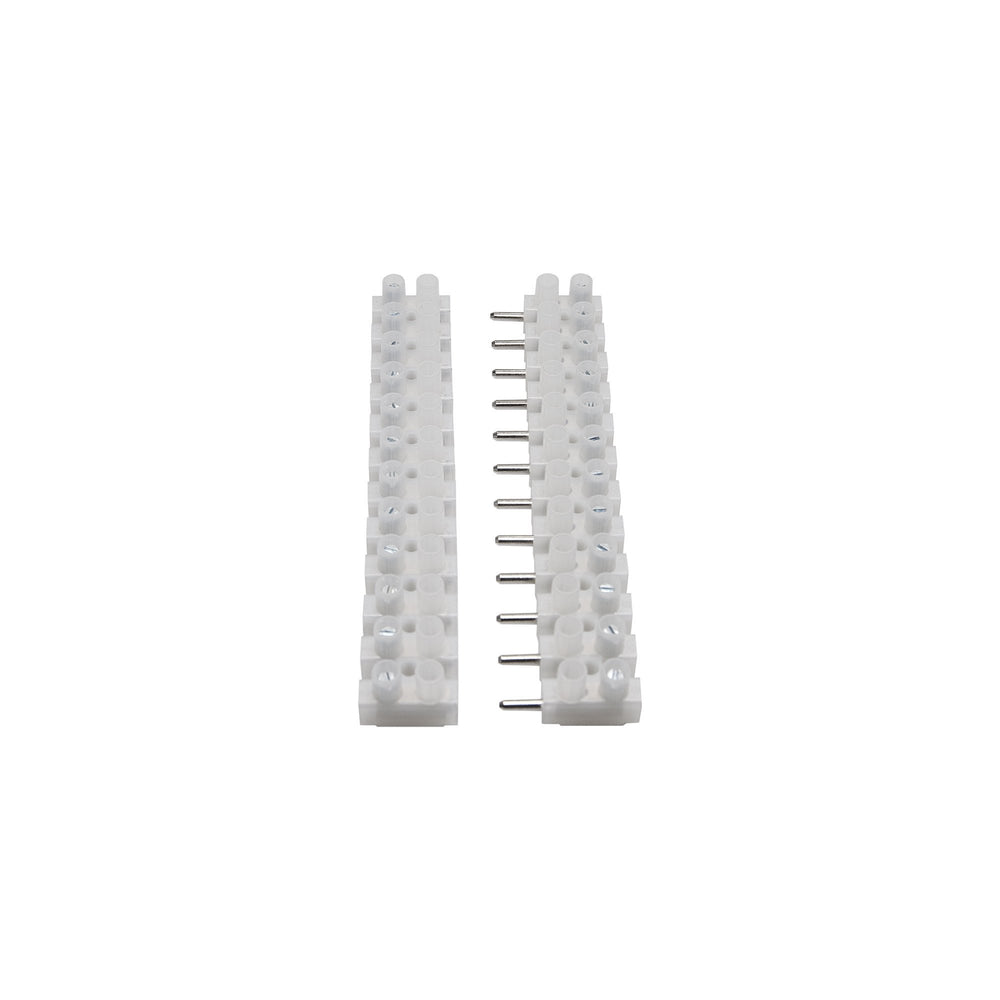

- Pluggable version (sold in pairs)

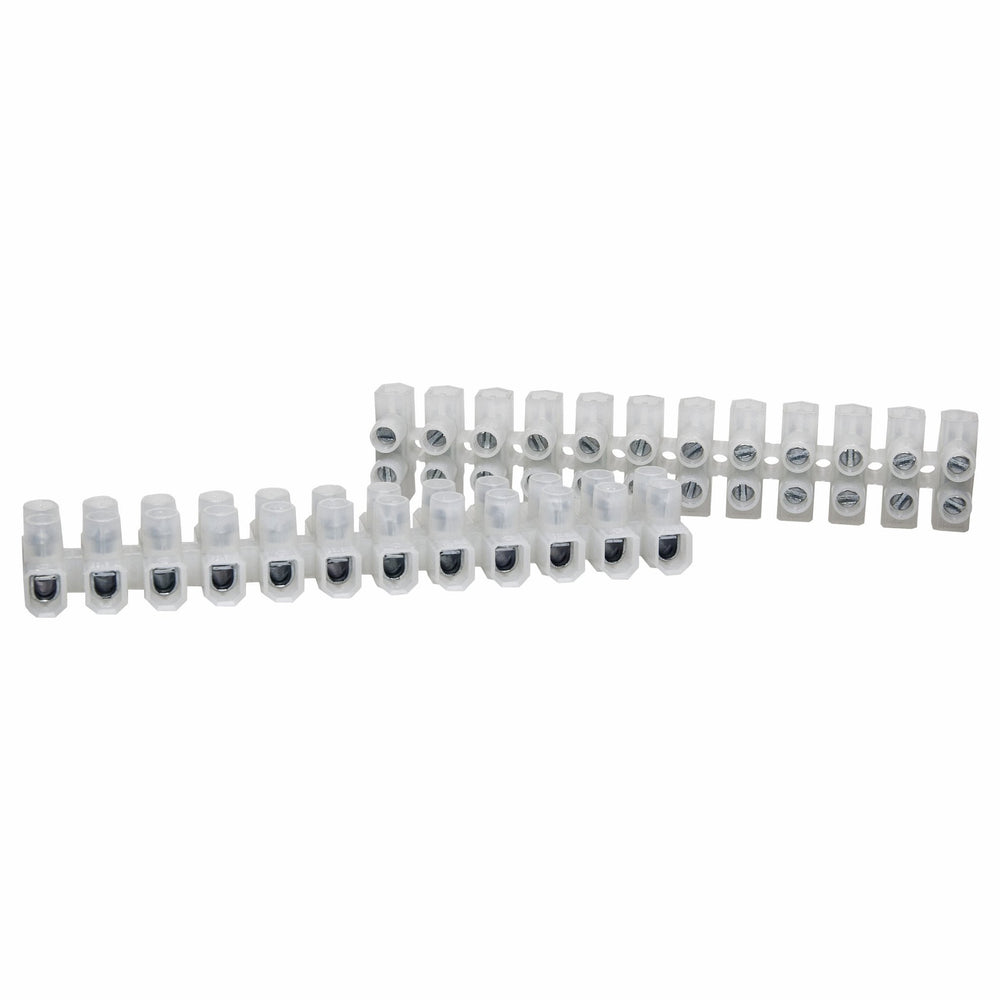

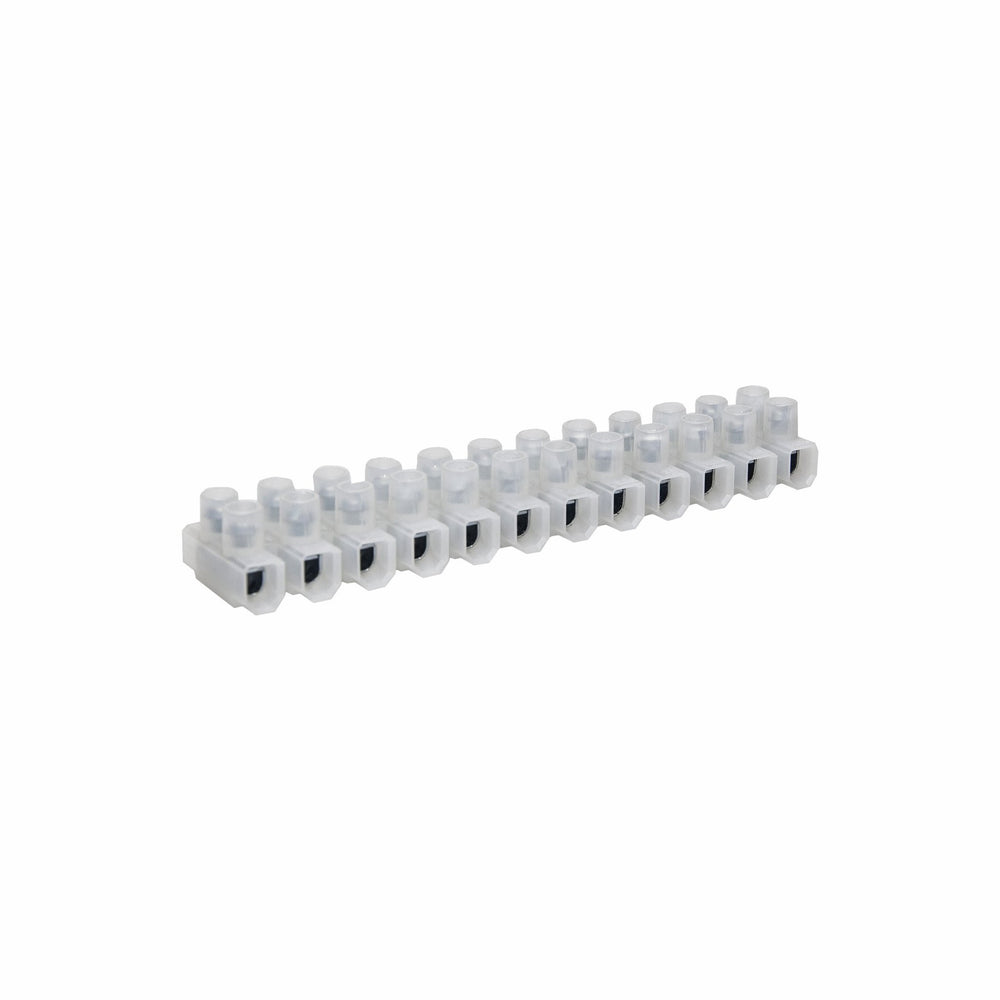

- Feed-Thru version (sold individually)
SPECIFICATIONS
| Max Voltage (V) | : | 300 V |
| Max Current Per Pin (A) | : | 6 A |
| AWG | : | 22 AWG to 6 AWG |
| Agency Approvals | : | DVE/CE/ROHS/cRUus/CQC |
| Size (MM) | : | 116.15 L X 18.6 W X 15.1 H |
| Housing | : | Polyamide 66, 94-V2 grade |
| Screw | : | Plated-Steel |
| Max Ambient Temp | : | 105C |
| Screw Type | : | Flat-Head M3 |
| Spacing (MM) | : | 10 |
