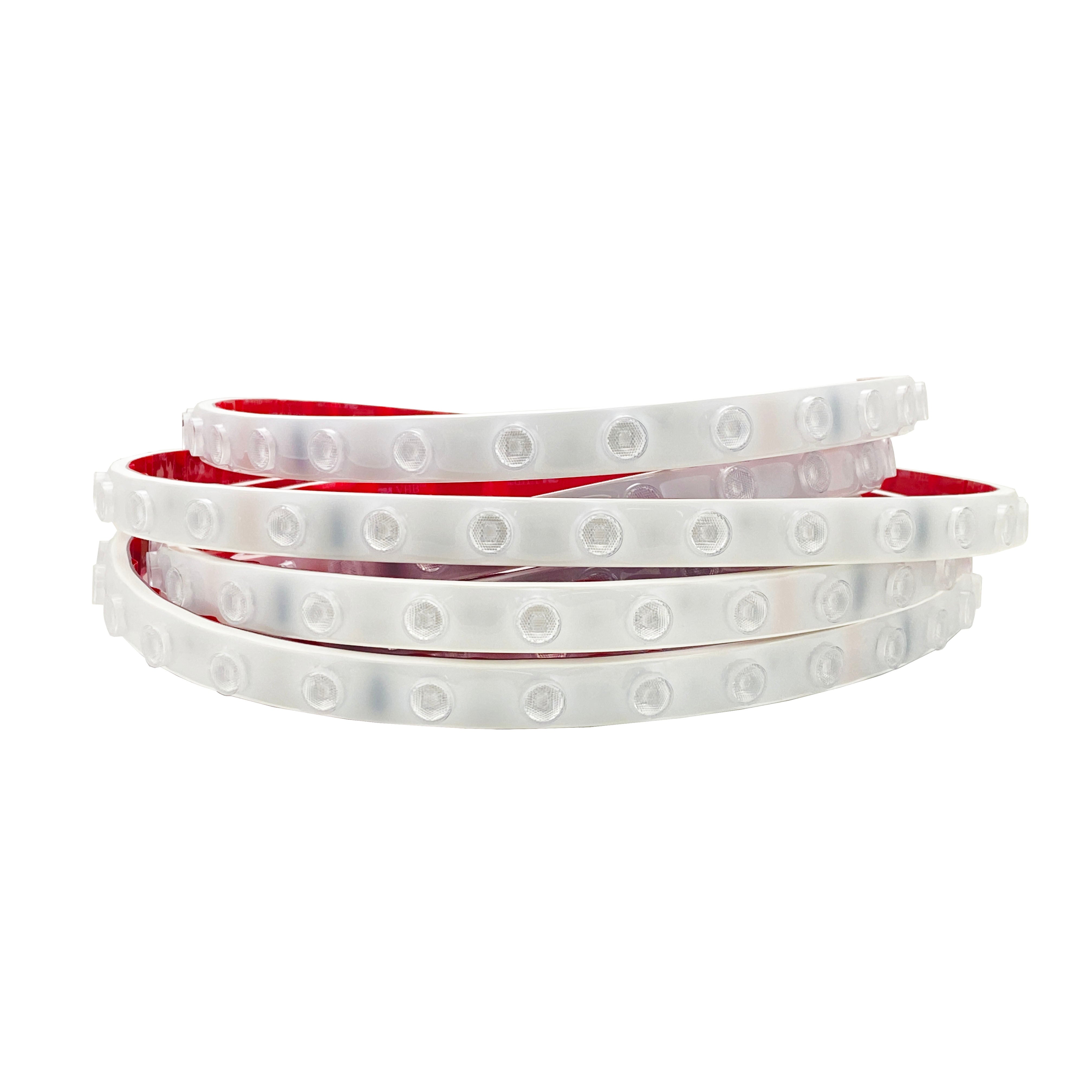

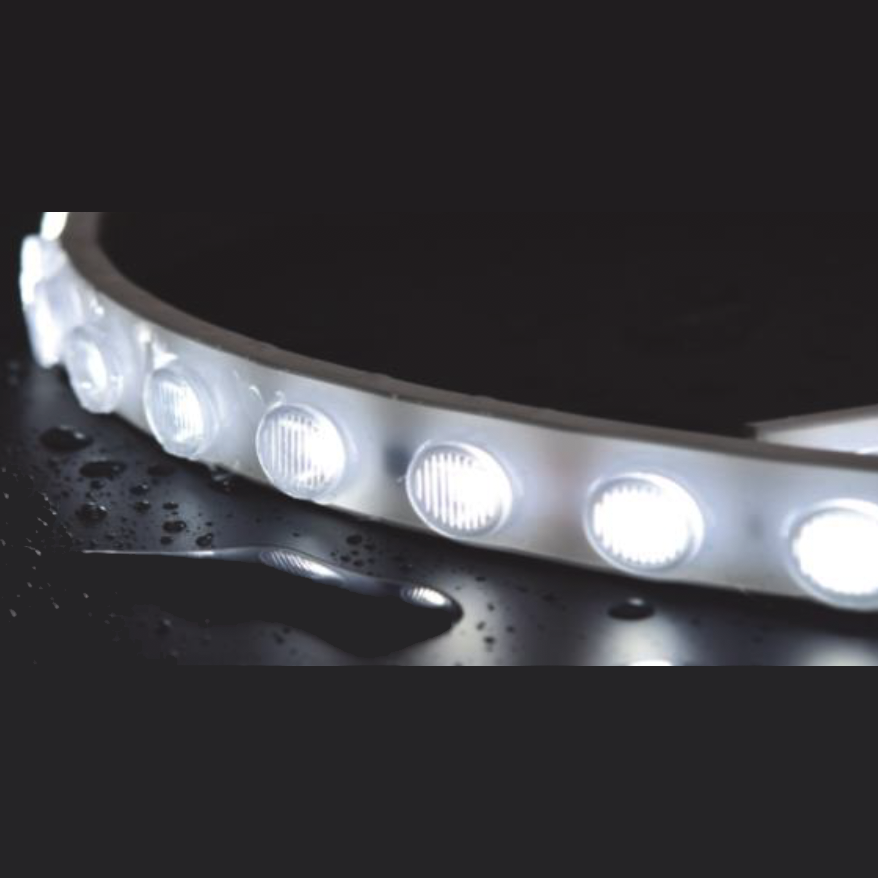

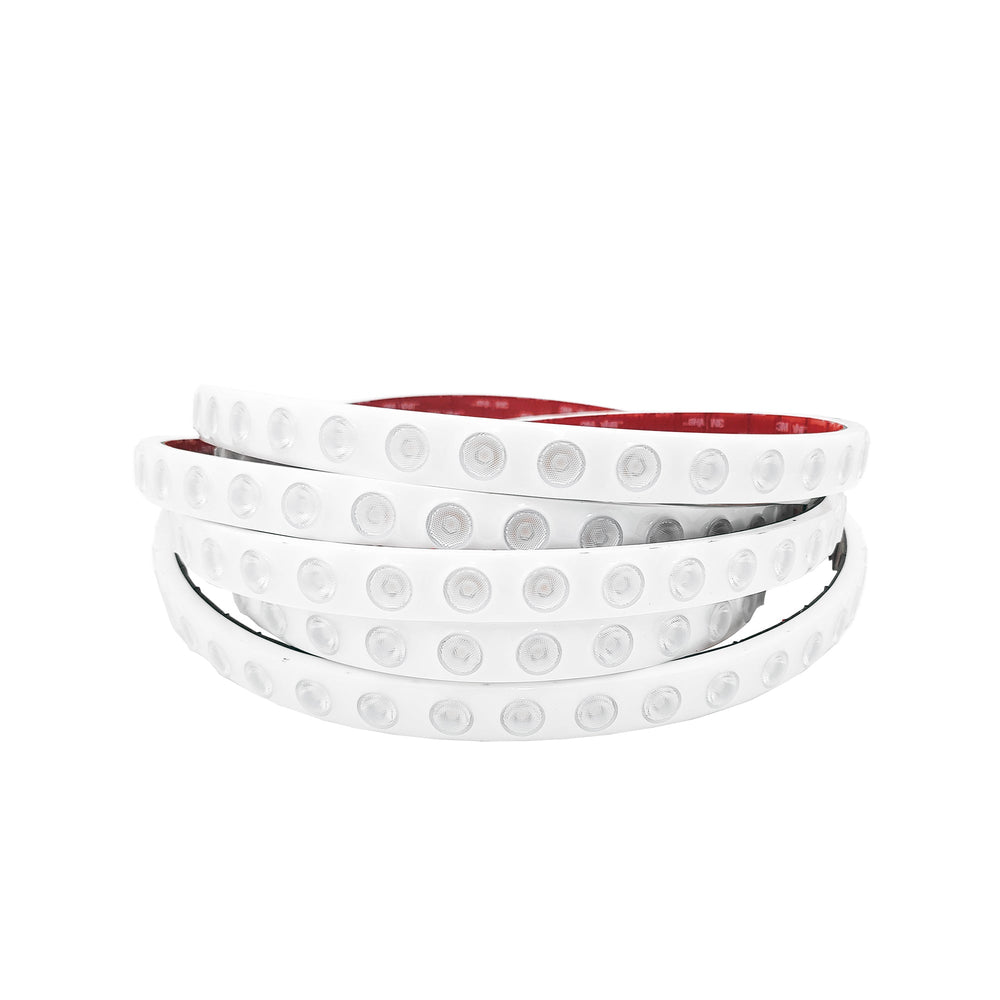

FlexLED with lenses over top of each LED that produce a more narrowed beam or oval shape. Perfect for uplighting and downlighting walls or anywhere you need to "throw" light farther than our standard FlexLED tape. Thermoplastic Polyurethane lensing over top of the LED which allows for different beam angle control over the LED.
Our standard FlexLED has a 180° beam angle, however the SpotFlex LED comes in a variety of beam angles 30°/45°/60° as well as oval beam angles 20° X 45° and 20° x 45° x 10°.
This product is specifically designed to throw light farther away from the source and is perfect for uplighting objects/walls/surfaces etc.
Available in 2700k/3000k/4000k/5000k/Red/Green/Blue/Amber
Custom colours and wavelengths are available.
Cut points are 12.50 CM except for where factory moulded end caps are located in which case they are 13.50CM.
Pricing is for 5 meters. Custom lengths are available.
Controller, power supply and extension cables sold separately.
Quantity discounts and custom wavelengths available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | White | Solid Colours | |
| Product Code | : | SDFX-O24VO2010-XXXX-95-240-ZZ-5MBEW | SDFX-O24VO2010-XXX-NA-240-2045-5MBEW | |
| CRI | : | 95+ | ||
| Kelvin | : | 2700k OR 3000k OR 4000k OR 5000k (+/-100k) | Red / Green / Blue / Amber | |
| PCB Color | : | White | ||
| Current, Rating | : | 1A / meter | ||
| Voltage | : | 24 VDC | ||
| Wattage | : | 24 W / meter | ||
| CC / CV | : | Constant Voltage | ||
| IP Rating | : | IP67 | ||
| Lumens @ Full | : | NA | NA | NA |
| Lumen / Watt | : | NA | NA | NA |
| Lifetime* | : | 30,000 hours | ||
| Cutting Length | : | 12.50 CM except for end caps in which case they are 13.5CM | ||
| LED Quantity | : | 48 LED / meter | ||
| Number of Contacts | : | 2 | ||
| LED Type | : | 2835 | ||
| Copper Quantity | : | 3 Oz. | ||
| Temperature, Operating, Maximum | : | 70° C | ||
| Temperature, Operating, Minimum | : | -40° C | ||
| Agency Ratings | : | UL - E489028, CE, RoHS | ||
| Width / PCB Width | : | 20MM / 18.5MM | ||
| Maximum Recommended Length | : | 5 meters | ||
| Viewing Angle | : | 30°/ 45°/ 60 °/20° X 45° / 20° X 45° X 10° | ||
| Adhesion | : | 3M VHB 5952 | ||
Specification Sheet
