SoftFLEX LED 784 RGBW 24V

SKU CV-RGBWCOBI784-2700-90-24-WBEW
by MossLED
$135.36
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 89 in stock, ready to be shipped
Accessories

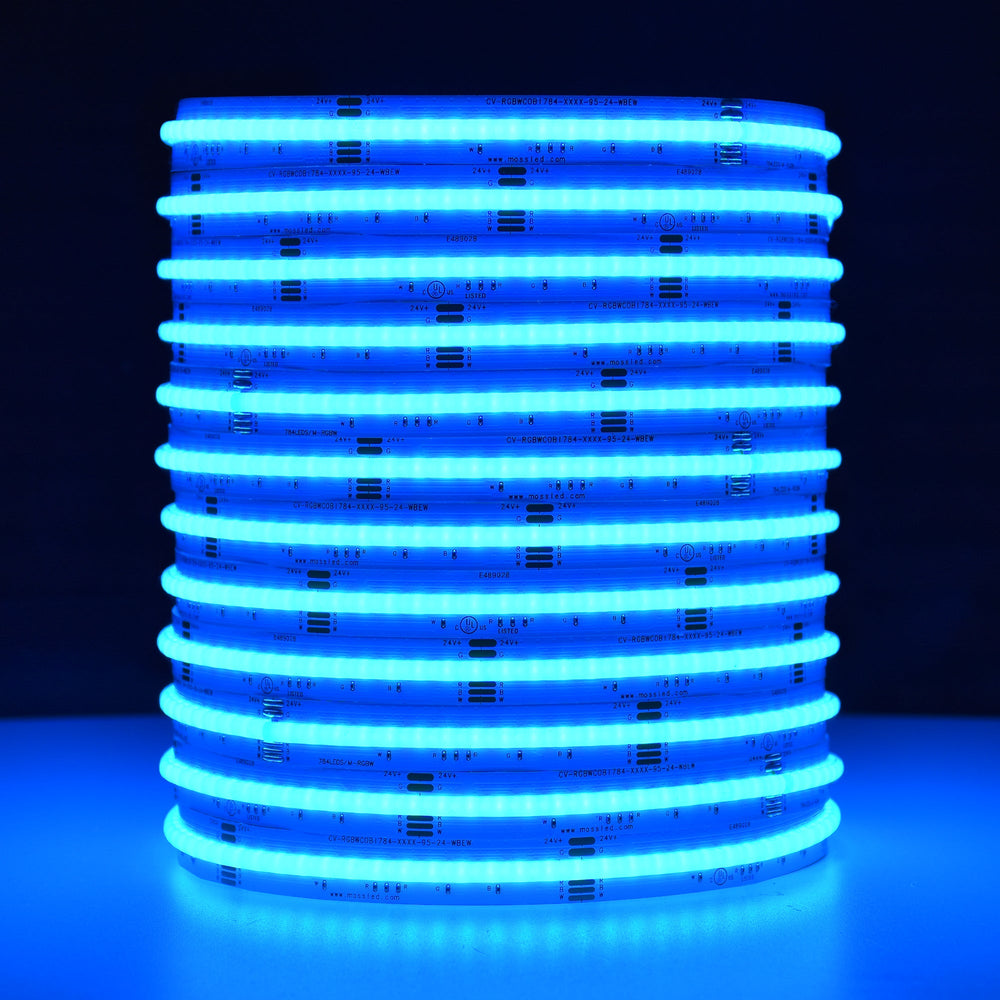

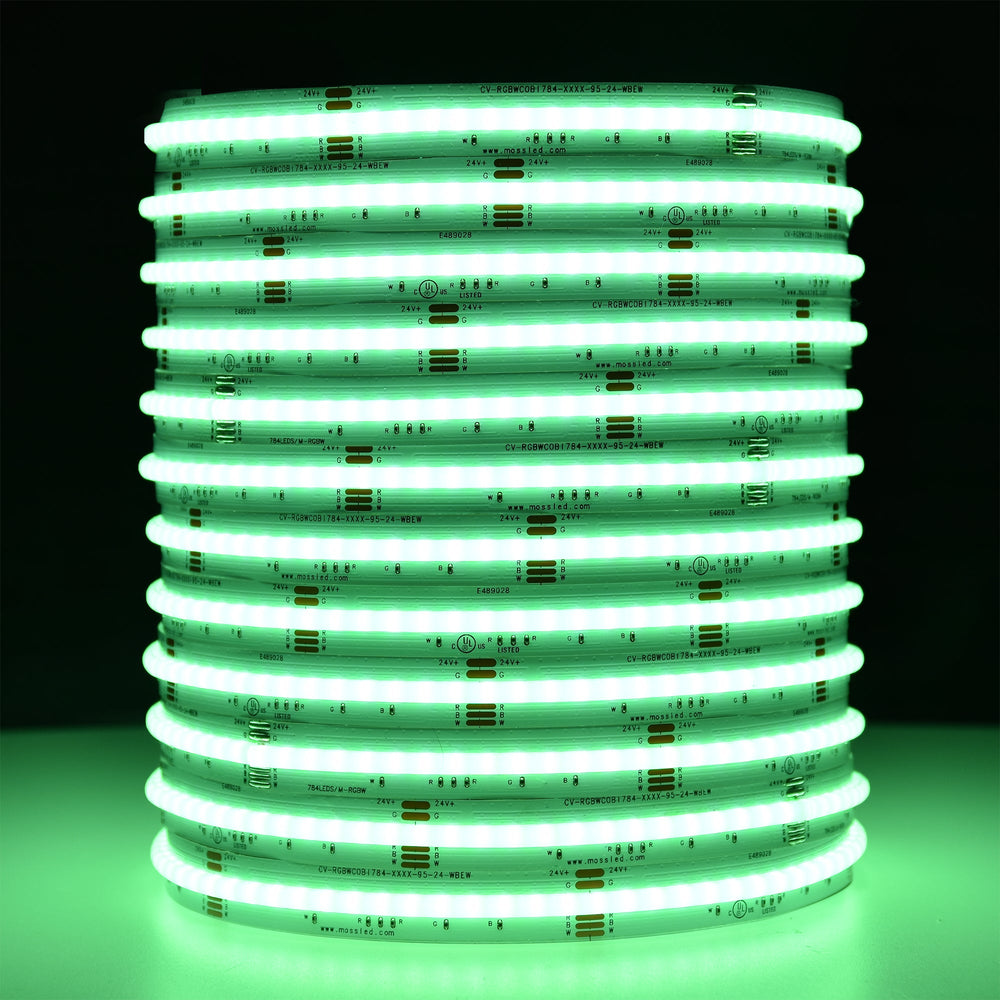

784 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)

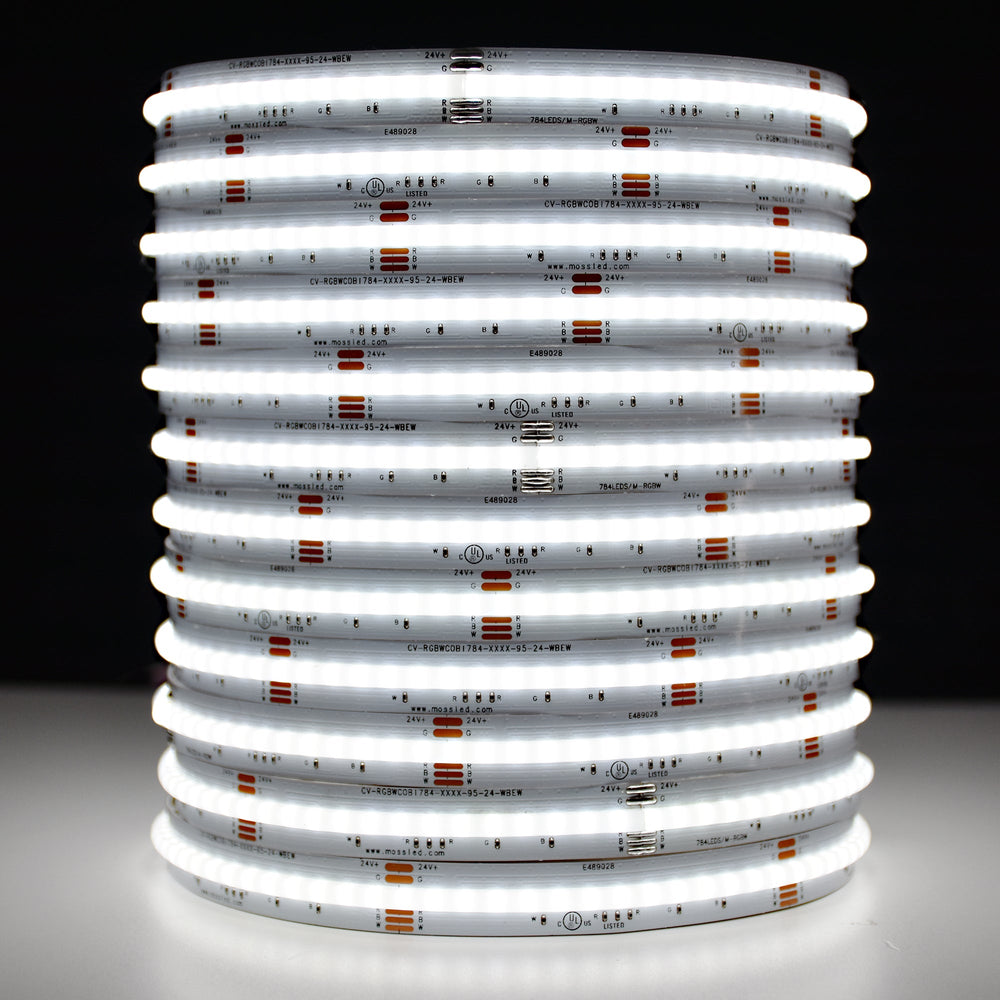

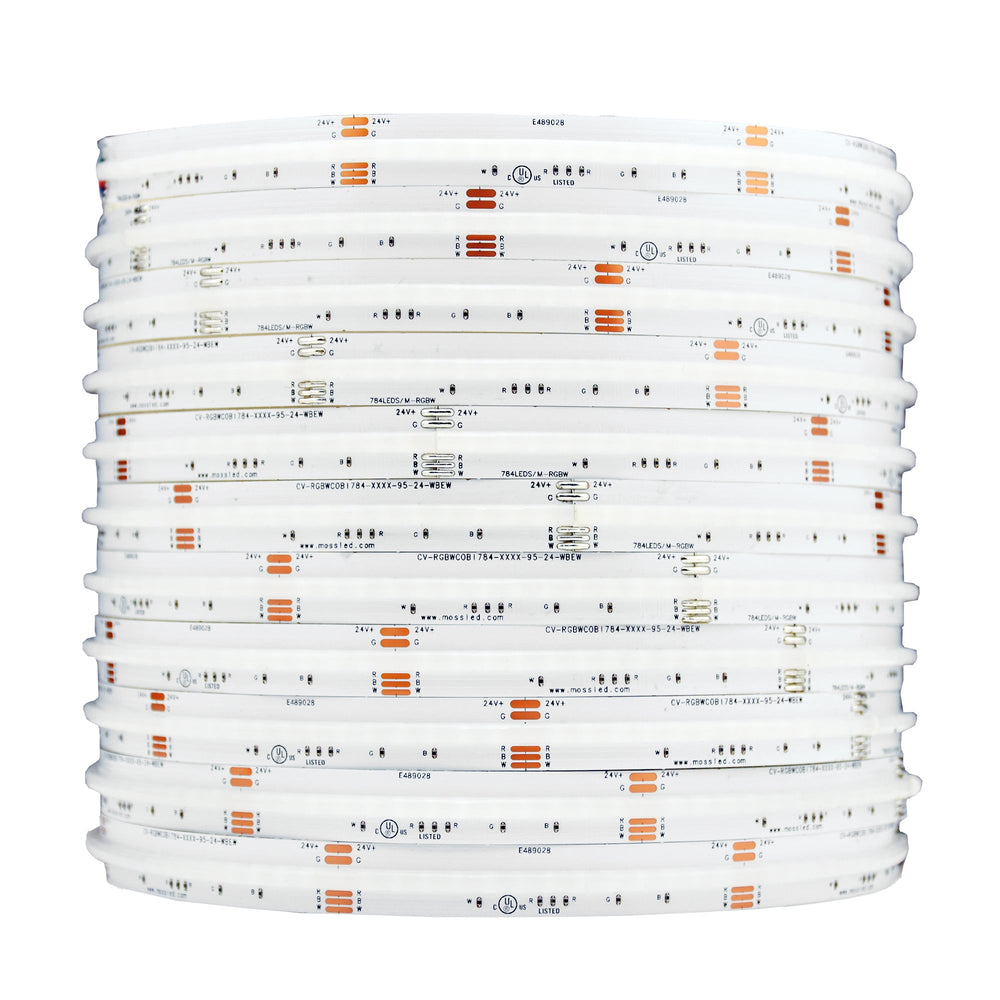

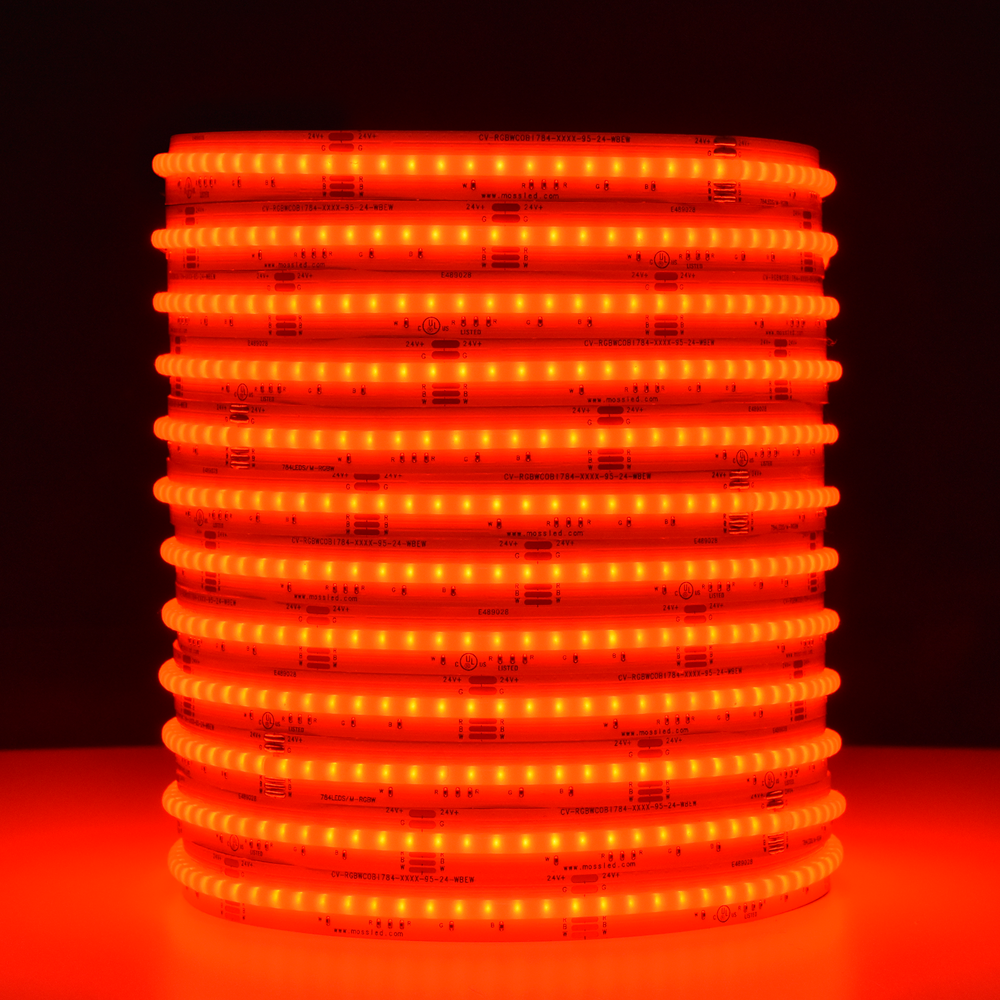

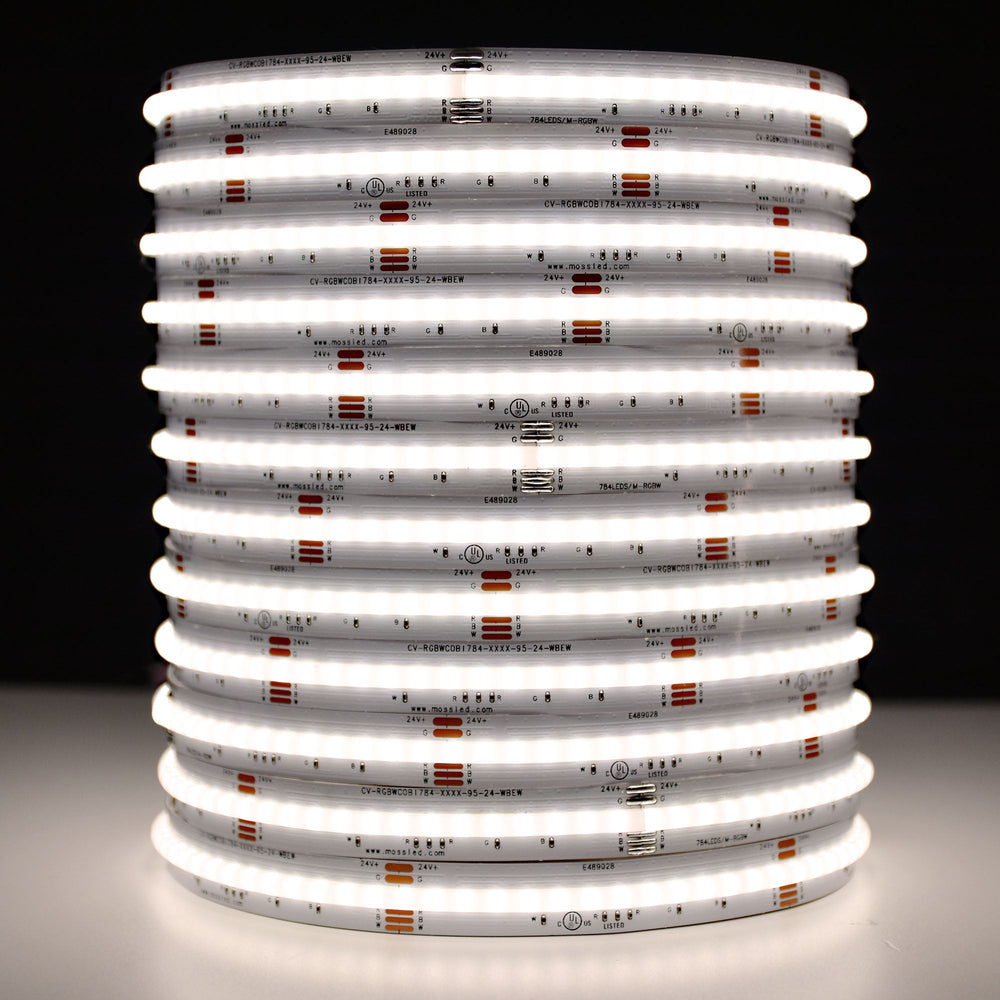

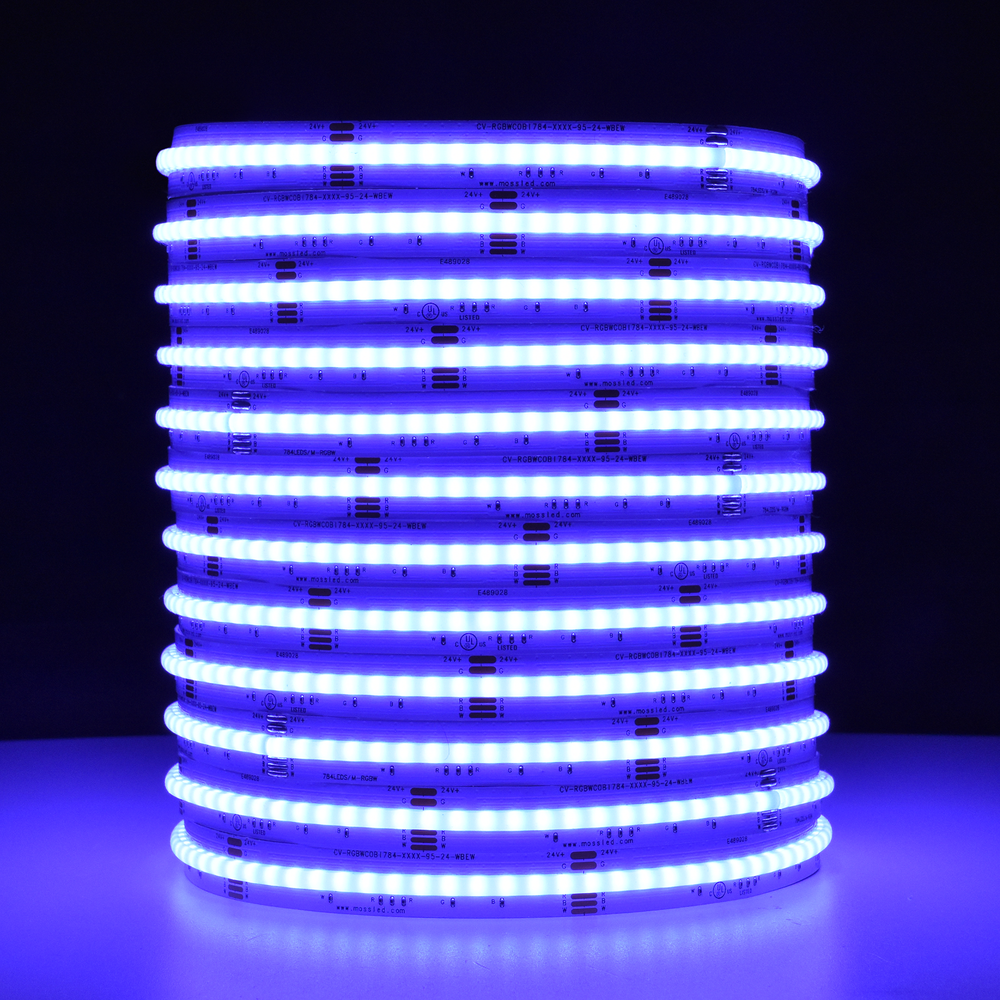

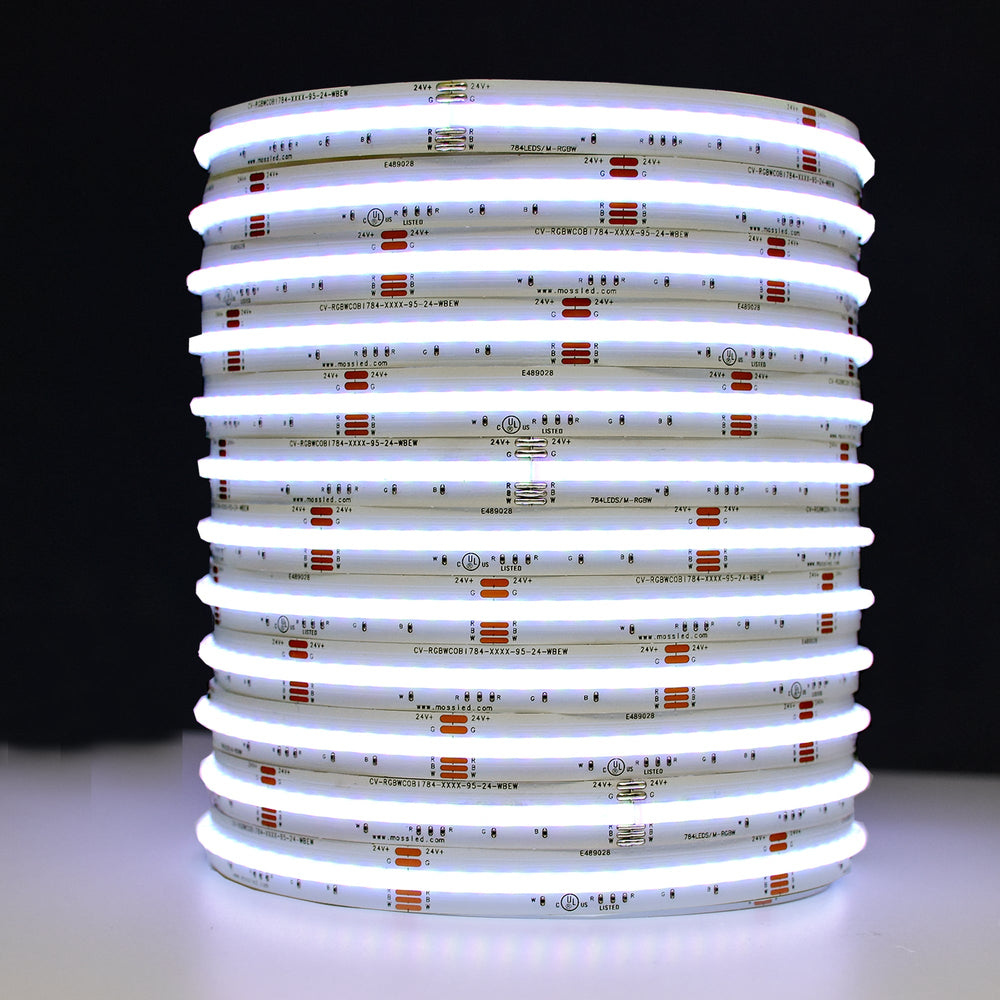

Our SoftFLEX (COB) series of flexible LED creates a virtually seamless, diffused, soft output without the ability to see individual pixels unlike our traditional FlexLED strips. The innovative design shows minimal hot spots & dark spots making it ideal in locations where you may be able to see the LED or its reflection. The SoftFLEX 784 RGBW is only 12MM in width which makes it suitable for narrow locations. Using chip-on-board (COB) technology the phosphor coating also acts as the diffuser creating almost pixel-free light output.

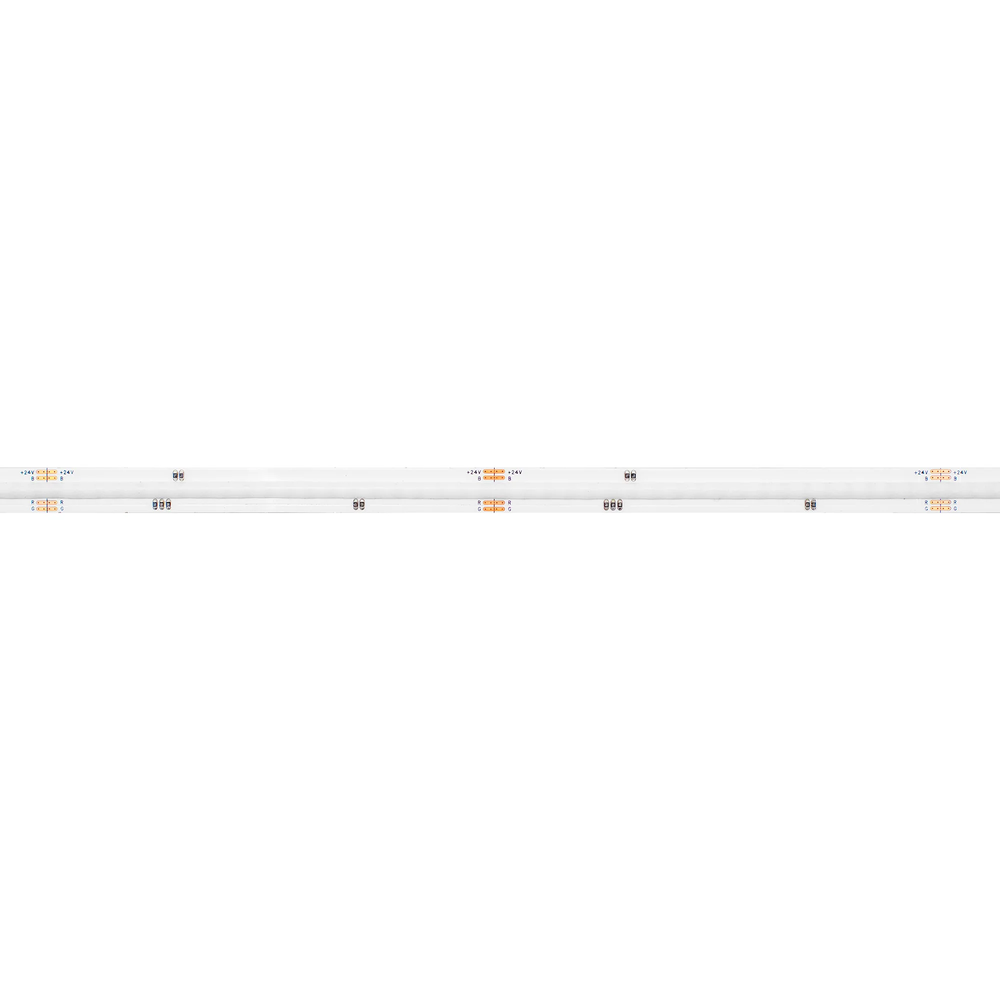

The 784 RGBW arranges the Red, Green, Blue & White pixels in a linear format which allows for a narrow 12MM width and at the same time providing convenient solder pads on top of the PCB. For comparison, our SoftFLEX LED 1134 RGB 24V & SoftFLEX LED 1008 Dynamic White (Bi-Colour) 24V arranges the pixels in a parallel format. The two different designs result in a very different visual effect in spite of both being part of the SoftFLEX family.

Reliable, high efficacy and high heat dissipation ensuring a long life-span.

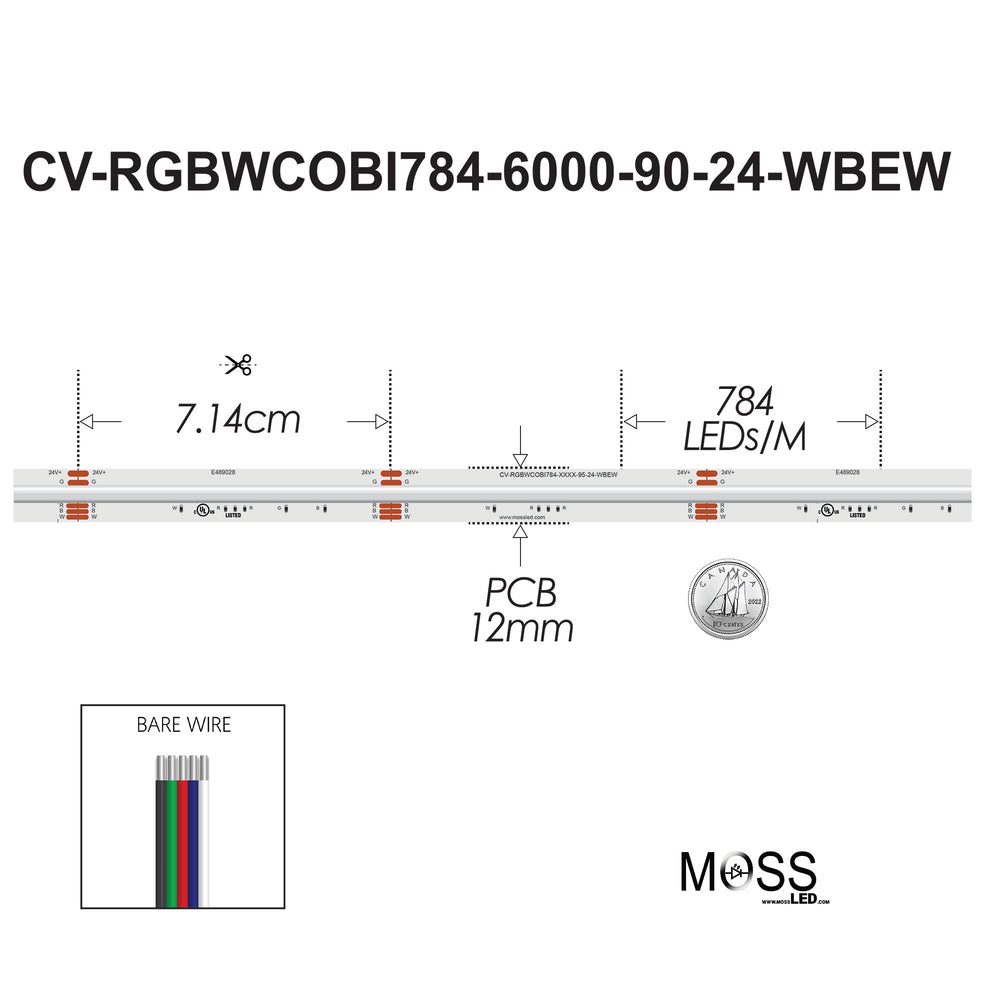

Cuttable every 7.14CM (2.81”) the SoftFLEX 784 is extremely customizable and is a perfect solution for countless lighting challenges. I

Indoor and weatherproof strips have double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided).

Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Controller, power supply and extension cables sold separately. Quantity discounts and custom colour temperatures are available.

Please call 1.800.924.1585 or email info@mossled.com to inquire.

Important: due to the high LED density, cutting exactly on the cutting lines (+/-0.2mm) is critical, otherwise you may damage the LED segment.


SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGBW Colour Changing 784 2700k RGBW Colour Changing 784 6000k
Product Code : CV-RGBWCOBI784-2700-90-24-WBEW CV-RGBWCOBI784-6000-90-24-WBEW
CRI :  ≥ 90
Kelvin : RGB+W (2700k) RGB+W (6000k)
PCB Color :   White
Current, Rating Per Meter : 0.79 A
Voltage : 24 VDC
Wattage Per Meter : 19 W / METER TOTAL------14 W / METER RGB------5 W / METER WHITE
CC / CV : Constant Voltage
IP Rating : IP21
Lumens @ Full per meter : 1290 LM TOTAL------701 LM RGB------501 LM WHITE 1525LM TOTAL------748 LM RGB------535LM WHITE
Lumen / Watt : 68 LM/W TOTAL-----50LM/W RGB------100LM/W WHITE 80LM/W TOTAL-----53LM/W RGB-----100LM/W WHITE
Lifetime* : 40,000 hours
Cutting Length : 7.14 CM
LED Quantity per meter : 784  chips
Number of Contacts :  5
LED Type : COB
Copper Quantity (ounce) :  2
Temperature, Operating, Maximum : 70°C
Temperature, Operating, Minimum :  -40°C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120˚
Adhesion : 3M 55280

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
  3.  Download IES Files - RGBW (2700K) and RGBW (6000k)

*nominal lifetime - dependent on installation location
