SoftFLEX LED 1008 Dynamic White 24V

SKU CV-DWCOBI1008-2765-95-24-WBEW
by MossLED
$227.72
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 87 in stock, ready to be shipped
Accessories

Colour Temperature Adjustable from 2700K -> 6500K

1008 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)

Our SoftFLEX (COB) series of flexible LED creates a seamless, diffused, soft output without the ability to see any pixels unlike our traditional FlexLED strips. The innovative design does not show any hot spots, or dark spots making it ideal in locations where you may be able to see the LED or its reflection. A 2700k and 6500k chip is located beside each other every 1.98MM which creates an extremely soft, seamless, light output. The SoftFLEX 1008 is only 12MM in width which makes it suitable for narrow locations. Using chip-on-board (COB) technology the phosphor coating with bounding box also acts as the diffuser creating pixel-free light output. Industry leading CRI 95+ white light adjustable colour temperature from 2700k to 6500k this LED is deal for on-camera use, museum lighting or anywhere a high colour rendering white light is required. Reliable and high efficacy with high heat dissipation ensures a long life-span.

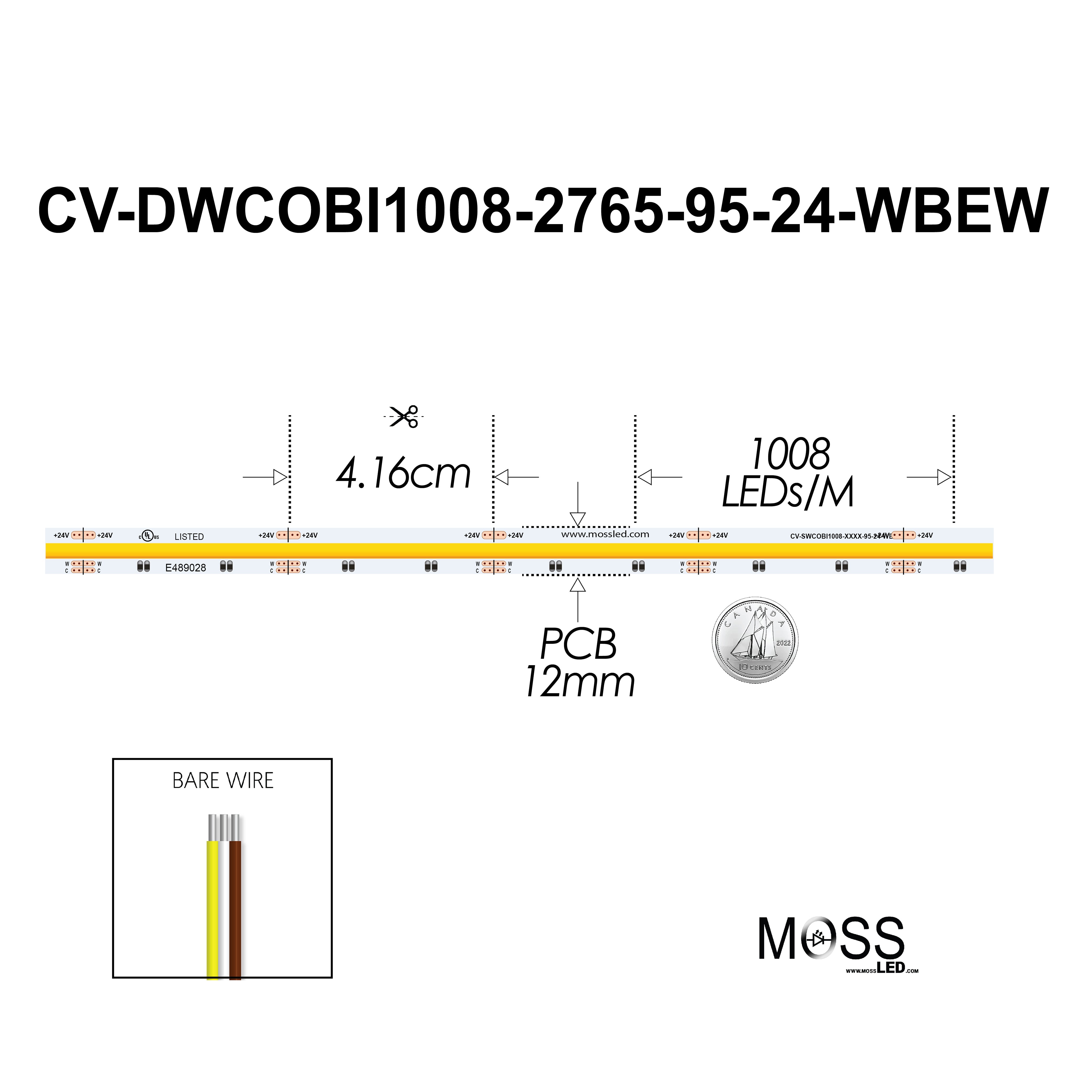

Cuttable every 4.16CM (1.64”) the SoftFLEX 1008 is extremely customizable and is a perfect solution for countless lighting challenges.

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided).

Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Controller, power supply and extension cables sold separately. Quantity discounts and custom color temperatures available. Please call 1.800.924.1585 or email info@mossled.com to inquire.

Important: due to the high LED density, cutting exactly on the cutting lines (+/-0.2mm) is critical, otherwise you may damage the LED segment.


SPECIFICATIONS - INDOOR PRODUCT

Product Type :  Dynamic White 1008
Product Code : CV-DWCOBI1008-2765-95-24-WBEW
CRI :  ≥95
Kelvin :  2700K -> 6500K
PCB Color :  White
Current, Rating :  0.71A / METER @ FULL----------0.38A / METER @ 2700K--------0.38A / METER @ 6500K
Voltage :  24 VDC
Wattage Per Meter :  17W / METER @ FULL----------9W / METER @ 2700K--------9W / METER @ 6500K
CC / CV :  Constant Voltage
IP Rating : IP21
Lumens @ Full per meter : 1386 lm / METER @ FULL----------631 LM / METER @ 2700K----------795 LM / METER @ 6500K
Lumen / Watt : 79 lm /WATT @ FULL----------70 LM / METER @ 2700K----------88 LM / METER @ 6500K
Lifetime* : 40,000 hours
Cutting Length : 4.16 CM (1.64")
LED Quantity per meter : 1008  chips
Number of Contacts :  3
LED Type :  COB
Copper Quantity (ounce) :  2
Temperature, Operating, Maximum :  70 ° C
Temperature, Operating, Minimum :   -40 ° C
Agency Ratings :  UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length :  5 meters
Viewing Angle :  120
Adhesion :  3M 55230

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
  3.  Download IES Files - SoftFLEX LED 1008 Dynamic White 24V

*nominal lifetime - dependent on installation location
