Industry Standard 2700k, 3000k, 4000k, and 6500k High CRI >95
546 LED/Meter SoftFlex LED Tape in 24V DC (5 meter lengths)

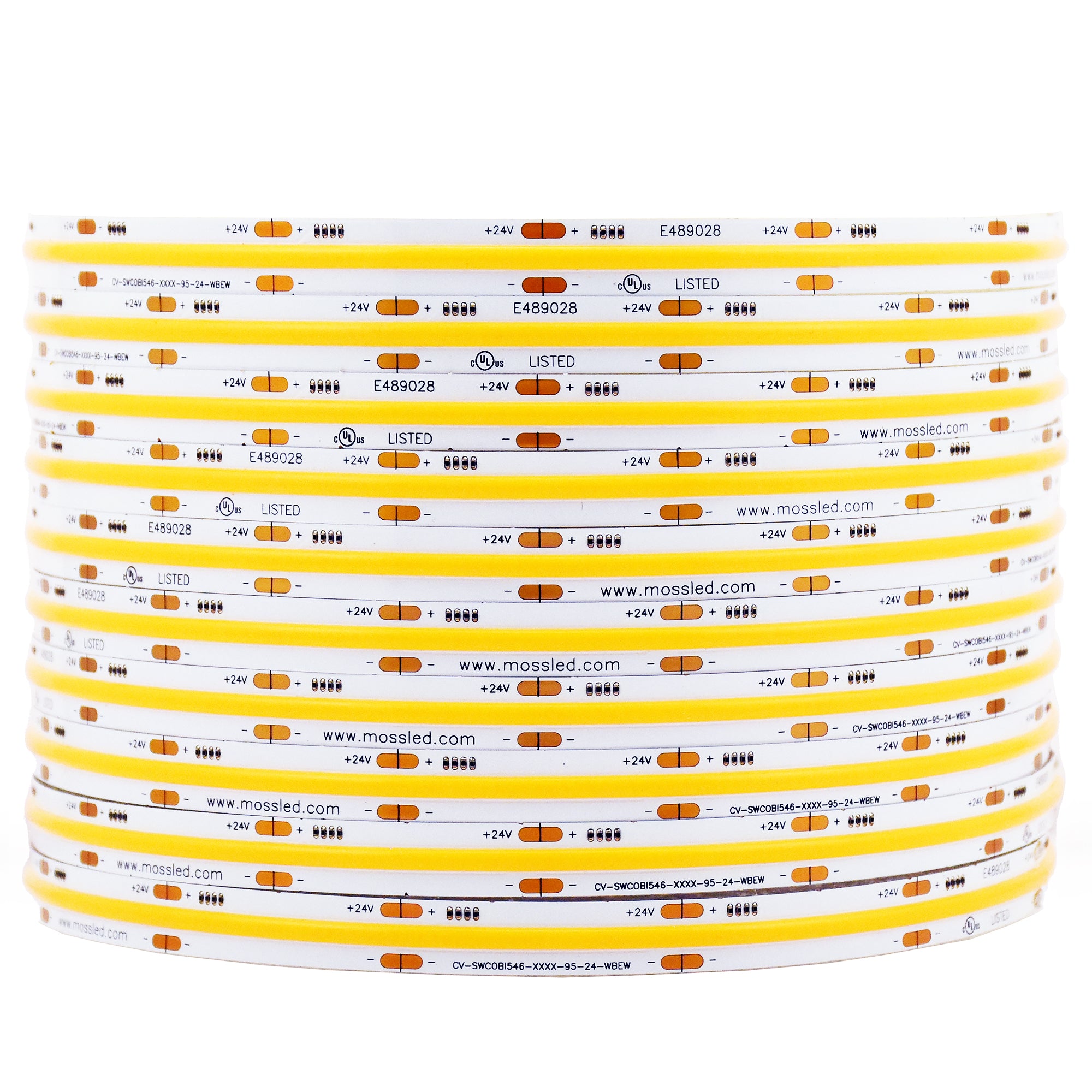

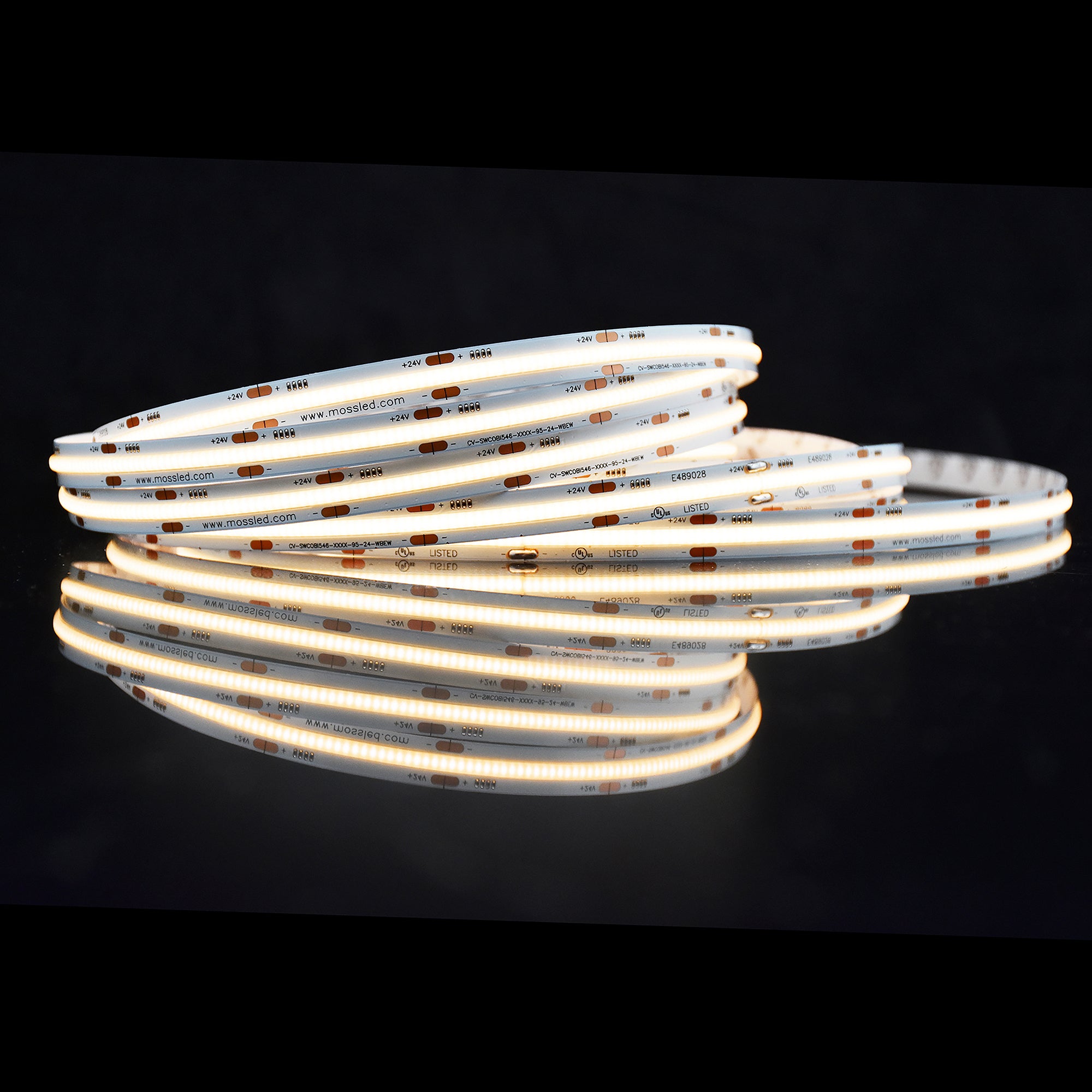

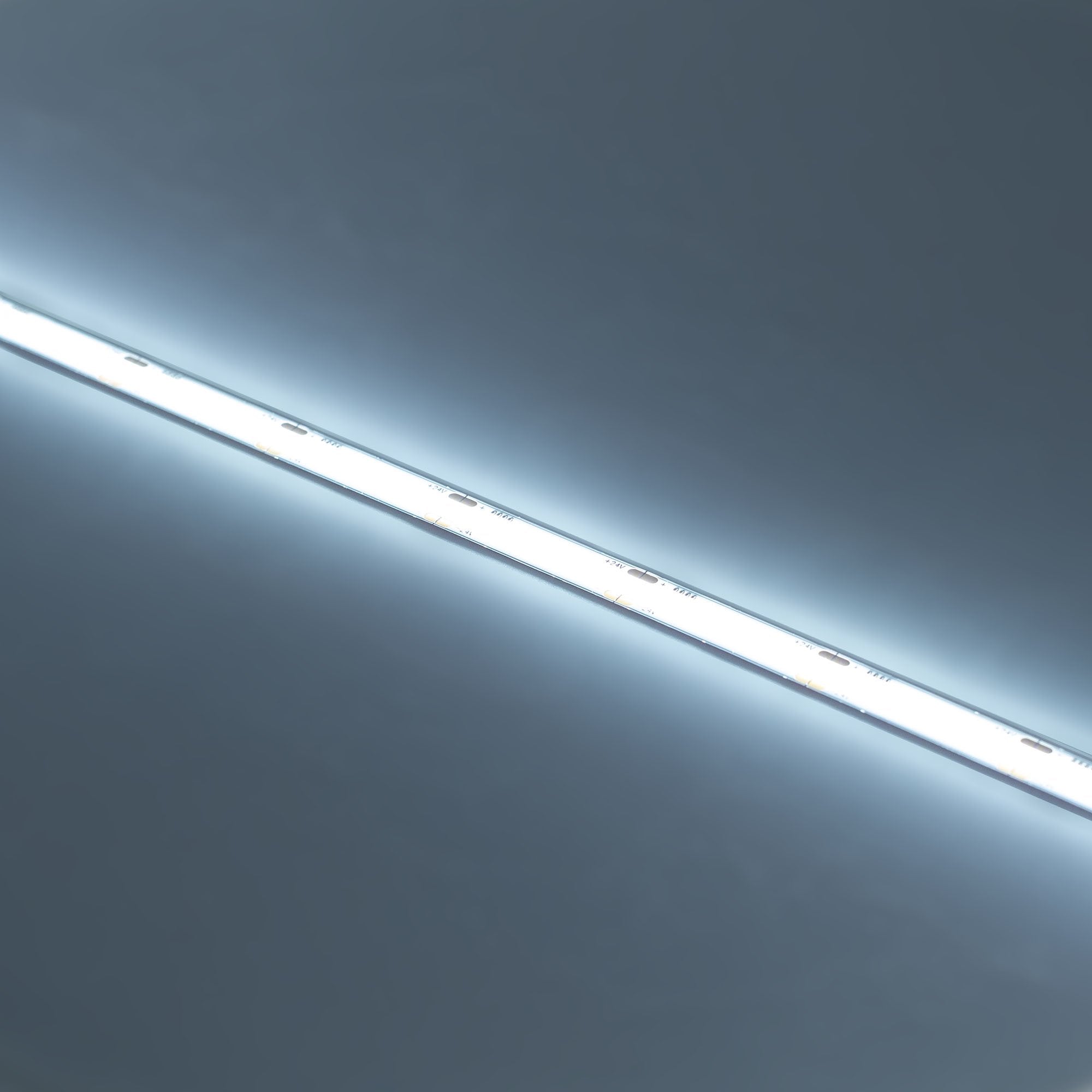

Our SoftFLEX (COB) series of flexible LED creates a seamless, diffused, soft output without the ability to see any pixels unlike our traditional FlexLED strips. The innovative design does not show any hot spots, or dark spots making it ideal in locations where you may be able to see the LED or its reflection. The SoftFLEX 546 is 10MM in width with convenient soldering pads on either side of the COB. Using chip-on-board (COB) technology the phosphor coating also acts as the diffuser creating pixel-free light output. Industry leading CRI 95+ white light available in a variety of colour temperatures this LED is deal for on-camera use, museum lighting or anywhere a high colour rendering white light is required. Reliable, high efficacy and high heat dissipation ensuring a long life-span.
Cuttable every 3.84CM (1.51”) the SoftFLEX 546 is extremely customizable and is a perfect solution for countless lighting challenges. Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. Waterproof must be mounted using silicone (not provided). Soldering Guidelines: Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur. Controller, power supply and extension cables sold separately. Quantity discounts and custom color temperatures available. Please call 1.800.924.1585 or email info@mossled.com to inquire.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Super Warm White | Warm White | Neutral White | Cool White |
| Product Code | : | CV-SWCOBI546-2700-95-24-WBEW | CV-SWCOBI546-3000-95-24-WBEW | CV-SWCOBI546-4000-95-24-WBEW | CV-SWCOBI546-6500-95-24-WBEW |
| CRI | : | 95 | 95 | 95 | 95 |
| Kelvin | : | 2700k +/- 100k | 3000k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White | White |
| Current, Rating | : | 0.75 A / meter | 0.75 A / meter | 0.75 A / meter | 0.75 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage Per Meter | : | 18W | 18W | 18W | 18W |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP21 | IP21 | IP21 | IP21 |
| Lumens @ Full per meter | : | 1290 lm | 1350 lm | 1440 lm | 1525 lm |
| Lumen / Watt | : | 71 lm/w | 75 lm/w | 80 lm/w | 85 lm/w |
| Lifetime* | : | 40,000 hours | 40,000 hours | 40,000 hours | 40,000 hours |
| Cutting Length | : | 3.84CM | 3.84CM | 3.84CM | 3.84CM |
| LED Quantity per meter | : | 546 chips | 546 chips | 546 chips | 546 chips |
| Number of Contacts | : | 2 | 2 | 2 | 2 |
| LED Type | : | COB | COB | COB | COB |
| Copper Quantity (ounce) | : | 3 | 3 | 3 | 3 |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 10 meters | 10 meters | 10 meters |
| Viewing Angle | : | 180 | 180 | 180 | 180 |
| Adhesion | : | 3M 55280 | 3M 55280 | 3M 55280 | 3M 55280 |
