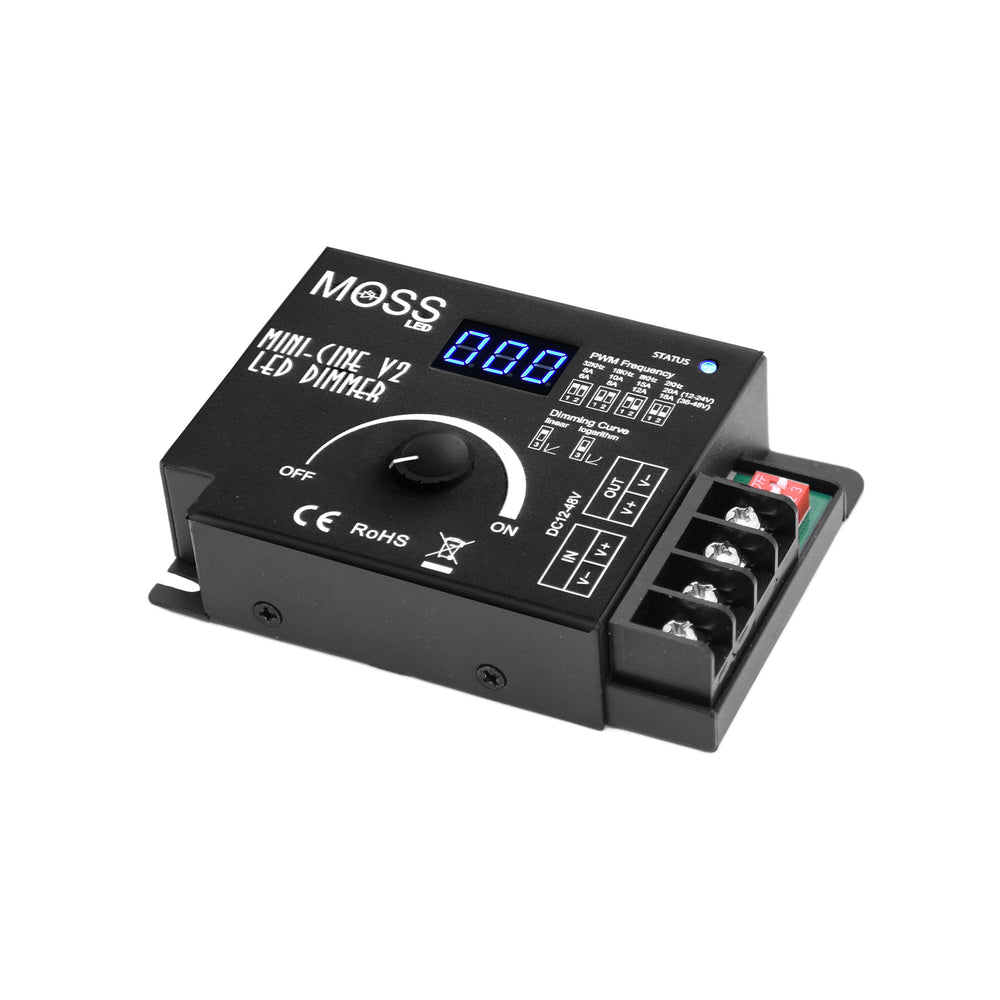

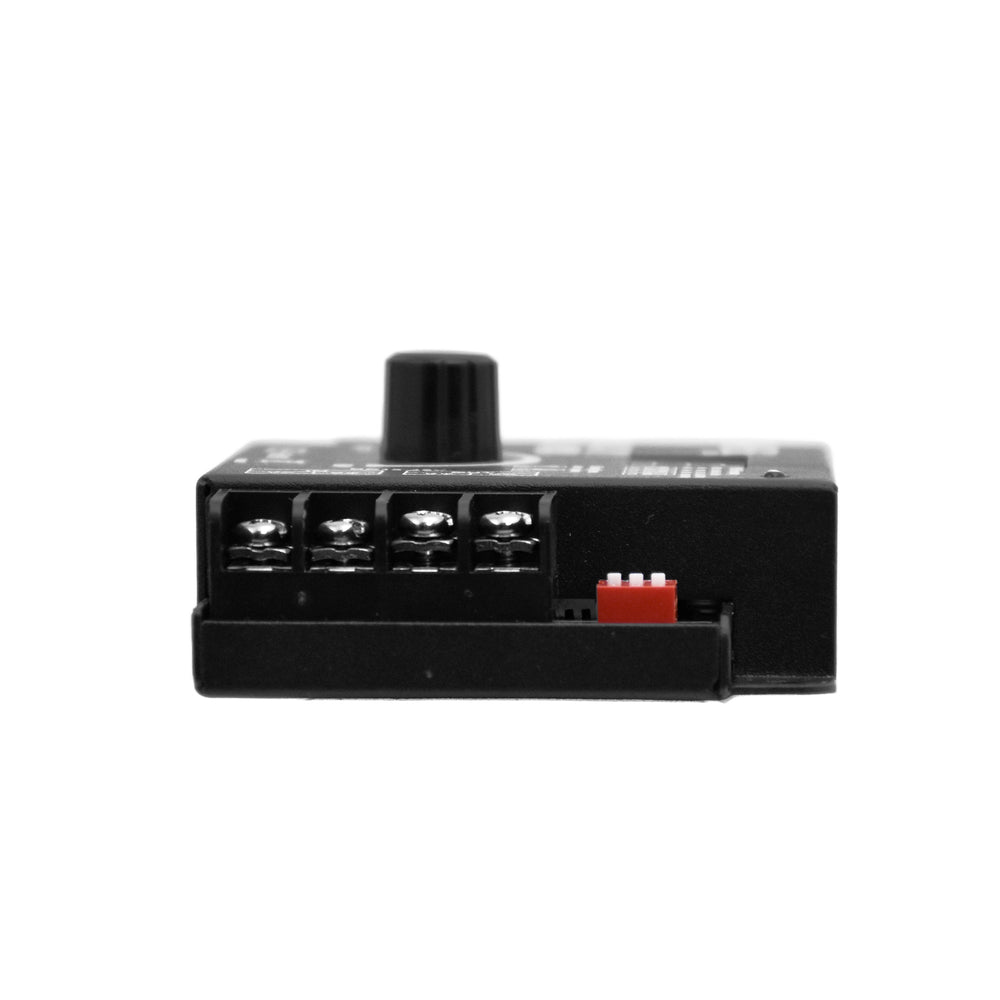

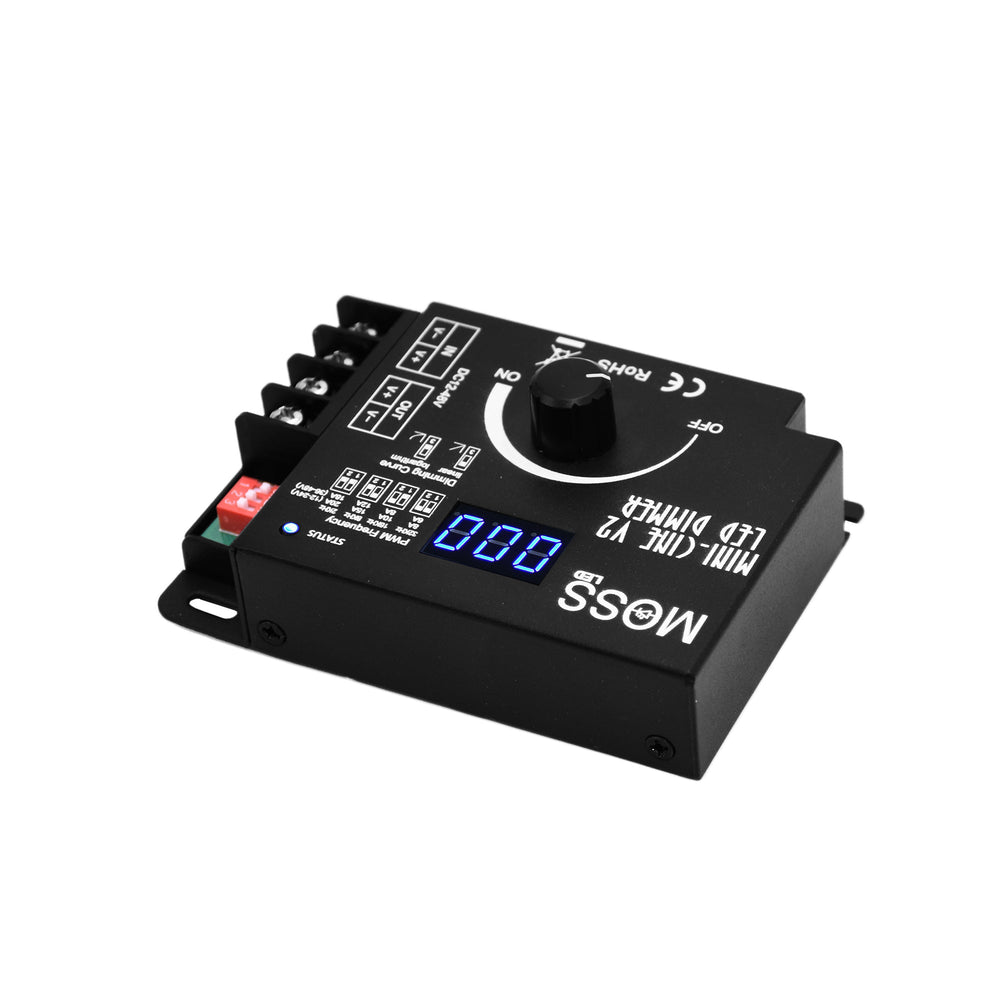

The MiniCine V2 is a compact, high-performance rotary dimmer designed for seamless brightness control of white FlexLED Tape and any constant voltage LED products. With an adjustable PWM frequency and a high-current of up to 20-amp rating, it delivers smooth, flicker-free dimming for film, television, and architectural applications.
Key Features:
- Compatible with Moss LED White FlexLED Tape – Optimized for precision with digital readout
- Wide Voltage Range – Supports 12–48 VDC, handling up to 864 W.
- Adjustable PWM Frequency – 2 kHz, 8 kHz, 16 kHz, or 32 kHz for flicker-free performance.
- High Current Capacity – 20 amp rating for stable, high-power applications.
- Easy Installation – Built-in screw holes for secure mounting.
Need a custom solution? Contact us today!
Â
Â
Technical Specifications
| PRODUCT TYPE | : | MINI-CINE V2 |
| PRODUCT CODE | : | XDIMMER1CH12V48V2 |
| VOLTAGE | : | 12V ~ 48VDC |
| INPUT CURRENT (12 ~ 24V) | : | 20A @ 2KHZ / 15A @ 8KHZ / 10A @ 16KHZ / 6A @ 32KHZ |
| INPUT CURRENT (36 ~ 48V) | : | 18A @ 2KHZ / 12A @ 8KHZ / 8A @ 16KHZ / 6A @ 32KHZ |
| OUTPUT POWER | : | CONSTANT VOLTAGE, PWM CONTROL |
| TYPE | : | SINGLE CHANNEL ROTARY DIMMER |
| WATTAGE (MAX @ 2KHZ) | : | 240W @ 12VDC / 480W @ 24VDC / 648W @ 36VDC / 864W @ 48VDC |
| SAFETY STANDARD (LVD) | : | EN 62368-1 ; 2020+A11:2020 |
| EMC STANDARD | : | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-1 7 V3.2.4 |
| CERTIFICATION | : | CE, EMC, LVD, RED, ROHS |
| DIMMING RANGE | : | 0-100% (101 LEVELS) |
| DIMMING CURVE | : | LOGARITHMIC OR LINEAR |
| PWM FREQUENCY | : | 2KHZ, 8KHZ, 16KHZ, 32KHZ |
| OPERATION TEMPERATURE | : | Ta: -30ÂşC~ +50ÂşC |
| CASE TEMPERATURE (MAX.) | : | Tc: +85ÂşC |
| WARRANTY | : | 1 YEAR |
Â
Â
Mini-Cine Specification Sheet
