ShortCut FlexLEDslim 88 White 24V

SKU SC-I24VCW564402835
by MossLED
$111.86
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 50 in stock, ready to be shipped
Accessories
  • Our smallest highest precision cutting length FlexLED ever.
  • Only 5MM wide and 2.27CM (0.89") cut points!
  • Industry Standard 2700k, 4100k, and 5600k
  • High CRI & TLCI over >97
  • 88 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)

The 88 LED/meter is a medium density LED with a narrow width at only 5MM.  It is ideally suited for areas where medium output in a very tight space is required. High precision cut points of only 2.27CM gives you ability for exacting quality and limiting dark spaces at the beginning or end of your LED installation.

Suitable for on-camera use, or anywhere a high-quality white light is required.

High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone glue or similar.
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.

Pricing is for 5 meters (16.4')

SPECIFICATIONS - INDOOR PRODUCT

Product Type : Warm White Neutral White Cool White
Product Code : SC-I24VWW274402835 SC-I24VNW414402835 SC-I24VCW564402835
CRI : 95+ 95+ 95+
Kelvin : 2700k +/-100k 4100k +/-100k 5600k +/-110k
PCB Color : White White White
Current, Rating : 0.375 A / meter 0.375 A / meter 0.375 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 9 W / meter 9 W / meter 9 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 964 lm / meter 964 lm / meter 964 lm / meter
Lumen / Watt : 107.1 107.1 107.1
Lifetime* : 30,000 hours 30,000 hours 30,000 hours

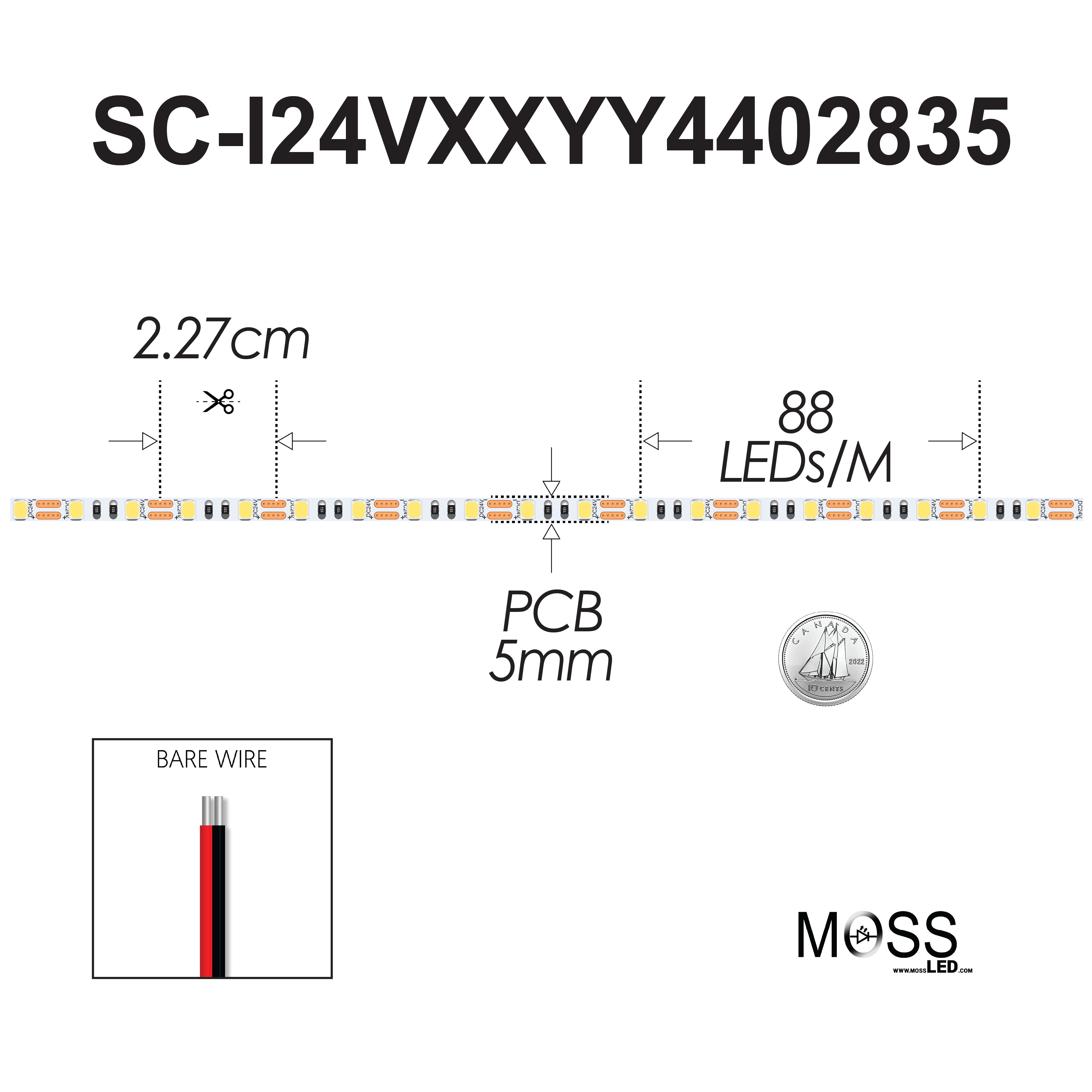

Cutting Length : 2.27 CM 2.27 CM 2.27 CM
LED Quantity : 88 LED / meter 88 LED / meter 88 LED / meter
Number of Contacts : 2 2 2
LED Type : 2835 2835 2835
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 ° C 70 ° C 70 ° C
Temperature, Operating, Minimum : -40 ° C -40 ° C -40 ° C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 5MM 5MM 5MM
Maximum Recommended Length : 10 meters 10 meters 10 meters
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : 3M 200MP 3M 200MP 3M 200MP


DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
  3.  Declaration of Conformity (CE & RoHS)
  4.  REACH Report 1907/2006

*nominal lifetime - dependent on installation location
