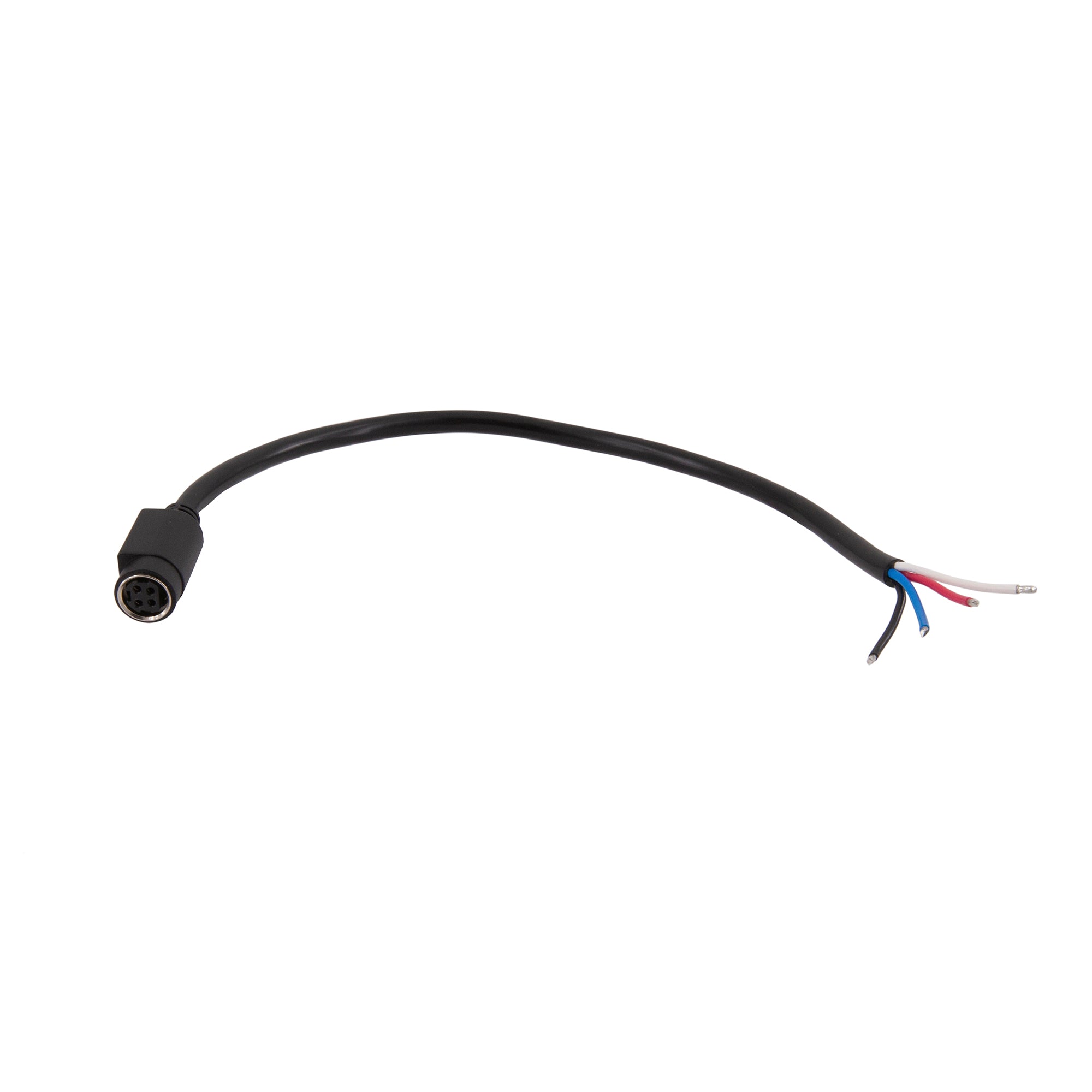

Power Input Cable Tail. R7B Locking Connector to Bare End Wire
Works with the following GSM type power supplies:
GSM120B 12 & 24V
GSM160B 12 & 24V
GSM220B 12 & 24V
Works with the following OWA type power supplies:
OWA90U 12 & 24V
OWA120U 12 & 24V
STANDARD PIN-OUT
Pin 1 & 3, white & black wire: V-
Pin 2 & 4, red & blue wire: V+
SPECIFICATIONS
| Agency Approvals | : | UL, CSA |
| Amperage | : | 7.5 A |
| Color | : | Black |
| Current, Rating | : | 7.5 A |
| Diameter, Cord | : | 0.140 x 0.270 |
| Insulation Material | : | Polyvinylchloride (PVC) |
| Flammability | : | UL 94V2 |
| IP Rating | : | IP20 |
| Cable Type | : | SPT - 2 |
| Material, Contact | : | Brass |
| Material, Plating |
: | Tin |
| Material, Housing | : | Nylon |
| Material, Terminal Screw | : | Stainless Steel |
| Material, Wire Clamps | : | Steel |
| NEMA Type | : | N/A |
| Number of Contacts | : | 4 |
| Number of Poles | : | 4 Pole |
| Primary Type | : | Straight Blade |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Terminal, Accommodation | : | 16 AWG Copper Stranded |
| Type | : | Cable Assembly |
| Voltage, Rating | : | 125V |
| Weight | : | 0.5 lbs. |
| Wire, AWG | : | #16/4 |
Assembly Drawing
