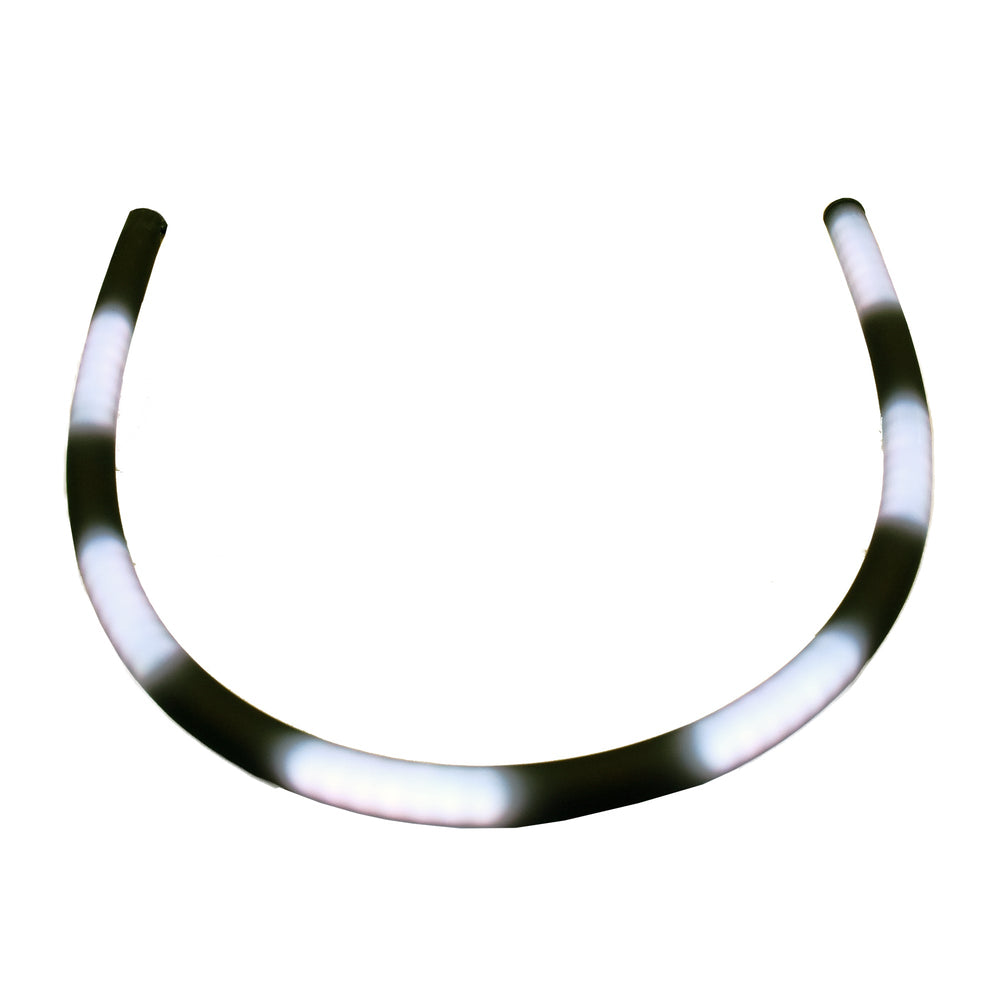

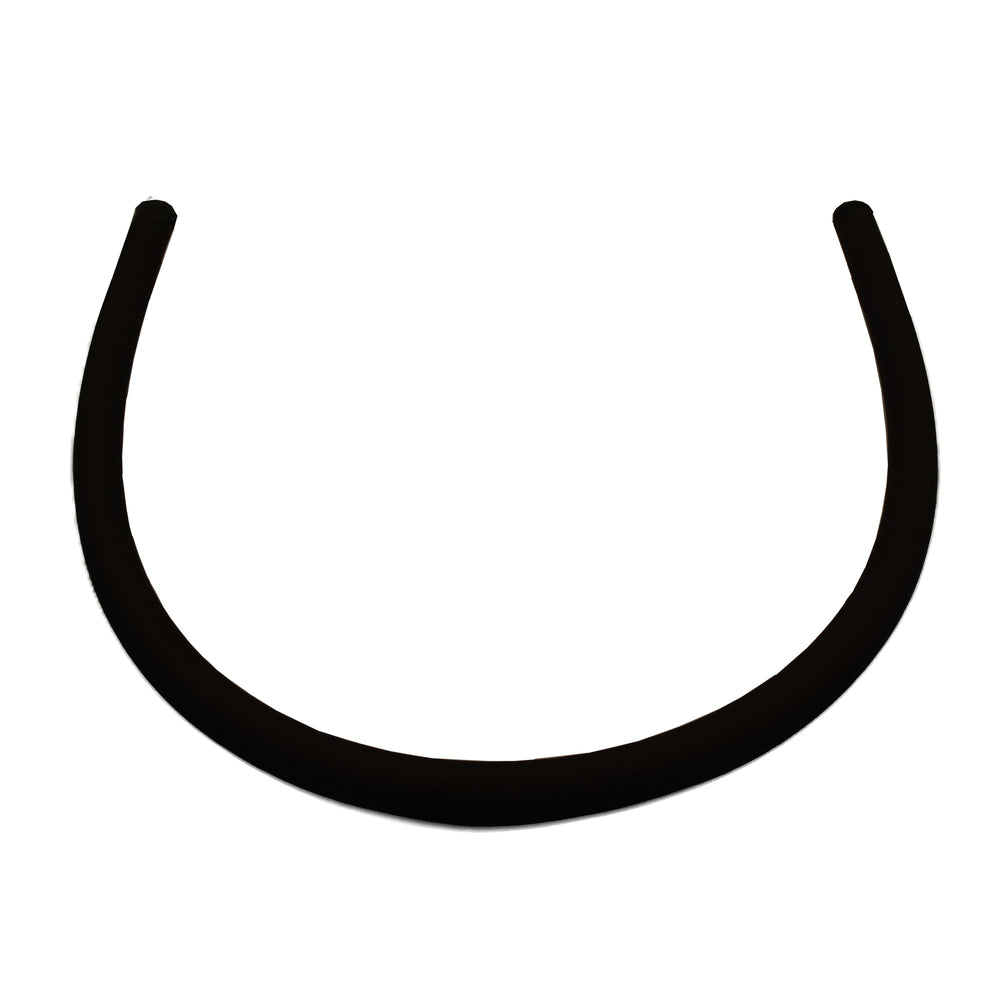

The OmniFlex 360 tube-shaped luminaire is a high-density stealth (black) or white diffused flexible product that is available in 0.5, 1, 2, 3 4, or 5 meter lengths. When not illuminated, the stealth product disappears against black surfaces and in dark environments. This allows for the product to be ‘turned off’ when required.

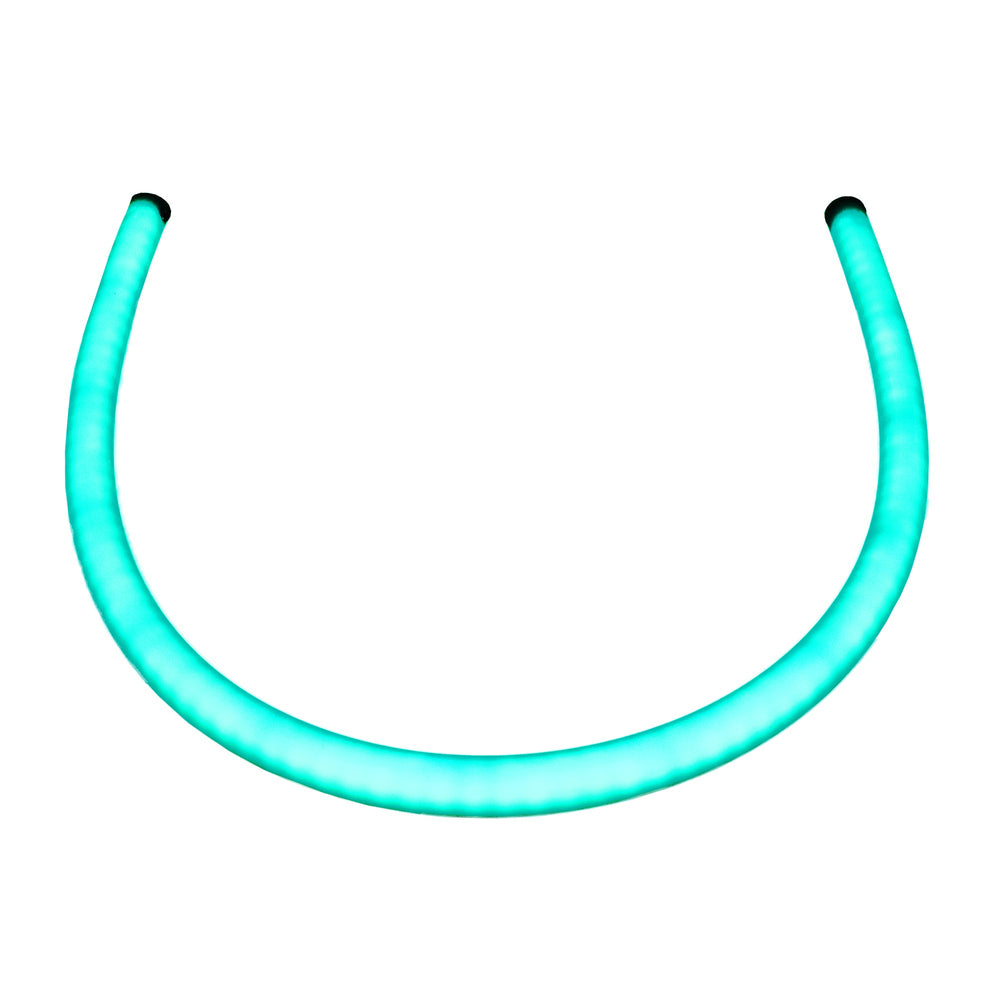

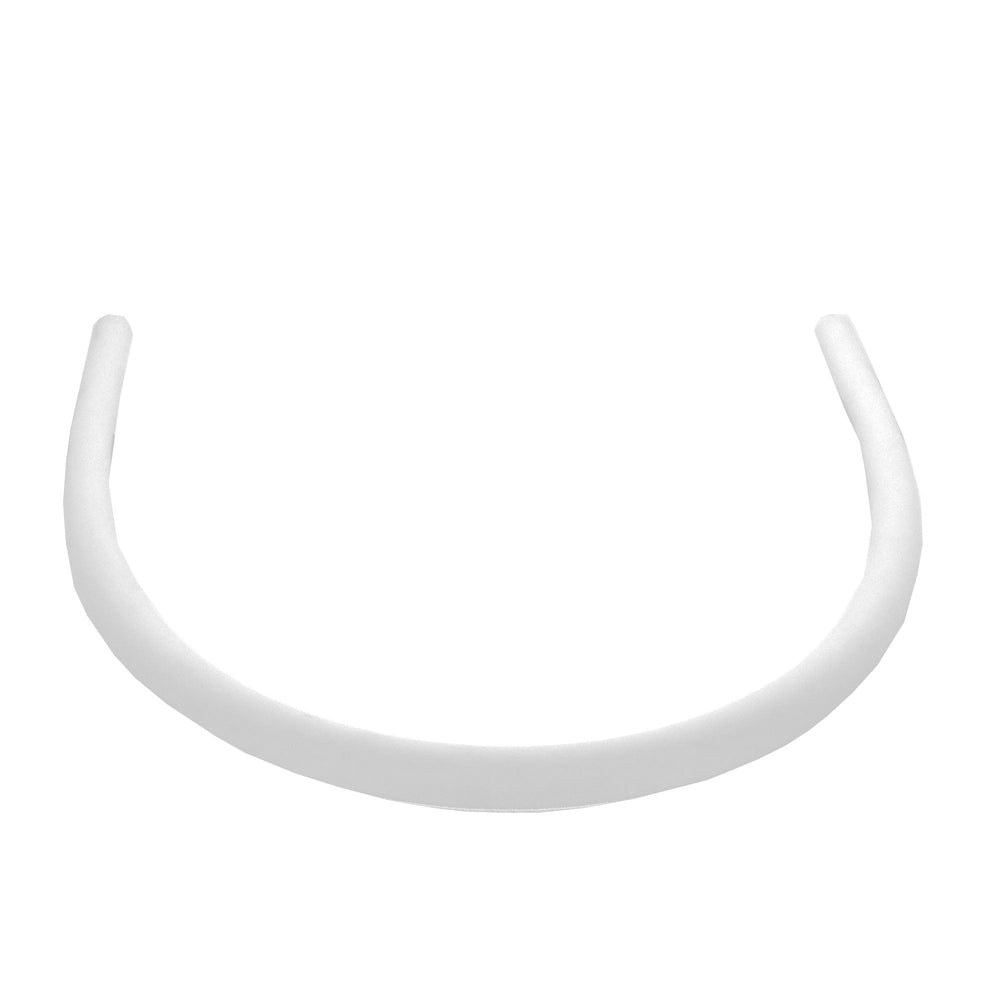

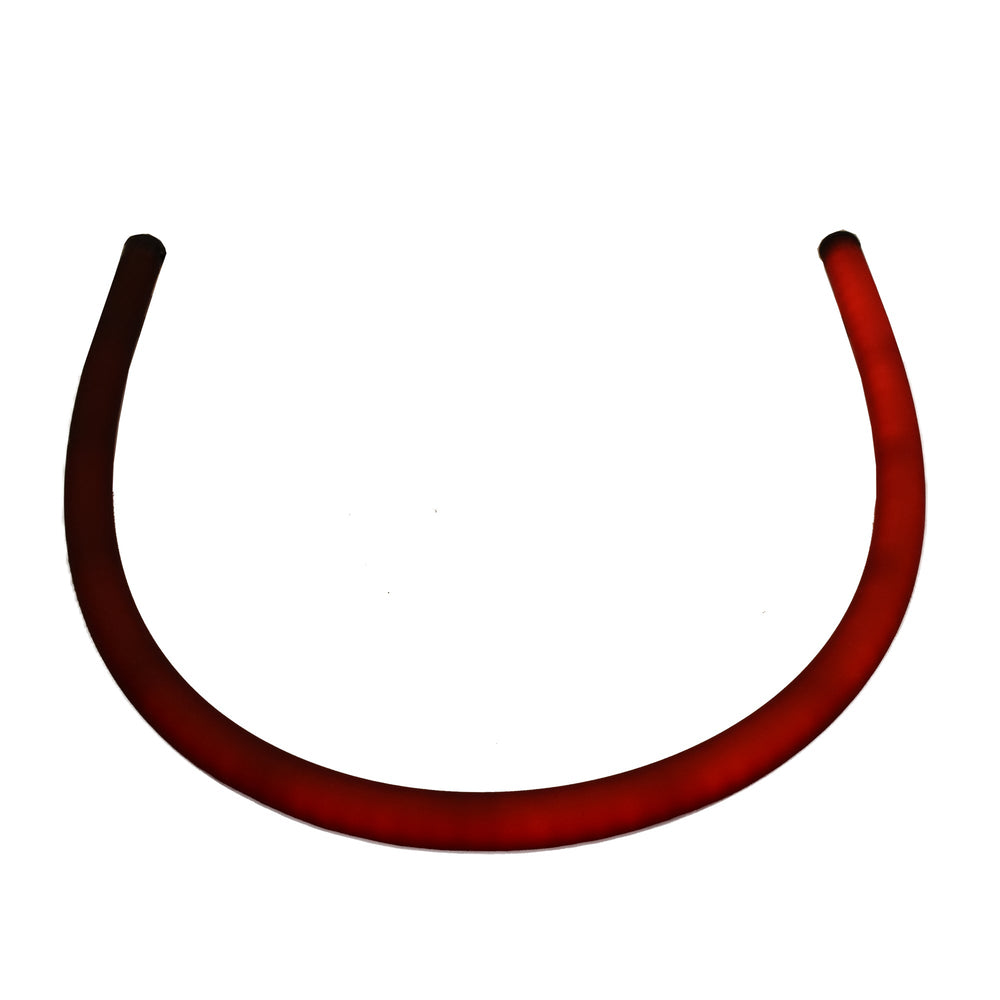

The white diffused version is designed for situations where maximum brightness is preferred. Almost three times as bright, the white product provides a beautiful seamless output. Now available in Colour temperature adjustable and standard RGB as well as Pixel RGB (12V Individual 8-Bit) and Pixel RGBW (24V Grouped 16-Bit)
Accessories include clear and black mounting brackets, joiners and straight mounting channel for endless creativity. Input and output cables are mounted sideways so as to allow the OmniFlex to be flush against the input and output of each tube. There is also a rugged touring-grade flush mount end cap that can be specially ordered for your application. Please contact us to inquire further.
SPECIFICATIONS - OUTDOOR PRODUCT
| Product Type | : | Dynamic White (2700k - 6000k) | RGB (Standard) | Pixel RGB | Pixel RGBW |
| Product Code | : | ONFX-O24VO24X-276095-YMBEWS | ONFX-O24VO24X-RGBNA-YMBEWS | ONFX-O12VO24X-RGBNA-YMBEWGS8208S | ONFX-O24VO24X-RGBWXX95-YMBEW7604S |
| CRI / TLCI | : | 95+ | N/A | N/A | 95+ |
| Kelvin | : | Adjustable 2700k - 6000k | Colour Changing | Colour Changing | Colour Changing plus White (2700k/4000k/5600k) |
| Housing | : | Black or White | Black or White | Black or White | Black or White |
| Current, Rating | : | 0.832 A / meter | 0.832 A / meter | 2.45 A / meter | 1.29 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 12 VDC | 24 VDC |
| Wattage | : | 14.4 W / meter | 20 W / meter | 28.8 W / meter | 31 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Current (Pixel Control) | Constant Current (Pixel Control) |
| IP Rating | : | IP67 | IP67 | IP67 | IP67 |
| Lumens @ Full | : | N/A | N/A | N/A | N/A |
| Lumen / Watt | : | N/A | N/A | N/A | N/A |
| Lifetime* | : | 35,000 hours | 35,000 hours | 35,000 hours | 35,000 hours |
| Cutting Length | : | 5 CM | 5 CM | 1.041 CM | 8.33 CM |
| LED / Meter Quantity X 2 | : | 280 LEDs | 96 LEDs | 96 LEDs | 84 LEDs |
| Pixel Protocol | : | Non | Non | GS8208 | UCS7604 |
| Pixels per Meter | : | 1 | 1 | 96 X RGB Control Segments / meter (Individual LED) | 12 X RGBW Control Segments / meter (7 X LEDs per Group) |
| Number of Contacts | : | 3 | 4 | 4 | 4 |
| LED Type | : | 2110 | 5050 | 5060 | 4040 |
| Copper Quantity | : | 3 Oz. | |||
| Temperature, Operating, Maximum | : | 40ºC | |||
| Temperature, Operating, Minimum | : | -20ºC | |||
| Agency Ratings | : | UL E489028, CE, RoHS, REACH | |||
| Width | : | 24 MM (+/- 0.5MM) | |||
| Maximum Recommended Length (power from both ends) | : | 5 meters | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 360 º | |||
| Adhesion | : | Clip or Extrusion or Hanger (Sold Separately) | |||
| Warranty | : | 5 Years | |||

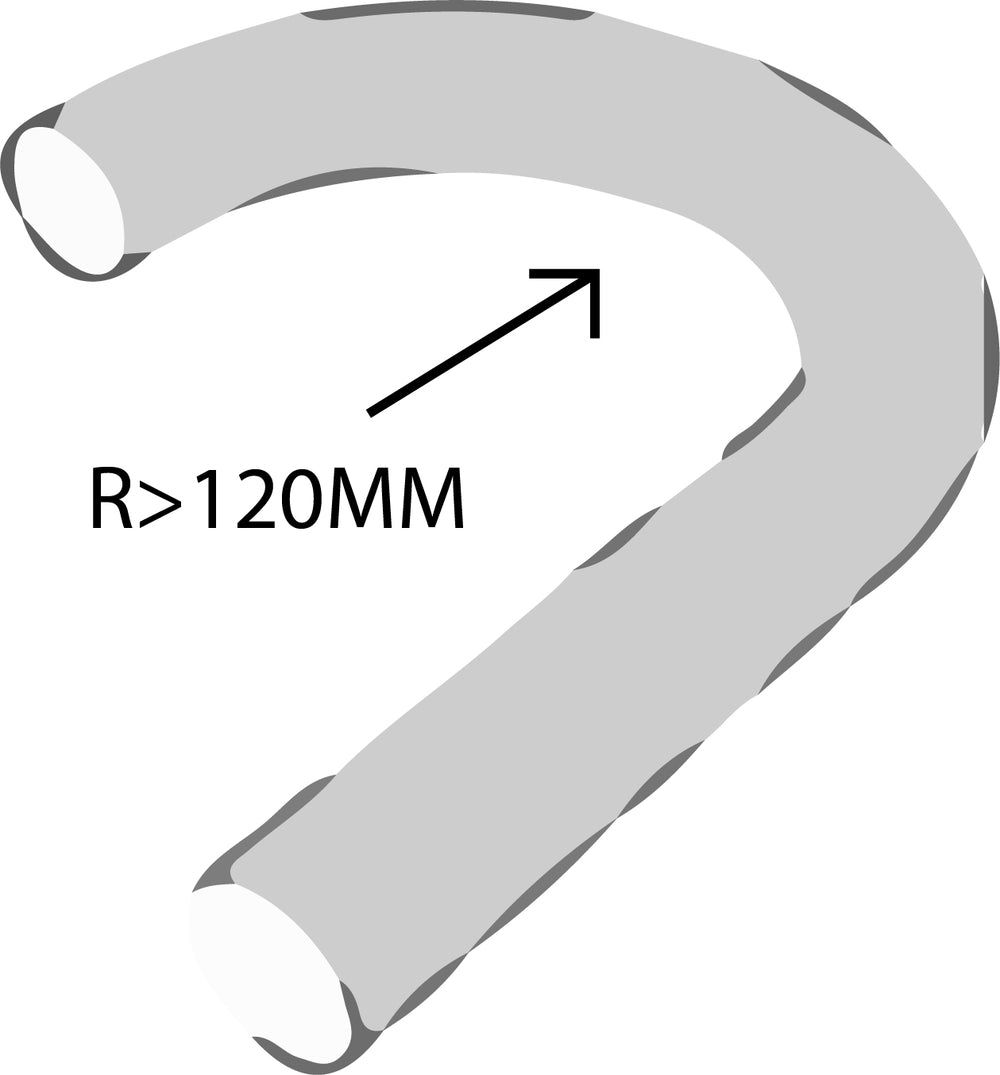

| Minimum Bend Radius | : | R>120mm | |||
| End Cap Options | : |
 Straight Cable Entry / Side Cable Entry / Side Cable Entry Rugged |
|||
