NYX Bulb Power Station

Astera

AST-FP5-PS

2 items left


Collections: Astera

Category: Astera

Type: Astera

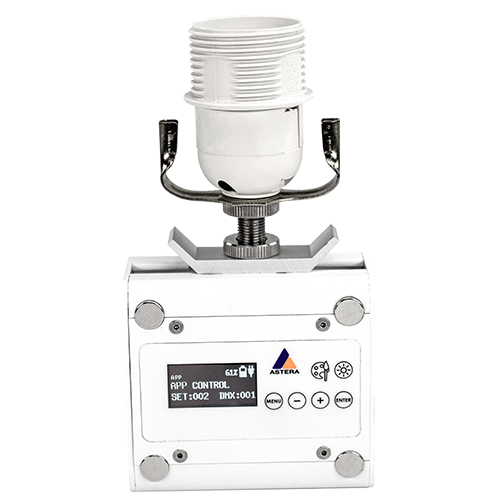

PowerStation for Astera NYX Bulb

POWER STATION SPECIFICATIONS

Electrical (Battery) : LG Chemos Lithium-ion
Battery Lifetime : 70% After 300 Cycles
Battery Runtime : Up to 20 hours
LED Lifetime : 50,000 Hours
Charging Time (Nominal) : 5 Hours
Input Voltage 90-264V 47-63Hz
Control  Backside Display with HSI Control
Cable Length : 200mm
Wireless Modules : 865 - 870 MHz | 902.928 MHz | 2.4GHz
Range : 300M | 330 Yards
Wired DMX : Supported via Astera PowerBox
Wireless DMX : CRMX & Others, excluding W-DMX G5, City Theatrical
Construction : Aluminum
IP Rating : IP41 - indoor rated use only
Relative Humidity : 0-100%
Operating Temperature : 0-40C | 32-104F
Weight : 0.5kg | 1.1LBS
Dimensions : 164mm x 96mm x 62mm (withh E27 socket)



DOWNLOADS

  1.  NYX Bulb Data Sheet
  2.  2D Drawing (DWG)
  3.  3D Drawing (STEP)
  4.  DMX Value for Common Colours V2
  5. Power Station Data Sheet
