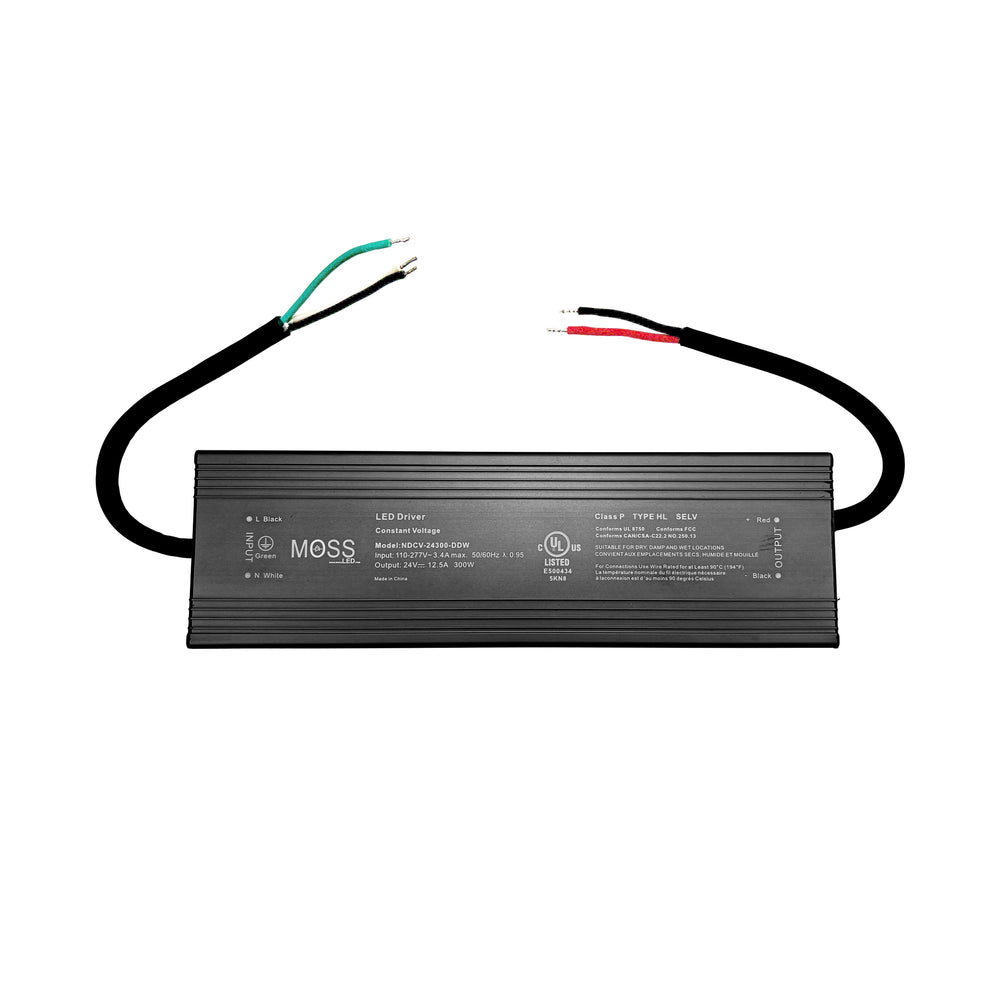

The NDCV series delivers unmatched reliability and efficiency for constant voltage LED products and standalone LED controllers. With a fanless, metal-housed design, these fully cULus-listed LED drivers provide stable, flicker-free power for on-camera, commercial, and industrial applications. Rated for dry, damp, and wet locations, the NDCV series ensures safe, long-lasting performance with comprehensive safety protections.
Key Features:
- Wide Compatibility – Powers constant voltage LED strips and secondary LED controllers.
- High Safety Standards – Class P, Type HL, and SELV certified with short-circuit, overload, over-voltage, over-current, and over-temperature protection.
- Fanless Metal Housing – Ensures silent, reliable operation in any environment.
- Multiple Voltage Options – Available in 24VDC and 12VDC models.
- Durable & Weather-Resistant – Rated for dry, damp, and wet locations.
- High-Power Output – NDCV-24384-DDW provides 4 x 96W Class 2 outputs (384W total).
- 5-Year Warranty – Long-term performance and peace of mind.
Need a custom solution? Contact us today!
Important note for NDCV-24384-DDW model only: This driver cannot be used with any of our DMX controllers. It can be used directly wired to the LEDs or with the dimmers below:
Ships in 1 - 2 Business Days
SPECIFICATIONS - 24VDC PRODUCT
| Model | : | NDCV-24096-DDW | NDCV-24120-DDW | NDCV-24200-DDW | NDCV-24300-DDW | NDCV-24384-DDW |
| Current (A) | : | 4 A | 5 A | 8.34 A | 12.5 A | 4 X 4A = 16A TOTAL |
| Output Power (W) | : | 96 W | 120 W | 200 W | 300 W | 4 X 96W = 384W TOTAL |
| Agency Approvals | : | FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13 | FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 | FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 | FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 | FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 |
| Size (millimeters) | : | 230 X 70 X 43 | 230 X 70 X 43 | 256 X 78 X 47 mm | 256 X 78 X 47 mm | 322 X 78 X 47 mm |
| Ripple & Noise (mV p-p) | : | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| Load Regulation () | : | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Line Regulation () | : | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | : | 83%@120VAC 88%@ 230VAC 87%@277VAC | 83%@120VAC 88%@ 230VAC 87%@277VAC | 83%@120VAC 88%@ 230VAC 87%@277VAC | 83%@120VAC 88%@ 230VAC 87%@277VAC | 87%@120VAC 90%@277VAC |
| Frequency Range | : | 47 ~ 63 Hz | 47 ~ 63 Hz | 47 ~ 63 Hz | 47 ~ 63 Hz | 47 ~ 63 Hz |
| Universal AC input | : | 90 ~ 305VAC 127 ~ 431VDC | 90 ~ 305VAC 127 ~ 431VDC | 90 ~ 305VAC 127 ~ 431VDC | 90 ~ 305VAC 127 ~ 431VDC | 90 ~ 305VAC |
| Low leakage current | : | <0.5mA | <0.5mA | <0.5mA | <0.5mA | <0.5mA |
| Protections: | : | short circuit, overload, over temp, auto recovery | short circuit, overload, over temp, auto recovery | short circuit, overload, over temp, auto recovery | short circuit, overload, over temp, auto recovery | short circuit, overload, over temp, auto recovery |
| AC Input | : | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned |
| Housing | : | Fully enclosed aluminum housing | Fully enclosed aluminum housing | Fully enclosed aluminum housing | Fully enclosed aluminum housing | Fully enclosed aluminum housing |
| Ingress Protection Rating | : | IP65, Dry, Damp, and Wet Locations | IP65, Dry, Damp, and Wet Locations | IP65, Dry, Damp, and Wet Locations | IP65, Dry, Damp, and Wet Locations | IP65, Dry, Damp, and Wet Locations |
| Class | : | TYPE HL - Class 2 Class P | TYPE HL - Class P | TYPE HL - Class P | TYPE HL - Class P | TYPE HL - Class P |
| Indicator | : | None | None | None | None | None |
| Voltage Adjustment Range | : | Fixed | Fixed | Fixed | Fixed | Fixed |
| Output Connector Type | : | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned | Bare Wire - Stripped & Tinned |
| Current Adjustment Range | : | N/A | N/A | N/A | N/A | N/A |
| Output Polarity | : | N/A | N/A | N/A | N/A | N/A |
| Input Connector | : | Bare Wire OR Hospital Grade Edison Plug (HBL8115V) | Bare Wire OR Hospital Grade Edison Plug (HBL8115V) | Bare Wire OR Hospital Grade Edison Plug (HBL8115V) | Bare Wire OR Hospital Grade Edison Plug (HBL8115V) | Bare Wire OR Hospital Grade Edison Plug (HBL8115V) |
| Product Type | : | AC to DC Power Supply | AC to DC Power Supply | AC to DC Power Supply | AC to DC Power Supply | AC to DC Power Supply |
| MFR Product Family | : | NDCV | NDCV | NDCV | NDCV | NDCV |
| Operating Temperature (Ambient) | : | -40°C to 80°C | -40°C to 90°C | -40°C to 90°C | -40°C to 90°C | -40°C to 60°C |
| Power Supply Color | : | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey |
| Wiring Color Codes Output | : | Refer to Label on PSU | Refer to Label on PSU | Refer to Label on PSU | Refer to Label on PSU | Refer to Label on PSU |
