NDCV Fanless & Metal Housed Power Supplies

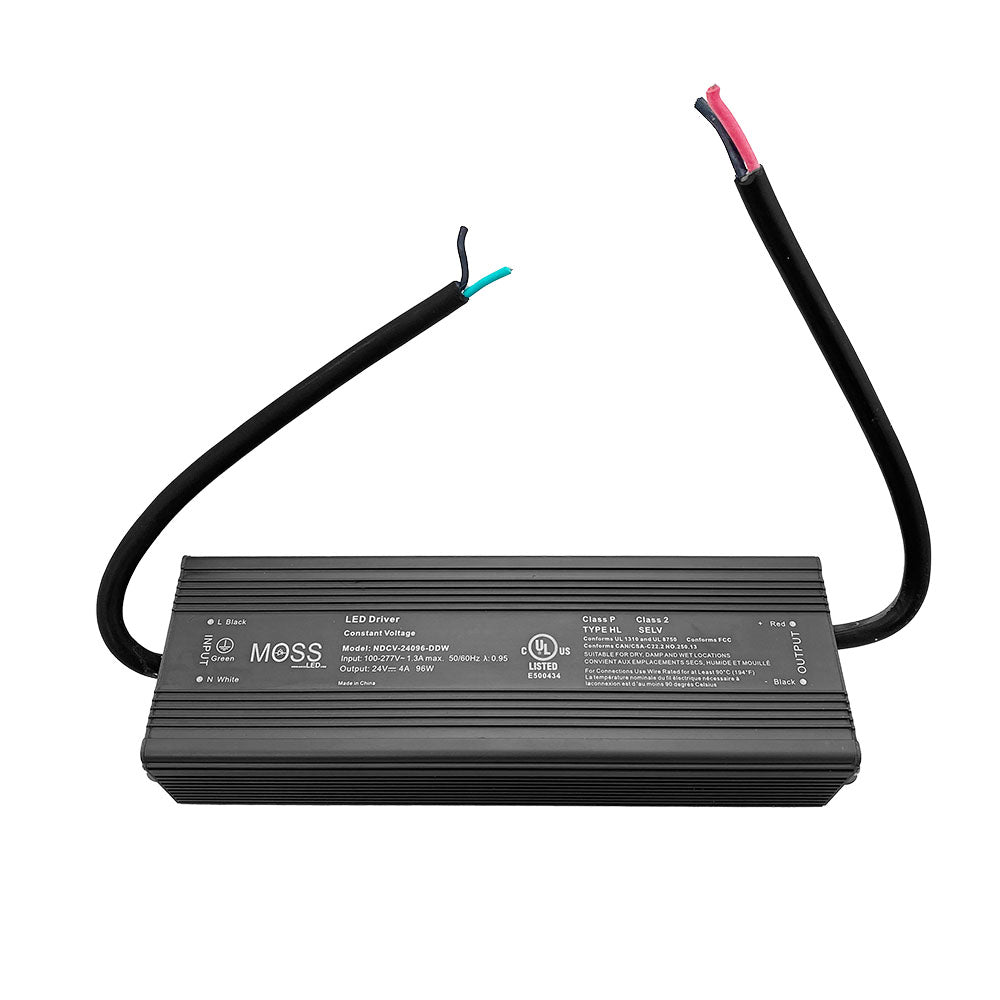

SKU NDCV-24096-DDW
by MossLED
$65.07
Voltage
Wattage
Availability: Translation missing: en.general.icons.icon_check_circle icon 114 in stock, ready to be shipped
Accessories

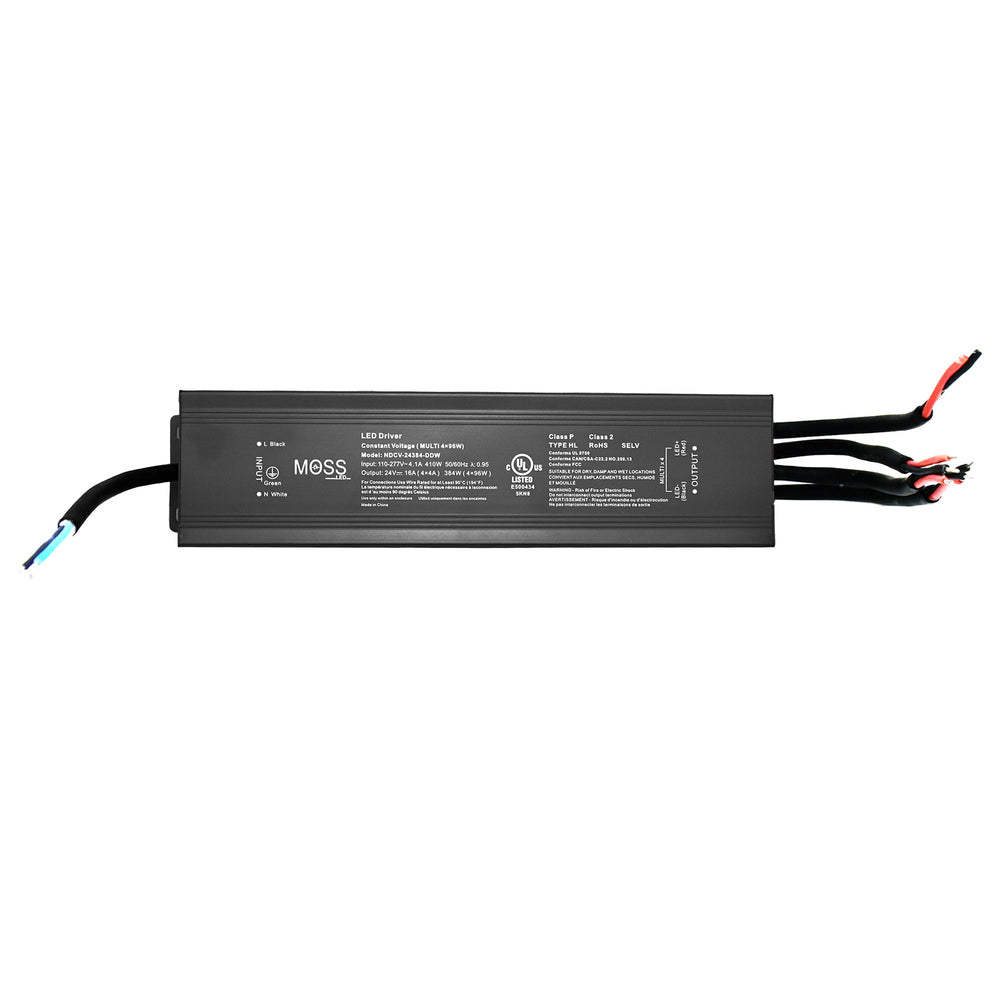

Our range of NDCV Non-Dimmable Constant Voltage bring a new level of reliability to the LED lighting industry. Fanless design with robust metal housed fully listed cULus LED drivers are perfect for powering our range of standalone LED controllers or for directly powering constant voltage LED strips when control is not required. Reliable and robust LED power supply designed for use with all constant voltage LED products or secondary LED controllers. Perfect for on-camera or commercial-grade constant-on use with our FlexLED Tape and any constant voltage LED product. Available in 24VDC and 12VDC. Class P, Tyle HL and SELV with safety features including short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for dry, damp, and wet locations. Safe, powerful, and reliable are the cornerstones of our NDCV line of power supplies from MossLED. Amazing 5 year warranty. The NDCV-24384-DDW provides 4 X 96 Watt Class 2 outputs for a total of 384 watts in one compact package.


  • Output 96 - 384W
  • Class 2
  • Class P Power
  • Type HL
  • SELV
Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

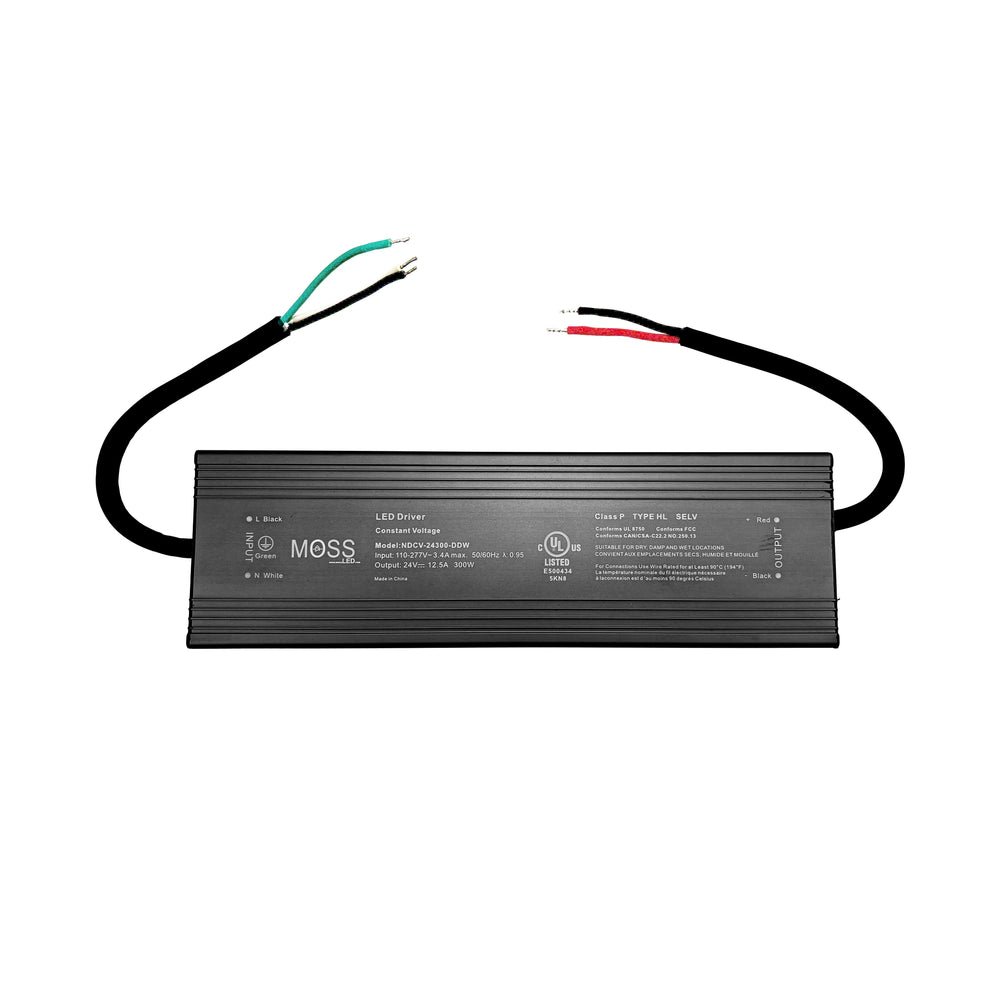

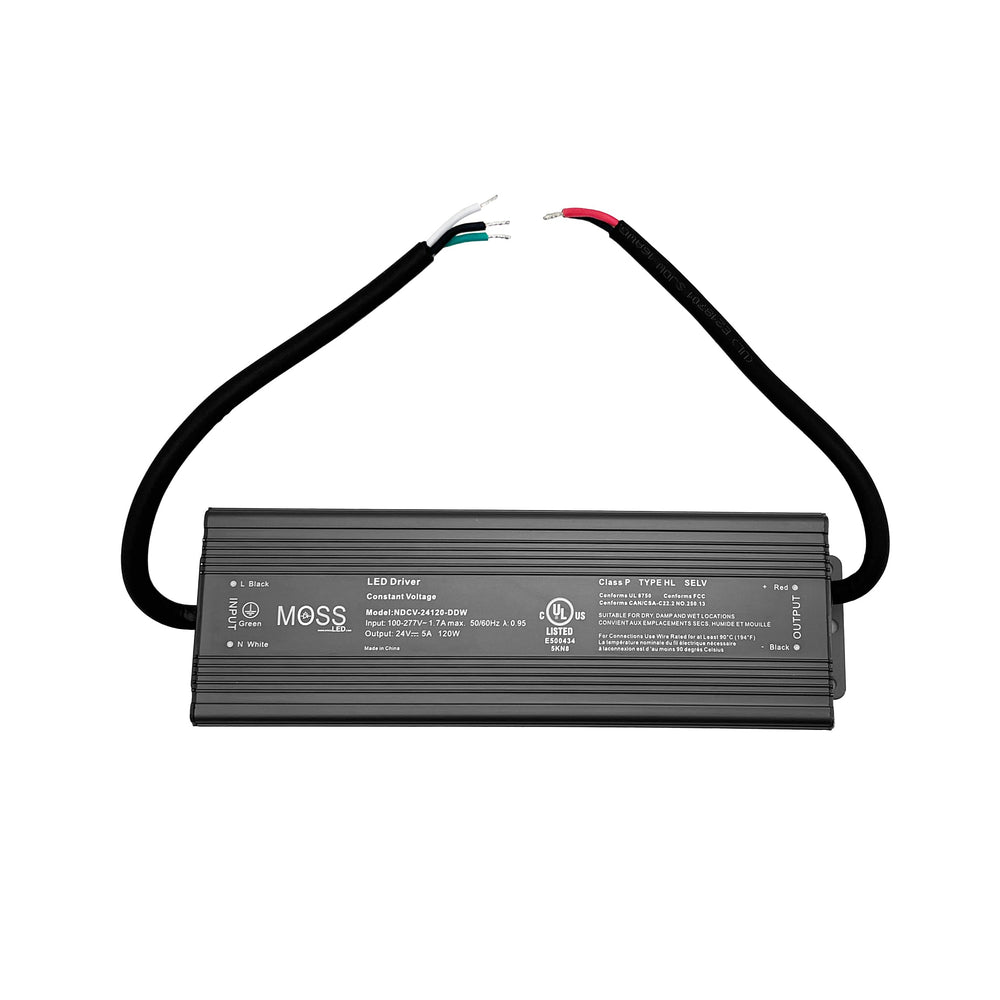

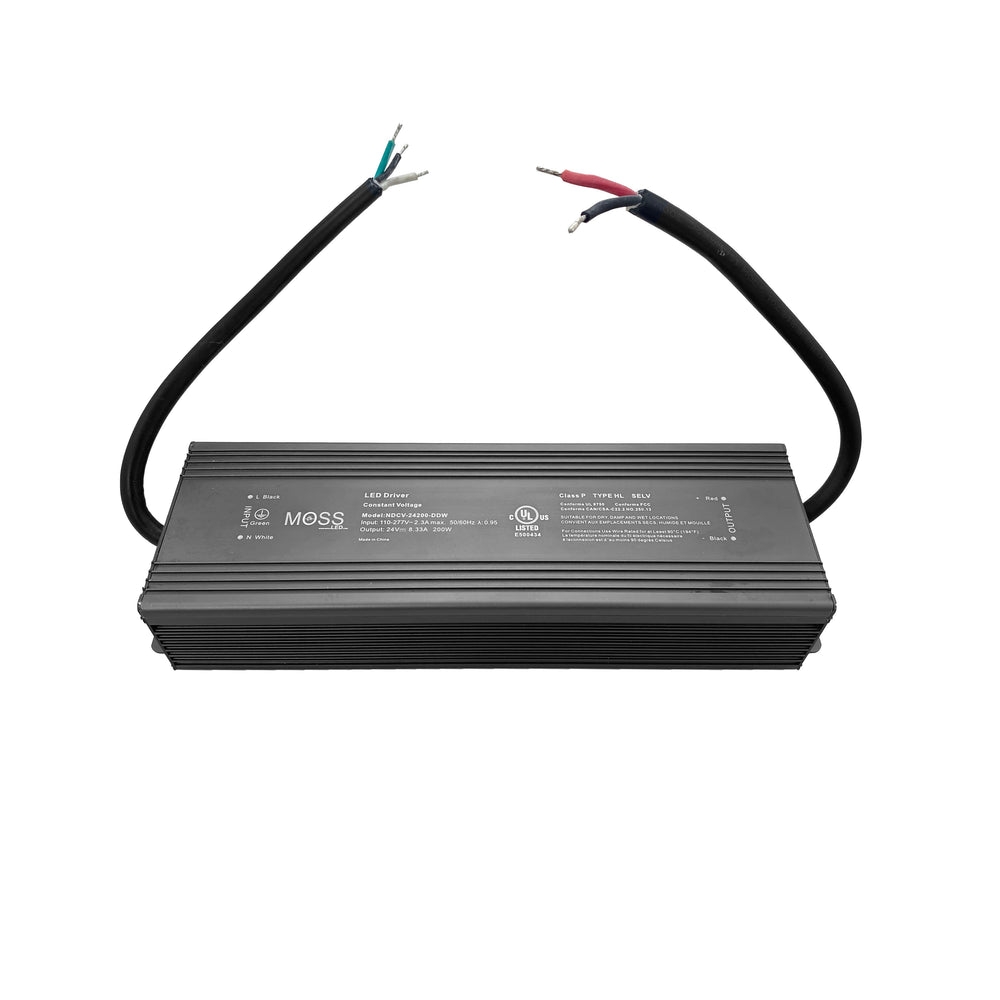

Model : NDCV-096-DDW NDCV-120-DDW NDCV-200-DDW NDCV-300-DDW
Current (A) : 4 A 5 A 8.34 A 12.5 A
Output Power (W) : 96 W 120 W 200 W 300 W
Agency Approvals : FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13
Size (millimeters) : 230 X 70 X 43
Ripple & Noise (mV p-p) : 150mVp-p 150mVp-p 150mVp-p 150mVp-p
Load Regulation () : ±0.5% ±0.5% ±0.5% ±0.5%
Line Regulation () : ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency : 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC
Frequency Range : 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : <0.5mA <0.5mA <0.5mA <0.5mA
Protections: : short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery
AC Input : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Housing : Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing
Ingress Protection Rating : Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations
Class : TYPE HL - Class 2 Class P TYPE HL - Class P TYPE HL - Class P TYPE HL - Class P
Indicator : None None None None
Voltage Adjustment Range : Fixed Fixed Fixed Fixed
Output Connector Type : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Current Adjustment Range : N/A N/A N/A N/A
Output Polarity : N/A N/A N/A N/A
Input Connector : Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type : AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply
MFR Product Family : NDCV NDCV NDCV NDCV
Operating Temperature (Ambient) : -40C to 80C -40C to 90C -40C to 90C -40C to 90C
Power Supply Color : Dark Grey Dark Grey Dark Grey Dark Grey
Wiring Color Codes Output : Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU

DOWNLOADS

  1. Specification Sheet - 96 Watt LED Driver

  2.  Specification Sheet - 120 Watt LED Driver
  3. Specification Sheet - 200 Watt LED Driver
  4.  Specification Sheet - 300 Watt LED Driver
  5.  Specification Sheet - 384 Watt LED Driver
