Multi-Conductor Cable - Service Grade

SKU 183C16TCUL-SJTOOW
by MossLED
$3.00
Conductors
Gauge
Availability: translation missing: en.general.icons.icon_check_circle icon 7883 in stock, ready to be shipped
Accessories

This multi conductor cable is designed for temporary installations for film and television sets, theatrical locations, concert touring, and anywhere reliable temporary power is required.  Service grade cable is a Moss LED exclusive and designed specifically for power transmission of low voltage power.  18AWG provides a superior gauge which prevents line loss (voltage drop) over long distances coupled with a service grade jacket which provides protection for the cable to be installed not just once or twice but many times.

When to use:

  • temporary installations
  • removal and and re-installation is necessary
  • between seasons of shows
  • short-run theatrical productions
  • concert touring productions
  • rental cable solutions



Manufactured in USA.

SJTOOW style cable.  (Service Wire / Junior [Under 300 Volts] / Thermoplastic / Oil-Resistant Inside & Outside / Weather Resistant)


TECHNICAL SPECIFICATIONS



 SKU 183C16TCUL-SJTOOW 184C16TCUL-SJTOOW 185C16TCUL-SJTOOW 186C16TCUL-SJTOOW 187C16TCUL-SJTOOW

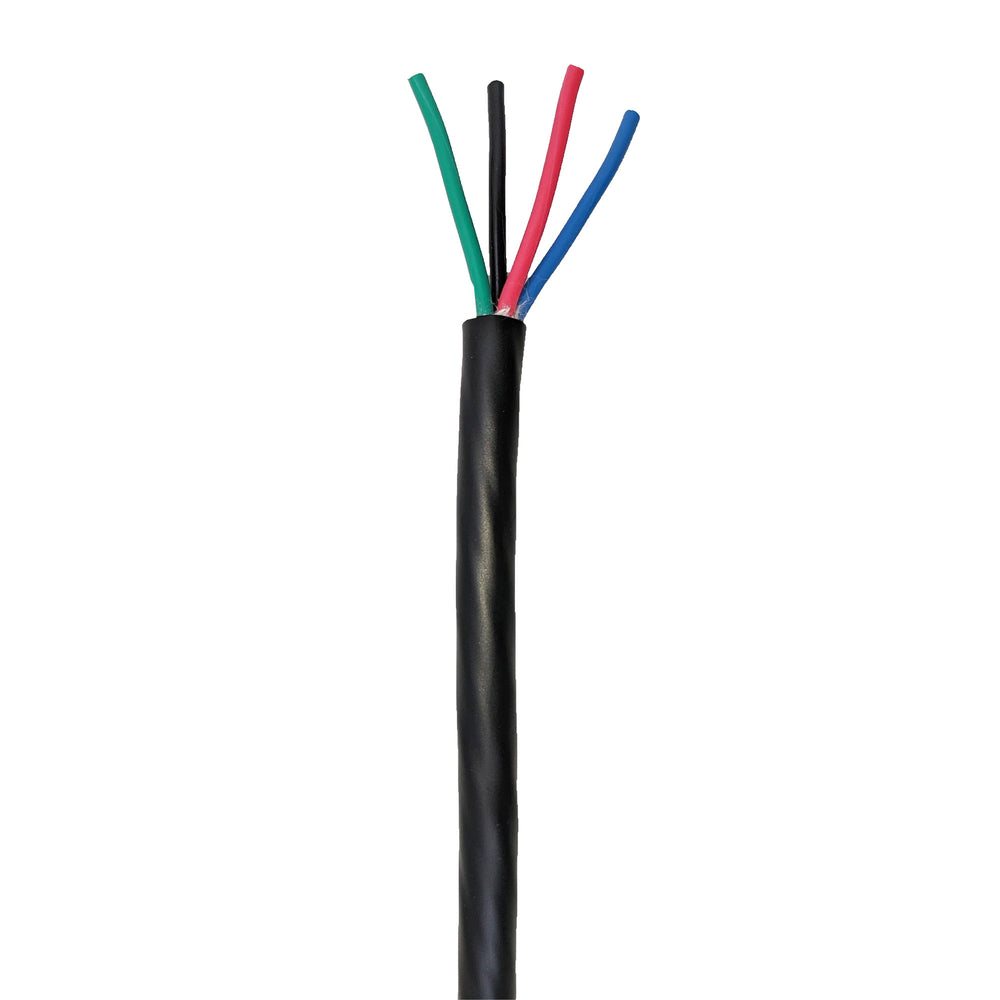

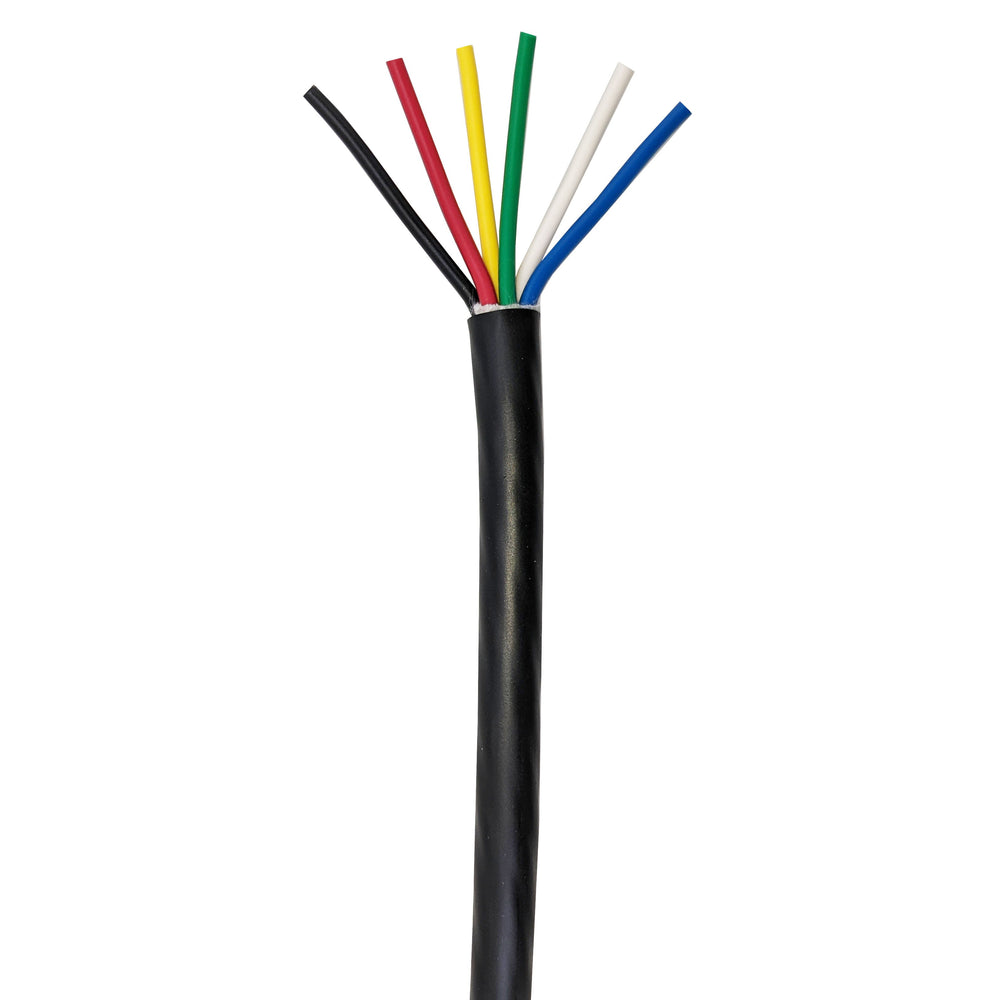

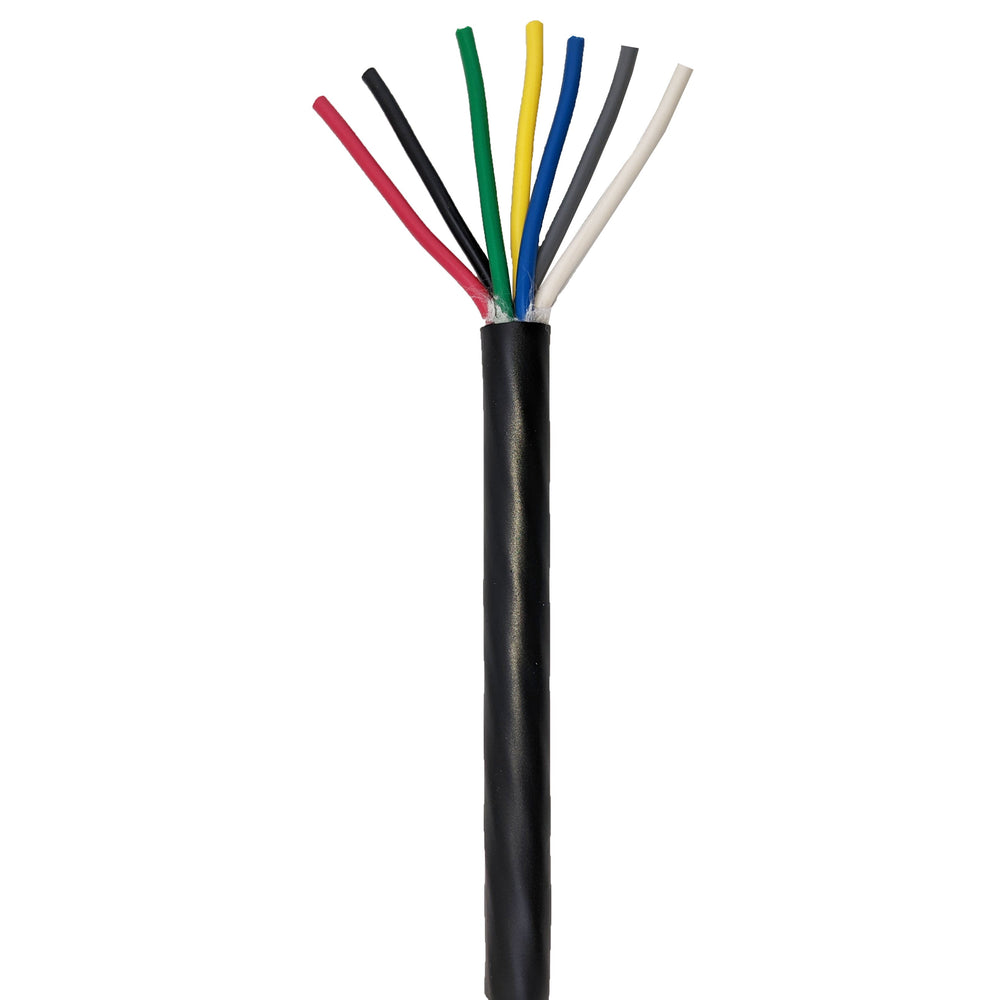

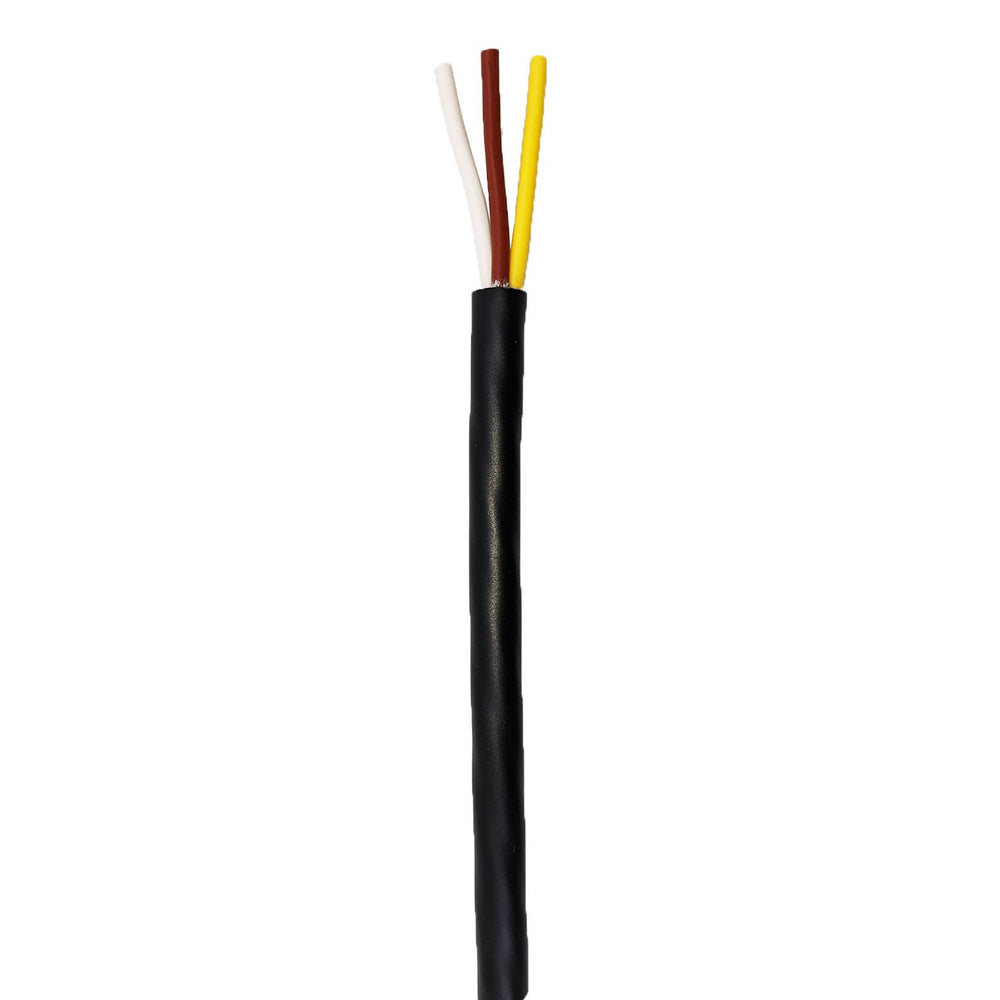

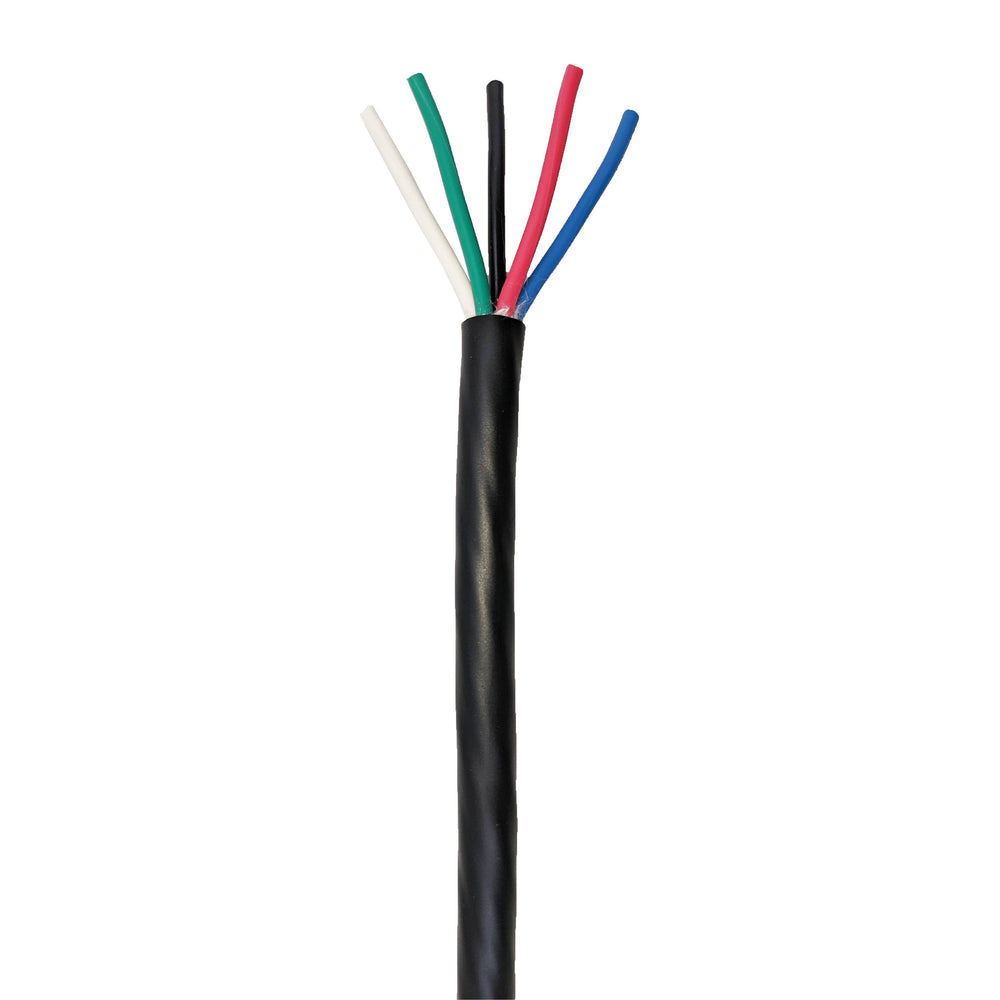

COMPONENT 3 CONDUCTORS 4 CONDUCTORS 5 CONDUCTORS 6 CONDUCTORS 7 CONDUCTORS
INSULATION 0.03" Premium Grade PCV 0.03" Premium Grade PCV 0.03" Premium Grade PCV 0.03" Premium Grade PCV 0.03" Premium Grade PCV

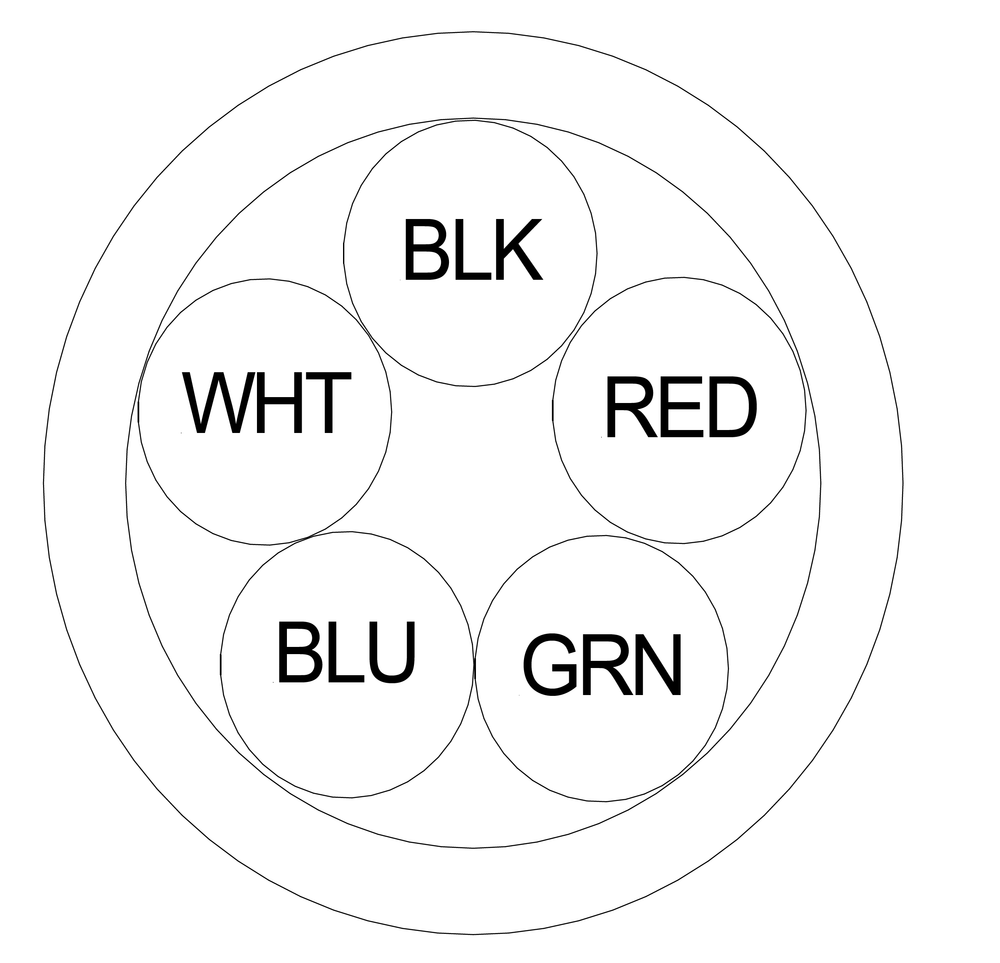

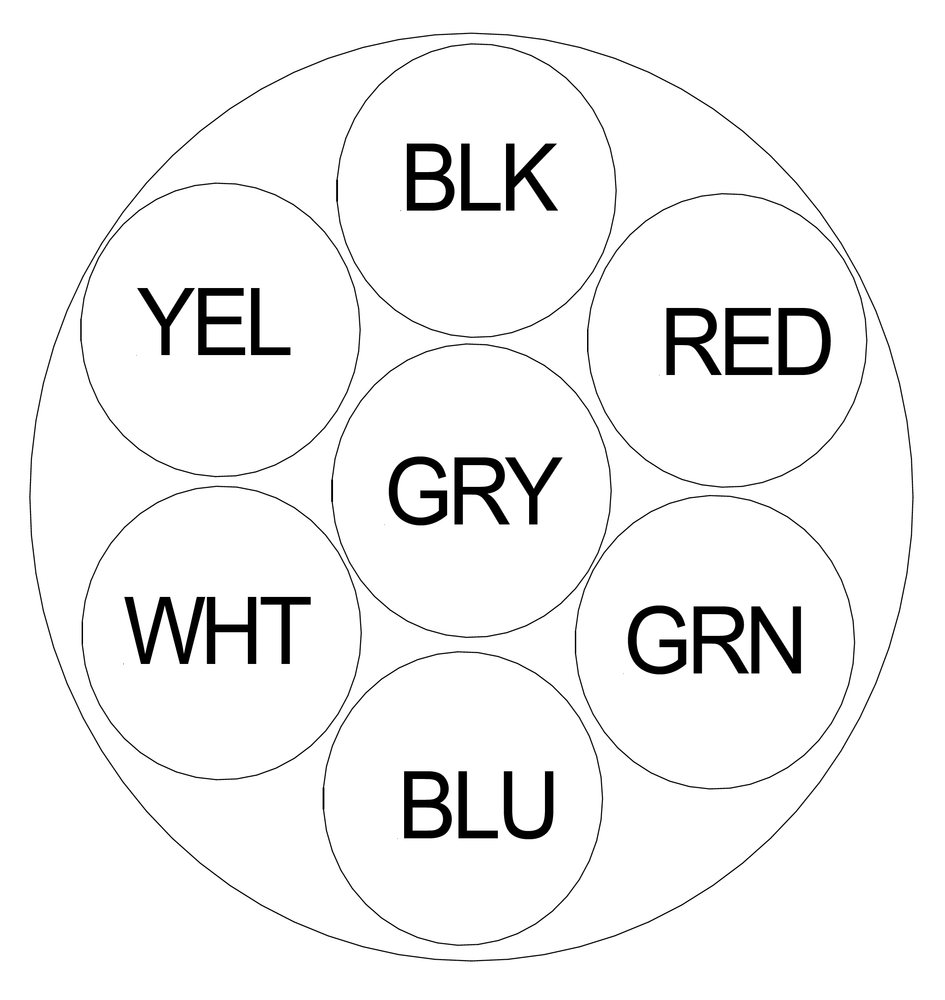

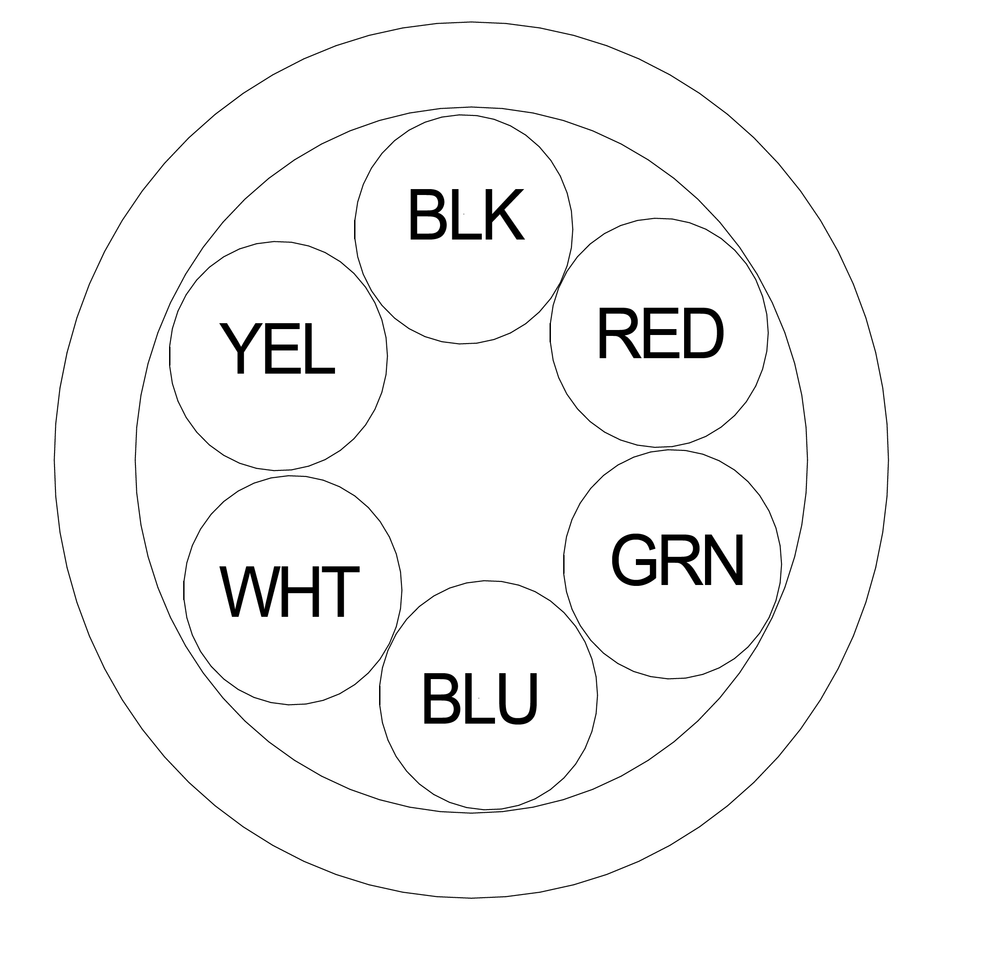

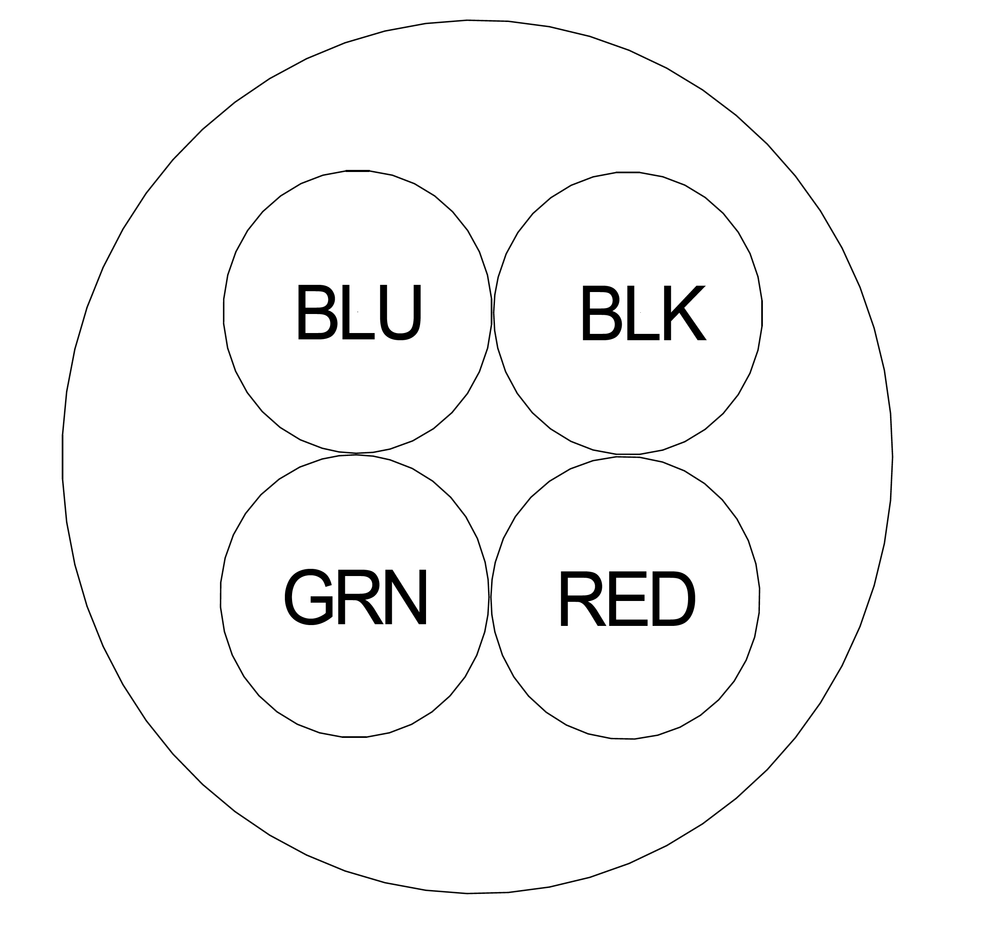

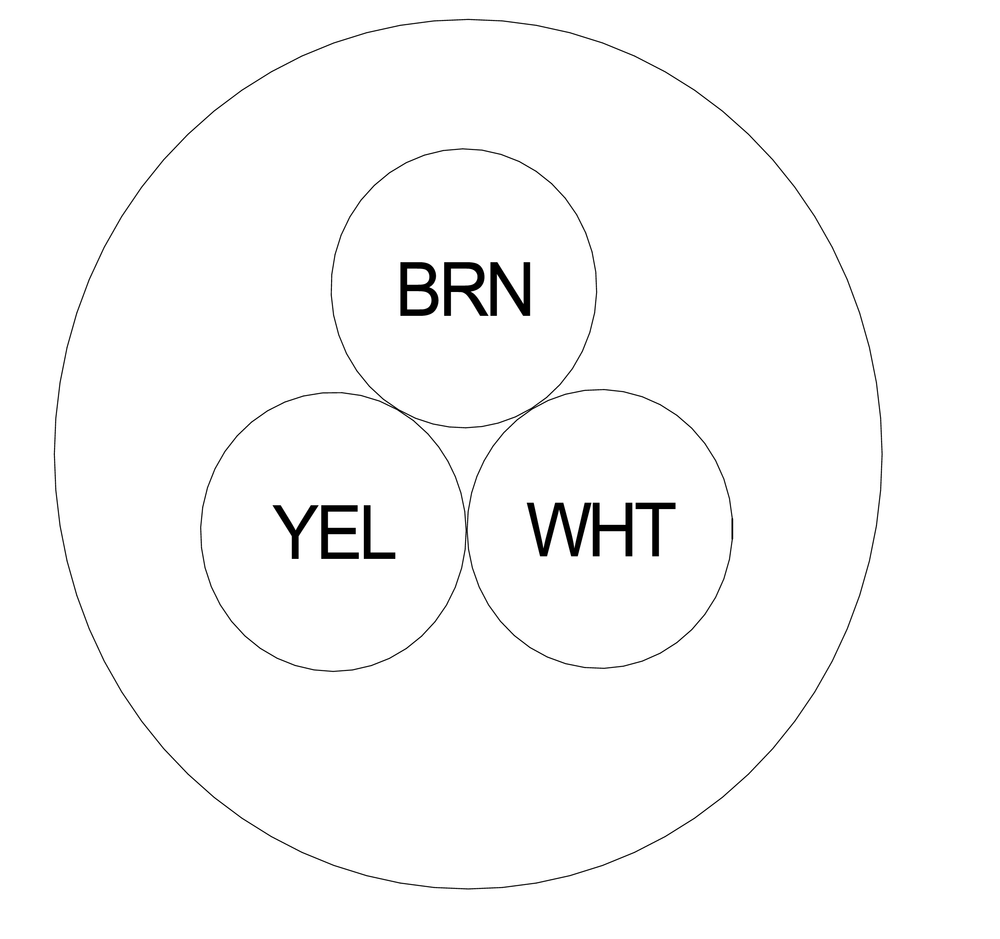

Colour Code Brown, White, Yellow Black, Red, Green, Blue Black, Red, Green, Blue, White Black, Red, Green, Blue, White, Yellow Black, Red, Green, Blue, White, Gray
Jacket 0.035" PCV, Oil, Gas, Moisture, and UV Resistant VW-1 0.035" PCV, Oil, Gas, Moisture, and UV Resistant VW-1 0.035" PCV, Oil, Gas, Moisture, and UV Resistant VW-1 0.035" PCV, Oil, Gas, Moisture, and UV Resistant VW-1 0.035" PCV, Oil, Gas, Moisture, and UV Resistant VW-1
Jacket Colour Black Black Black Black Black
Specifications UL, cUL UL, cUL UL, cUL UL, cUL UL, cUL
Style SJTOOW SJTOOW SJTOOW SJTOOW SJTOOW
Temperature

105°C

105°C

105°C

105°C

105°C

Flame

FT-2

FT-2

FT-2

FT-2

FT-2

Voltage

300V

300V

300V

300V

300V

Type

I/II A/B

I/II A/B

I/II A/B

I/II A/B

I/II A/B

ROHS ROHS EU Directive 2011/65/EU (1&2&3) ROHS EU Directive 2011/65/EU (1&2&3) ROHS EU Directive 2011/65/EU (1&2&3) ROHS EU Directive 2011/65/EU (1&2&3) ROHS EU Directive 2011/65/EU (1&2&3)
REACH REACH Regulation 205 REACH Regulation 205 REACH Regulation 205 REACH Regulation 205 REACH Regulation 205
Environmental California Prop 65 California Prop 65 California Prop 65 California Prop 65 California Prop 65
AWG 18 18 18 18 18


Jacket Print: (UL) 18/* SJTOOW 105°C 300V FT2 -- c(UL) SJTOOW */C 0.824mm2 ( 18 AWG ) 105° 300VC FT-2
