RawModule 12-LED RGB+W

SKU RM-I24VRGBW2750502835-30CM
by MossLED
$5.38
IP Rating
Colour
Cable Length
Availability: Translation missing: en.general.icons.icon_check_circle icon 28 in stock, ready to be shipped

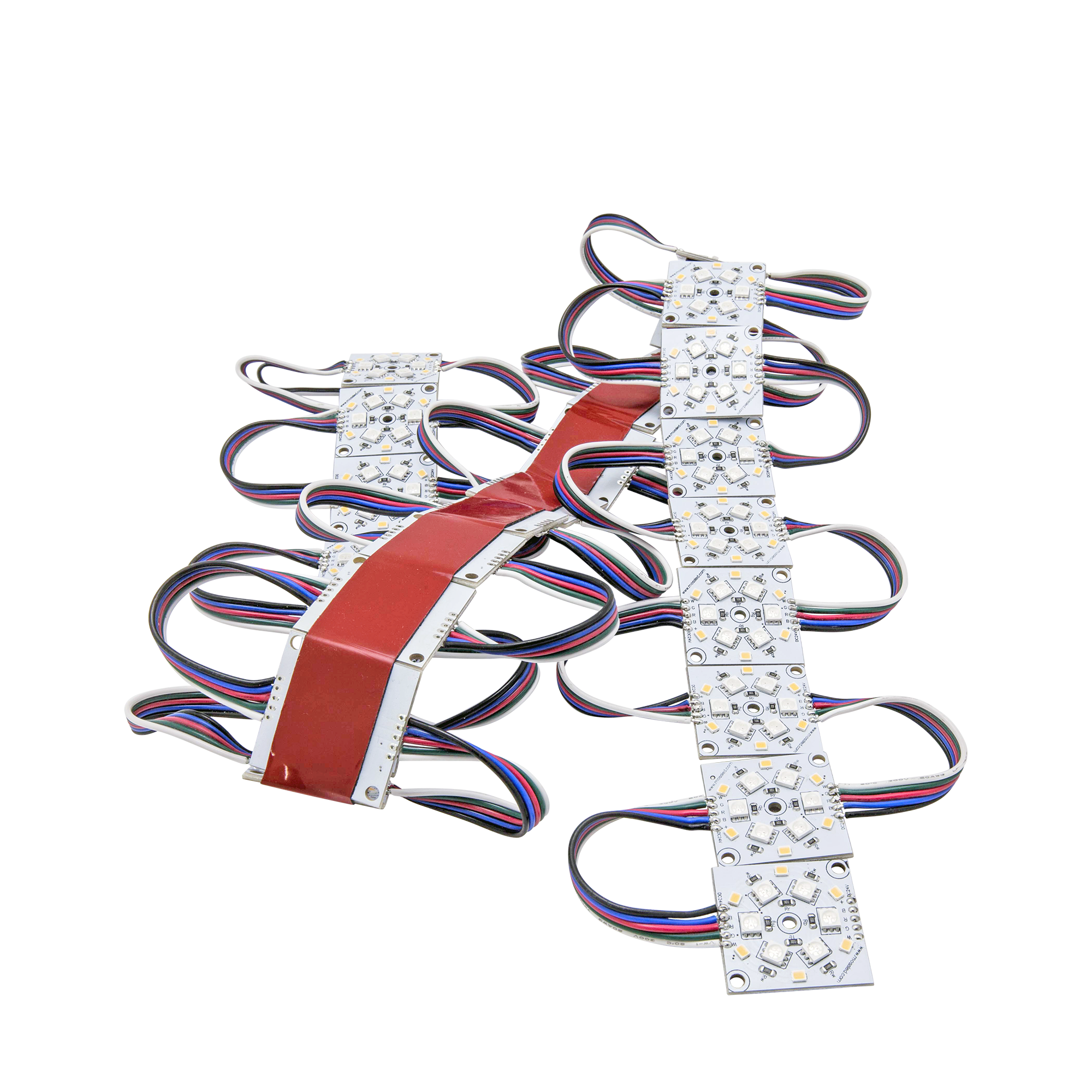

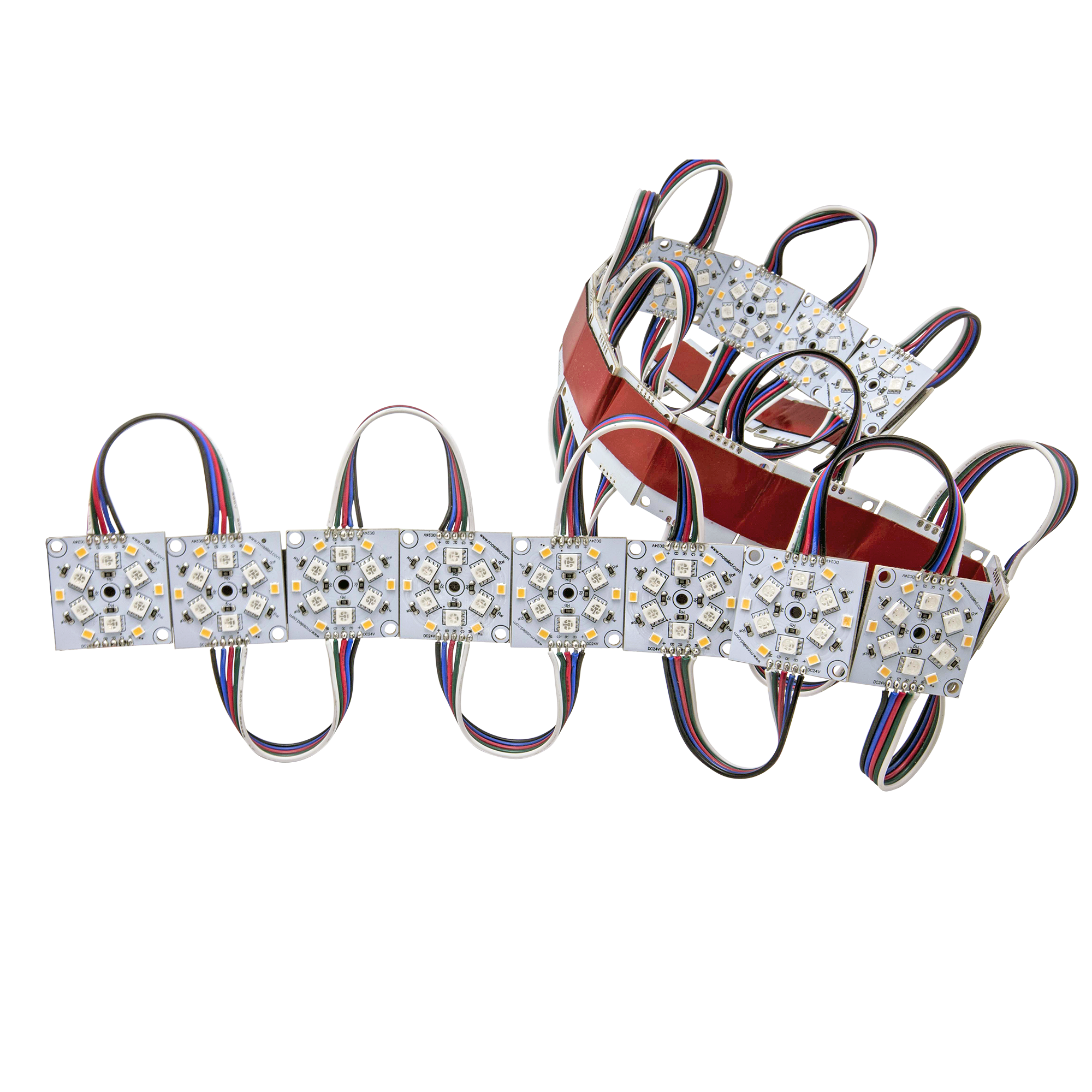

Hi Intensity 12-LED modules are engineered for use in television, film, residential, and commercial applications where accurate colour reproduction and high brightness are essential. Designed for indoor use, these modules feature an IP43 rating and come pre-applied with industrial-grade 3M VHB5952 adhesive backing for quick and easy installation.

Each module contains super-bright SMD 5060 RGB and SMD 2835 white LEDs, delivering consistent, high-CRI output. Modules are spaced flexibly to allow adjustable distances between them and are powered by 24VDC for low-voltage safety and energy efficiency. To prevent voltage drop and maintain brightness consistency, we recommend a maximum run of 50 modules per power feed.

Key Features:

  • High-CRI, Multi-Source LED Design – Features SMD 5060 RGB & SMD 2835 White LEDs for accurate, vibrant colour and white light.
  • Easy Installation – Peel-and-stick 3M adhesive backing for secure mounting.
  • Indoor-Rated (IP43) – Suitable for dry environments requiring consistent, high-CRI lighting.
  • Adjustable Spacing – Standard 30CM or 10CM cable jump between modules for flexible layouts.
  • Energy Efficient 24VDC – Low power consumption with maximum brightness.
  • Maximum Run Length – Up to 50 modules per power run to prevent line loss.

Applications:

  • Signage & Lightboxes – Backlighting for channel letters and illuminated displays.
  • Architectural Lighting – Enhancing indoor environments with professional-grade illumination.
  • Event & Entertainment Lighting – Ideal for bars, clubs, theatres, and stage productions.
  • Decorative & Accent Lighting – Creates dynamic, colour-rich lighting effects.

Stocked in 2700K and 5600K.

Need a custom solution? Contact us today!





SPECIFICATIONS - IP43 PRODUCT

Product Type : 12-LED RGB+WW Outdoor Module
12-LED RGB+XX Indoor Raw Module
Product Code : W24VMOD50503528D4PRGBW30 RM-I24VRGBWXX50502835-YYCM
CRI : 90+ 95+
Kelvin : RGB + W (3000k) RGB + W (2700k or 5600k)
PCB Color : White White
Current Rating : 60mA for RGB, 70mA for Whites 0.12A
Voltage : 24 VDC 24 VDC
Wattage : 1.824W / Module  2.8 W / Module
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP67 IP43
Lumens @ Full : TBD TBD
Lifetime : 50,000 hours 50,000 hours
Cable Length : 10CM 10CM
Dimensions : 56MM X 32MM (including mounting holes) 36MM X 36MM
LED Quantity : 6 RGB, 6 Warm White 6 RGB, 6 White
Number of Contacts : 5 5
PCB type : FR4 Rigid PCB FR4 Rigid PCB
LED Type : 6 X 5060 RGB : 6 X 2835 White 6 X 5060 RGB : 6 X 2835 White
Operating Temperature : -20 ~ 60C -20 ~ 60C
Agency Ratings : CE, RoHS, UL CE, RoHS, UL
Maximum Recommended Length : 50 Modules (91.2 Watts Total) 50 Modules (140 Watts Total)
Viewing Angle : 120 degree 120 Degree
Adhesive : Mounting Holes / Foam Rubber Adhesive Tape Mounting Holes / Foam Rubber Adhesive Tape
