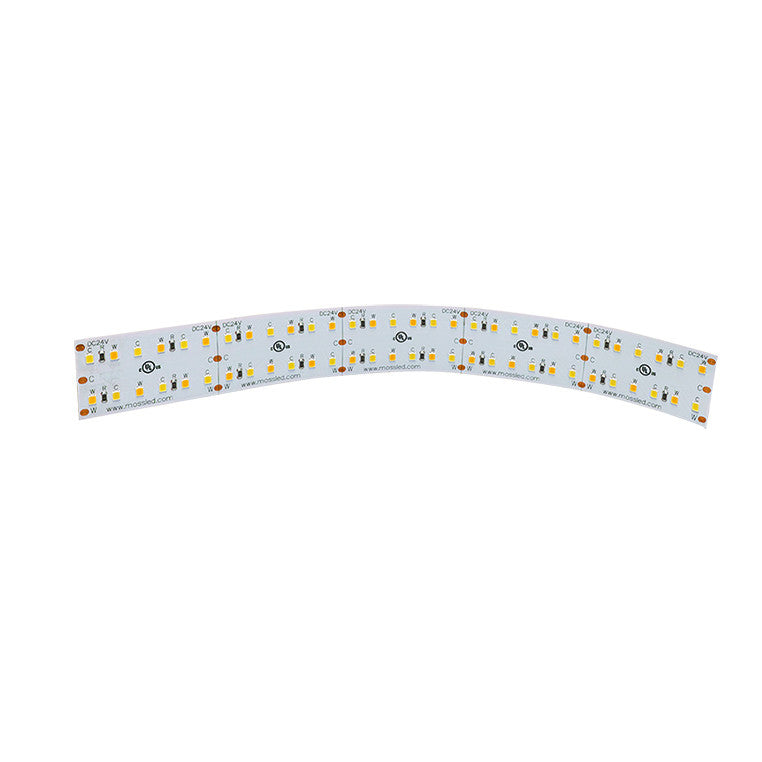

ML2 Panel FlexLED
24VML2BC250MM5P
$45.83 CAD
MultiLine 2-Way FlexLED Panel
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Colour Rendering Index - No Green Spike & No Colour Spectrum Deficiencies)
For applications where colour and output consistency is required
3M double-sided tape on the back makes installation as easy as peel n stick.
Controller, Power supply and Extension Cables sold separately
Custom Colour Temperatures available. Please call to inquire.
SPECIFICATIONS
|
||||||||||||||||
DOWNLOADS |
Specification Sheet
UL Certificate of ComplianceRelated Items
ML12 Panel FlexLED
$159.13 CAD
MultiLine 12-Way FlexLED Panel (45.35" X 8.97")
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
For applications where color and intensity output consistency is required
3M double-sided tape on the back makes installation as easy as peel n' stick.
Controller, Power supply and Extension Cables sold separately
Custom Color Temperatures available. Please call to inquire.
|
|
||||||||||||||||||||
DOWNLOADS |
View full product details
ML14 Panel FlexLED RGBBC
$224.00 CAD
MultiLine 14-Way FlexLED Panel
Introducing the world's first RGB + BI-COLOR Cuttable Panel
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + BI-COLOR Cuttable Panel |
| Product Code | : | 24VML14RGBBC500MM |
| CRI | : | <95 |
| Kelvin | : | 3000k - 5600k |
| PCB Color | : | White |
| Current, Rating | : | 7.2 A / panel |
| Voltage | : | 24 VDC |
| Wattage | : | 172.8 W / panel |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full RGB/WW/CW | : | 5040LM / 3780LM / 3500LM |
| Lumen / Watt | : | 71 LM/Watt |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 120mm X 25mm Rectangles |
| LED Quantity | : | 280 RGB, 280 X 5600k, 280 X 3000k |
| Number of Contacts | : | 5 |
| LED Type | : | 5050 & 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 500MM X 240MM |
| Maximum Recommended Combined Panel | : | 8 Panels |
| Viewing Angle | : | 120 degree |
| Adhesion | : | 200MP 3M adhesive tape |
DOWNLOADS
View full product details
ML24 Panel FlexLED
$118.58 CAD
? MultiLine 24-Way FlexLED Panel
? Suitable for residential, television, industrial, and commercial applications
? Extremely flexible, allowing it to be used in a variety of applications.
? High CRI (Color Rendering Index - No Green Spike & No Color Spectrum Deficiencies)
? For applications where color and intensity output consistency is required
? 3M double-sided tape on the back makes installation as easy as peel n' stick.
? Controller, Power supply and Extension Cables sold separately
? Custom Color Temperatures available.? Please call to inquire.
?
| ?
? SPECIFICATIONS
? |
||||||||||||||||||||
DOWNLOADS? ? |
?
View full product details
ML4 Panel FlexLED
$6.80 CAD
MultiLine 4-Way FlexLED Panel
Suitable for residential, television, industrial, and commercial applications
Extremely flexible, allowing it to be used in a variety of applications.
High CRI (Colour Rendering Index - No Green Spike & No Colour Spectrum Deficiencies)
For applications where colour and output consistency is required
3M double-sided tape on the back makes installation as easy as peel n stick.
Controller, Power supply and Extension Cables sold separately
Custom Colour Temperatures available. Please call to inquire.
SPECIFICATIONS
|
||||||||||||||||||
DOWNLOADS |
