The LXFXBX stands for 'lighting effects box' and is a world's first in effects playback
and generation. Designed specifically for the cinematic arts professional.
A complete solution for illuminating small spaces with individual pixel control which provides limitless possibilities for special effect lighting.
This complete compact kit includes effect lighting bars, cabling, and power supply while allowing for remote playback via a built-in WIFI network. Utilizing your own smart phone or laptop enables the end user to choose from a large selection of
effects and adjust their brightness and speed on-the-fly.
Plug'n'Play connectivity allows for quick set-up in demanding, high paced environments.
Large on-board power supply allows for powering up to 6 meters of LXFX Bars.
Utilizing cutting edge pixel chip technology the LXFXBX PixelSticks have been tested on camera and provide flicker-free lighting at speeds up to 1900 fps.
The PSU is expandable and capable of powering up to 13 0.5 Meter PixelSticks
The LXFXBX Kit Includes the following:
<>1 X PSU / WiFi Unit
5 X 0.5 Meter PixelSticks (43.2 Watt Each)
1 X 0.25 Meter PixelStick (21.6 Watt Each)
| Special FX || |
Police (Old & New)
Fire Truck (Old & New)
Ambulance (Old & New)
Paparazzi (Old & New)
Fire (Wood Burning) Fireworks
Grand Fireworks Finale
End Burst Fireworks
Machine Gunshots Tracer Fire
Tracer Fire Burst Lightning
Street Lights Passing
More to be released soon ...
|Agency Approvals ||: ||RoHS|
|Input Amperage ||: ||7 A|
|Input Voltage ||: ||90 - 305VAC & 127-431 VDC|
|Input Wattage ||: ||600 Watt Max|

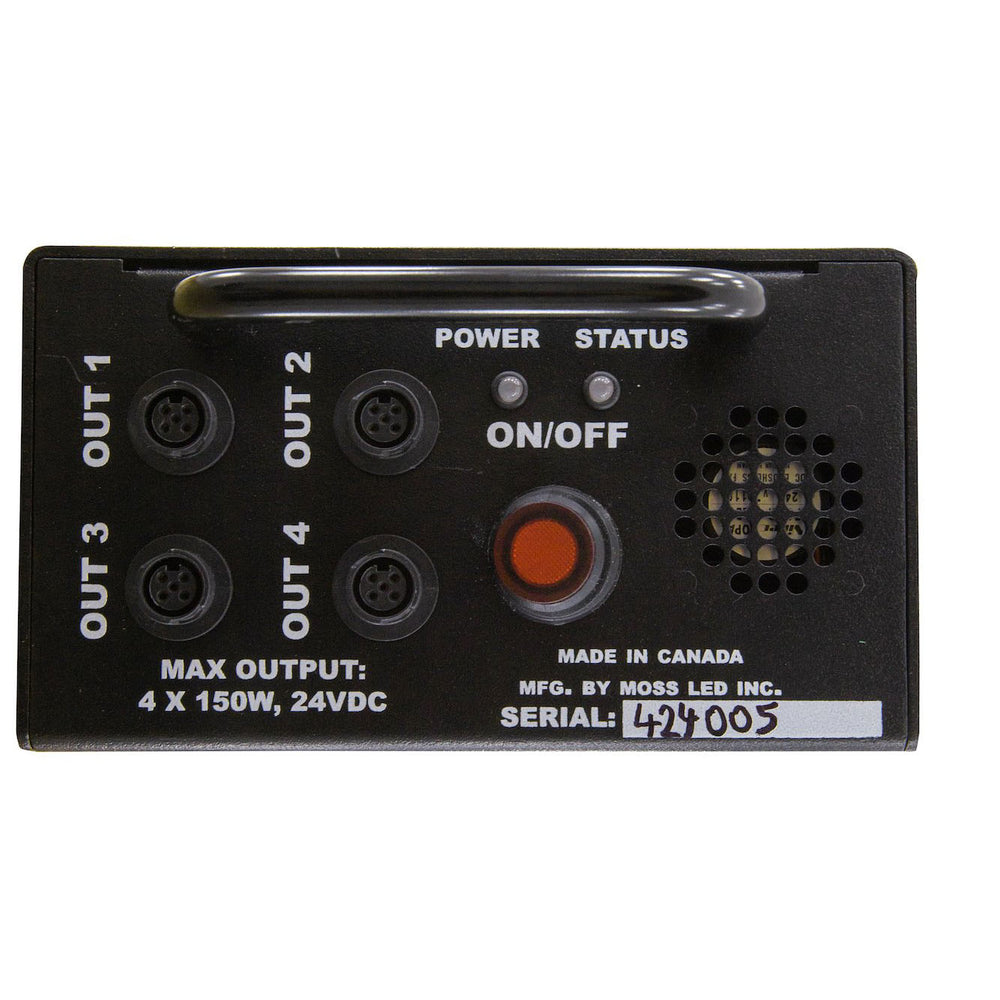

|Output Amperage ||: ||4 X 6.5Amp|
|Output Voltage ||: ||24VDC|
|Output Wattage ||: ||4 X 150 Watt Max|
|IP Rating ||: ||Coming Soon|
|Artnet ||: ||16 Universes|
|WiFi ||: ||802.11AC/802.11A/802.11N/802.11G/802.11B|
|Transmission Rate ||: ||2.4Ghz 300Mbps + 5G 867Mbps|
|Antenna ||: ||4 X Detachable 5dBi Antenna (2 X 2.4 & 2 X 5Ghz)|

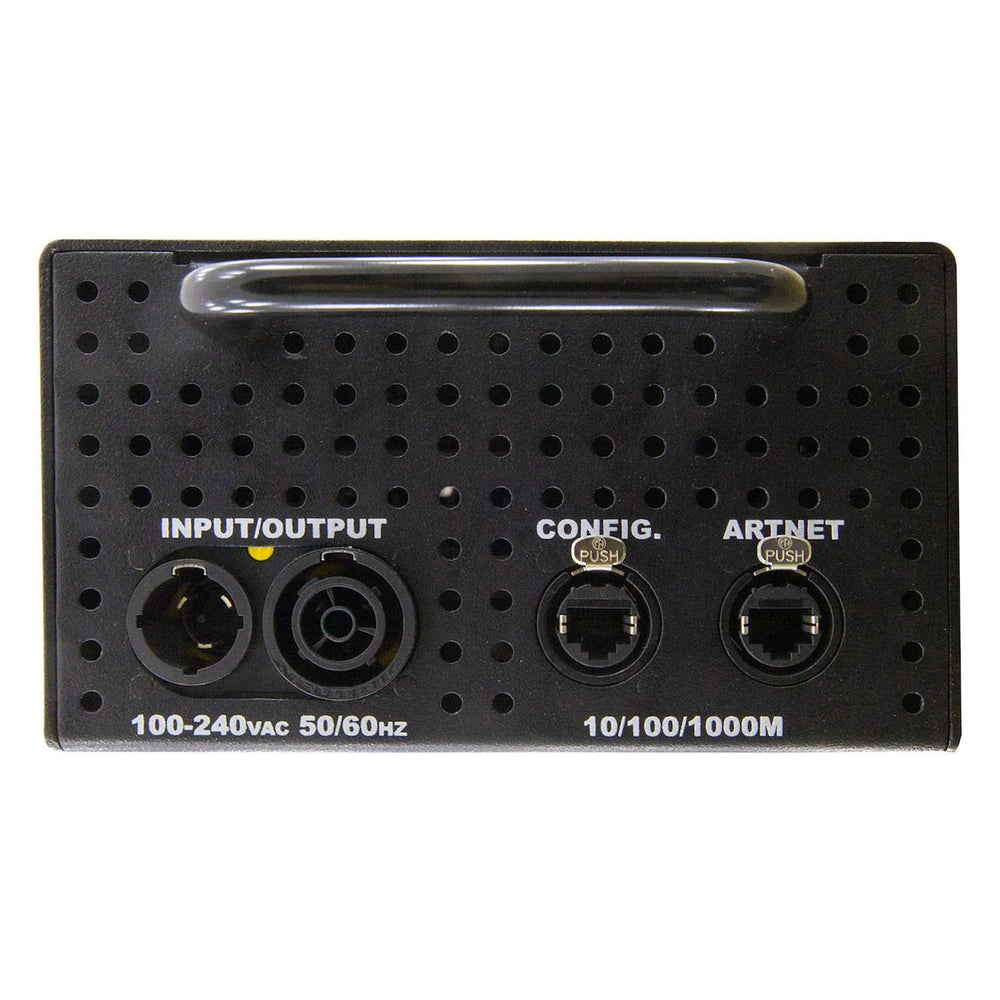

|LAN Ports (2) ||: ||Artnet IN LAN & WIFI Configure|
|WiFi Passcode ||: ||LXFXBX(serial#)|
|Operating Temperature ||: ||-20C - 40C|
|Maximum Cable Distance Between Fixtures ||: ||16'|
|Maximum Cable Distance Between PSU & Fixture 1 ||: ||48'|
|Fixture Power Draw ||: ||43.2 Watt per 0.5 Meter Fixture|
|Fixture Power Voltage ||: ||24VDC|
|Pixels Per Fixture ||: ||144 LEDs|
|Power & Data In/Out ||: ||5-Pin Waterproof Locking Chogori Connector|
|Pixel Type ||: ||High Power RGB FlickerFree LEDs|
|Cooling ||: ||Fixtures Are Passive / PSU Is Active (1 Fan)|
