LuxDrive8 V4 - 32 Channel Dimmer

SKU LUXDRIVE8V4
Sold out
$3,799.00
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

ITEM HAS BEEN DISCONTINUED AND REPLACED WITH VENTIDRIVE.



  • 2U design (Only 3.5")
  • Powerful 1200 Watt (50 AMP) at 24V output across 32 channels of dimming
  • 8 outputs each at 150 Watt OR combine outputs infinitely to create one large 1200 Watt Output
  • Frequency mode selection from 7.2kHz to 28kHz for Flicker-Free operation at most camera settings.
  • Only 2 ultra-quiet fans for on-set use

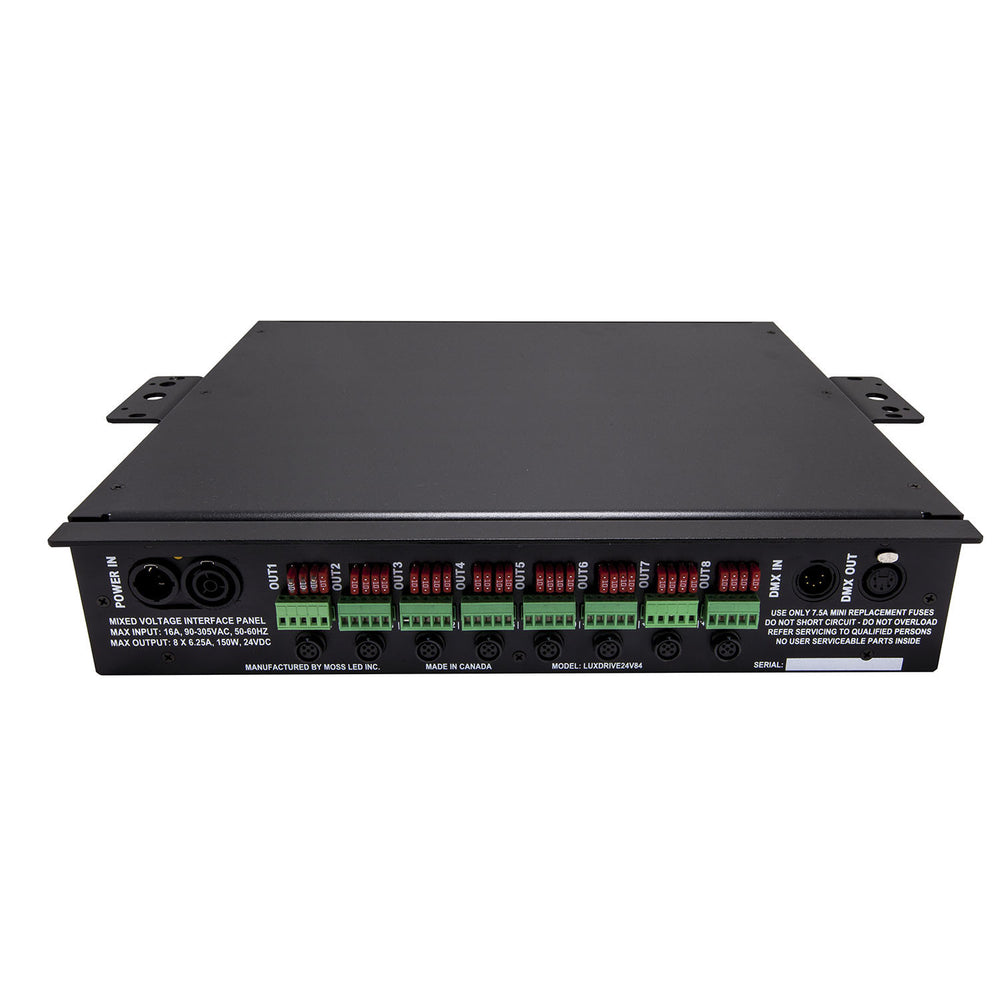

  • Terminal Block and Twist-lock output connectors for ease-of-use and on-site wiring
  • 32 individually fused channels for maximum protection
  • New rugged thicker aluminum housing for long-term durable use for all industries.
  • New mounting brackets for easy hanging, surface mount, and safety chain connections.

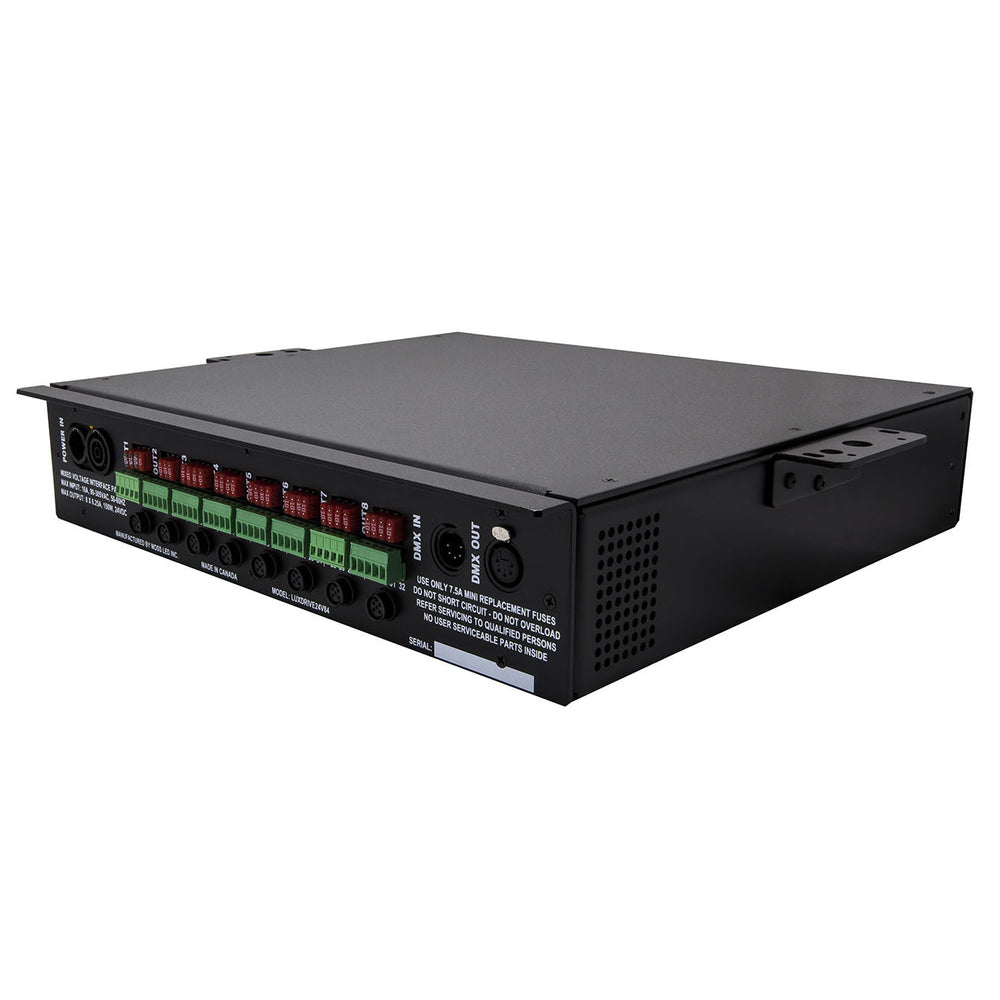

  • Rear lip protection over output connectors designed to protect all rear components

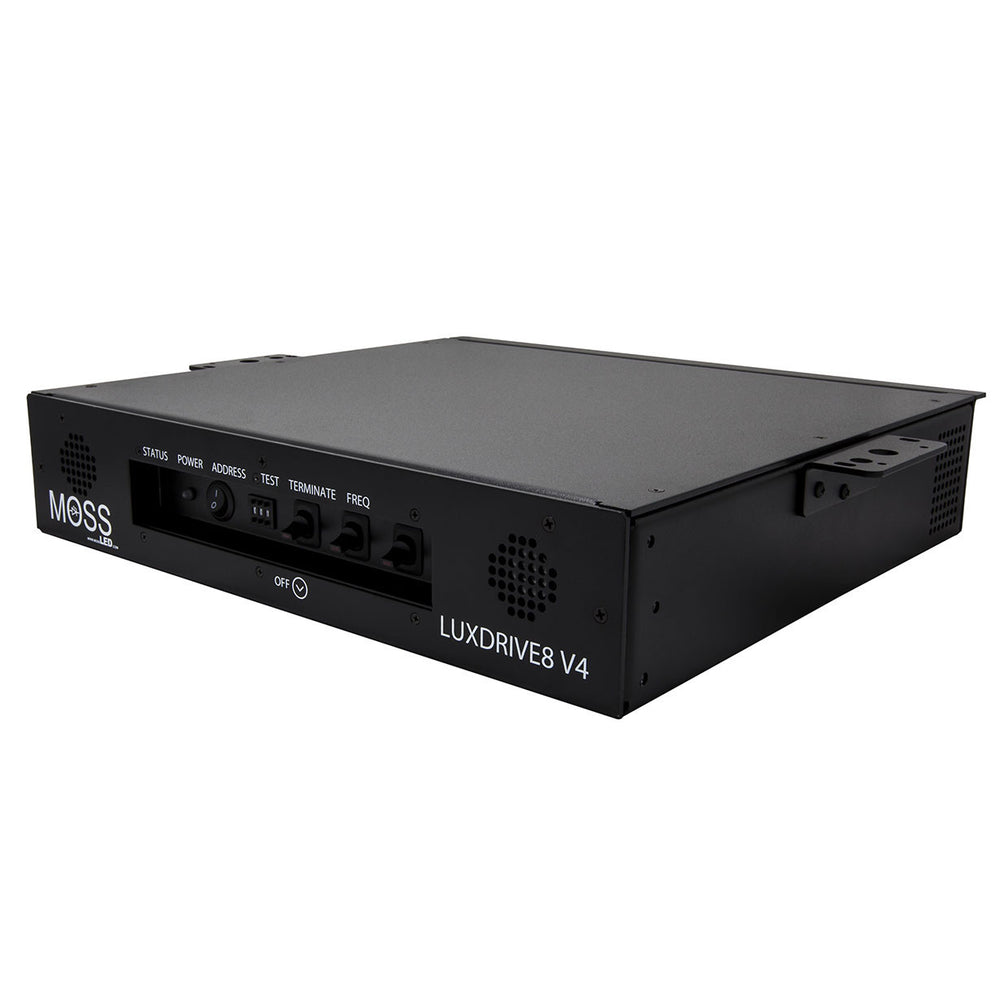

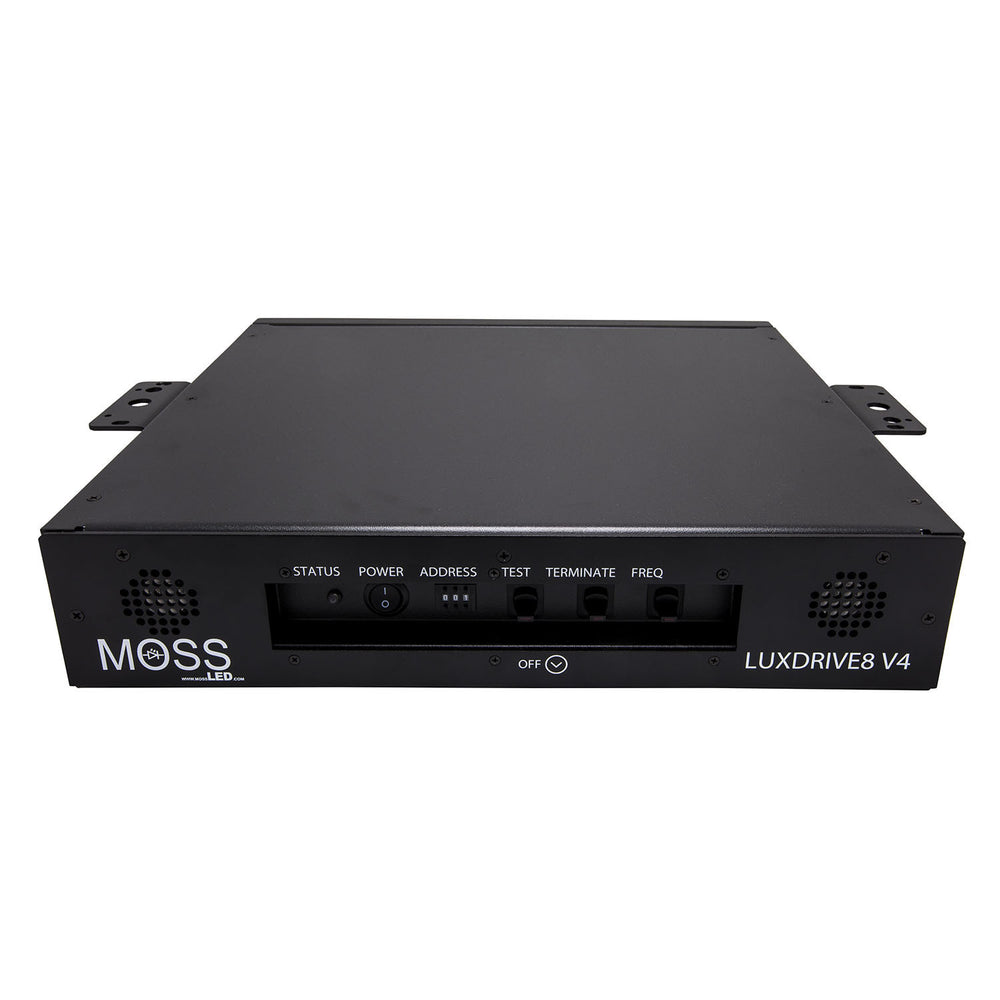

  • Recessed front controls allow for protection of components and accidental activation of functions
  • New TrueCon power input and output locking connectors allow for power breaking under load
  • Rubber feet mounted to the bottom allow for non-skid performance and protection of the chassis itself.

Professional DMX controlled multi-channel LED controller with built-in power supply.

No more separate power supplies!
Approved for use anywhere in the world!



Contact us for pricing details for large quantity orders or for rental options.

The LUXDRIVE8 is a power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape / LED ribbon industry. Compatible with any of our RGB, RGBA, Dual White, Or Single Color LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR. Neutrik TrueCon pass-thru allows for power connections to down-stream devices. On-board addressing controls for control via a lighting console. Test mode allows for manual control from the LUXDRIVE8 for testing and setting scenes without the use of a lighting board.

Pound per wattage output, this unit is extremely powerful!

There are options for mounting the rack ears to the top or the side of the unit for ease of transport as well as for screwing to the back of set walls.

SPECIFICATIONS

Output Voltage (V) : 24V DC
Output Current (A) : 50A (8 X 6.25A)
Output Power (W) : 1200 W
Agency Approvals : CE/RoHS/cETL (field evaluated)
Size (inches) : 15.75L  X 17W X 3.5H
PWM Frequency : 7.2kHz or 28kHz
Dimmers : 32 Channels
Line & Load Regulation () : 0.5%
Efficiency : 95%
Frequency Range : 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : < 2mA
Protections: : short circuit, over voltage, overload, over current, over temp
AC Input Connector : Neutrik TrueCon Input & Pass-Thru
Housing : Fully enclosed aluminum housing
Medical safety approved : 2 x MOPP between primary and secondary
Class : Class I power
Indicator : Front Red/Green LED - See Specification Sheet for Details
Standby Power Consumption : < 10 watts
Output Connector Type : 5 Position Terminal Block & 5 Position Chogori Connector
Output Connector Lock : Terminal Block: No / Chogori 5-Pin: Yes
Output Polarity : Refer to Specification Sheet
Weight : 25.8 lbs
Mounting Options : Movable Rack Ears (Front & Top) Front for Rack Mount & Top for Hanging.  Rubber Feet on Bottom for Stacking
Cooling : Forced Air via 2 Whisper-Quiet Fans
  :
Product Type : Multi-Channel LED Dimmer W/On-Board Power Supply
MFR Product Family : LUXDRIVE
Operating Temperature : -40C to 90C
Chassis Color : Black
Wiring Color Codes Output : *Refer to Specification Sheet

DOWNLOADS

  1. Specification Sheet
