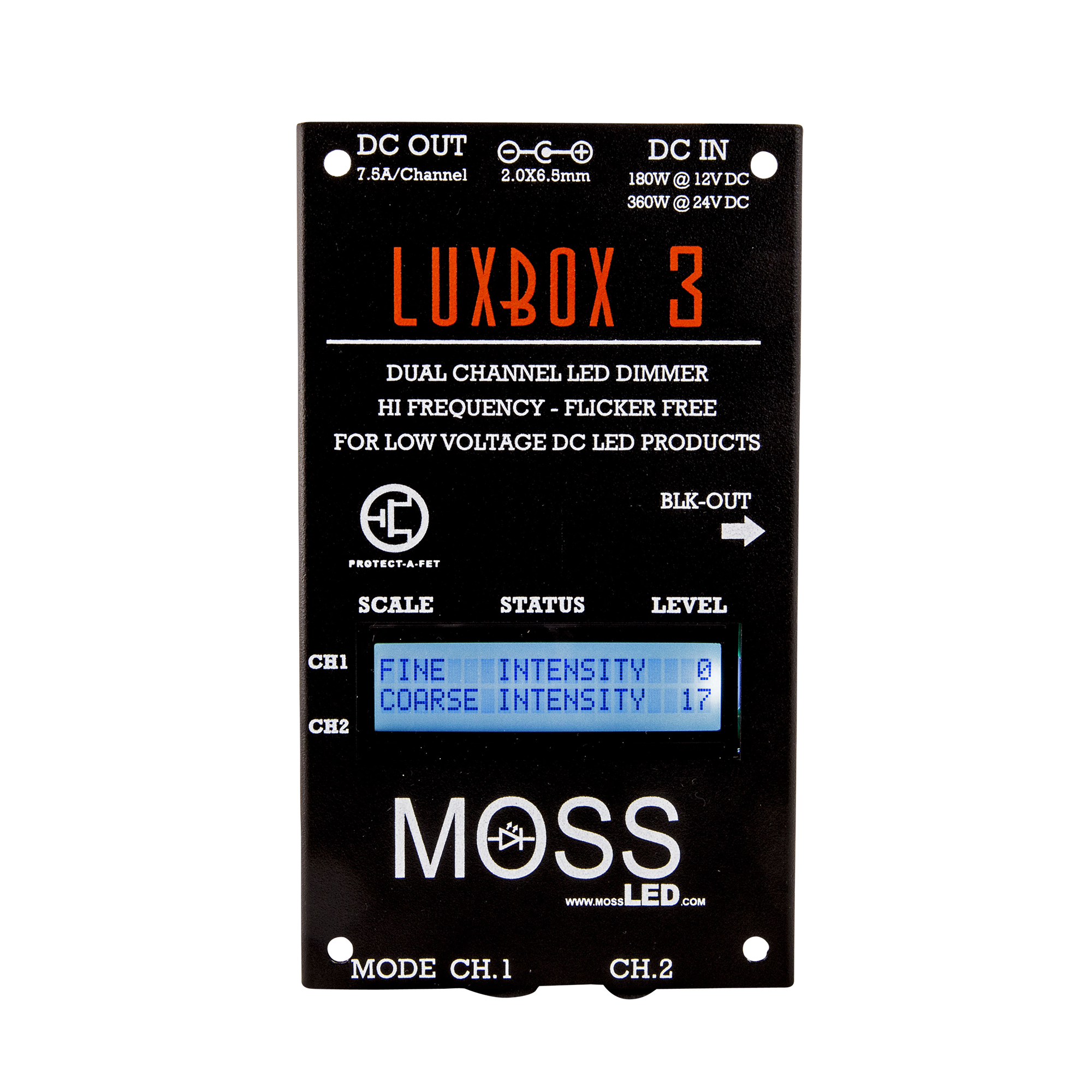

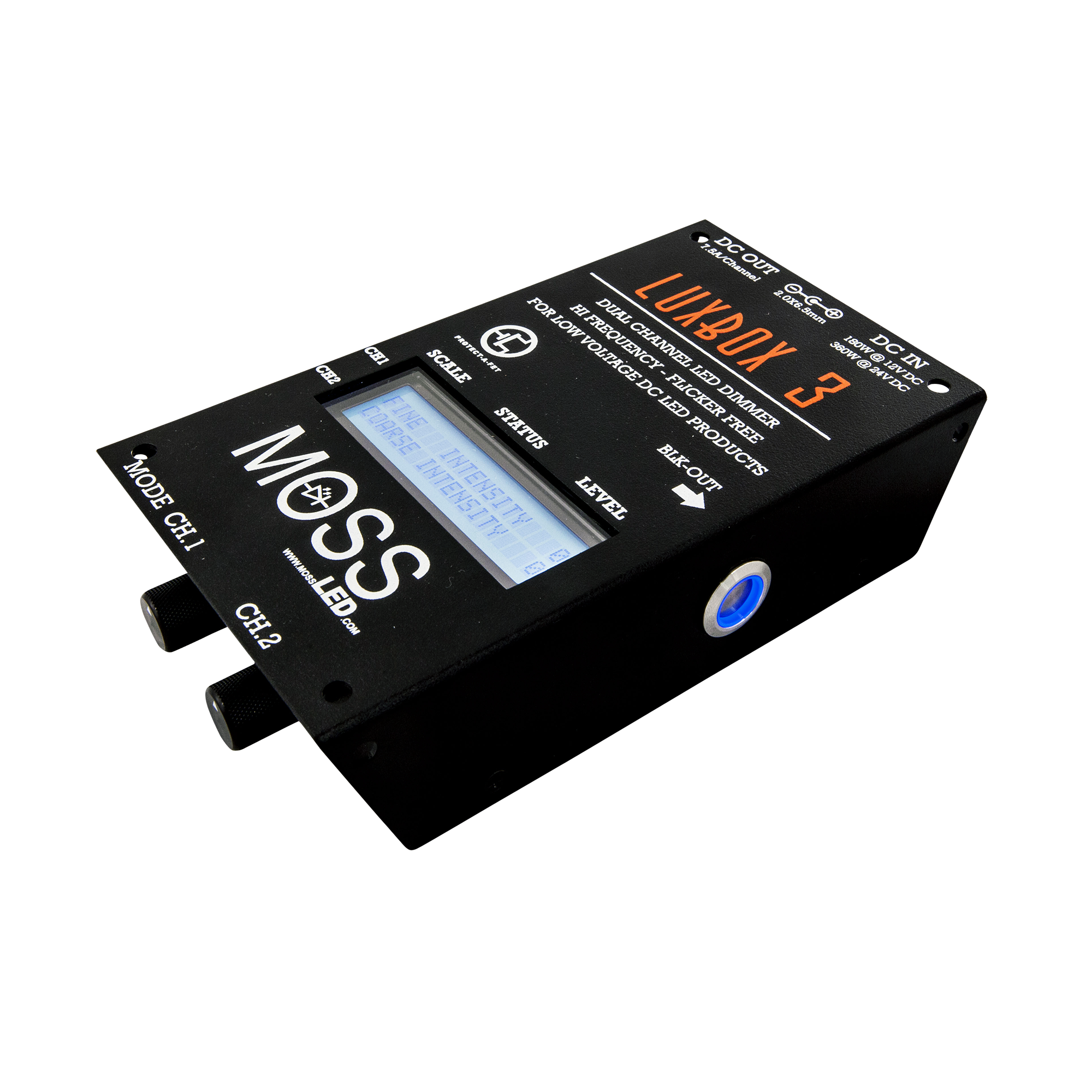

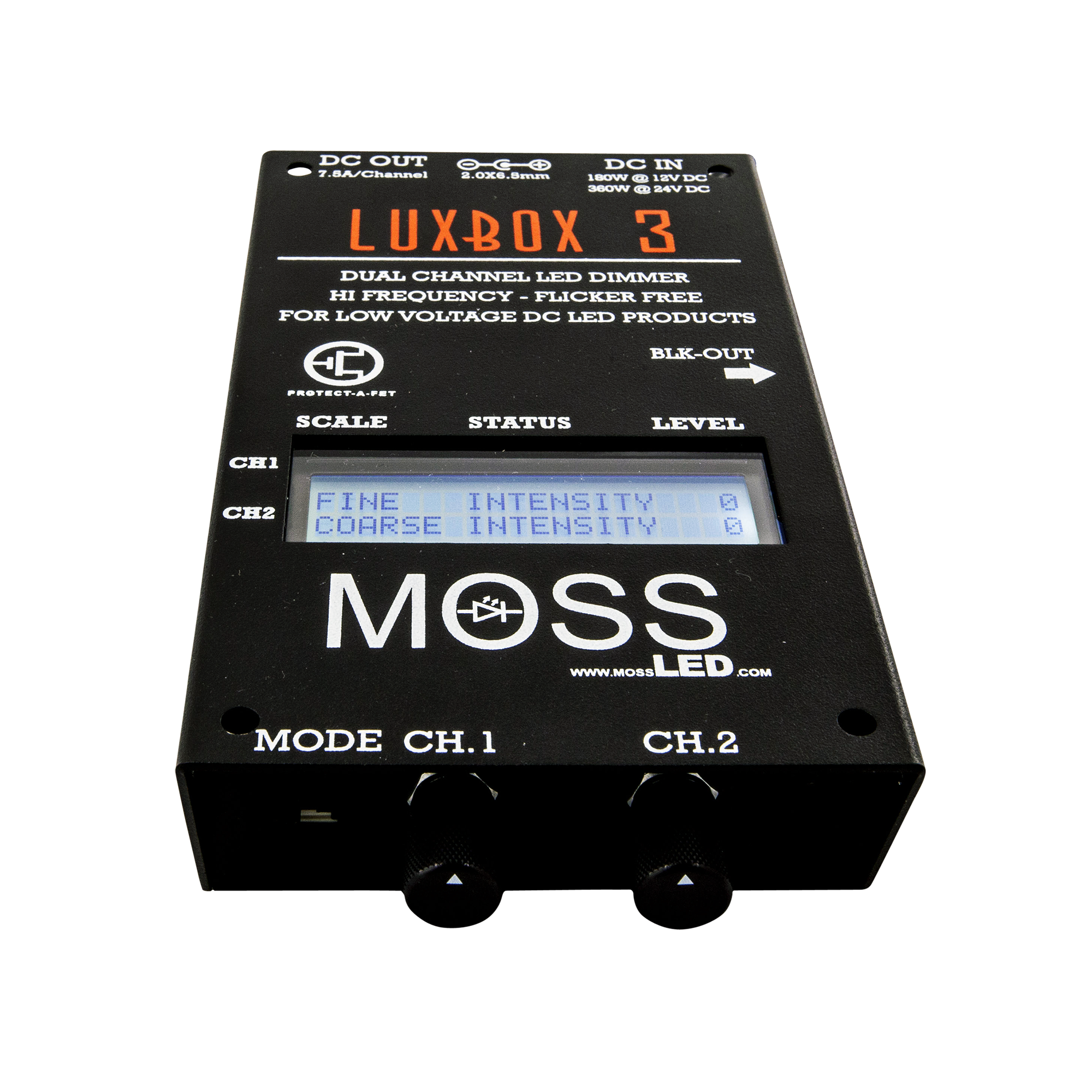

LUXBOX 3 - 2 Channel Dimmer

MossLED

LXBXDUALV3


Collections: Featured, Rotary & Hand-Held Dimmers

Category: 12V, 24V, Controller, FlexLED, LED Tape

Type: Controller


High precision dual channel dimmer which provides beautifully smooth dimming for on-camera purposes.  High frequency, flicker free dimmer with Protect-A-Fet technology.  This is the most rugged two-channel hand-held dimmer on the market.

For use with any of our Tungsten, Daylight, or Bi-Color LED Strips and LUXLines.

  • High-frequency flicker free dimming
  • Consistent 0 - 100% dimming control
  • LCD Readout gives precise percentage
  • Digital push-button encoders allow for Fine, Medium, and Coarse dimming options
  • 2 Modes:
    Dimmer & Color Temperature Adjustment
    2-Channel Mode
  • Tamper-proof recessed black-out button
  • Locking 5-pin DC output connector - use our 5-pin connectors OR use a 5-pin connector tail for bare wire access
  • Rated 15A 12-24VDC input
  • Locking 4-Pin DC Connector and standard DC plug input works with any of our table-top power supplies or MeanWell power supplies.
  • Dimmer for all of our low voltage LEDs
  • Rugged metal construction for durability
  • Easily mountable using the built-in screw holes
  • Belt clip available for versatility.
  • Extremely compact unit

DIMENSIONS

L 6.24" X W 3.56" X H 1.55"

DOWNLOADS



**Connector Tails Not Included**
