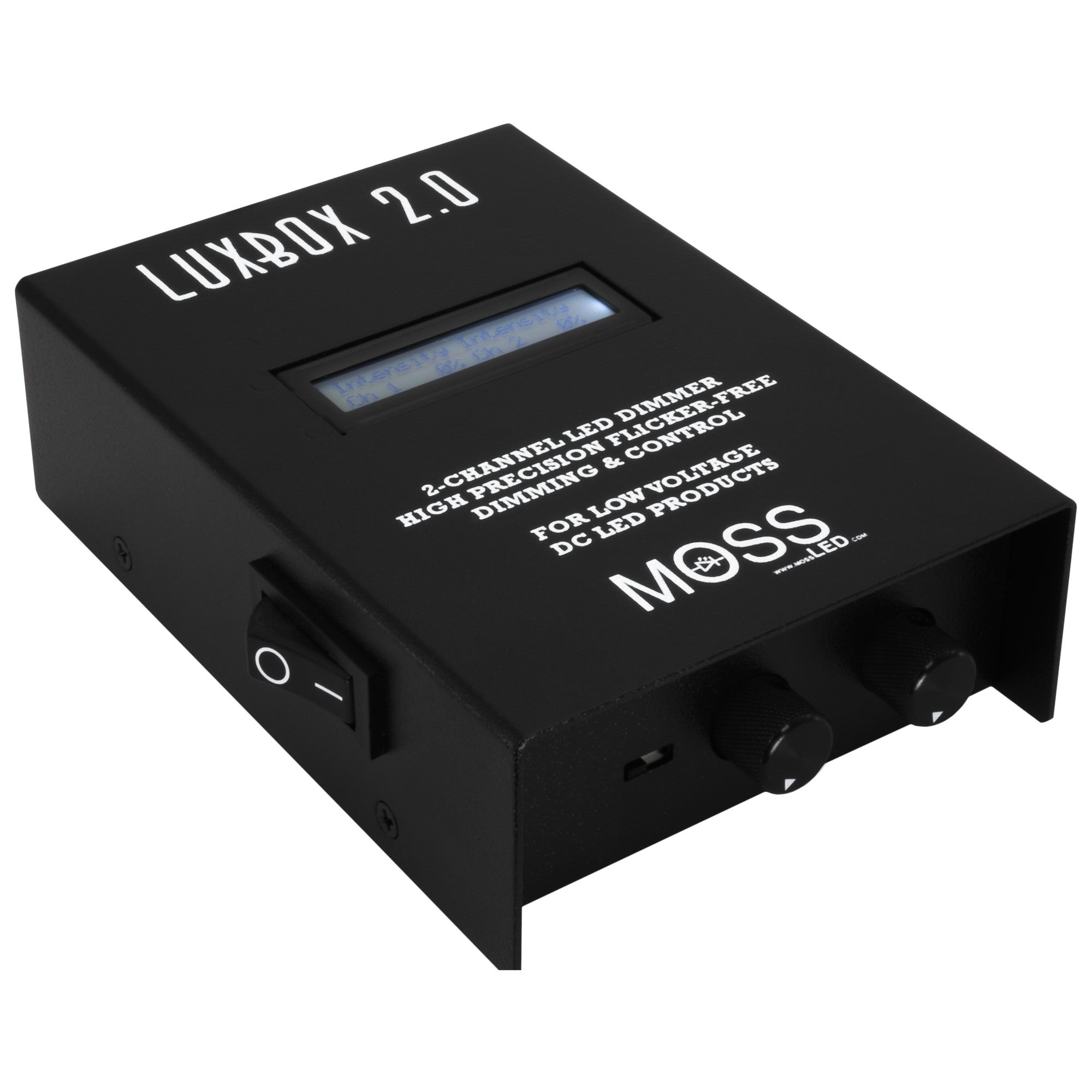

LUXBOX 2.0 - 2 Channel Dimmer LUXBOX DUAL - 2 Channel Control
LXBXDUALV2
$346.45 CAD
For use with any of our Tungsten, Daylight, or Bi-Color LED Strips and LUXLines.
- High-quality flicker free dimming
- Consistent 0 - 100% dimming control

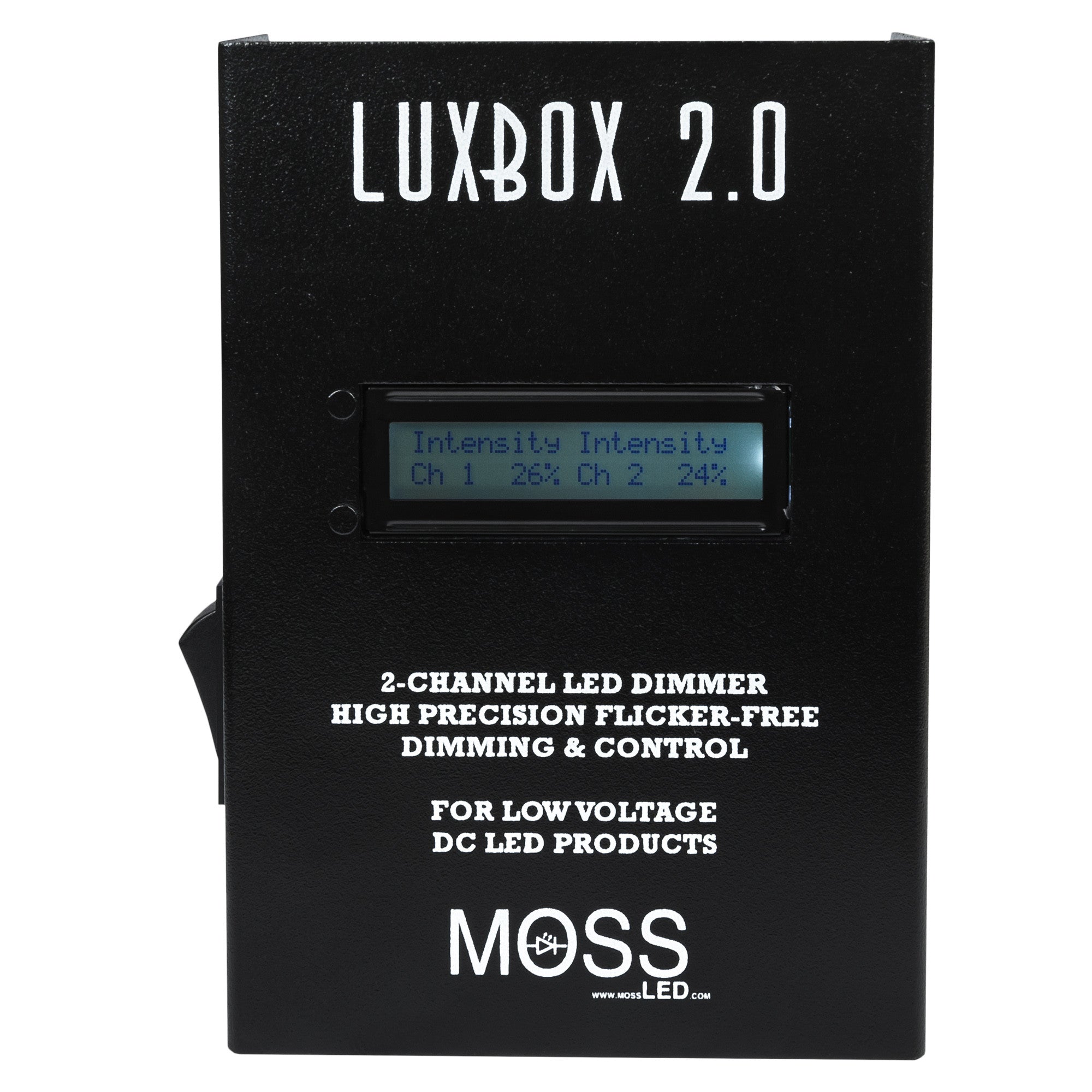

- LCD Readout gives precise percentage
- 2 Modes:
Dimmer & Color Temperature Adjustment
2-Channel Mode - Power switch for easy on-off use
- Push-lock dimmer knobs prevent unwanted adjustments

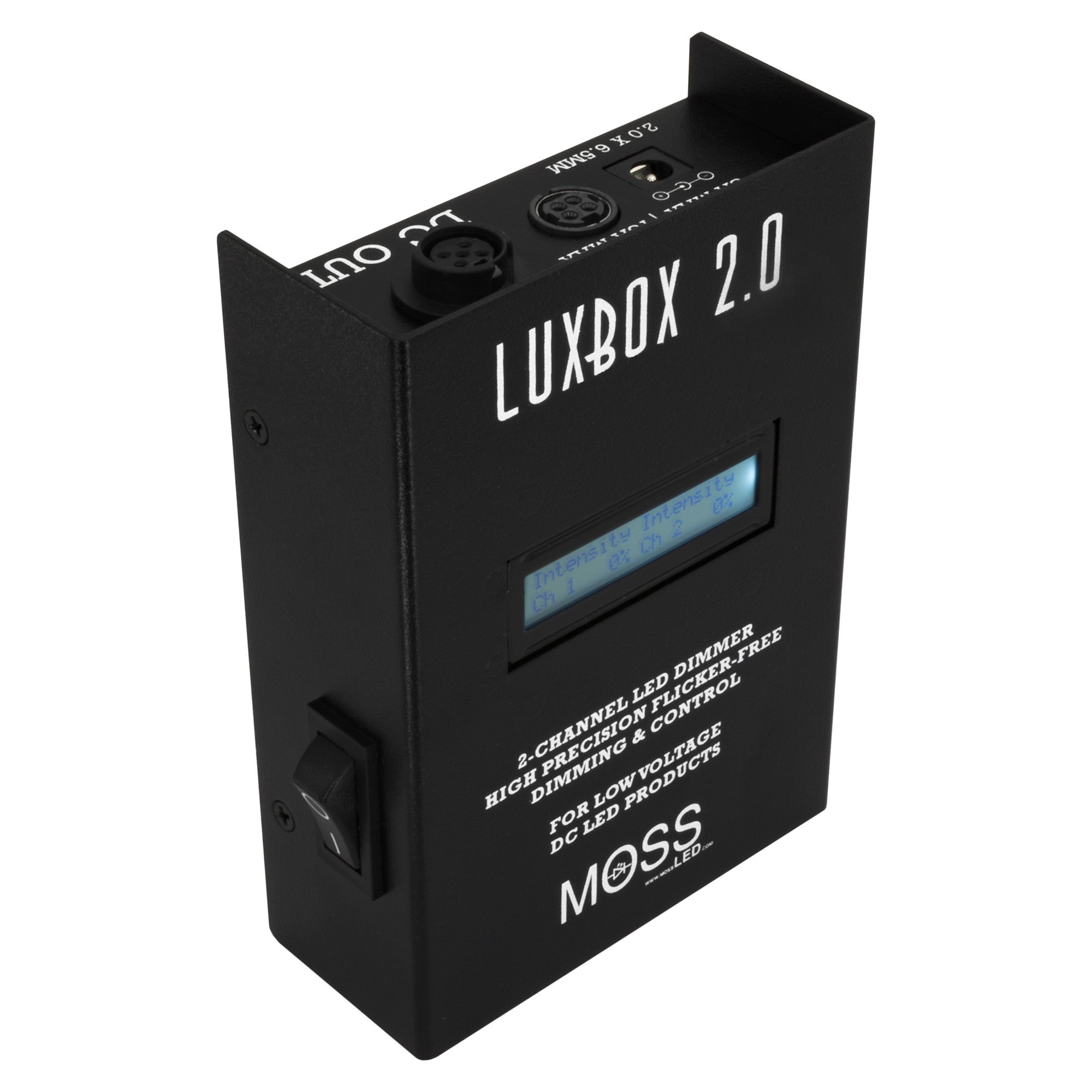

- Locking 5-pin DC output connector - use our 5-pin connectors OR use a 5-pin connector tail for bare wire access
- Rated 15A 12-24VDC input

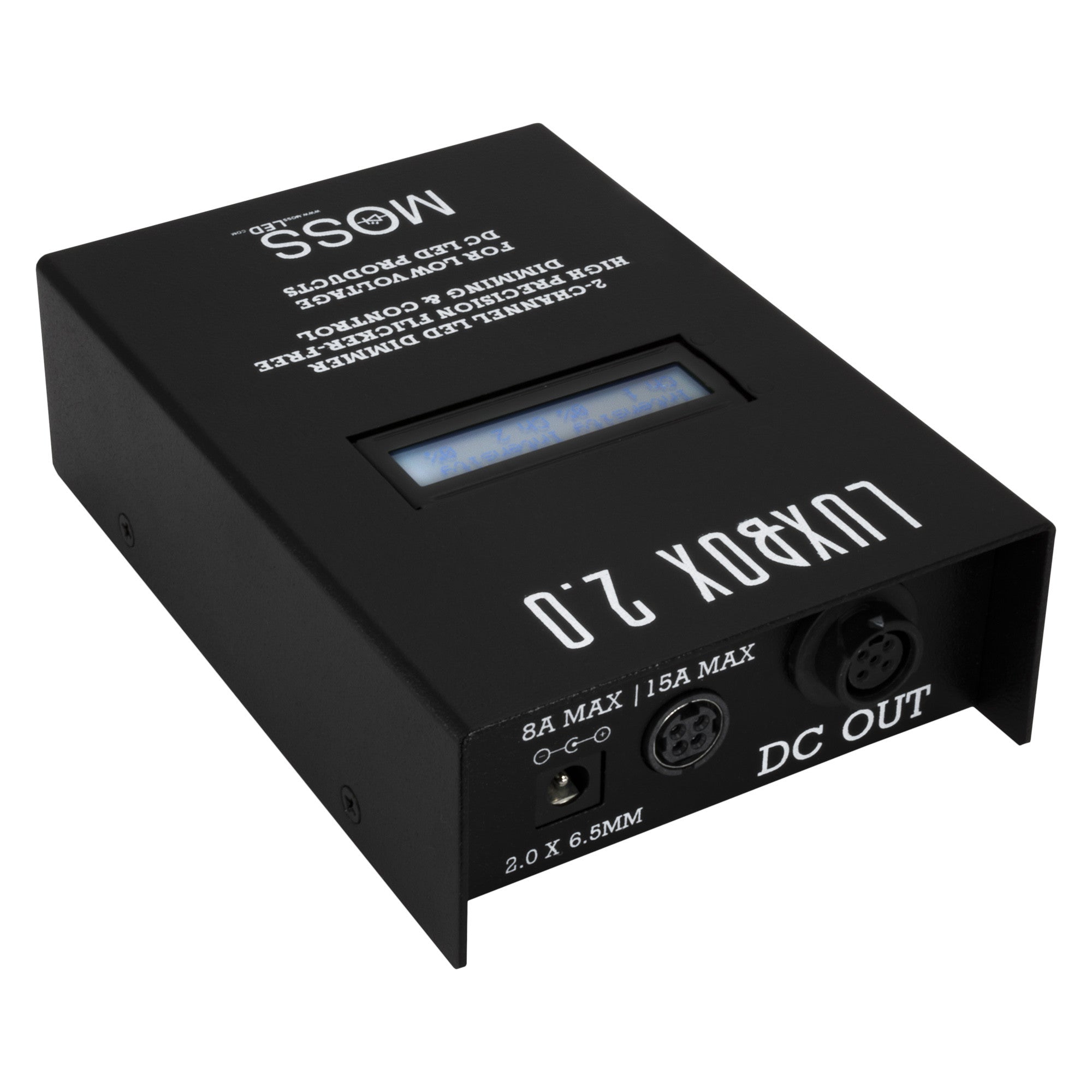

- Locking 4-Pin DC Connector and standard DC plug input works with any of our table-top power supplies or MeanWell power supplies.
- Dimmer for all of our low voltage LEDs
- Rugged metal construction for durability
- Easily mountable using the built-in screw holes

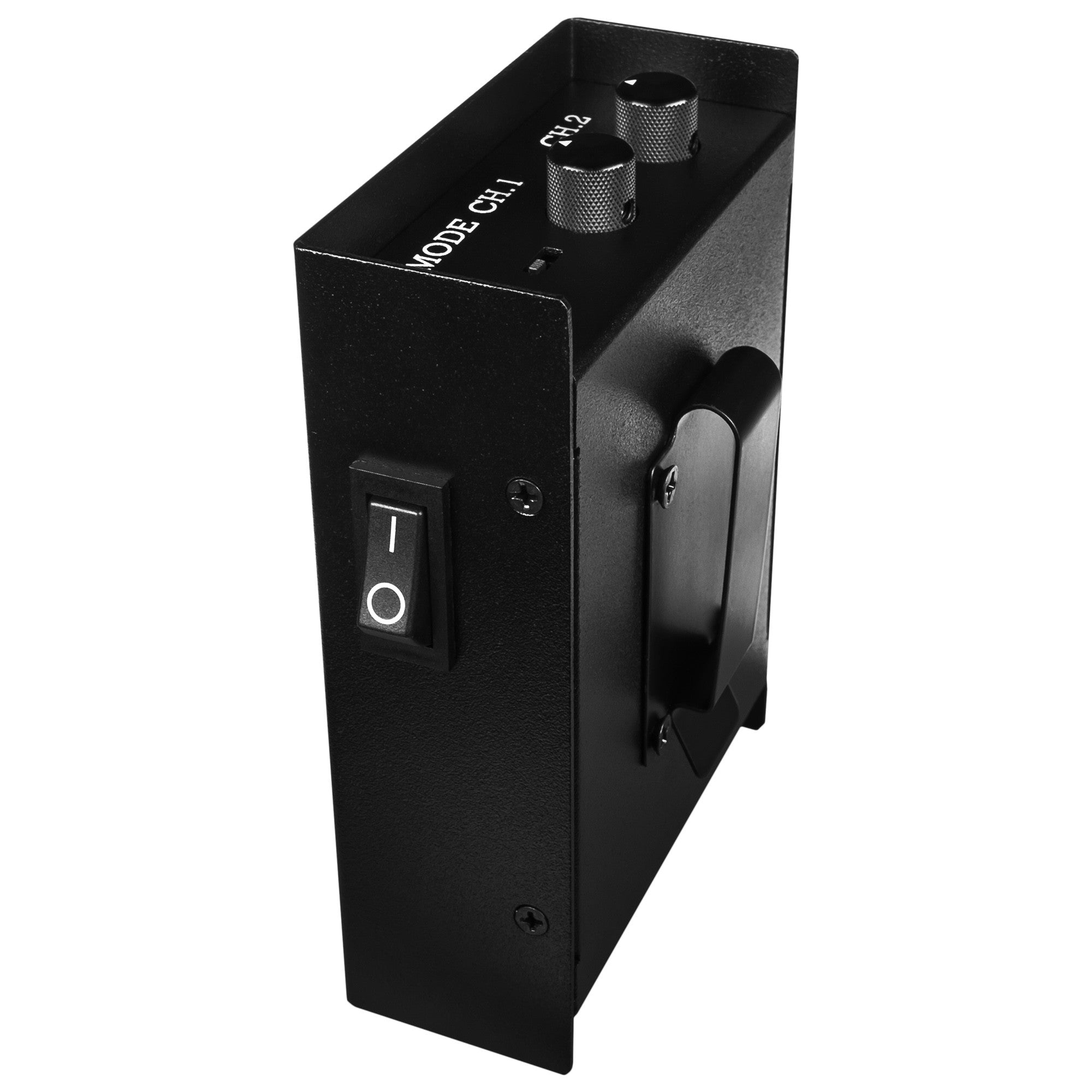

- Belt clip for versatility.
- Extremely compact unit
|
DIMENSIONS L 5.24" X W 3.5" X H 1.5" |
DOWNLOADS |
Manual
**Connector Tails Not Included**
Related Items
LUXDRIVE 10 DMX LED Dimmer
$3,100.00 CAD
Professional touring-grade control unit for low voltage LED products!
No more Phoenix Connectors! No More Screw Terminals! No more Wiring or Soldering!
Contact us for pricing details for large quantity orders or for rental options.
Non-stock item. Minimum Order Quantity may be required.
The LÜXDRIVE is a power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape industry. Compatible with any of our RGB, RGBA, Dual White, Or Single Colour LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR. Powercon pass-thru allows for connections to down-stream devices. On-board addressing controls for control via a lighting console. Test mode allows for manual control from the LÜXDRIVE for testing and setting scenes without the use of a lighting board. The unit is extremely light-weight and can be mounted to any standard rack.
Technical Paramaters
- 10 X RGB Outputs (Configurable for 8 X RGBA Outputs or 10 X Dual White Outputs)
- Max Input: 12A 115VAC / 6A 230VAC
- Max Output: 40A @ 24VDC
- External Dimensions: L17" X W13" X H5.25"
- Weight: 11.5lbs
- Protections: short circuit / over temperature / overload / over voltage
- Extremely fast PWM dimming at 14.4kHz allows for flicker free operation with any camera setting
- Certified by the Electrical Safety Authority of Ontario
- Forced-air cooling by built-in fans
- 5-year limited warranty
- 3.5U standard rack spaces
View full product details
LUXDRIVE 16 DMX LED Dimmer
$3,100.00 CAD
Professional DMX controlled multi-channel LED controller with built-in power supply.
No more wiring!
No more separate power supplies!
No more phoenix connectors!
Approved for use anywhere in the world!
Contact us for pricing details for large quantity orders or for rental options.
The LÜXDRIVE16 is an installation-grade power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape industry. Compatible with any of our Bi-Color, Or Single Color LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR. Powercon locking input power cables. Internal DMX addressing controls for control via a lighting console.
Technical Paramaters
- 16 X Bi-Color Outputs or Single Color White Options
- Max Input: 2 X 20A @ 120 VAC
- Max Output: 67.2A @ 24VDC
- Protections: short circuit / over temperature / overload / over voltage
- Extremely fast PWM dimming at 14.4kHz allows for flicker free operation with most camera settings
- Certified by Intertek to CSA standards
- Forced-air cooling by built-in fans
- 5-year limited warranty
- 3.5U standard rack spaces
View full product details
Cinque-LED DMX Dimmer
$198.45 CAD
Introducing our most advanced standalone DMX Controller ever
- now with NEW PROTECT-A-FET technology -
The upgraded Cinque now includes integrated circuit protection on each output dimmer channel. This ensures that if there is an accidental short on one of the outputs, a quick power cycle of the unit will allow for continued use and no internal damage.
Simply put, the Cinque-LED DMX Dimmer is fantastic.
It has all the features our film, television, and theatrical friends have been asking for. It is an extremely durable metal, rugged housing with professional-grade XLR 5-Pin In/Out and RJ45 In/Out for DMX signal. The terminal blocks used for the input have two spaces for Voltage + and two spaces for GND which allow for the huge current capability this unit has 5 X 8A = 40 AMPS of power!
This unit also has a easy-to-read LED display for setting address and manual mode settings. The Cinque-LED DMX Dimmer has 8 bit and 16 bit resolution modes as well as output PWM frequency adjustable settings from 500Hz to 30kHz. On top of all of that there is ALSO a gamma curve value which adjusts the dimming curve of the unit so you can have an extremely high resolution low end or an extremely high resolution high end. It's entirely up to you!
The Cinque-LED DMX Dimmer is BY FAR the most advanced standalone DMX Decoder controller unit on the market, EVER!
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into five dimmable channels.
- Uses RJ45 Ethernet or 5-pin XLR connectors?to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
- LED Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
- Supply Voltage: 12V - 24V DC
- Output: 5 Channels
- Output Current: 5 CH @ 8A/CH = Max 40A
- Output Power: 480W @ 12V / 960W @ 24V
- PWM Frequency: 500Hz to 30kHz
- Bit Rate: 8 Bit & 16 Bit
- External Dimension (mm): L164*W73*H38
- Gross Weight: 220g
- Working Temperature: -20? to +70?
- IP Rating: IP40
DOWNLOADS
View full product details
Quad-LED DMX Dimmer
$129.98 CAD
Quad-LED Dimmer
It has all the features our film, television, and theatrical friends have been asking for. A simple, four channel plug n play DMX controller with manual mode and variable frequency.
This controller can be used with all of our FlexLED Tape products and Modules
- This unit converts DMX-512/1990 standard digital signal into four dimmable channels.
- Uses RJ45 Ethernet cables to control LEDs via any lighting console or through computer software.
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape.
- LCD Interface provides easy functionality for DMX addressing as well as full manual mode & test control options.
Technical Parameters
- Supply Voltage: 12V - 24V DC
- Output: 4 Channels
- Output Current: 4 CH @ 5A/CH = Max 20A
- Output Power: 240W @ 12V / 480W @ 24V
- PWM Frequency: 2400Hz / 4800Hz / 9600Hz
- Bit Rate: 8 Bit
- External Dimension (mm): L170*W65*H22
- Gross Weight: 300g
- Working Temperature: 0C to +70C
- IP Rating: IP40
**Connector Tails Not Included**
