Helios Tube™ *Sold without ac power adapter 55cm

SKU AST-FP2
by Astera
$842.93

Film lighting LED tube for TV and broadcasting

Please note we are not able to ship this product to the United States

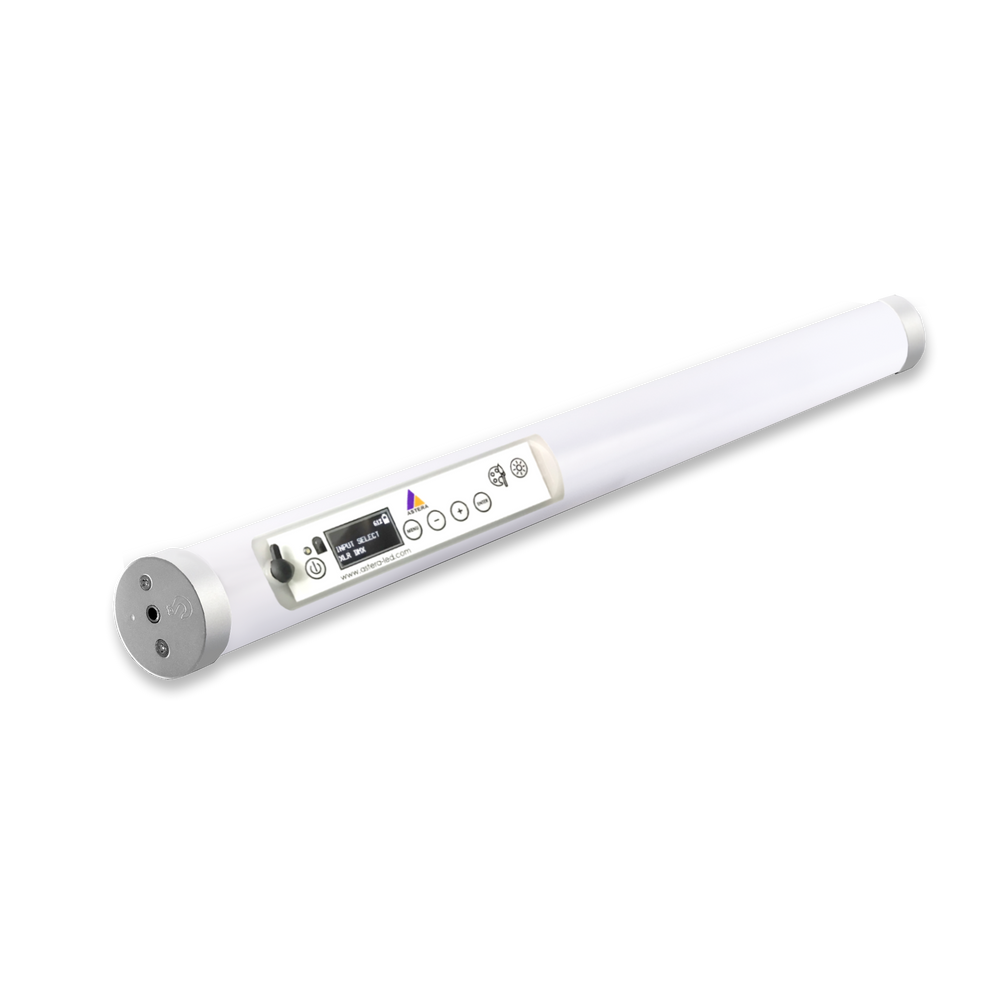

Helios Tube is an RGB – Amber – Mint LED lighting Tube that has all the features of the popular Titan Tube while offering a smaller format. It allows mounting in areas where a Titan Tube wouldn’t fit and also increases portability. This LED lighting Tube has 8 pixels, half the brightness of the Titan tube and just over half its length. Colors and brightness are perfectly matched to those of the Titan Tube`s.

INCLUDES:

  • Stand
  • 2 X Eye Bolts
  • 2 X Holders



SPECIFICATIONS

55cm
36W power, 8 pixel segments, 180° beam angle,
IR, App controlled, wired and wireless (CRMX) DMX,
built-in rechargeable LG battery, IP65.
Includes stand, 2 eye bolts, 2 holders.

*Does not include AC Power Adapter

Optical

Colors: Red, Green, Blue, Mint, Amber
Total LED power: 36W
Maximum power draw: 24W
TLCI: ≥96
CRI: ≥96
Luminous flux: 1340Lm
Emittance @1m: 393Lx
Strobe: 0-25Hz
Beam Angle: 120˚
Field Angle: 180˚
Pixels: 8

Construction

Housing: Polycarbonate, metal endcap
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 0.765kg | 1.68Lbs
Dimensions: Ø42 x 550mm | Ø1.6” x H22.7”

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
Charging time (nominal): 3 Hours
Input Voltage : 24V 1.25A

Control

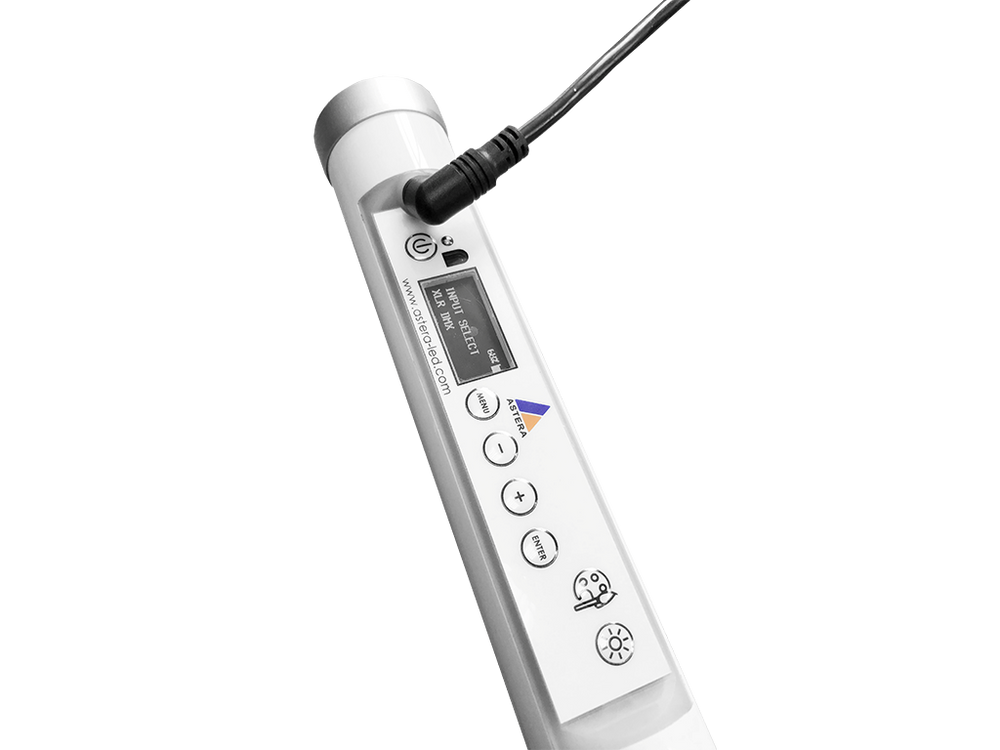

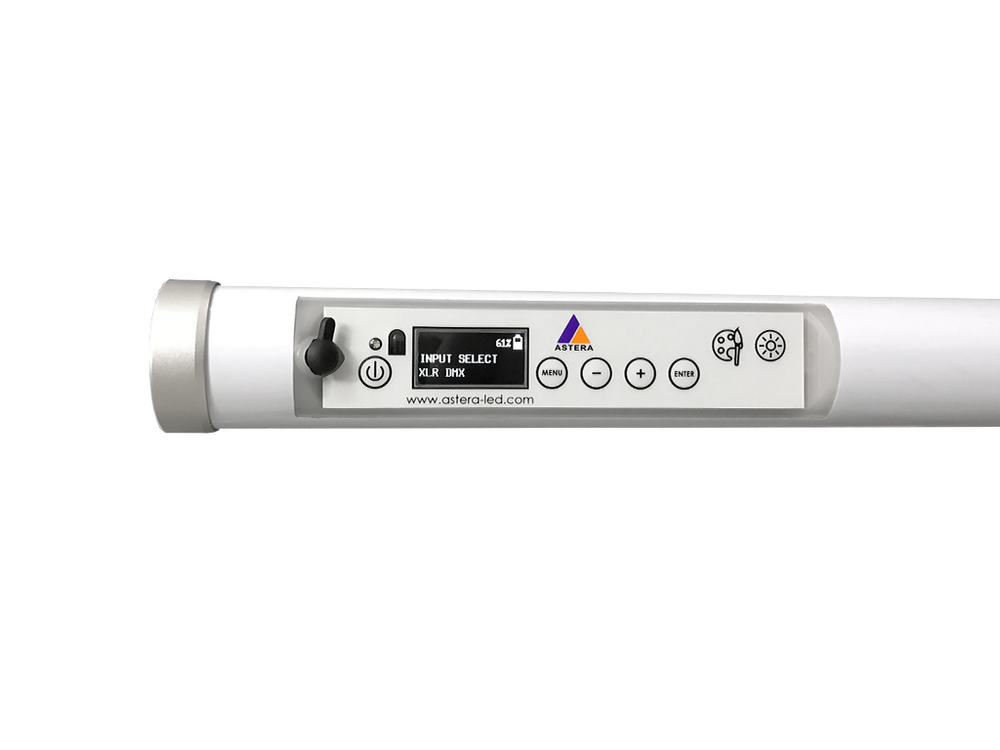

Backside Display with HSI control
Infrared
Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: supported via Astera PowerBox
Wireless DMX: CRMX & others, excluding W-DMX G5, City Theatrical



DOWNLOADS

  1.  Helios Tube Datasheet
  2.  Helios Tube DMX Profiles
  3.  Titan Tube Manual
  4.  DMX Values for Common Colours
  5.  EU Declaration of Conformity
  6.  Helios Firmware Release Notes
