The Four Channel RGBW Rotary Dimmer delivers smooth, high-precision dimming with four independent rotary knobs, allowing full colour mixing and brightness control. Designed for on-camera and professional lighting applications, it features a 7.2kHz PWM frequency for flicker-free performance at most camera settings. With wireless remote functionality and 37 dynamic modes, this dimmer offers versatile, real-time control for simple film, television, and architectural lighting setups.
Key Features:
- Compatible with Moss LED RGB+W FlexLED Tape – Seamless integration for custom lighting control.
- Intuitive Rotary Control – Adjust RGBW channels independently for precise colour mixing.
- Flicker-Free Performance – 7.2kHz PWM frequency optimized for on-camera use.
- Wireless Remote – Control from up to 60 meters (200 feet) away.

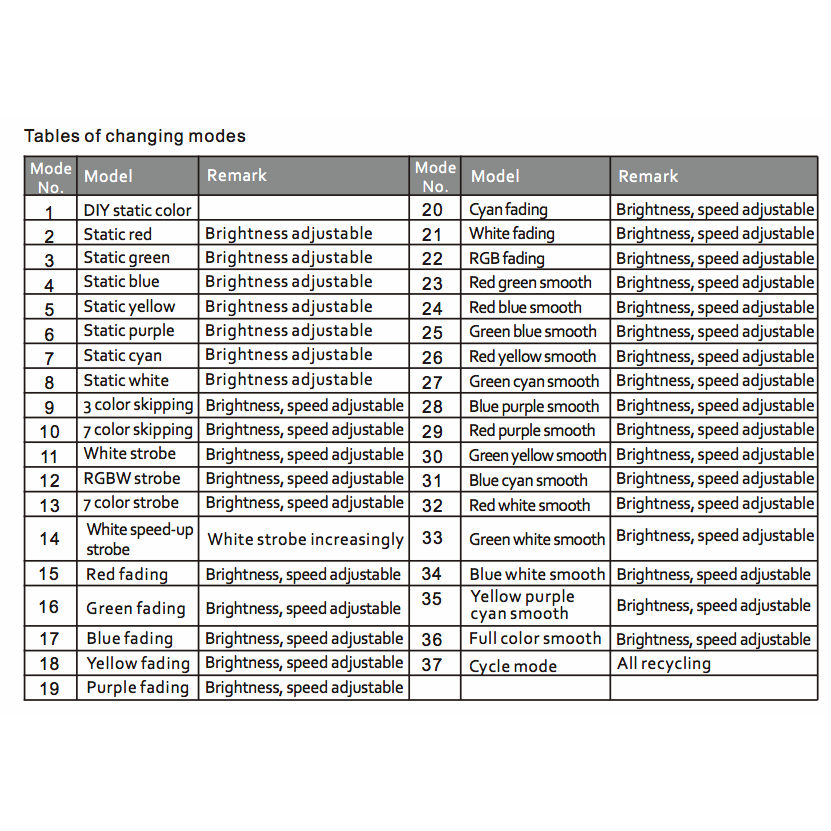

- Dynamic Lighting Effects – 37 built-in modes with adjustable speed and brightness.
- High Power Output – Supports up to 480W at 24V DC.
- Easy Installation – Built-in screw holes for secure mounting.
Connector tails not included.
Need a custom solution? Contact us today!
Â
Â
TECHNICAL SPECIFICATIONS
- Supply Voltage: 12V - 24V DC
- Output: 4 Channel
- Output Current: 4 CH @ 5A/CH = MAX 20A
- Output Power: 240W @ 12VÂ /Â 480W @ 24V
- PWM Frequency: 7.2kHz

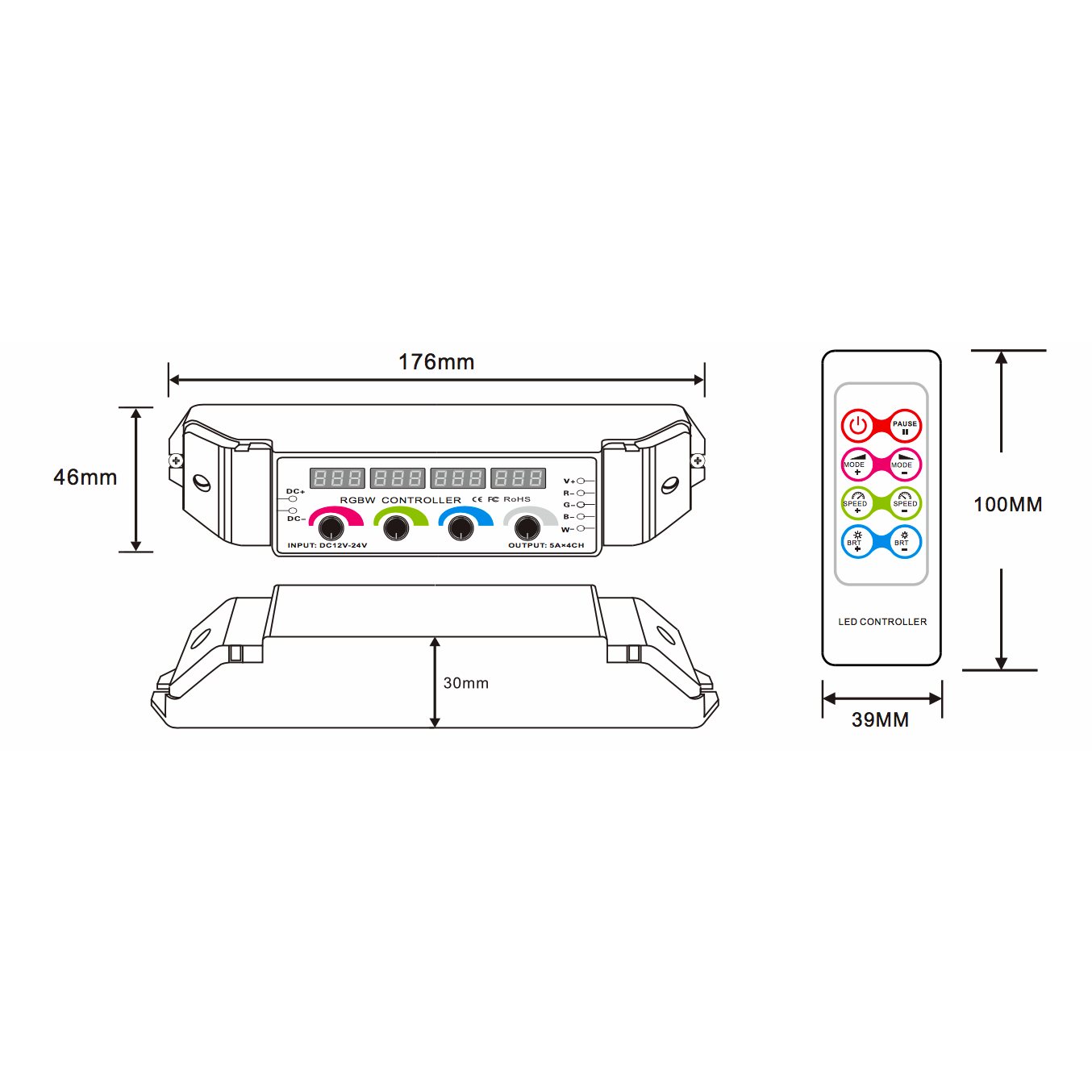

- Dimensions (mm): L176*W46*H30
- Weight: 210g
- Working Temperature: -20C to 60C
**Connector Tails Not Included**
Specification Sheet & Manual
