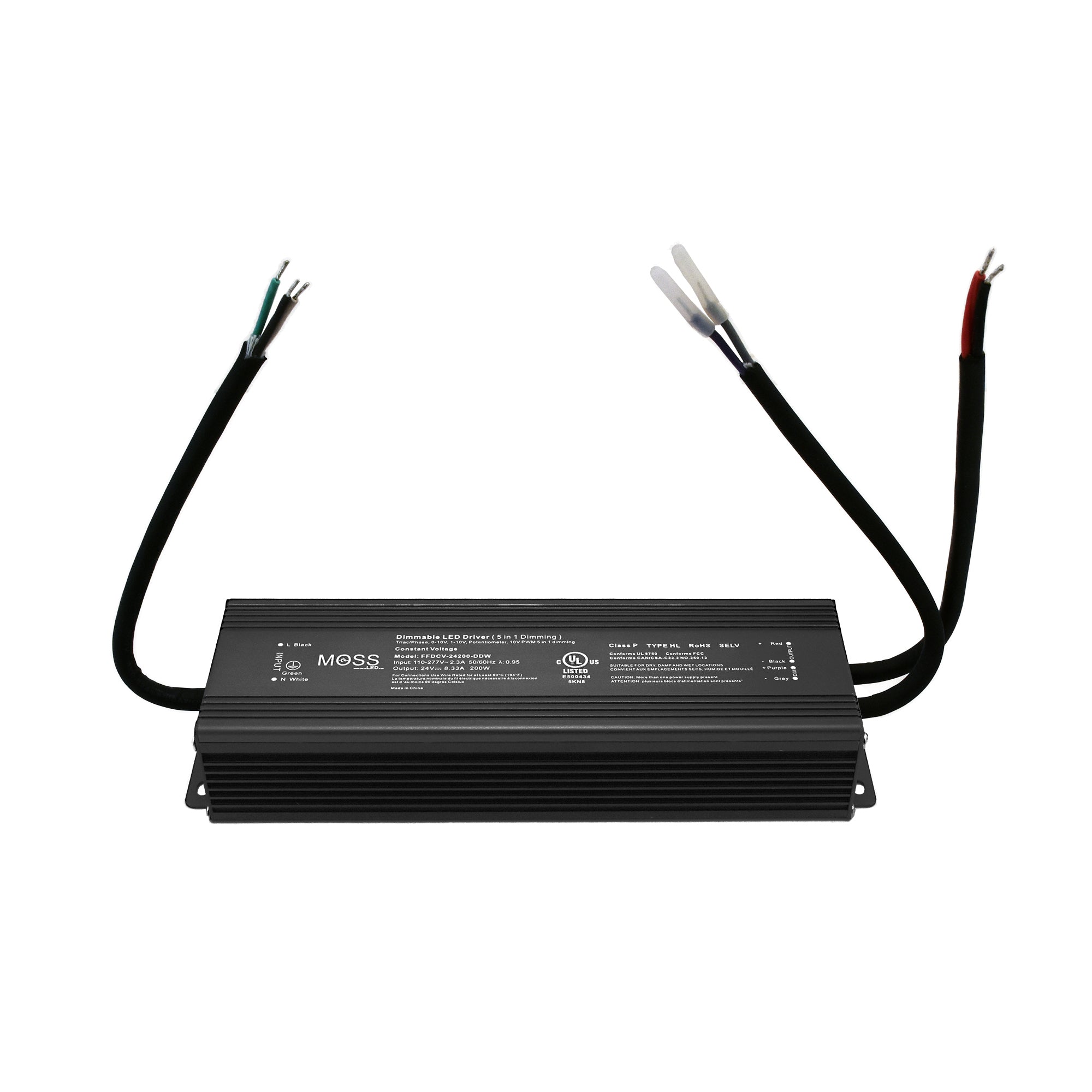

Flicker-Free Dimmable Fanless LED Drivers

SKU FFDCV-24030-DDW
by MossLED
$34.00
Voltage
Wattage
Availability: translation missing: en.general.icons.icon_check_circle icon 22 in stock, ready to be shipped
Accessories
Flicker Free Constant Voltage Family of Power Supplies. Our new fully UL listed, high frequency (20khz) means no flickering to the eye or on camera. Fully listed cULus LED drivers for compliance anywhere in North America..
Extremely reliable and robust LED drivers designed for use with all Constant Voltage LED products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for Dry, Damp, and Wet locations. Safe, powerful, flicker-free, and reliable are the cornerstones of our FFDCV line of power supplies from MossLED.  Includes an amazing 5 year warranty.

Compatible with the following dimming methods:
  • TRIAC
  • 0-10V
  • 1-10V
  • 10V PWM
  • Potentiometer

Other Features:

  • Output 30 - 300W
  • Class 2 (96 Watt @ 24V and 60 Watt @ 12V)
  • Class P Power
Ships in 1 - 2 Business Days

SPECIFICATIONS


Model : FFDCV-096-DDW FFDCV-120-DDW FFDCV-200-DDW FFDCV-300-DDW
Current (A) : 4 A 5 A 8.34 A 12.5 A
Output Power (W) : 96 W 120 W 200 W 300 W
Agency Approvals : FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13 FCC UL cUL Class P SELV UL8750 CSA-C22.2.NO.250.13
Size (millimeters) : 230 X 70 X 43
Ripple & Noise (mV p-p) : 150mVp-p 150mVp-p 150mVp-p 150mVp-p
Load Regulation () : ±0.5% ±0.5% ±0.5% ±0.5%
Line Regulation () : ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency : 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC
Frequency Range : 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz 47 ~ 63 Hz
Universal AC input : 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : <0.5mA <0.5mA <0.5mA <0.5mA
Protections: : short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery short circuit, overload, over temp, auto recovery
AC Input : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Housing : Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing Fully enclosed aluminum housing
Ingress Protection Rating : Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations Dry, Damp, and Wet Locations
Class : TYPE HL - Class 2 Class P TYPE HL - Class P TYPE HL - Class P TYPE HL - Class P
Indicator : None None None None
Voltage Adjustment Range : Fixed Fixed Fixed Fixed
Output Connector Type : Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Current Adjustment Range : N/A N/A N/A N/A
Output Polarity : N/A N/A N/A N/A
Input Connector : Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V) Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type : AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply AC to DC Power Supply
MFR Product Family : NDCV NDCV NDCV NDCV
Operating Temperature : -40C to 80C -40C to 90C -40C to 90C -40C to 90C
Power Supply Color : Dark Grey Dark Grey Dark Grey Dark Grey
Wiring Color Codes Output : Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU Refer to Label on PSU

DOWNLOADS

  1.  Specification Sheet - 96 Watt - 24VDC

  2.  Specification Sheet - 120 Watt - 24VDC
