Flicker-Free Dimmable Fanless LED Drivers - Junction Box Style

SKU FFDCV-24030-DDWJ
by MossLED
$59.79
Voltage
Wattage
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

Flicker Free Constant Voltage Family of Power Supplies. Dimmable from 0 - 100% means smooth dimming and 20khz PWM means flicker-free operation to the eye and on camera. Fully listed cULus LED drivers for compliance anywhere in North America. Features handy built-in junction box connections for making secure connections.

Extremely reliable and robust LED drivers designed for use with all Constant Voltage LED products. Perfect for on-camera and constant-on use with our FlexLED Tape or any constant voltage LED product. Available in 24VDC and 12VDC. Class 2 (Under 100VA), Class P, and Type HL safety including short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for Dry, Damp, and Wet locations. Safe, powerful, flicker-free, and reliable are the cornerstones of our FFDCV line of power supplies from MossLED.  Includes an amazing 5 year warranty.

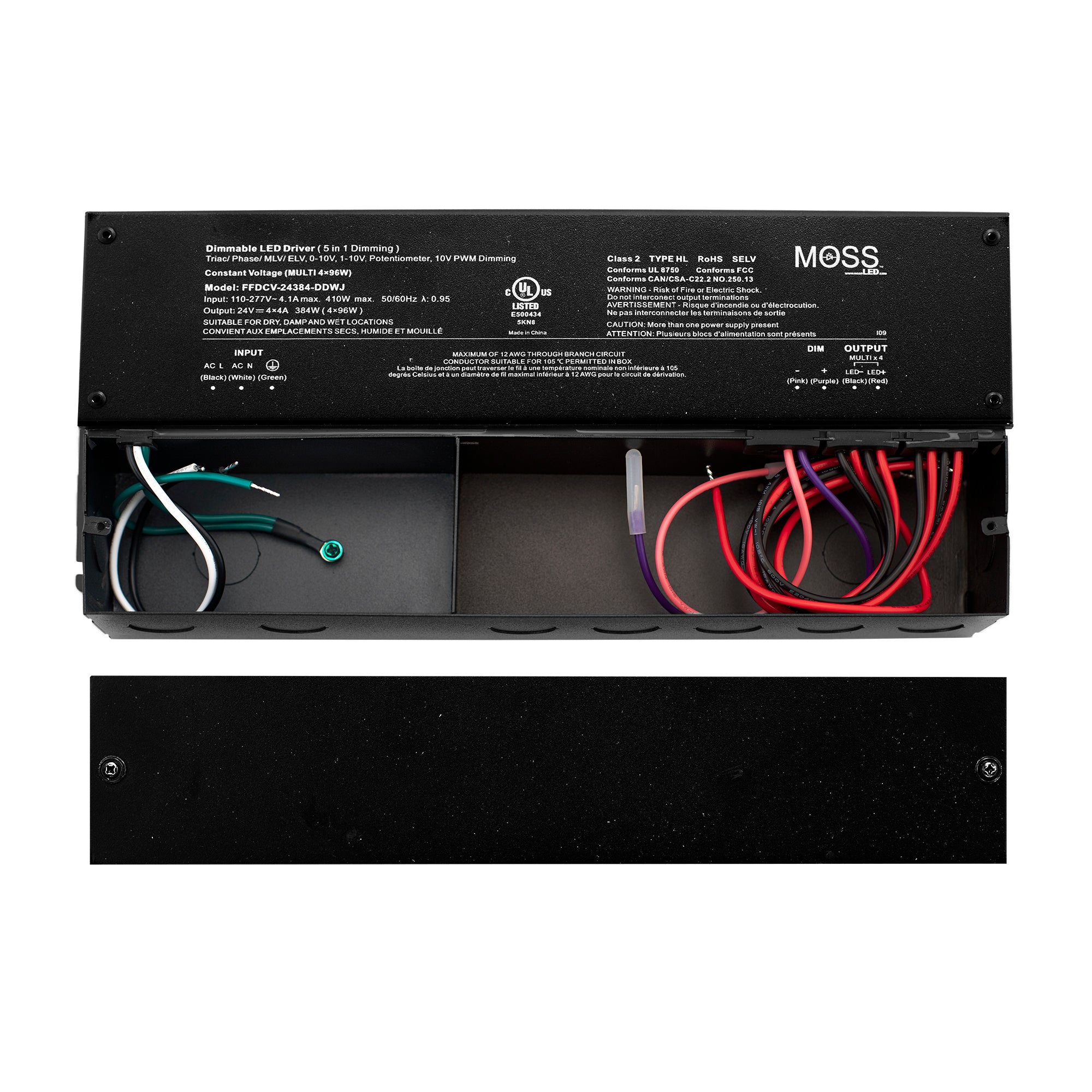

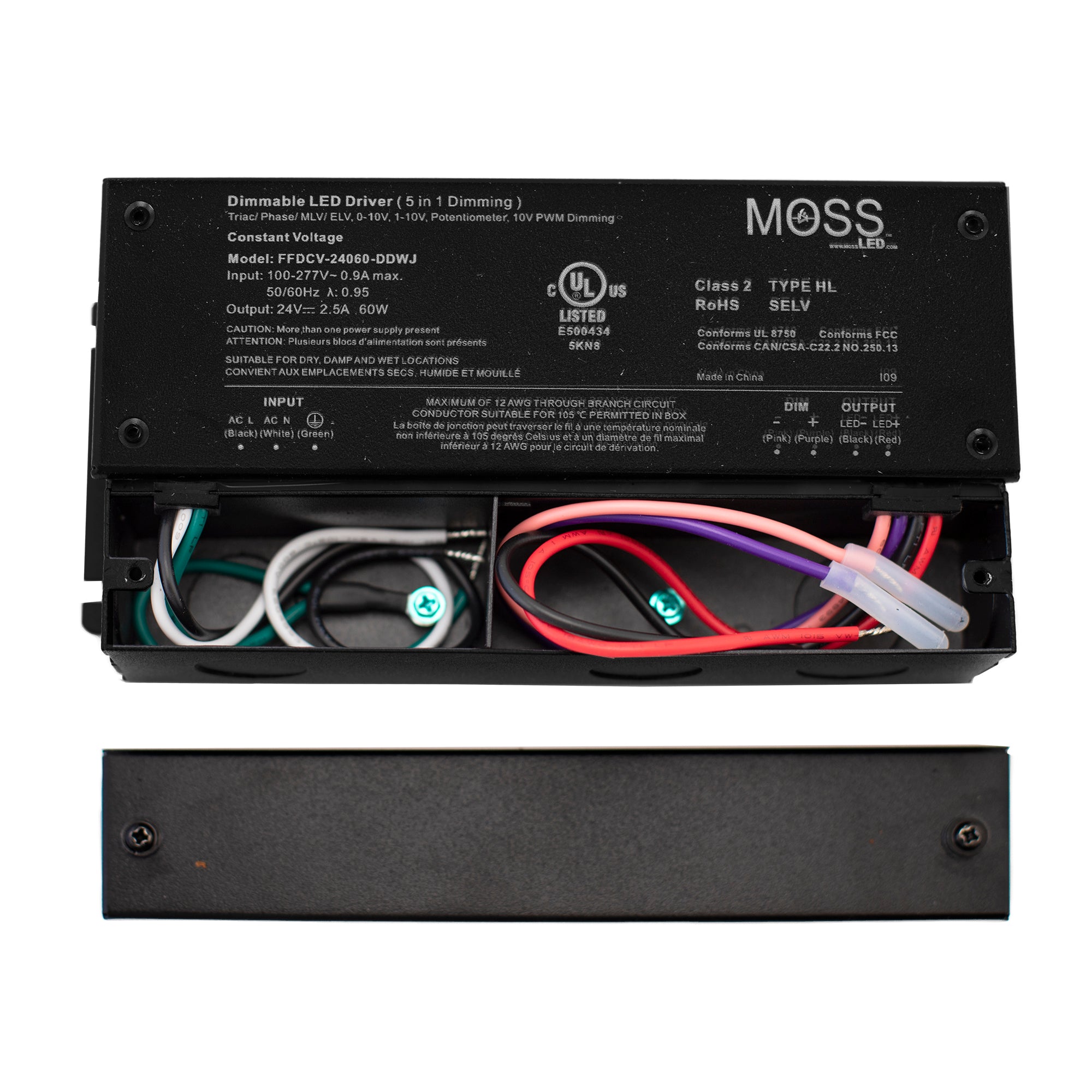

30W and 60W version in both 12V and 24V share the same SKUs as our Flicker-Free DImmable Fanless LED Drivers without junction box as both types include a junction box.


Compatible with the following dimming methods:
  • TRIAC (Forward Phase / Reverse Phase / MLV / ELV)
  • 0-10V
  • 1-10V
  • 10V PWM (External load resistor required for PWM dimming)
  • Potentiometer

Key Product Family Features:

  • Output 30 - 300W
  • 12V and 24V constant voltage operation
  • Class 2 (96 watt @ 24V and 60 watt @ 12V and below)
  • Class P
  • Type HL
  • 0 - 100% Dimming
  • 20khz output ensures flicker-free operation
  • Rated for dry, damp, and wet locations
Ships in 1 - 2 Business Days

SPECIFICATIONS

Model : FFDCV-24030-DDWJ FFDCV-24060-DDWJ FFDCV-24096-DDWJ FFDCV-24120-DDWJ FFDCV-24200-DDWJ FFDCV-24300-DDWJ
Current (A) @ 24VDC : 1.25 A 2.5 A 4 A 5 A 8.34 A 12.5 A
Output Power (W) : 30 W 60 W 96 W 120 W 200 W 300 W
Agency Approvals : FCC UL cUL Class 2 Class P SELV UL1310 and UL8750 CSA-C22.2.NO.250.13
Size (millimeters) : 155 X 54 X 20 178 X 61 X 24 230 X 70 X 43 230 X 70 X 43  256 X 78 X 47   276 X 78 X 47
Ripple & Noise (mV p-p) : 150mVp-p
Load Regulation () : ±1 % ±0.5% ±0.5% ±0.5% ±0.5%
Line Regulation () : ±1 % ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency : 79%@120VAC 80%@277VAC 83%@120VAC 84%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC 83%@120VAC 88%@ 230VAC 87%@277VAC
Frequency Range : 47 ~ 63 Hz
Universal AC input : 100-277VAC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC 90 ~ 305VAC 127 ~ 431VDC
Low leakage current : <0.5mA
Protections: : Short Circuit, Overload, Over Temp, Auto Recovery
Input Connector Type : Terminal Block Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned Bare Wire - Stripped & Tinned
Housing : Plastic housing Fully Enclosed Aluminum Housing
Ingress Protection Rating : Dry, Damp and Wet Locations
Class : TYPE HL - Class P - Class 2 TYPE HL - Class P
Indicator : None
Voltage Adjustment Range : +/- 1V +/- 1V Fixed Fixed Fixed Fixed
Output Connector Type : Terminal Block Bare Wire - Stripped & Tinned
Current Adjustment Range : N/A N/A N/A N/A N/A
Output Polarity : N/A N/A N/A N/A N/A
Input Connector : Terminal Block Bare Wire Bare Wire Bare Wire Bare Wire
Product Type : AC to DC LED Dimmable Driver
MFR Product Family : FFDCV
Operating Temperature (Ambient) : -40 °C to 60 °C -40 °C to 80 °C -40 °C to 90 °C -40 °C to 90 °C
Power Supply Color : White Dark Grey Dark Grey Dark Grey Dark Grey
Wiring Color Codes Output : Refer to Label on Housing

DOWNLOADS

  1.  Specification Sheet - 200 Watt
