UV FlexLED - 365 ~ 410nm
Our UV FlexLED is designed for use in any environment that requires UV (black light) effects. Available in two wavelength options of either 365nm or 410nm. 410nm is 'borderline' UV but is still within the visible spectrum. 365nm is a typically a non-stock item and lead time is 4-6 weeks.
True UV light begins at 400nm and below. 365nm wavelength UV is considered UV-A light. UV-A light is safer than UV-B or UV-C rays however precautions to use appropriate. protection when exposed to UV-A is advised.
Suitable for residential, television, industrial, and commercial applications

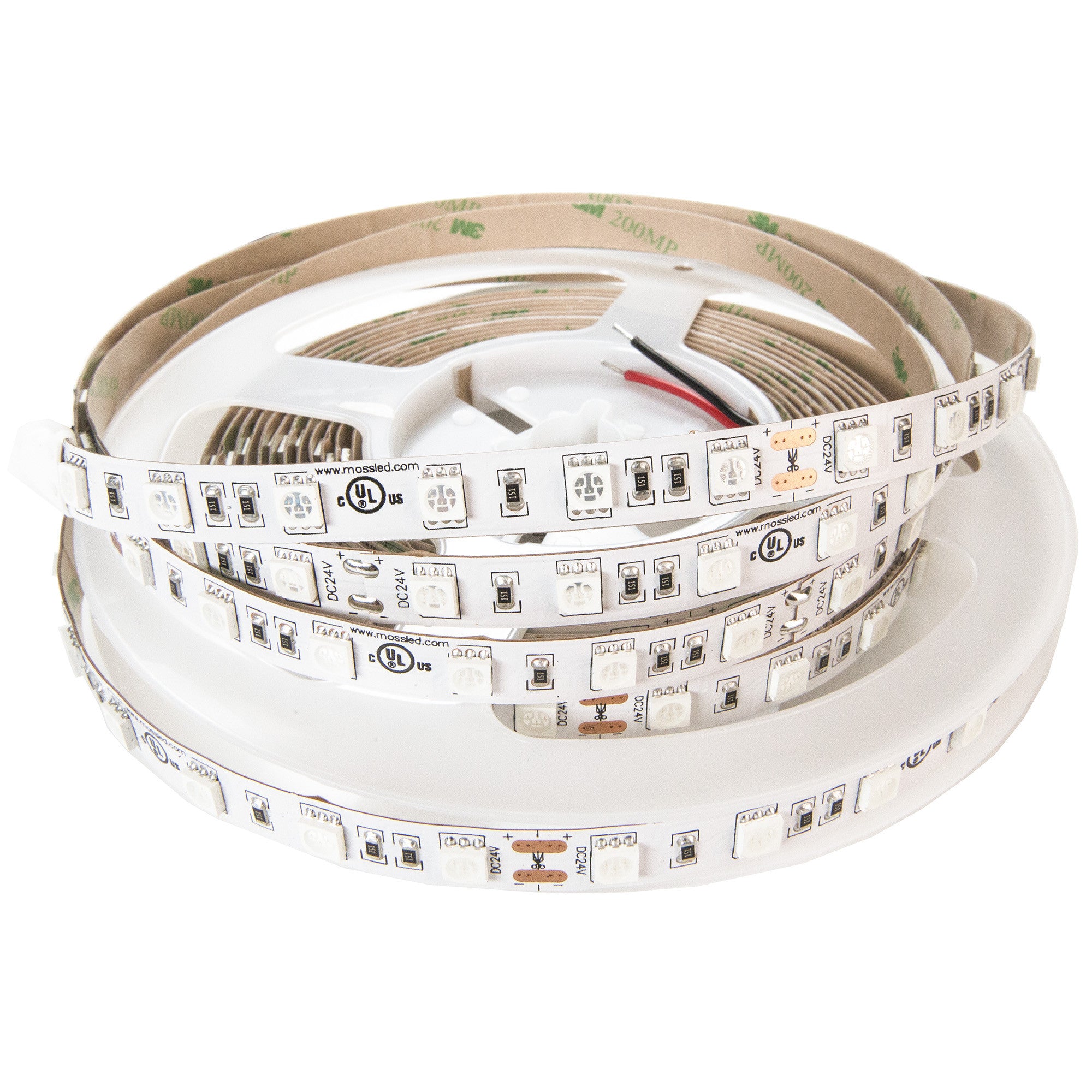

Indoor and weatherproof strips have 3M 200MP double-sided tape on the back which makes installation as easy as peel n stick.
Maximum recommended length in order to prevent line-loss is 6.7m (22')
Dimmer, power supply and extension cables sold separately
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | FlexLED 60 UV 24V |
| Product Code | : | I24VUV3005050 |
| CRI | : | N/A |
| Kelvin | : | N/A 365nm - 410nm |
| PCB Color | : | White |
| Current, Rating | : | 0.6 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 14.4 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 960 lm / meter |
| Lumen / Watt | : | 66.6 |
| Lifetime* | : | 50,000 hours |

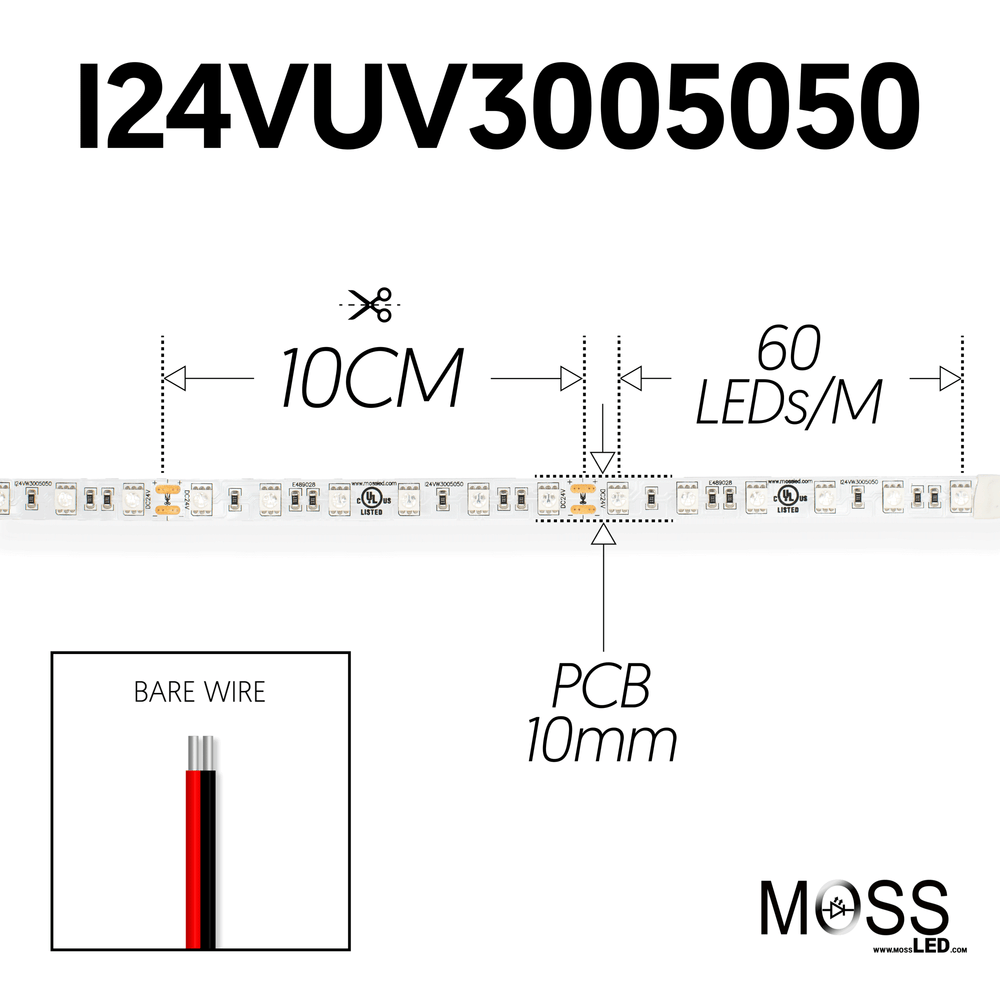

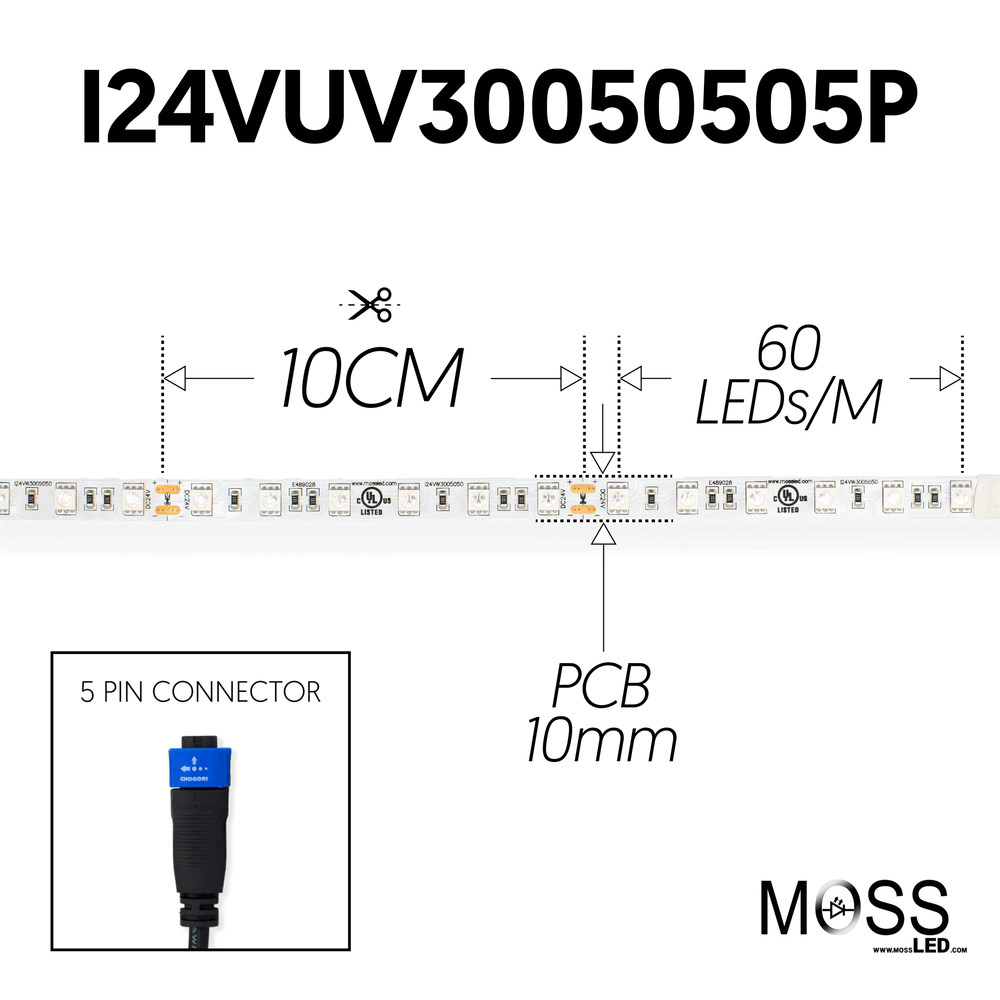

| Cutting Length | : | 10 CM |
| LED Quantity | : | 60 LED / meter |
| Number of Contacts | : | 2 |
| LED Type | : | 5050 |
| Copper Quantity | : | 2 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | 200MP 3M |
