Color Temperature adjustable high density FlexLED Tape
2700K - 6000K CRI >95
Advances in LED chip technology have allowed us to bring this new FlexLED strip to you! One of our biggest complaints regarding 12V versus 24V technology is the cut points on the FlexLED strip. However, this new LED chip allows us to utilize all the benefits of 24V (lower current, less voltage drop, etc.) along with the short cut points of a traditional 12V FlexLED strip. This new LED chip also conforms to our strict standards and has a fantastic performance of CRI, TLCI, and R9 vales all above 95.
If that weren't enough it also has a higher lumen/watt output at 108 lumens/watt for the 6000k chip and 104 lumens/watt for the 2700k chip.

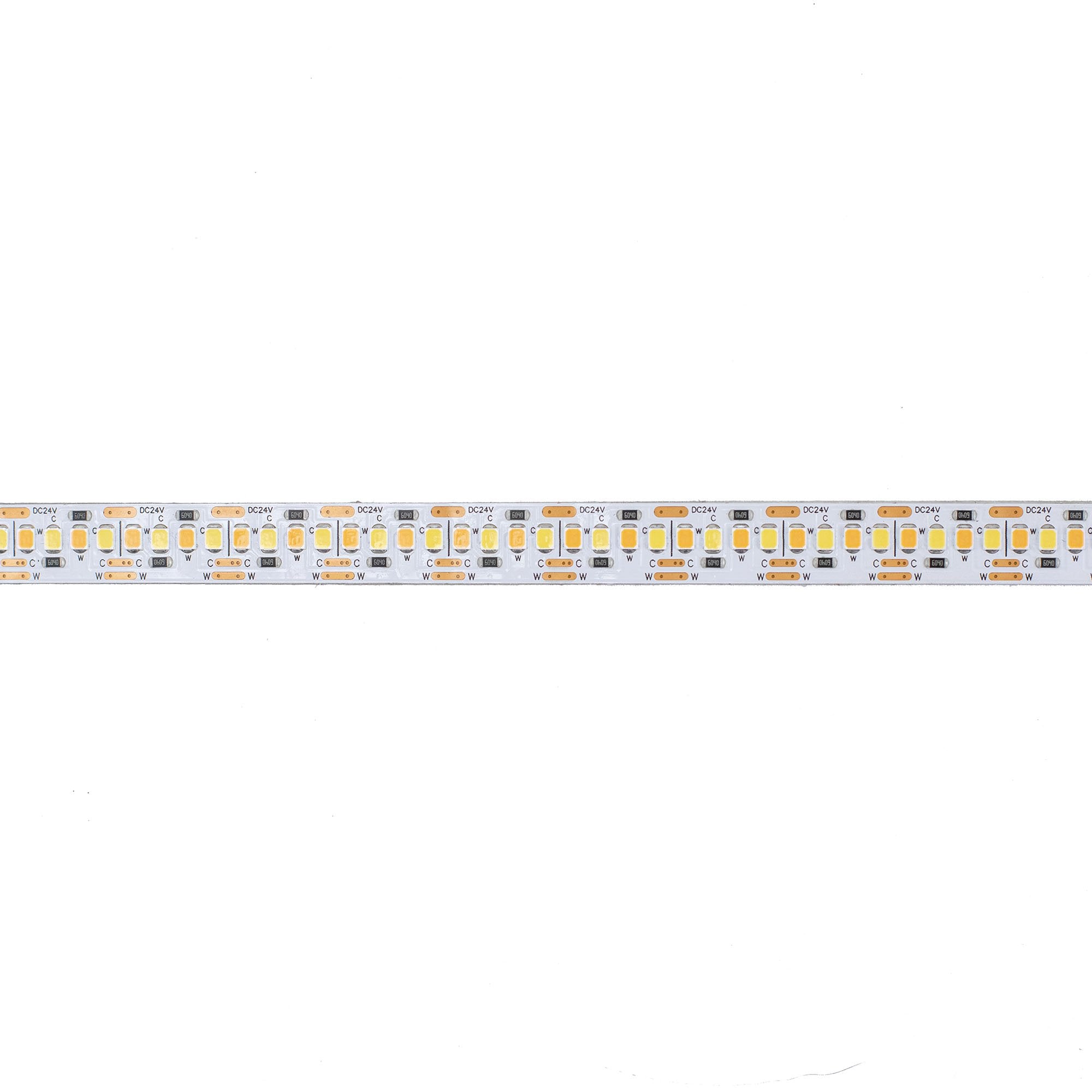

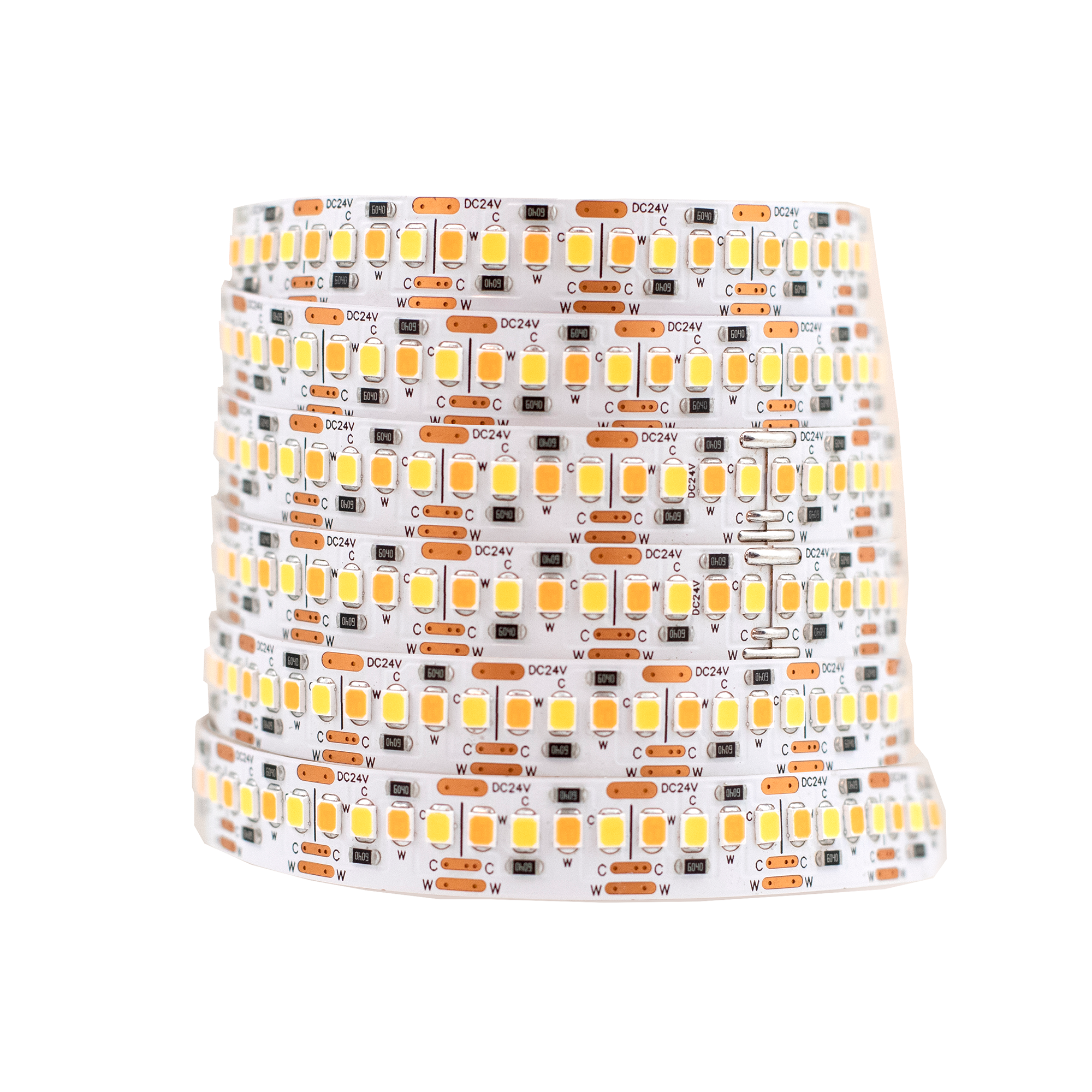

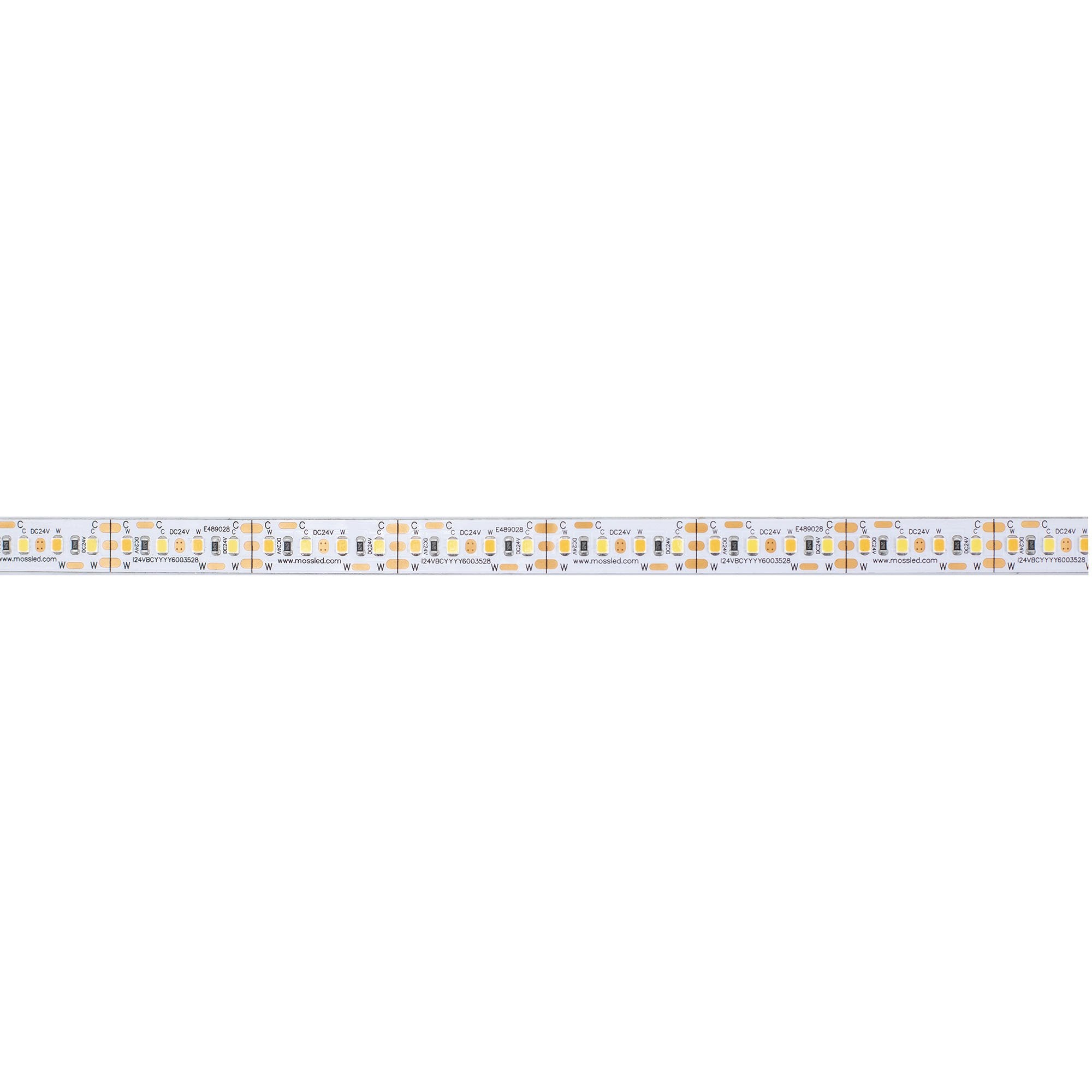

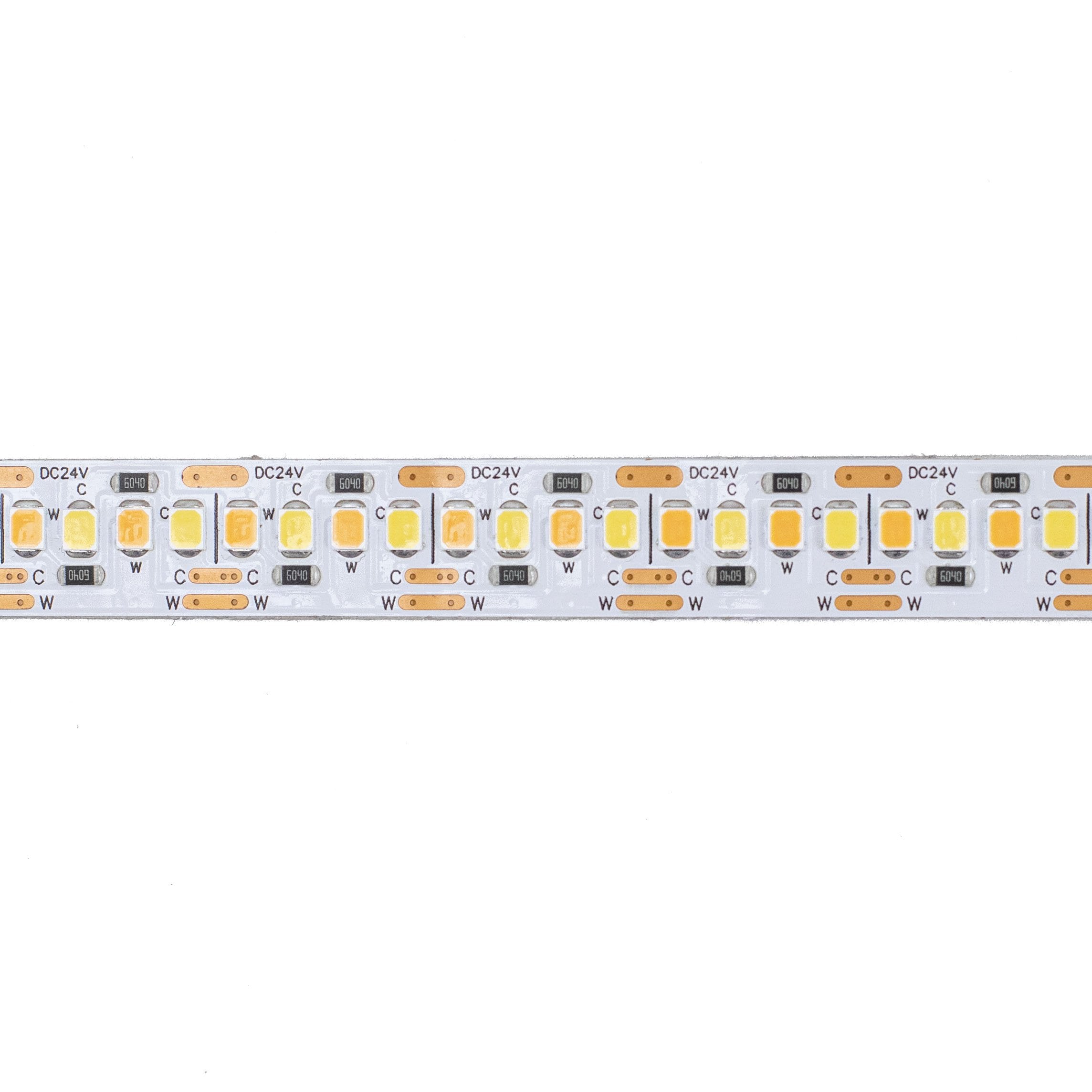

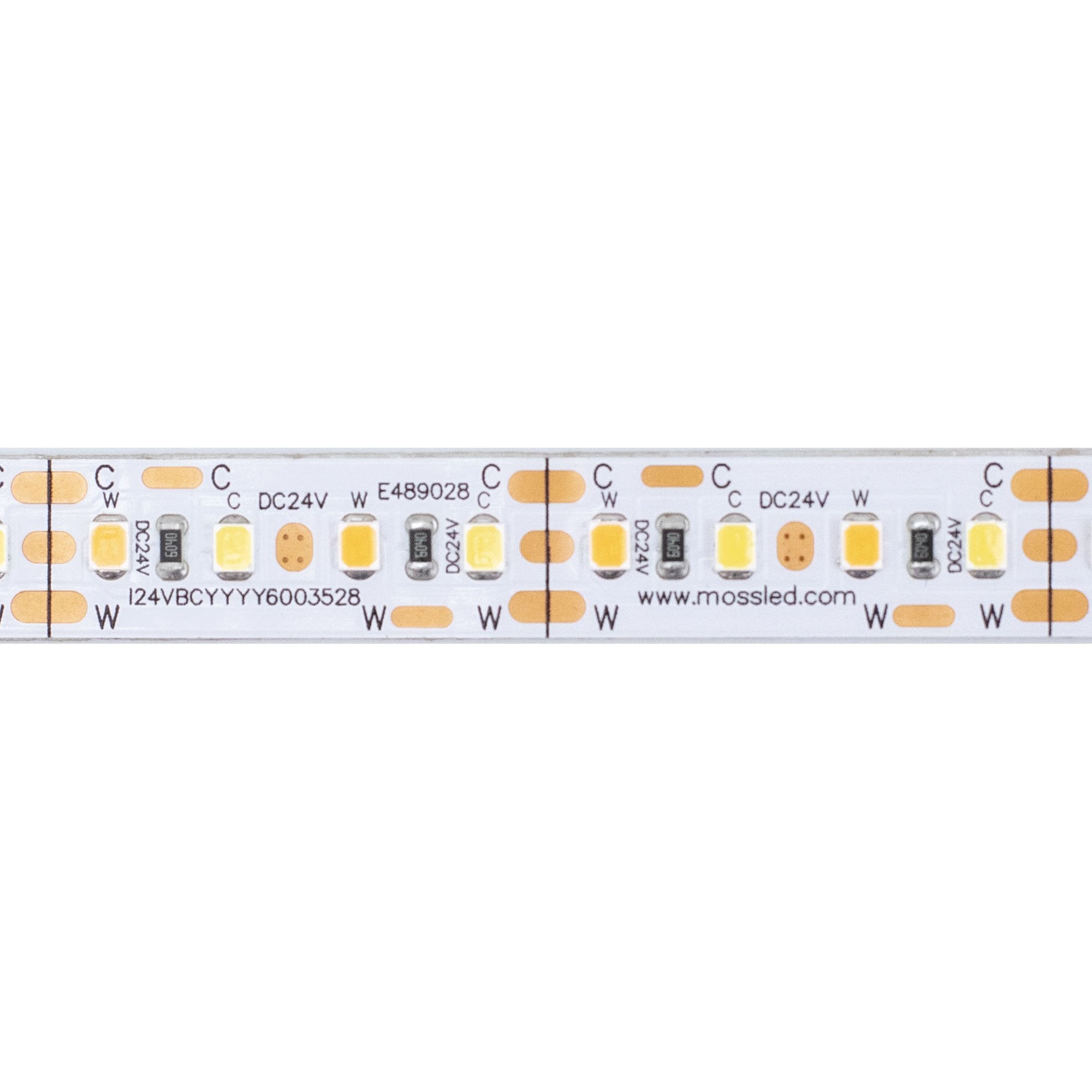

Two versions of our Short Cut bi-color FlexLED are now available. 120 LED/meter (12MM Width) standard as well as 240 LED/meter (12MM Width) high output version. The 240 LED/meter is ideally suited for areas where high output in a very tight space is required. The 240 LED/meter is designed to be installed onto a metal heat sink for longevity purposes. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.
Both versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.
Single bin LED chip ensures CCT accuracy within +/- 100k.
TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick. When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion. Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available. Please contact us for specifics. For specifications on Weatherproof and Waterproof product please download specifications sheet below.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 Short Cut |
Bi-Color 240 Short Cut |
| Product Code | : | SC-I24VBC27606003528 | SC-I24VBC276012003528 |
| CRI | : | ≥95 | ≥95 |
| Kelvin | : | 2700k - 6000k | 2700k - 6000k |
| PCB Color | : | White | White |
| Current, Rating | : | 0.79 A / meter | 1.4 A / meter |
| Voltage | : | 24 VDC | 24 VDC |
| Wattage | : | 19.2 W / meter | 38.4 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 |
| Lumens @ Full / meter | : | 2700k: 1104lm 6000k: 1234lm Combined 4000k: 2324lm |
2700K: 2184lm 6000k: 2445lm Combined 4000k: 4553lm |
| Lumen / Watt | : | 130 | 130 |
| Lifetime* | : | 50,000 hours | 30,000 hours |

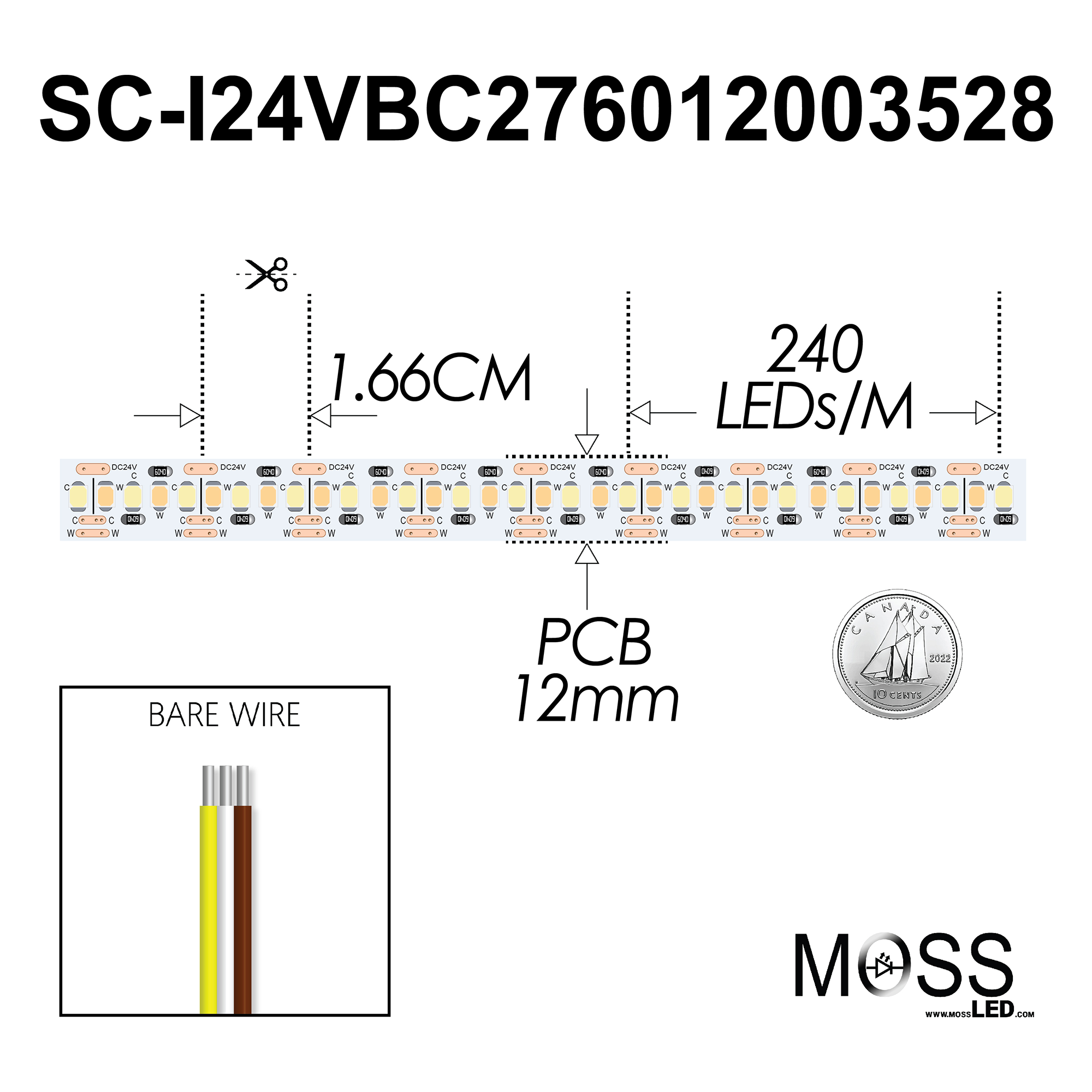

| Cutting Length | : | 33.3 MM | 16.7 MM |
| LED Quantity | : | 120 LED / meter | 240 LED / meter |
| Number of Contacts | : | 3 | 3 |
| LED Type | : | 2835 | 2835 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM | 12MM |
| Maximum Recommended Length | : | 10 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 |
