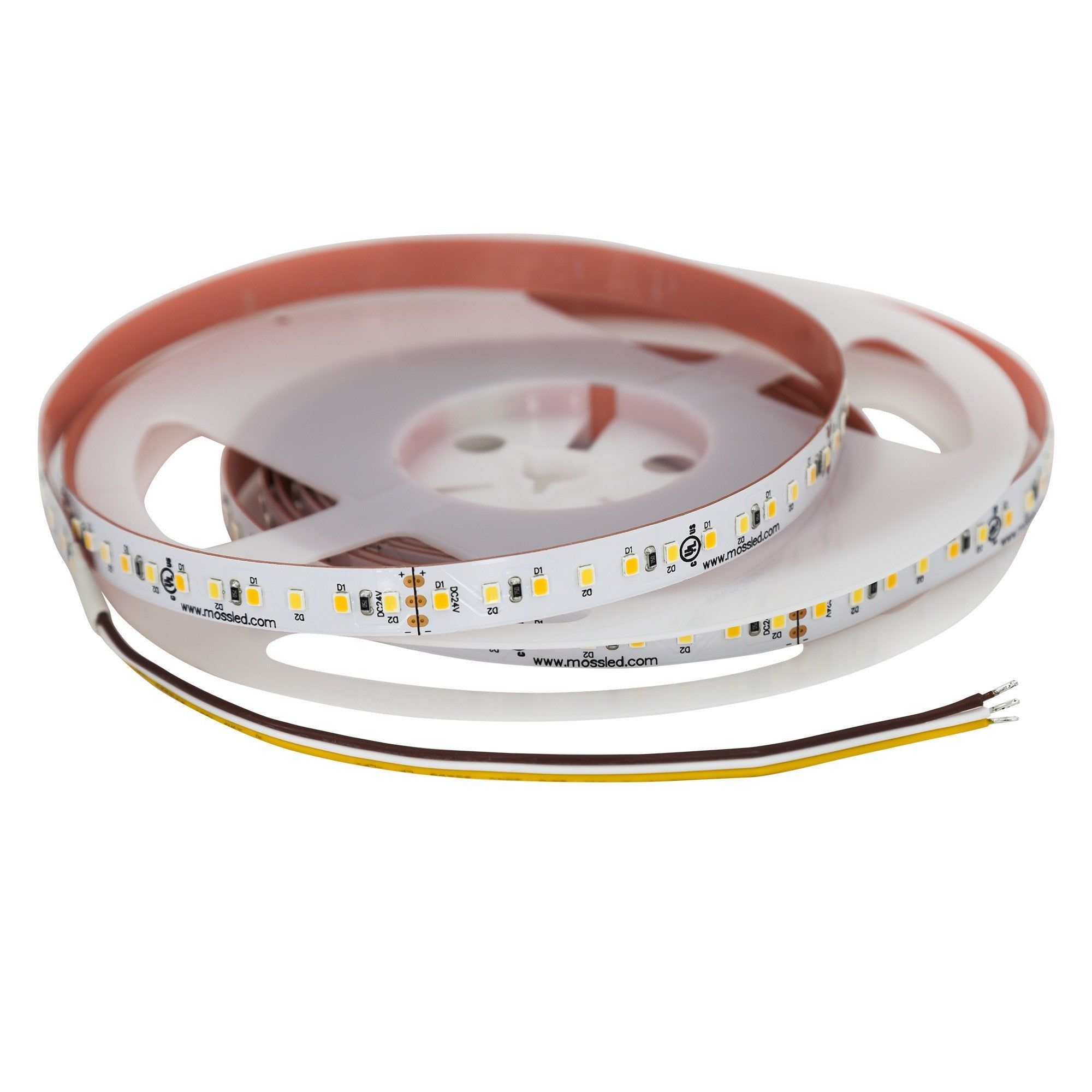

Moss LED FlexLED Bi-Colour 2700K-5600K 24V CCT Adjustable spec diagram 10cm cut interval 120 LED per meter 12mm PCB bare wire

FlexLED Bi-Colour 2700K - 5600K 24v (CCT Adjustable)

SKU I24VBC27566003528
by MossLED

Qty Discount
5 5%
10 10%
21 15%
The more you buy, the more you save!
$152.87
IP Rating
Pixel Density
Colour

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

41 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 41 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

The FlexLED Bi-Colour 2700K - 5600K 24V has been superseded by our wider 2700K - 6000K range but remains available upon request in limited stock. This versatile, high-output LED strip offers seamless colour temperature adjustment and CRI 95+ accuracy, making it ideal for residential, television, industrial, and commercial applications.

Key Features:

  • Adjustable White Light (2700K - 5600K) – Smooth transitions between warm and cool white.

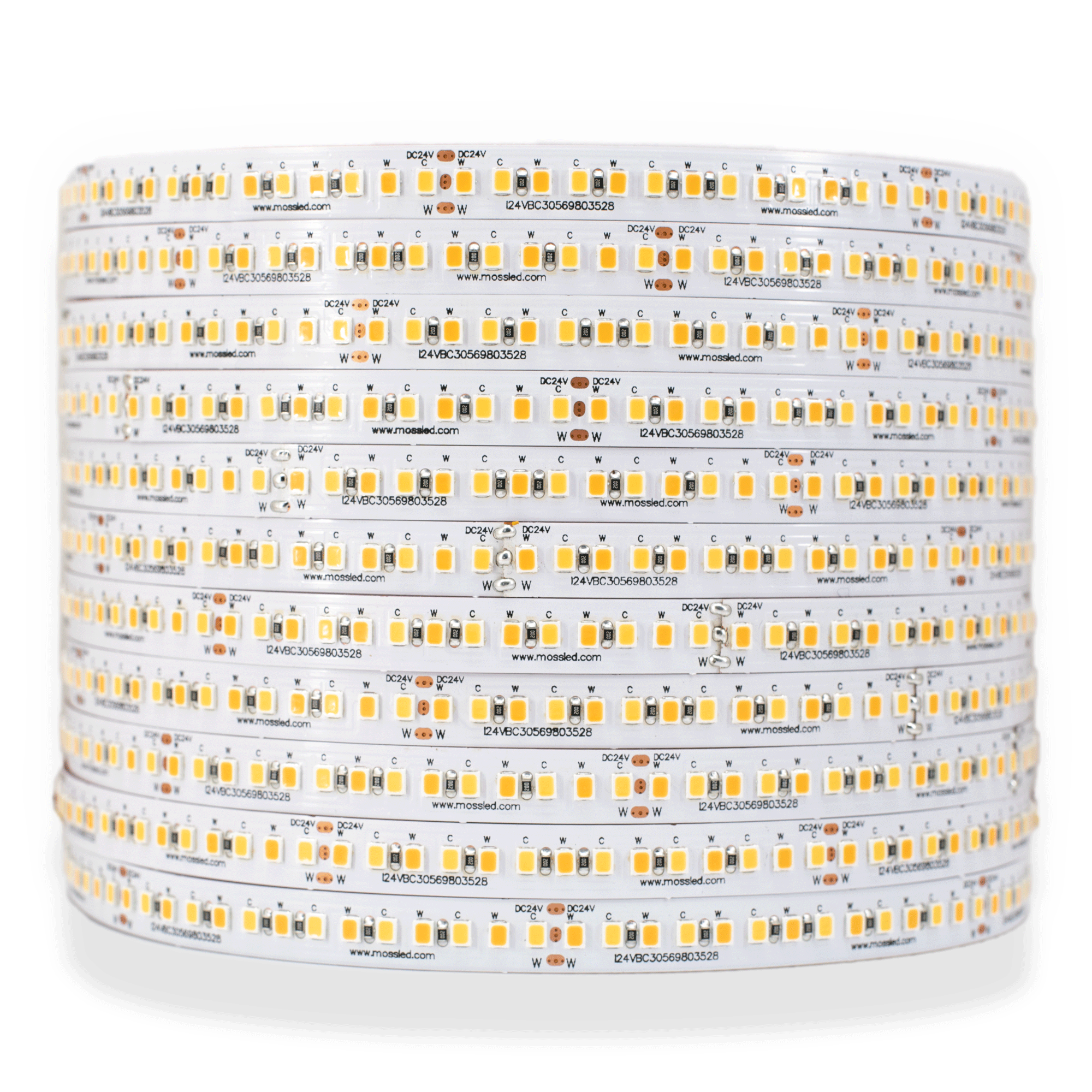

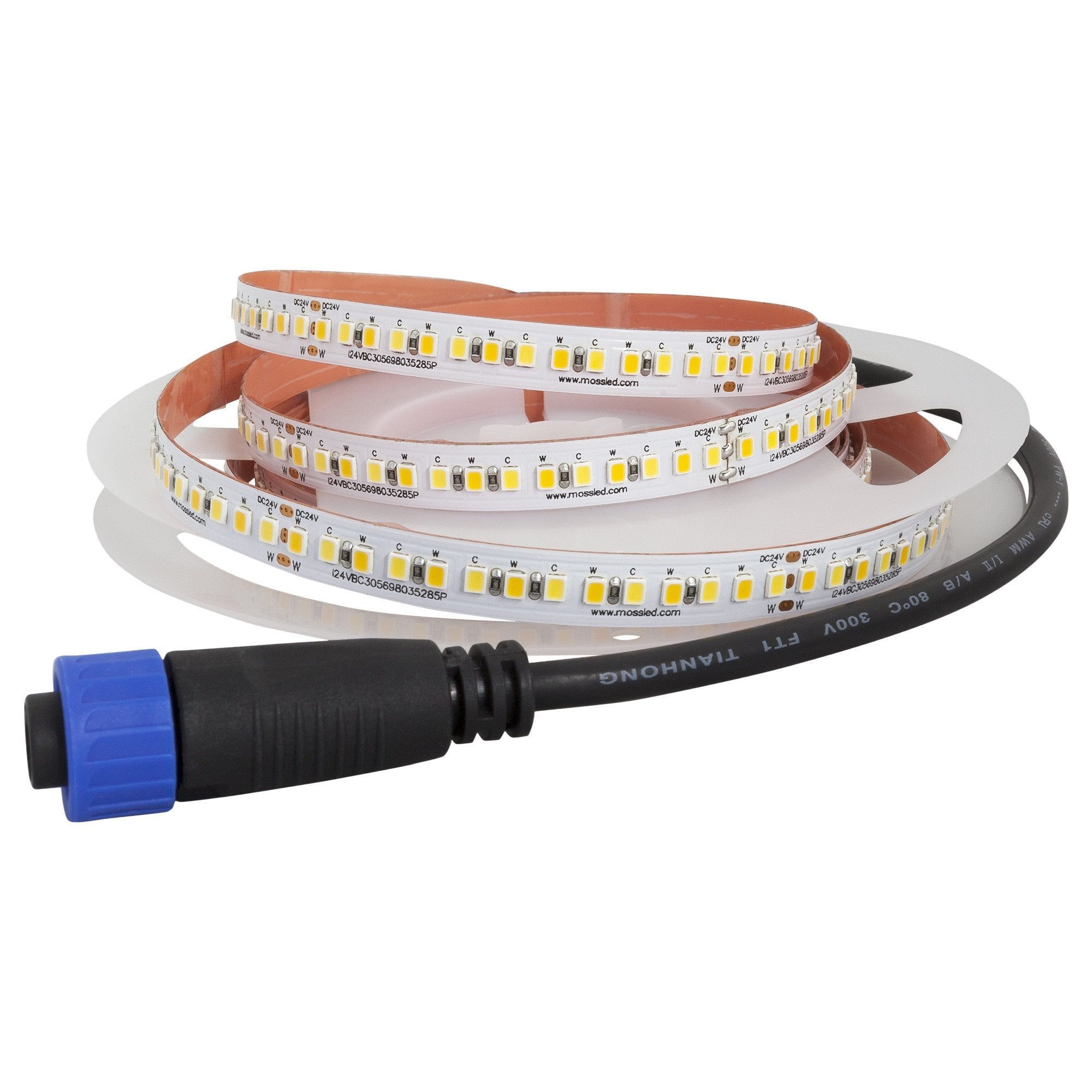

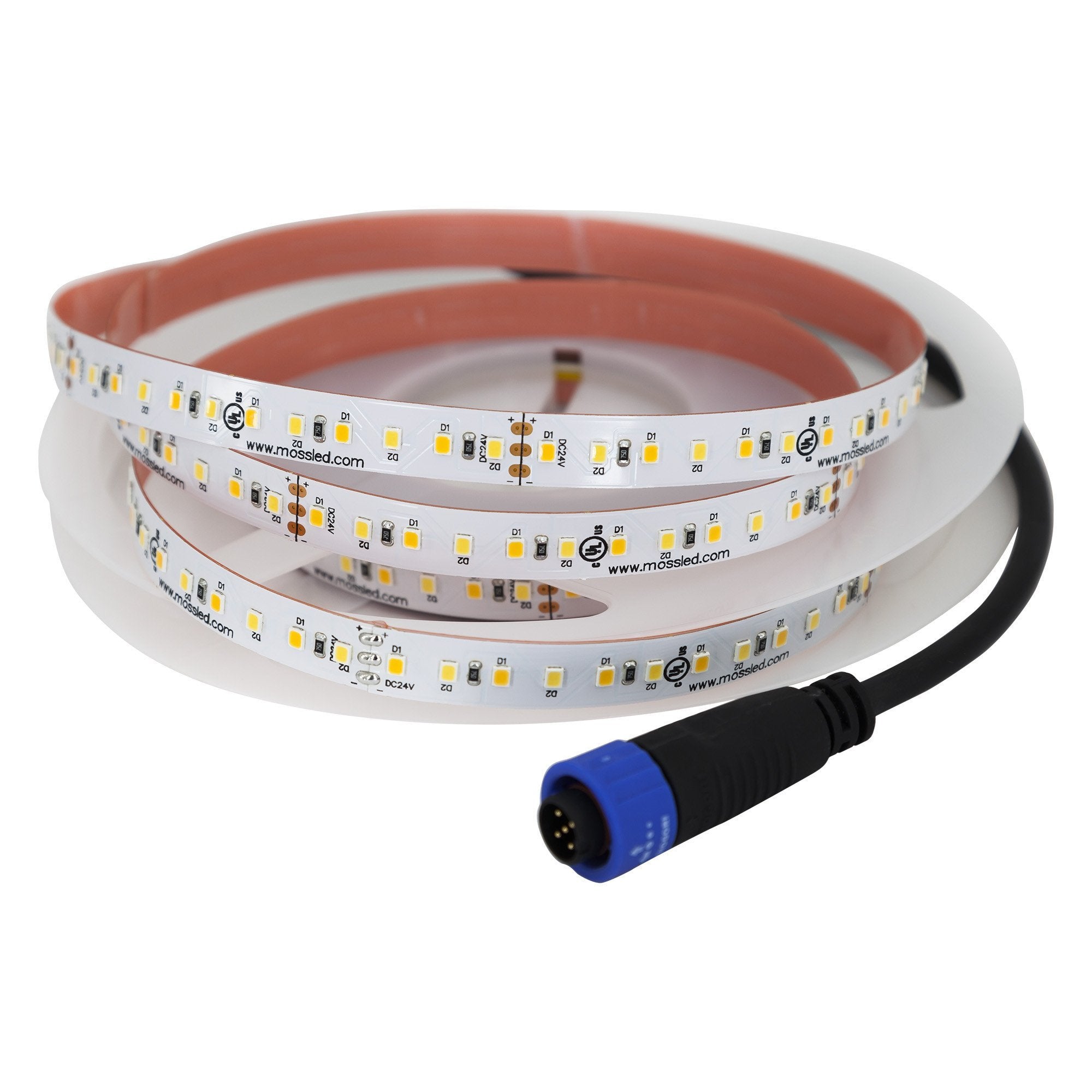

  • Two Density Options – 120 LED/m (12mm width) for standard output, 196 LED/m (10mm width) for high brightness.
  • High CRI (95+) – Delivers superior colour accuracy with no green spike.
  • Optimized for Longevity – 196 LED/m version must be installed on a metal heat sink.
  • Easy Installation – TESA 4965 high-tack adhesive backing ensures a secure bond.

Power Considerations:

  • 120 LED/m (5m roll):
    • 94W total (powered from one end), 100W (powered from both ends)
    • Class 2 compliant
  • 196 LED/m (5m roll):
    • 139W total (powered from one end), 166W (powered from both ends)
    • Above Class 2 specification

Installation & Handling Considerations:

  • Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
  • Waterproof versions require mounting via silicone (not included).

Soldering Guidelines:

  • Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
  • Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.

Additional Details:

  • Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
  • Controller, power supply, and extension cables sold separately.
  • Quantity discounts and custom colour temperatures available.
  • Pricing is for 5 meters (16.4’) - custom lengths available

The FlexLED Bi-Colour 2700K - 5600K 24V provides smooth, flicker-free dimming and precise white light control, making it a reliable option for applications requiring high-CRI illumination.

Need a custom solution? Contact us today!

SPECIFICATIONS - INDOOR PRODUCT

Product Type : Bi-Color 120
 Bi-Color 196
Product Code : I24VBC27566003528 I24VBC27569803528
CRI : ≥95 ≥95
Kelvin : 2700k - 5600k 2700k - 5600k
PCB Color : White White
Current, Rating : 0.79 A / meter  1.4 A / meter
Voltage : 24 VDC 24 VDC
Wattage : 19.2 W / meter  33.6 W / meter
Wattage @ 5 Meters (Powered at one end)  94 W  139 W
Wattage @ 5 Meters (Powered at both ends)  100 W  166 W
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP43 IP43
Lumens @ Full : 1800 lm / meter combined 2700K: 1400lm/meter - 5600k: 1700lm/meter - 3,100 lm/meter combined
Lumen / Watt : 94  94
Lifetime* : 50,000 hours  30,000 hours

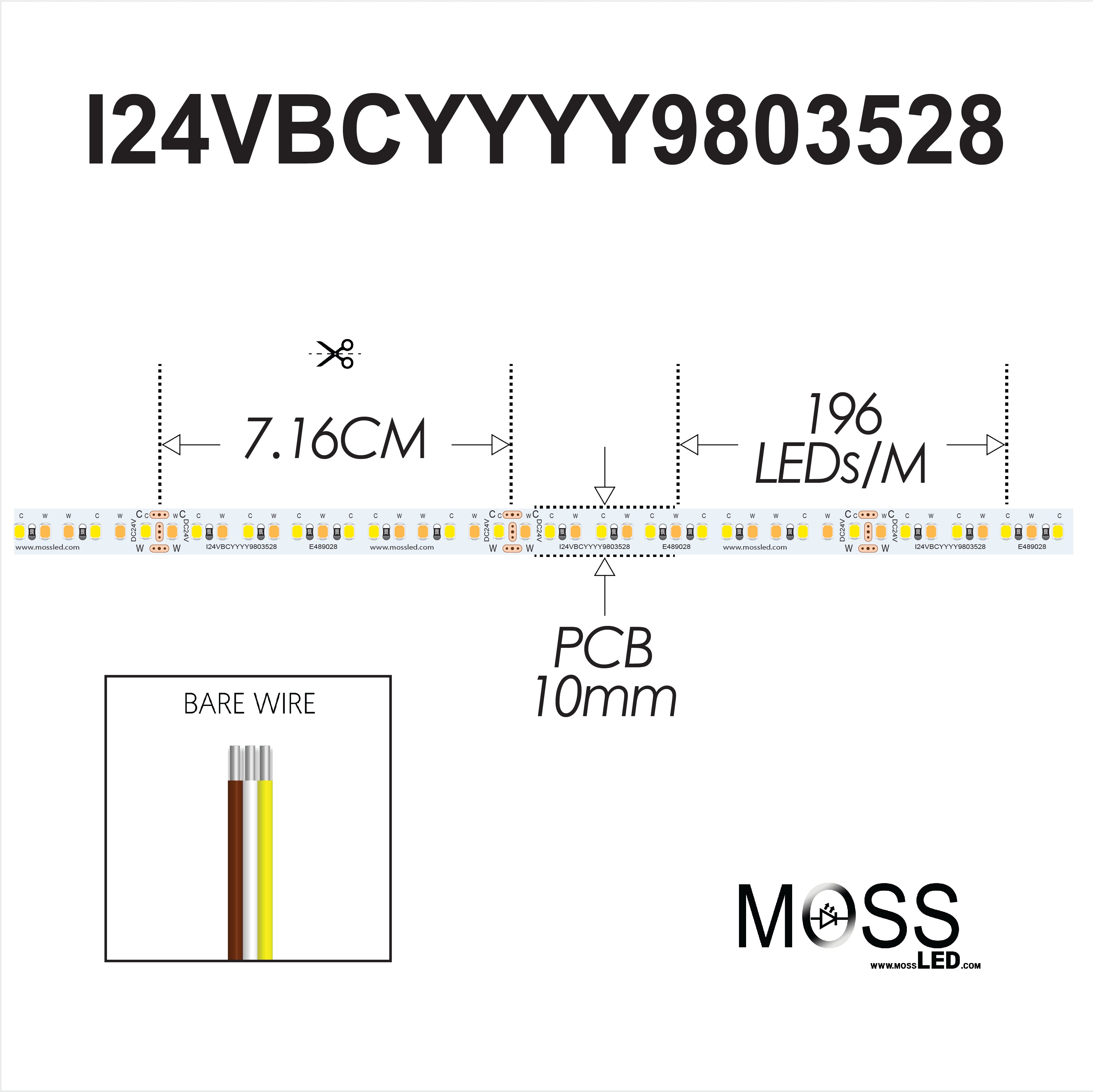

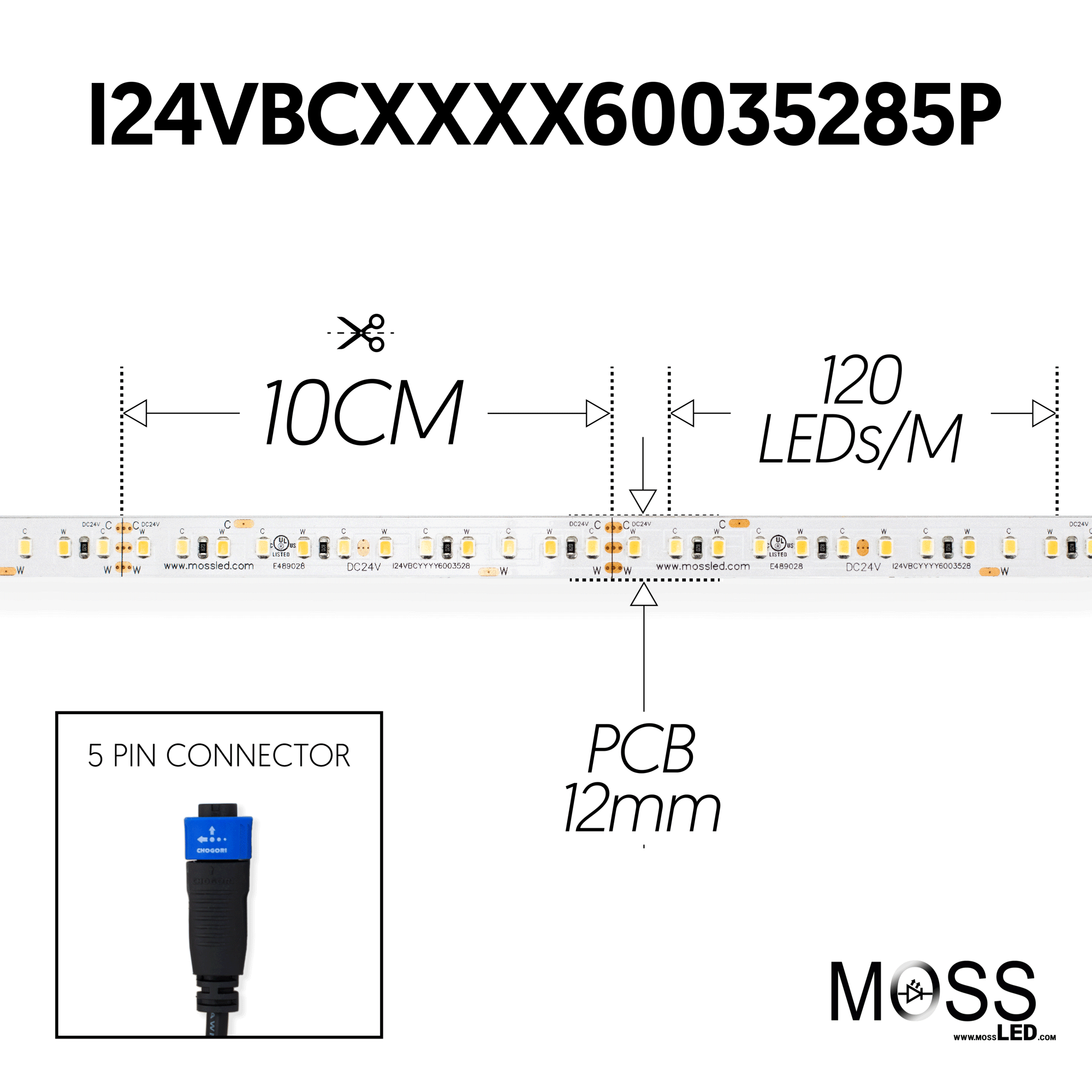

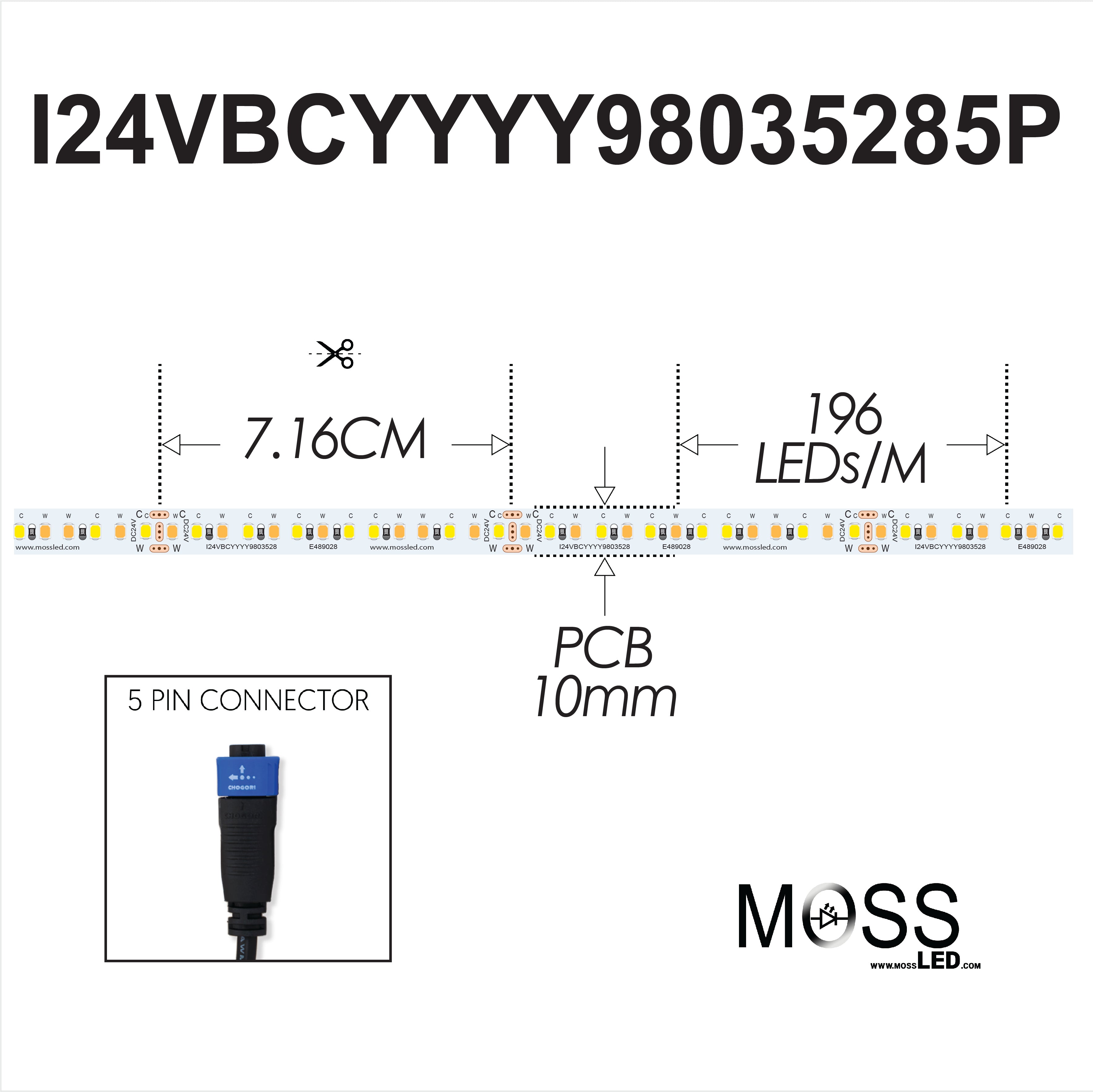

Cutting Length : 10CM  7.143CM

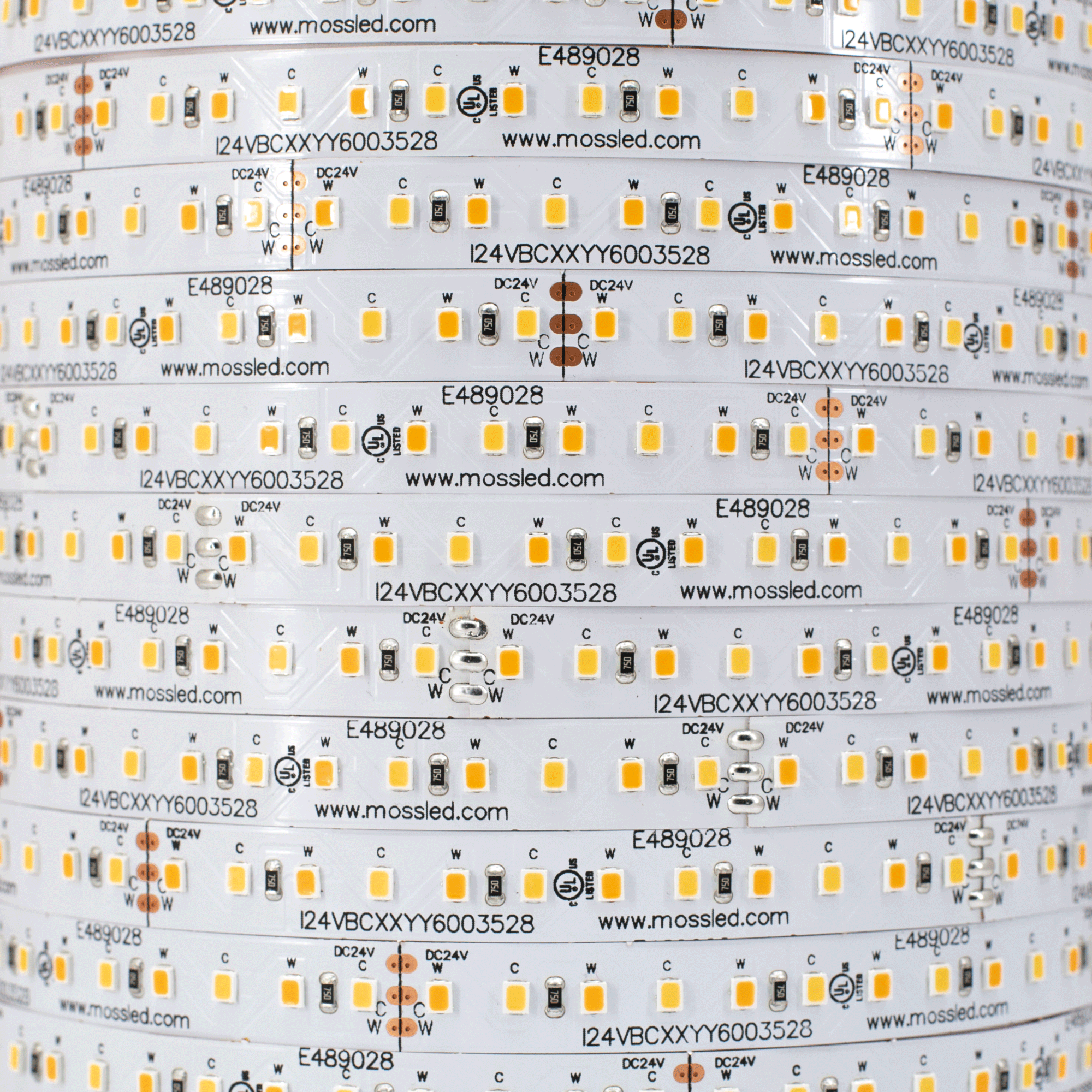

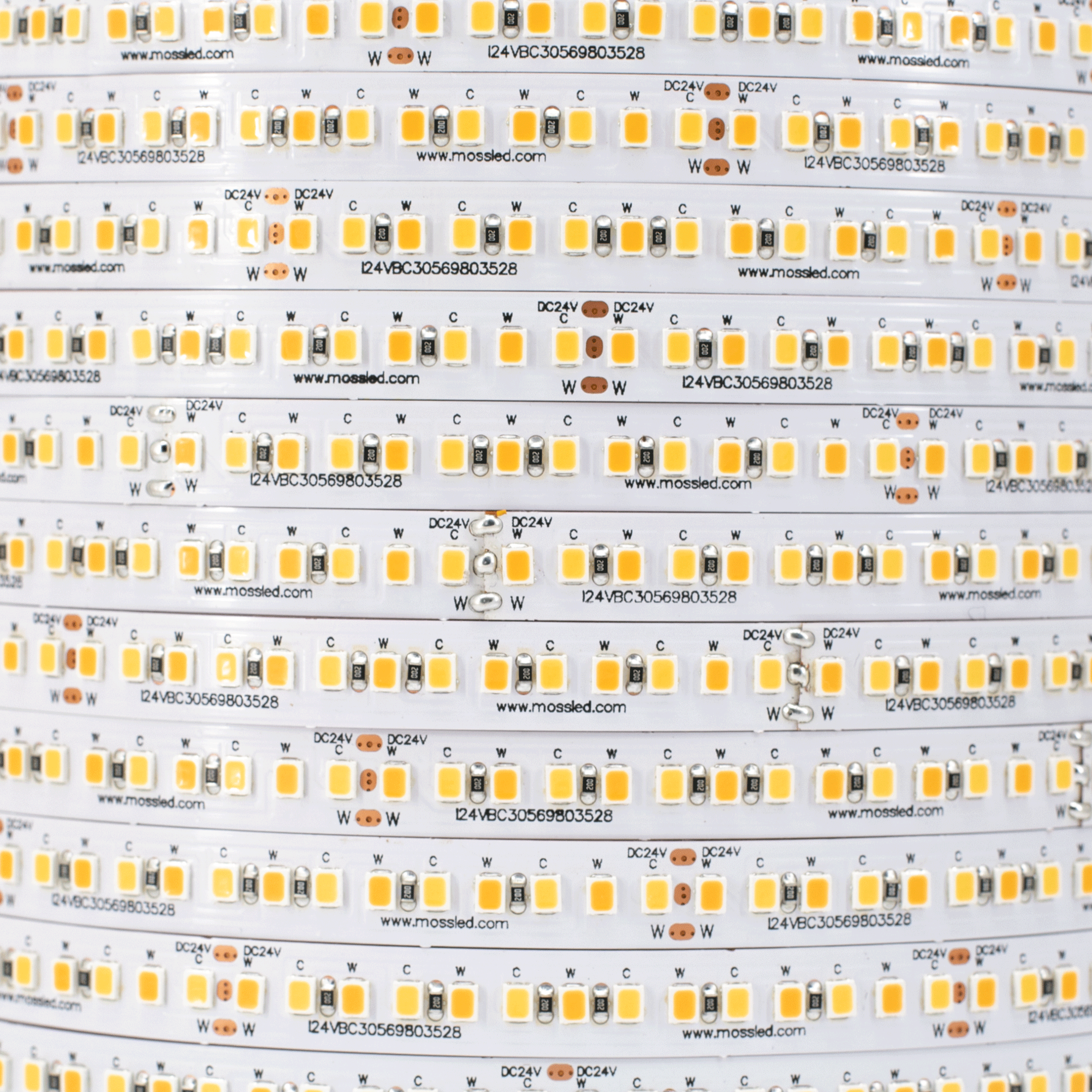

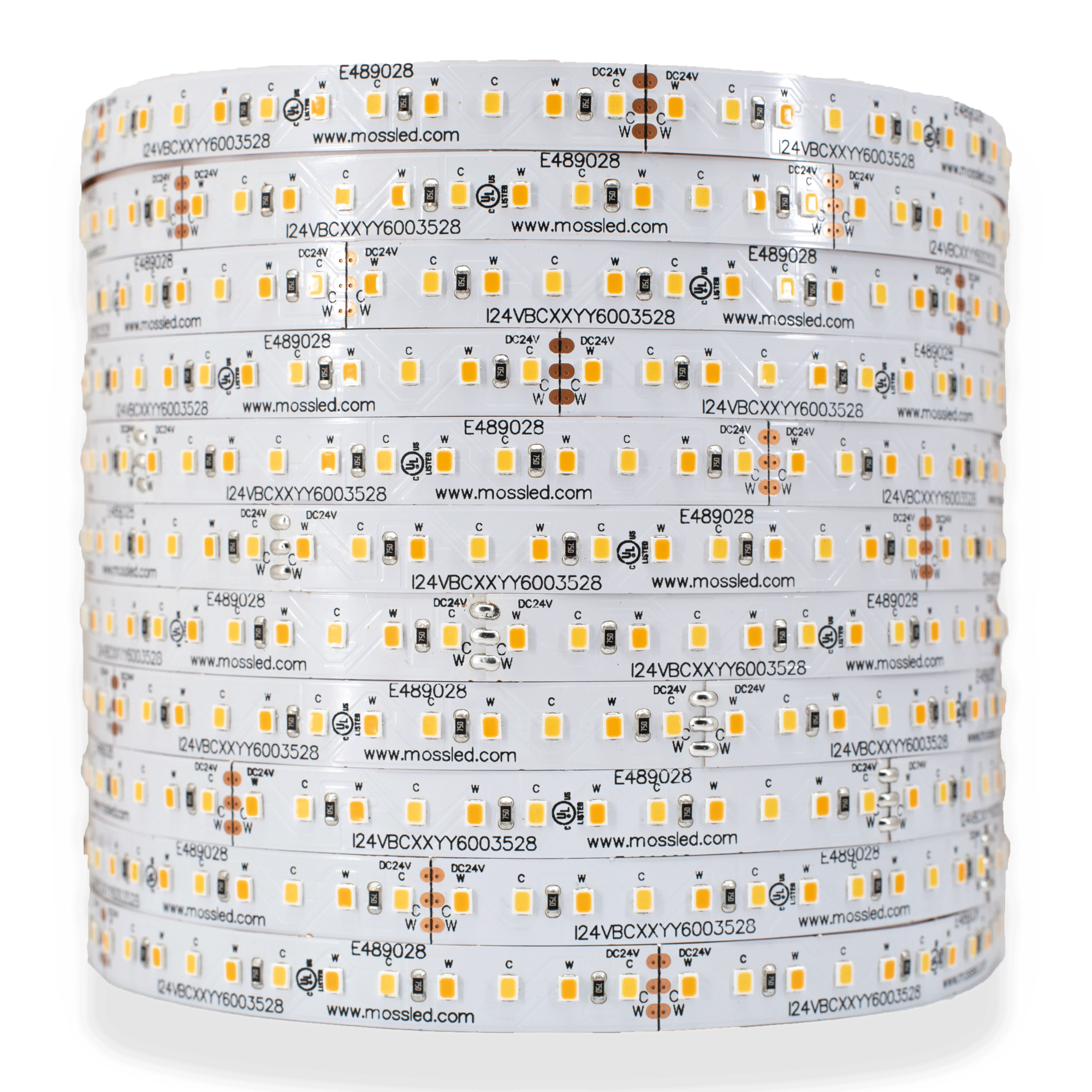

LED Quantity : 120 LED / meter  196 LED / meter
Number of Contacts : 3 3
LED Type : 3528 3528
Copper Quantity : 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 10MM
Maximum Recommended Length : 10 meters  5 meters
Viewing Angle : 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965
