FlexLED 96 RGB + White All-In-One 24V - Temporary Install Grade

SKU I24VRGBW564805060-TIG
by MossLED
Save 48%
Original Price $241.80
Current Price $125.94
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 132 in stock, ready to be shipped

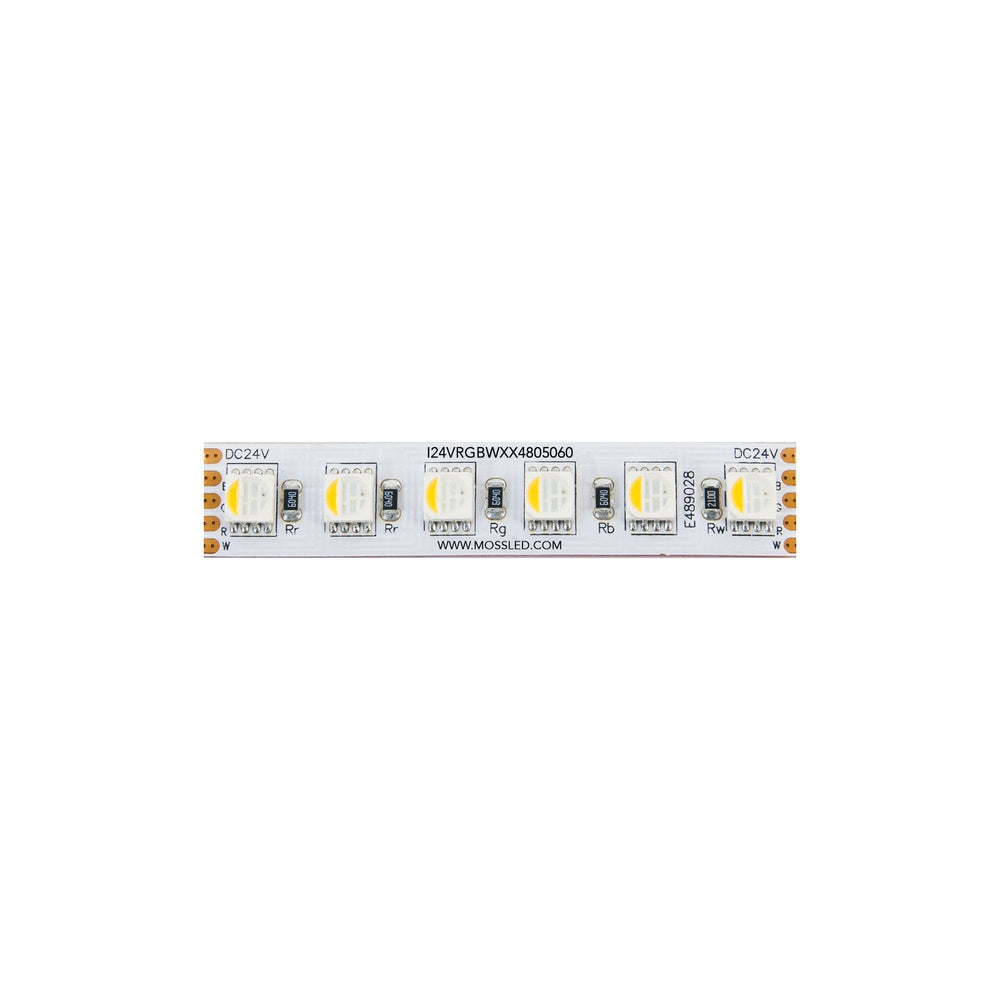

RGB+White All-In-One Diode in High CRI

This product is Temporary Install Grade as it is above our specification of 23 watts/meter. This product operates at 31 watts / meter with all four RGBW channels at full. Operating this strip with all four channels at full may cause premature failure and require increased thermal management such as installing onto a heat sink.

This product is designed for anywhere high quality light and the ability to change colour is required. It's cutting length of 6.25CM is the closest cutting length for a 24V RGBW product. The white LED produces a full-spectrum of over 95 CRI and an R9 over 85+.

Suitable for cinema, television, industrial, commercial, hospitality and anywhere high colour quality is required. Indoor and weatherproof strips have TESA 4965 double-sided tape on the back which makes installation as easy as peel n stick.

This cost friendly RGBW LED is designed to be used for temporary installs such as trade shows or limited run productions. It is not to be used for permanent high-use installations. Warranty on all Temporary Install Grade LED is for 2,000 hours of use.


Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Pricing is for 5 meters (16.4')

SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGB + Warm White RGB + Neutral White RGB + Cool White
Product Code : I24VRGBW274805060 I24VRGBW414805060 I24VRGBW564805060

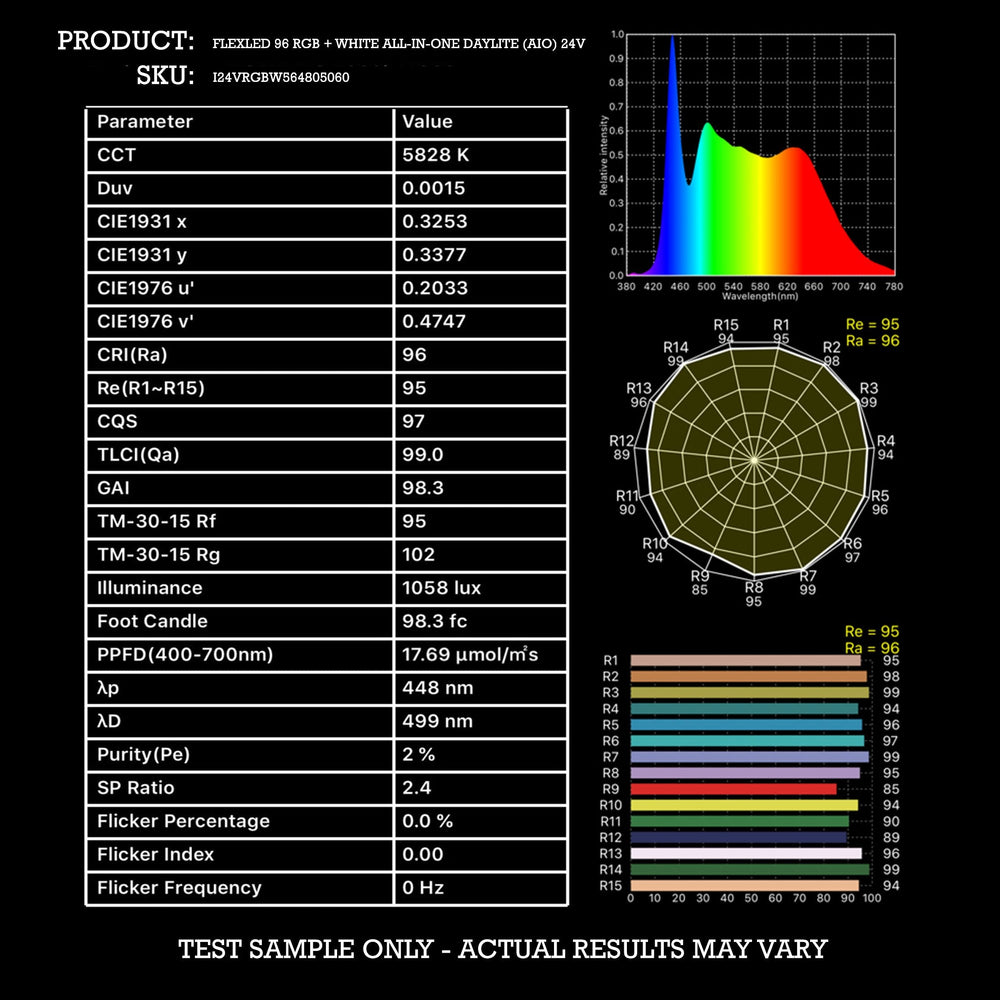

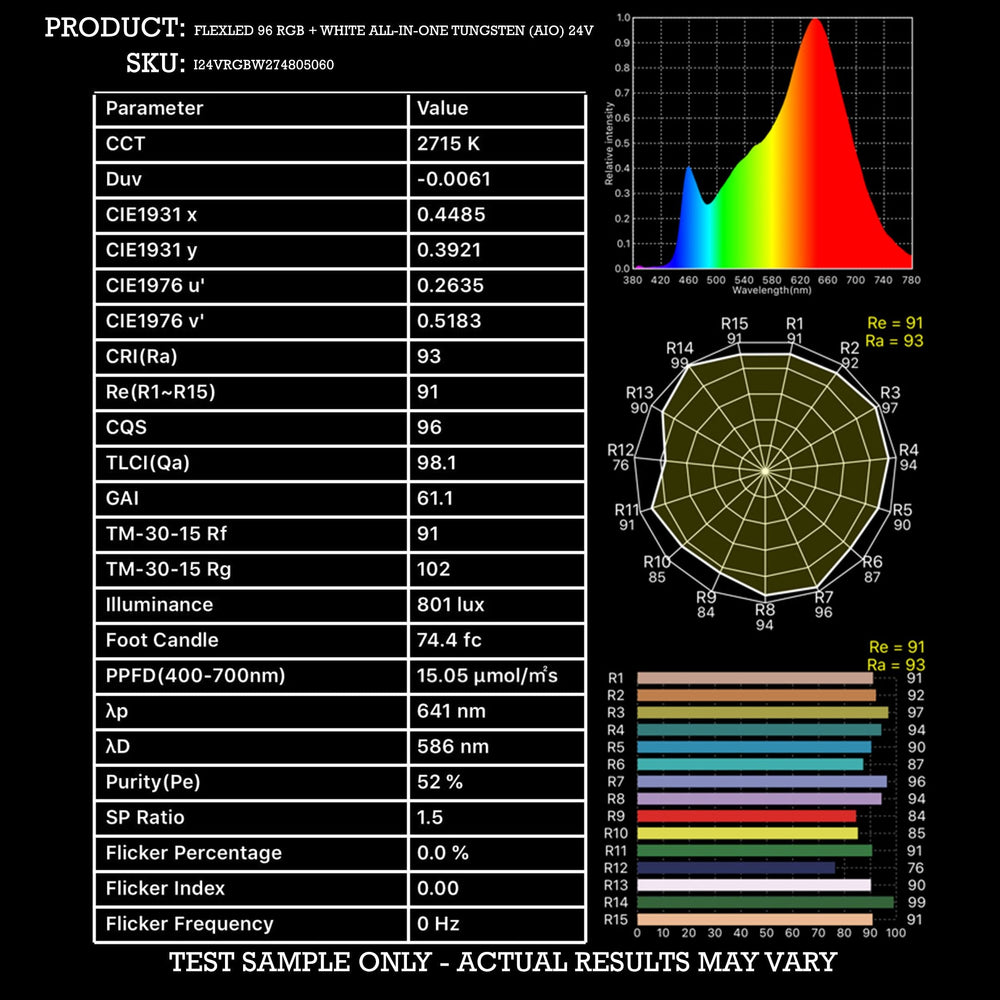

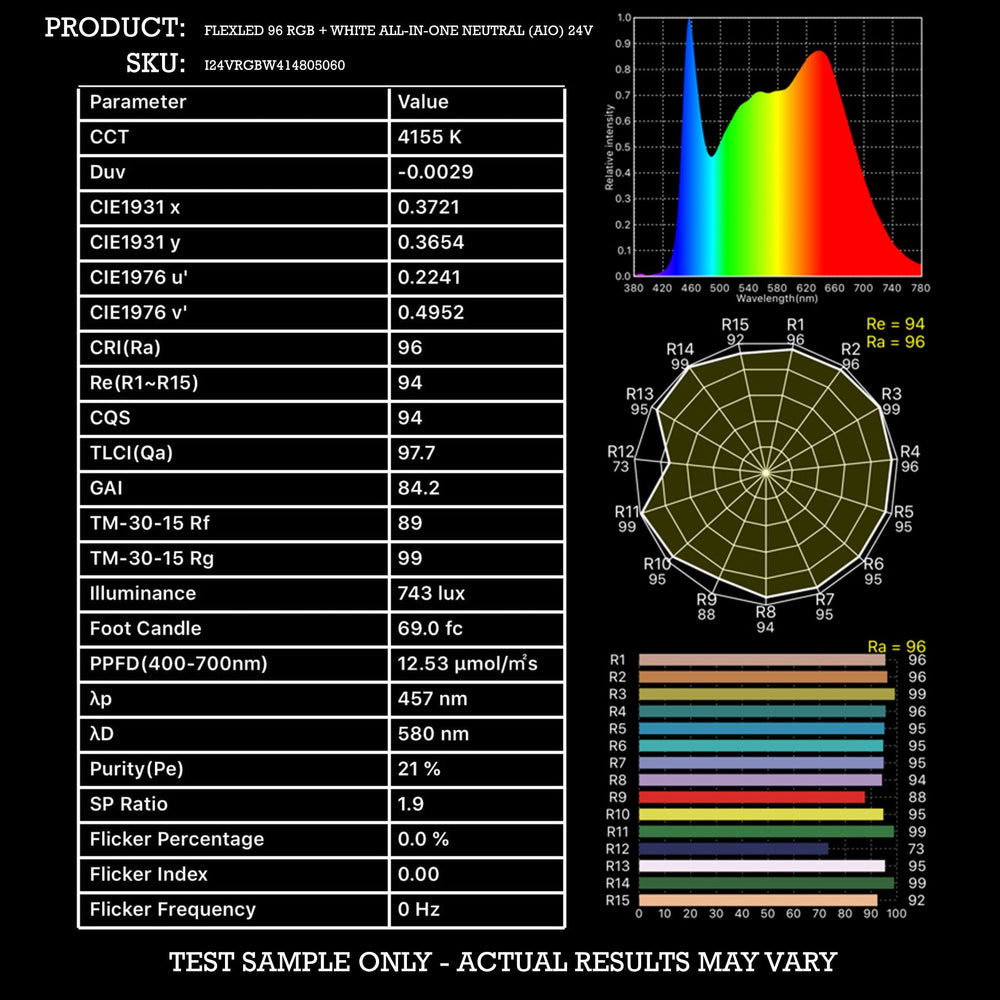

CRI : 95 95 95
Kelvin : 2700k +/-100k 4100k +/-100k 5600k +/-100k
PCB Color : White White White
Current, Rating : 0.96 A / meter 0.96 A / meter 0.96 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 23 W / meter 23 W / meter 23 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 1500 lm / meter 1500 lm / meter 1500 lm / meter
Lumen / Watt : 65 65 65
Lifetime* : 2,000 hours 2,000 hours 2,000 hours

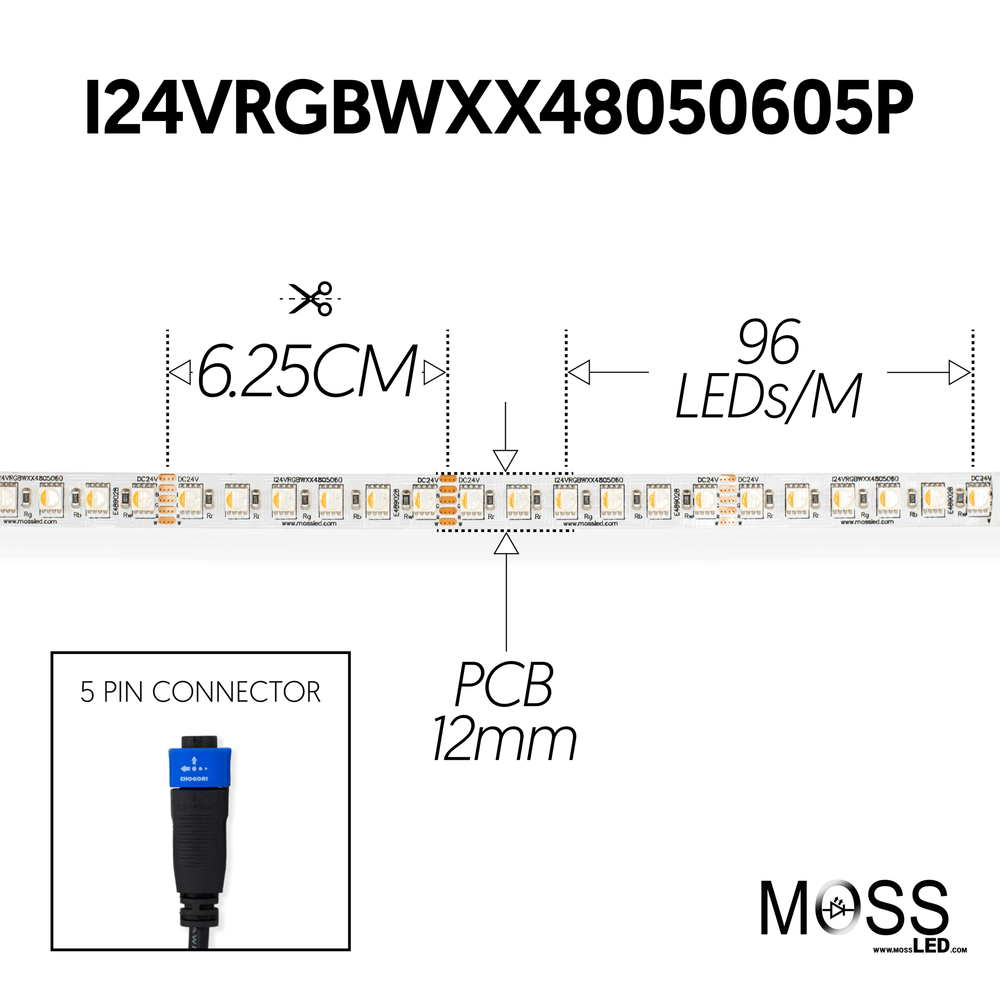

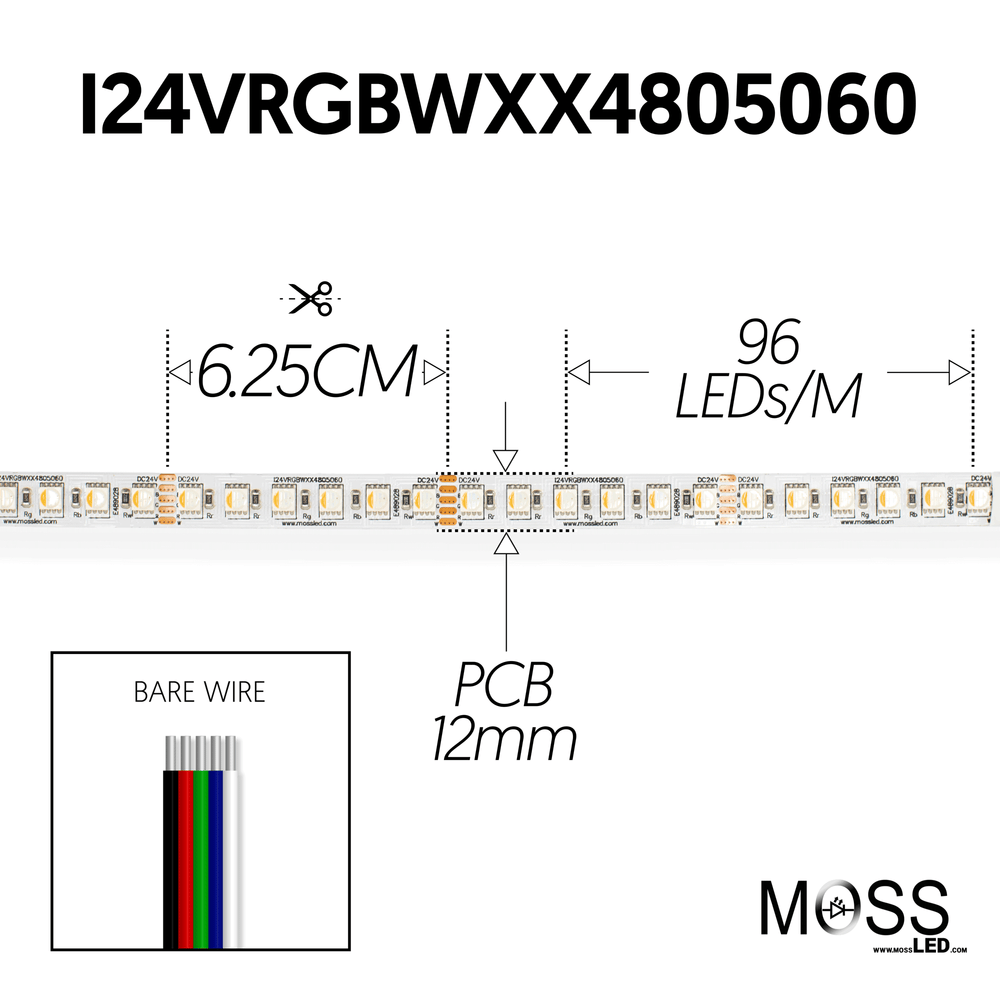

Cutting Length : 6.25CM 6.25CM 6.25CM
LED Quantity : 96 LED / meter 96 LED / meter 96 LED / meter
Number of Contacts : 5 5 5
LED Type : 5060 5060 5060
Copper Quantity : 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 12MM 12MM
Maximum Recommended Length : 7 meters 7 meters 7 meters
Viewing Angle : 120 120 120
Adhesion : TESA 4965 TESA 4965 TESA 4965
Wavelength A Red : 620~625nm 620~625nm 620~625nm
Wavelength B Green : 515~520nm 515~520nm 515~520nm
Wavelength C Blue : 460~465nm 460~465nm 460~465nm

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

Controller, Power supply and Extension Cables sold separately

*nominal lifetime - dependent on installation location
