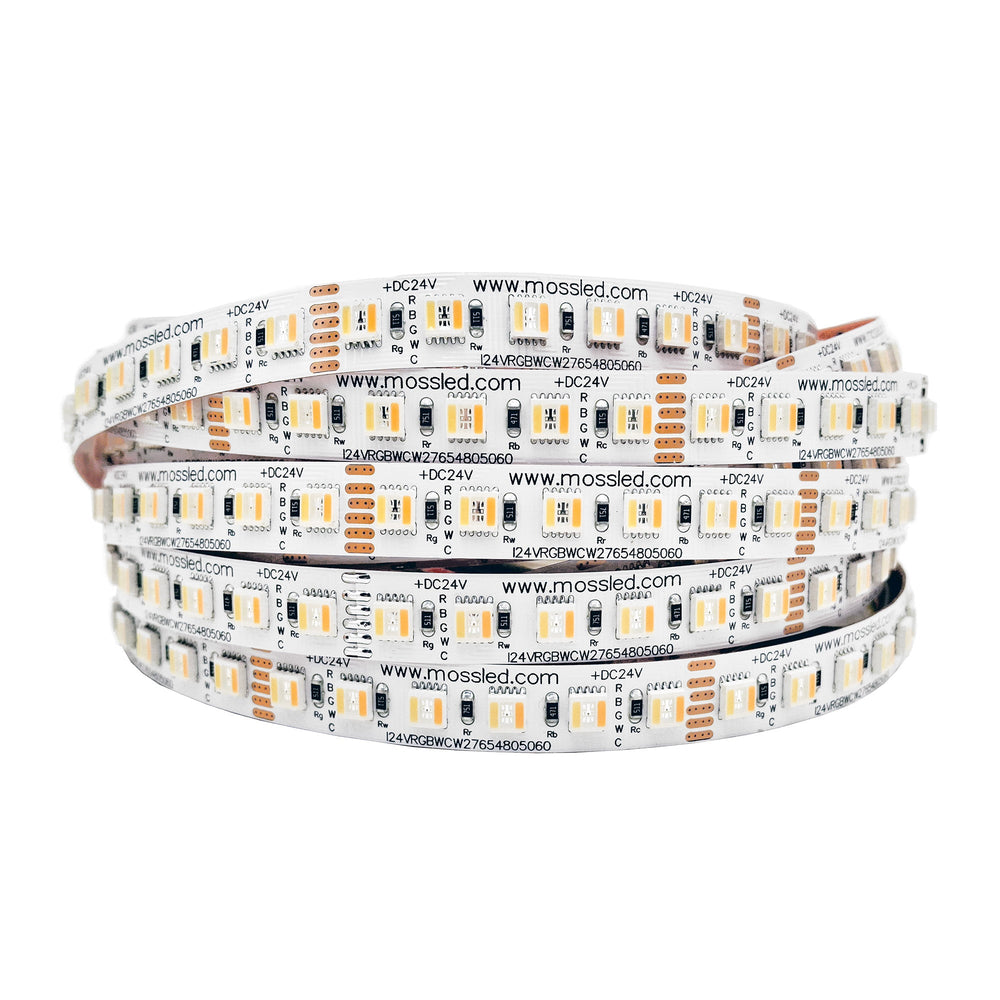

The FlexLED RGB+WW+CW 24V (All-In-One Diode) is a high-performance, full-colour LED strip featuring RGB and high-CRI white LEDs in a single diode. Designed for cinema, television, commercial, hospitality, and industrial applications, this versatile LED solution provides seamless colour mixing with full-spectrum white light at CRI 95+ and R9 85+. Featuring a precise 6.25cm (2.46”) cut length, the 96 LED/meter version offers the closest cutting length available for a 24V RGB+WW+CW product, making it ideal for custom installations requiring flexibility and precision. The 60 LED/meter version offers a lower-density version for applications that don't require the brightness and density of the 96 LED/meter. Both densitie feature the same All-In-One 5-Colour LED chip.
Key Features:
- RGB + 2700k + 6500k in One Diode – Provides vibrant colour mixing and full-spectrum white light.
- High-CRI White Light (95+ CRI, R9 85+) – Ensures exceptional colour accuracy and natural-looking illumination.
- Closest Cut Length for 24V RGBWCW (6.25cm) – Maximizes installation precision and customization.
- Durable & Reliable – Optimized for professional-grade applications.
- Multiple Protection Ratings – Available in IP65 (weatherproof) and IP68 (waterproof) versions.
Installation & Handling Considerations:
- Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
- Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
- Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts and custom colour temperatures available.
- Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED RGB+WW+CW 24V (All-In-One Diode) is the perfect choice for precision installations requiring high-CRI white light with full-colour control, making it ideal for professional and commercial lighting applications.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | 60 RGB+WW+CW 24V (All-In-One Diode) | 96 RGB+WW+CW 24V (All-In-One Diode) |
| Product Code | : | I24VRGBWCW27653005060 | I24VRGBWCW27654805060 |

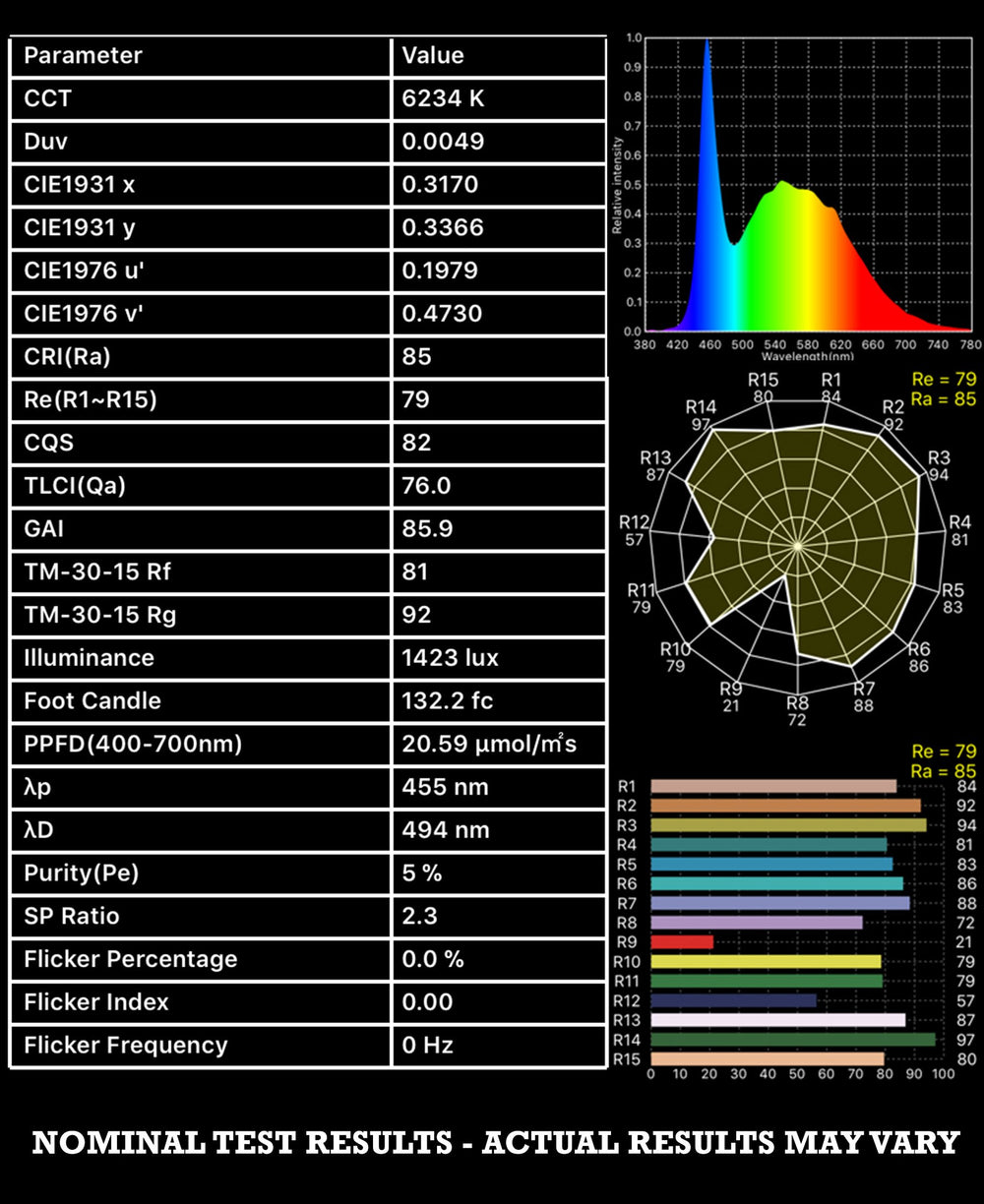

| CRI | : | 2700k = 96.8 6500K = 95.9 | |
| TLCI | : | 2700k = 96.3 6500K = 96.6 | |
| Kelvin | : | RGB+WW(2700K)+CW(6500K) +/- 175k | RGB+WW(2700K)+CW(6500K) +/- 175k |
| PCB Color | : | White | White |
| Current, Rating | : | 0.875 A / meter | 1.2 A / meter |
| Voltage | : | 24 VDC | |
| Wattage | : | 21 W / meter | 28.8 W / meter |
| CC / CV | : | Constant Voltage | |
| IP Rating | : | IP43 | |
| Lumens @ Full RGB+2700k+6500k | : | 1322 lm / meter | 2061 lm /meter |
| Lumens @ Full RGB | : | 552 lm / meter | 1019 lm /meter |
| Lumens @ Full 2700k | : | 351 lm / meter | 510 lm /meter |
| Lumens @ Full 6500k | : | 444 lm / meter | 564 lm /meter |
| Lumen / Watt | : | 64.4 | 68 |
| Lifetime* | : | 40,000 hours | 30,000 hours |

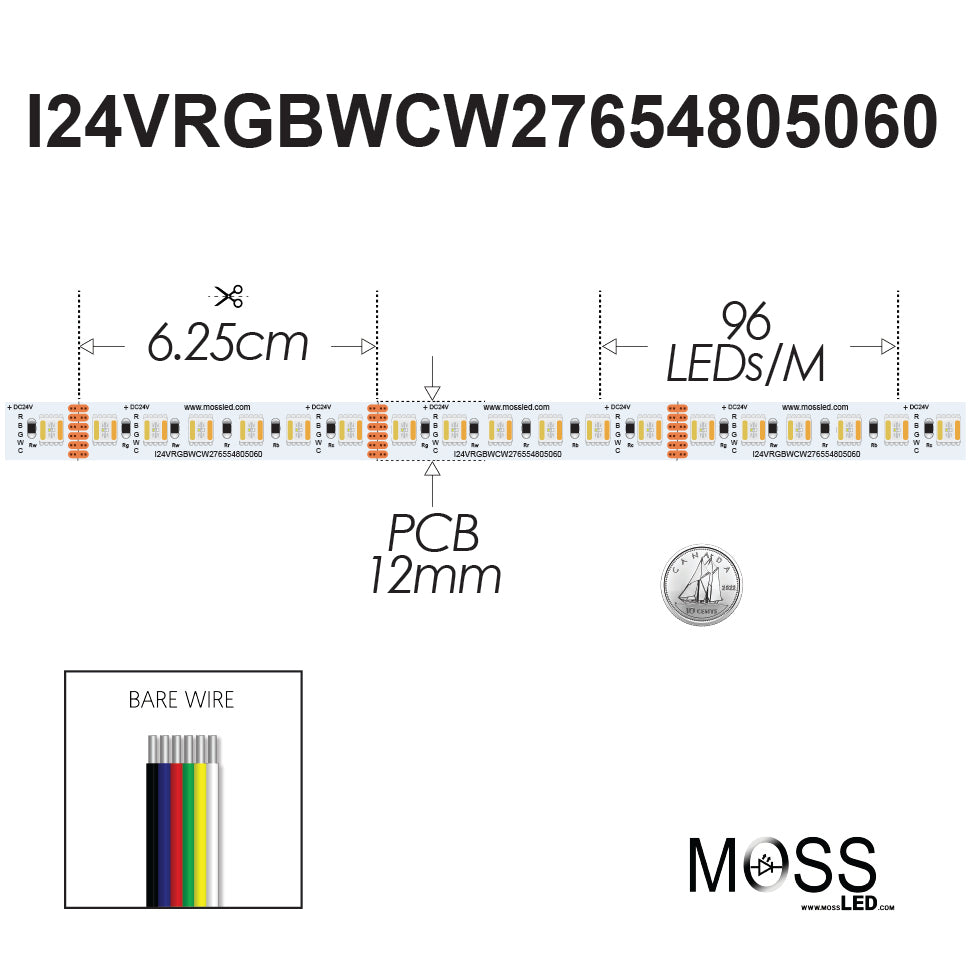

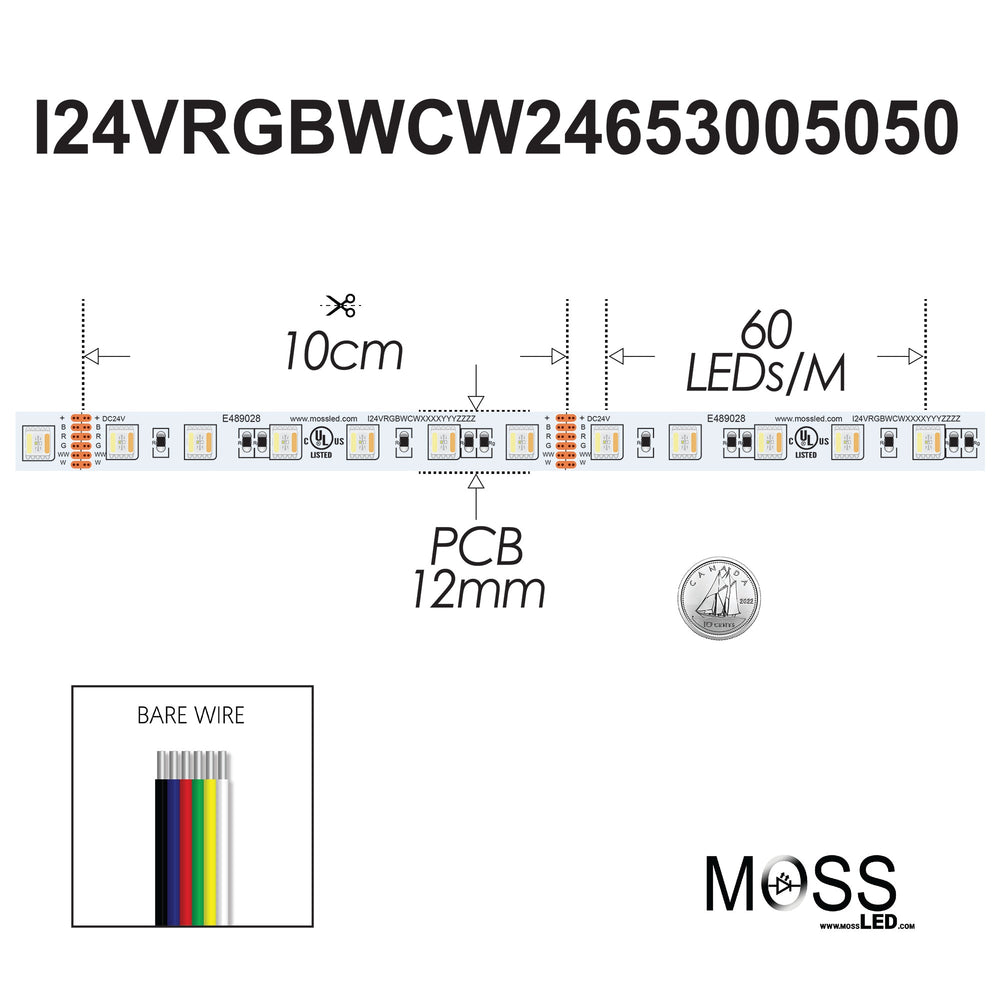

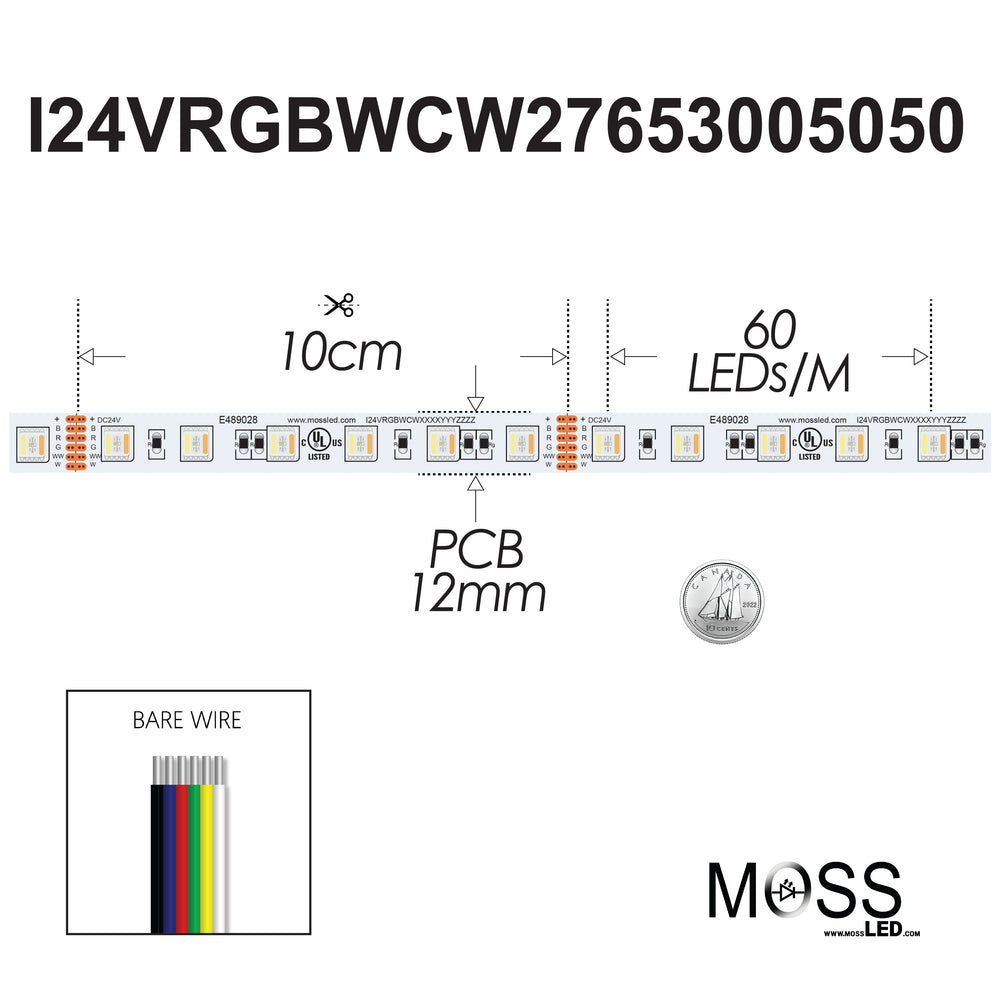

| Cutting Length | : | 10 CM | 6.25 CM |
| LED Quantity | : | 60 LED / meter | 96 LED / meter |
| Number of Contacts | : | 6 | |
| LED Type | : | 5060 | 5060 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70°C | |
| Temperature, Operating, Minimum | : | -40°C | |
| Agency Ratings | : | UL - E489028, CE, RoHS | |
| PCB Width | : | 12MM | |
| Maximum Recommended Length | : | 5 meters | |
| Viewing Angle | : | 120 degree | |
| Adhesion | : | TESA 4965 | |
| Wavelength A (Red) | : | 618 ~ 623nm | 618 ~ 623nm |
| Wavelength B (Green) | : | 518 ~ 523nm | 518 ~ 523nm |
| Wavelength C (Blue) | : | 466 ~ 471nm | 466 ~ 471nm |
| Wavelength D (WW) | : | 2700k | 2700k |
| Wavelength E (CW) | : | 6500k | 6500k |
*nominal lifetime - dependent on installation location
