FlexLED 252 RGBA+WW+CW 24V

SKU I24VRGBADW276012605050
by MossLED
$403.93
Colour
PCB Width
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 94 in stock, ready to be shipped
Accessories
Our RGBA + Dynamic White FlexLED Tape (Sold in 5 metre lengths)

With the development of this LED strip now comes the end of compromising for the color you desire. Two full spectrum emitters tuned to specific CCT allows high CRI, & high output white alongside a full all-in-one color changing RGBA chip. This strip is specifically designed to work with our new 6-channel dimmer.

This product produces a higher amount of heat dissipation than our typical LED tape due to its high output and high power consumption. This LED MUST BE INSTALLED ONTO A NON-COMBUSTIBLE HEAT SINK such as our aluminum extrusions or aluminum flat bar.

Suitable for residential, television, industrial, and commercial applications
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel and stick.
Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.
Please call 1.800.924.1585 or email info@mossled.com to inquire.
Soldering Guidelines: Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.



SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGBA + WW + CW 18MM
Product Code : I24VRGBADW276012605050
CRI : 95
Kelvin : 2700k +/-100k AND 6000k +/- 100k AND RGB
PCB Color : White
Current, Rating : 2.1 A / meter
Voltage : 24 VDC
Wattage : 50.4 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 3000 lm / meter
Lumen / Watt : 69.4
Lifetime* : 50,000 hours

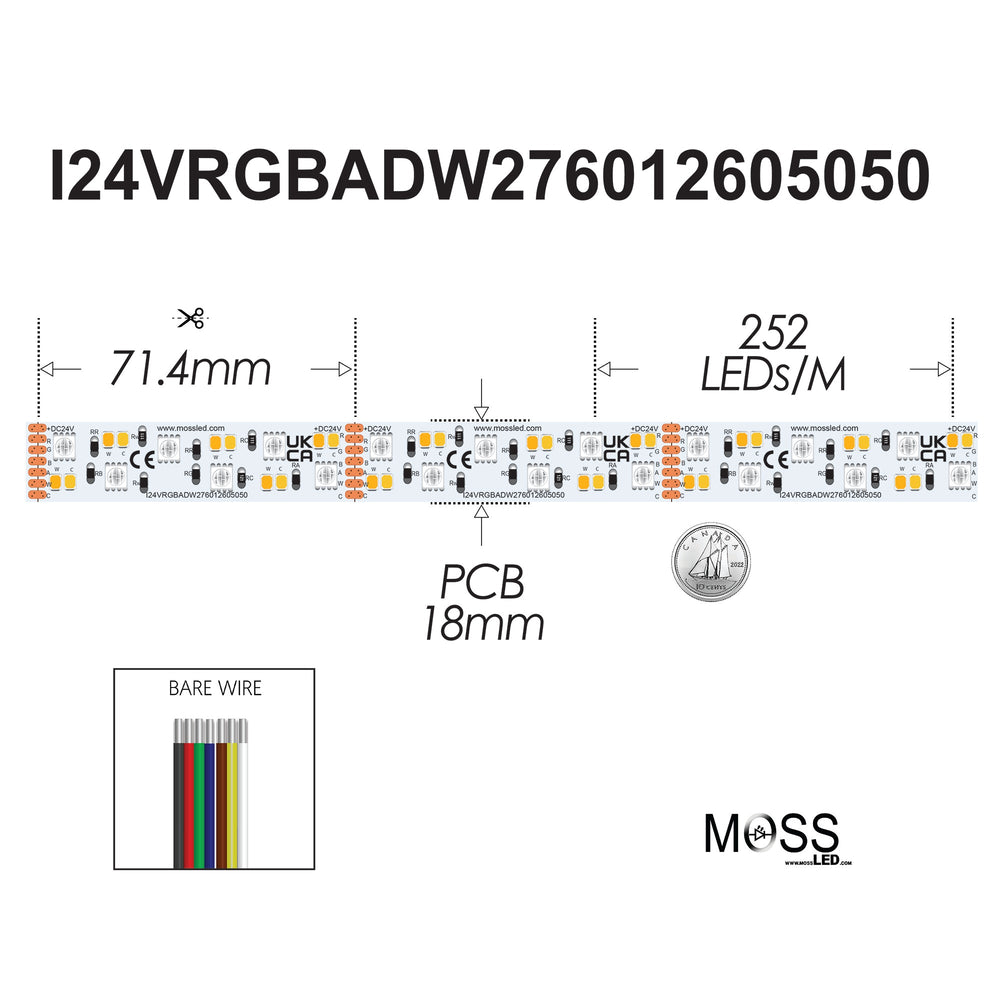

Cutting Length : 7.14 CM
LED Quantity : 252 LED / meter
Number of Contacts : 7
LED Type : 5050 + 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 50 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL E489028, CE, RoHS
PCB Width : 18MM
Maximum Recommended Length : 5 meters
Viewing Angle : 120
Adhesion : 3M 300 MP

DOWNLOADS

  1. Specification Sheet



*nominal lifetime - dependent on installation location
