FlexLED 196 White 24V

SKU I24VWW309803528
by MossLED
$179.38
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 27 in stock, ready to be shipped
Accessories
Industry Standard 3000k, 3500k, 4100k, and 5600k High CRI >95

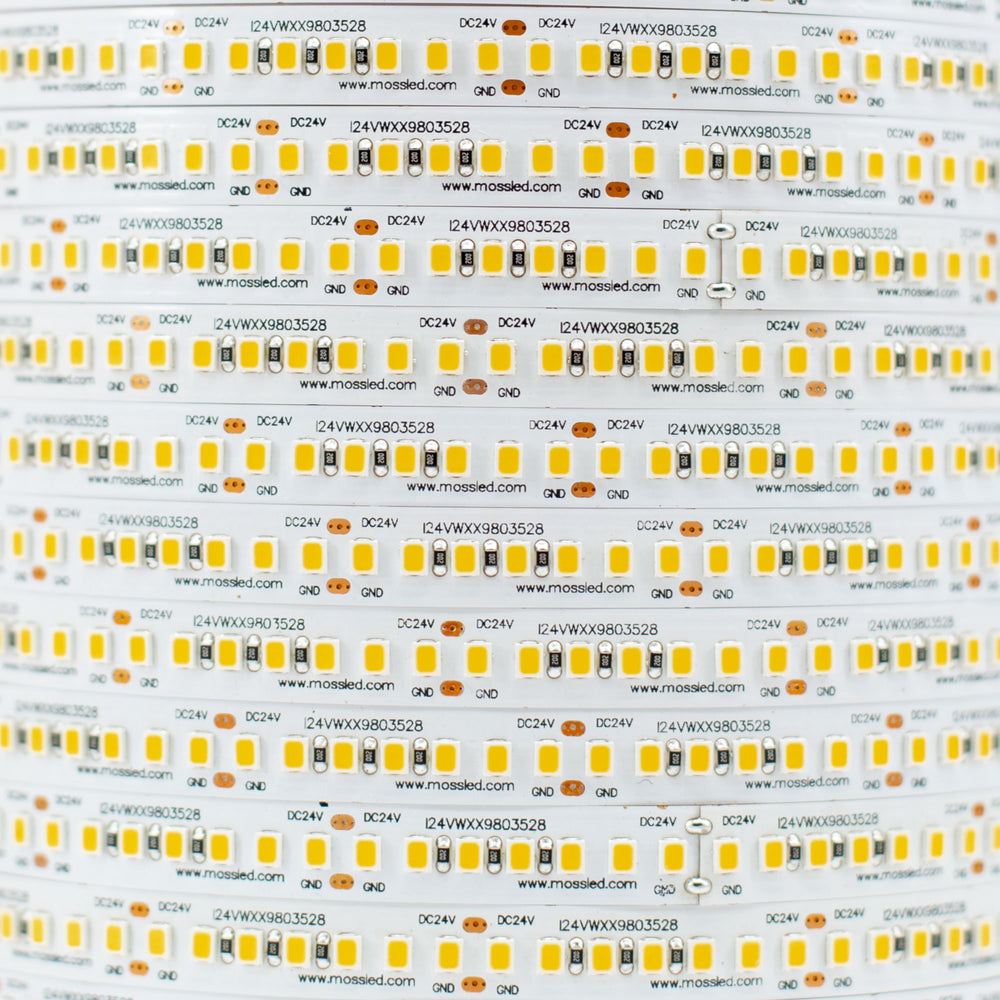

 196 LED/Meter Flex LED Tape in 24V DC (5 meter lengths)



FlexLED 196 was designed for situations where an extremely high output of high quality white light is required. Each meter produces 3600 lumens with a draw of 33.6 watts and an efficiency over 100 lumens per watt while maintaining a high CRI (Colour Rendering Index) of over 95. Suitable for on-camera use, live entertainment, architectural, hospitality or anywhere a high-quality white light is required.

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.

Please call 1.800.924.1585 or email info@mossled.com to inquire.

For specifications on Weatherproof and Waterproof product please download specifications sheet below.




SPECIFICATIONS - INDOOR PRODUCT

Product Type : Warm White Neutral White Cool White
Product Code : I24VWW309803528 I24VNW419803528 I24VCW569803528
CRI : ≥95 ≥95 ≥95
Kelvin : 3000k +/-100k 4100k +/-100k 5600k +/-100k
PCB Color : White White White
Current, Rating : 1.4 A / meter 1.4 A / meter 1.4 A / meter
Voltage : 24 VDC 24 VDC 24 VDC
Wattage : 33.6 W / meter 33.6 W / meter 33.6 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage
IP Rating : IP43 IP43 IP43
Lumens @ Full : 3600 lm / meter 3600 lm / meter 3600 lm / meter
Lumen / Watt : 107.1 107.1 107.1
Lifetime* : 30,000 hours 30,000 hours 30,000 hours

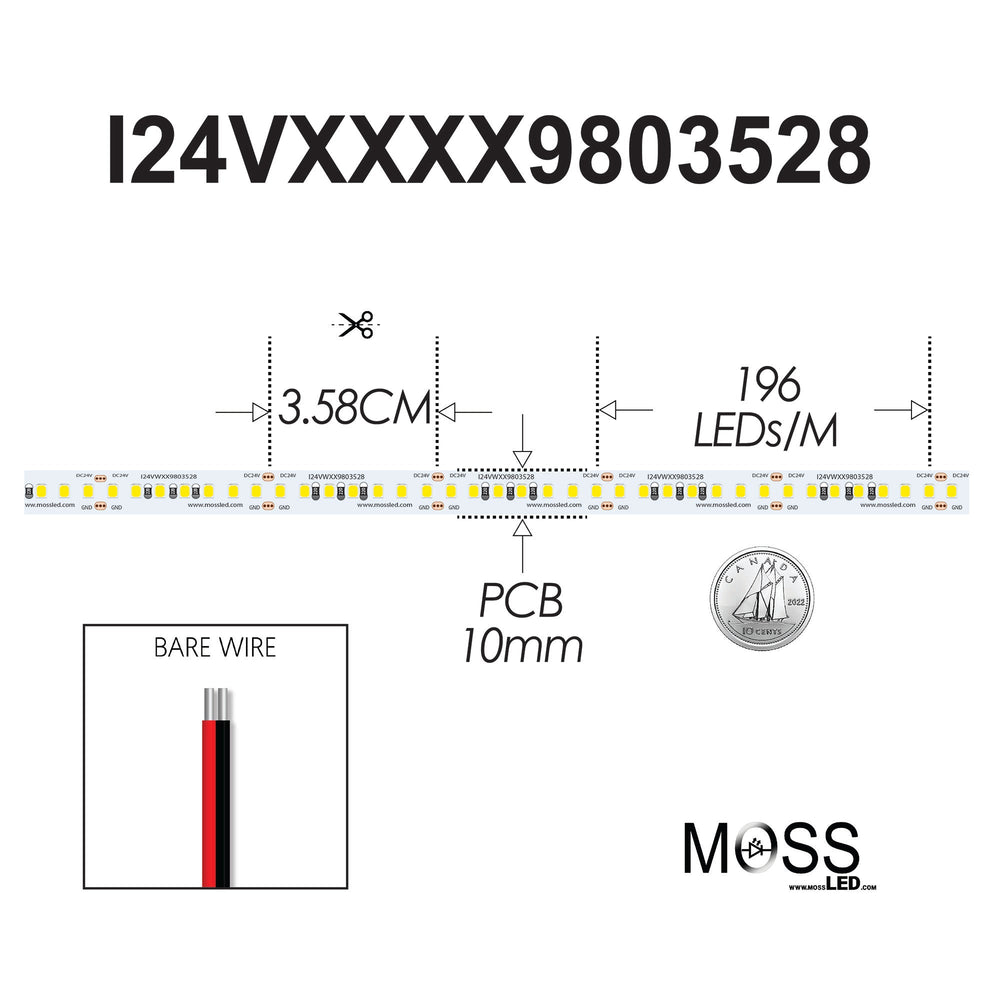

Cutting Length : 3.58CM 3.58CM 3.58CM
LED Quantity : 196 LED / meter 196 LED / meter 196 LED / meter
Number of Contacts : 2 2 2
LED Type : 2835 2835 2835
Copper Quantity : 2 Oz. 2 Oz. 2 Oz.
Temperature, Operating, Maximum : 50 C 50 C 50 C
Temperature, Operating, Minimum : -40 C -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 10MM 10MM 10MM
Maximum Recommended Length : 5 meters 5 meters 5 meters
Viewing Angle : 120 degree 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965 TESA 4965

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location
