DMX 4 Channel Dimmer

SKU CONTDMX4CH12V24VTS
by MossLED
Sold out
$79.99
Channel Count
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock

***DISCONTINUED***

This 4-Channel Controller can be used with all of our FlexLED Tape lines and Modules

  • Uses 3-Pin XLR Cables OR standard ethernet cables to control LEDs via any lighting console or through computer software
  • Compatible with Single Color / Bi-Color / RGB / RGBA / RGBW FlexLED Tape
  • Can create over 16 million colors when used with our Colorful (RGBA/RGBW) FlexLED Tape
  • Dip switches provide a stand-alone mode that includes static colors and two chases



Technical Specifications

  • Input Signal: DMX 512
  • Power Supply: DC CV SMPS
  • Input Voltage: DC5V ~ DC24V
  • 6A/Channel X 4 Channel = 24A Max
  • Max Output Power: 120W/288W/576W (5V/12V/24V)
  • Output Grey Scale: 256 Levels Per Channel (8bit/CH)

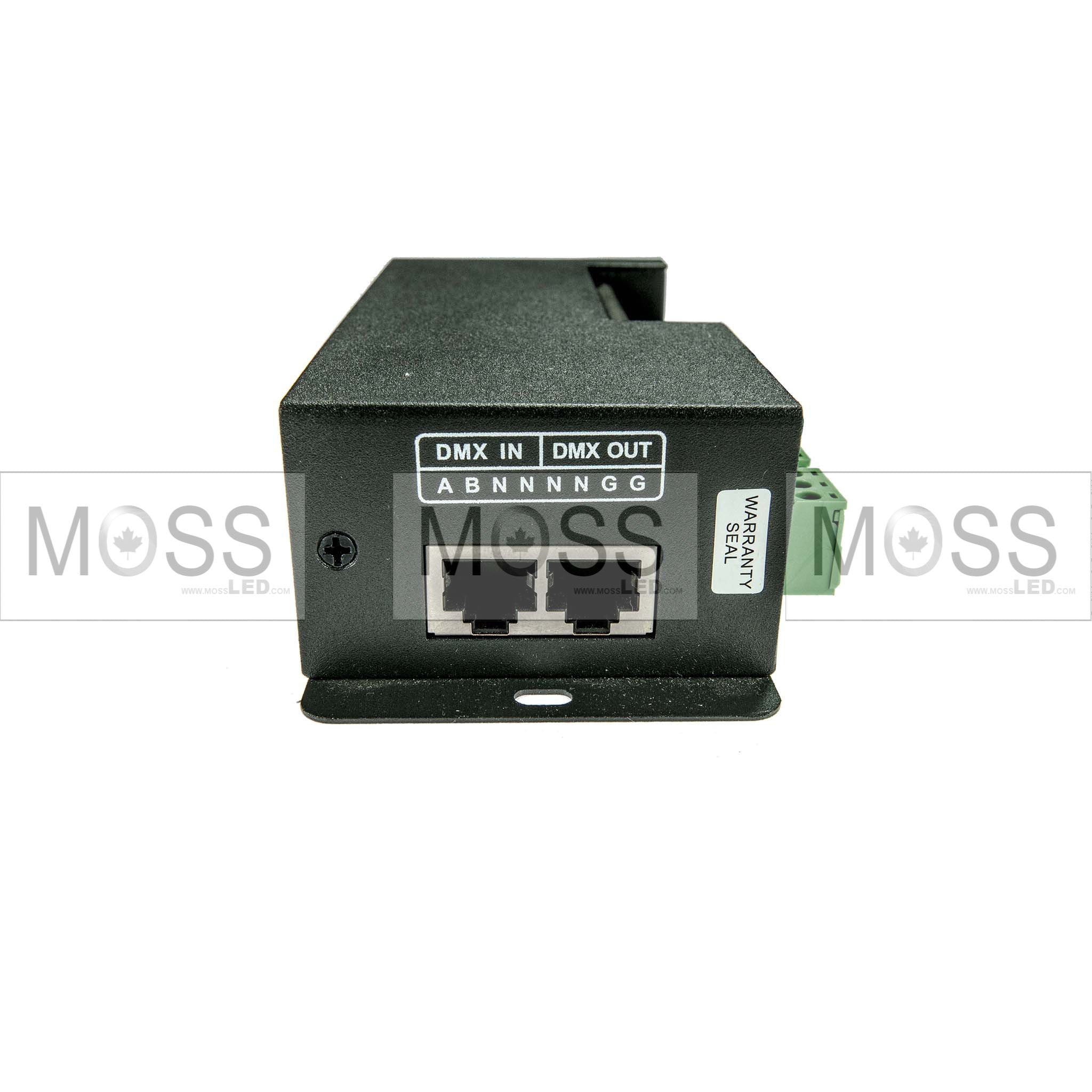

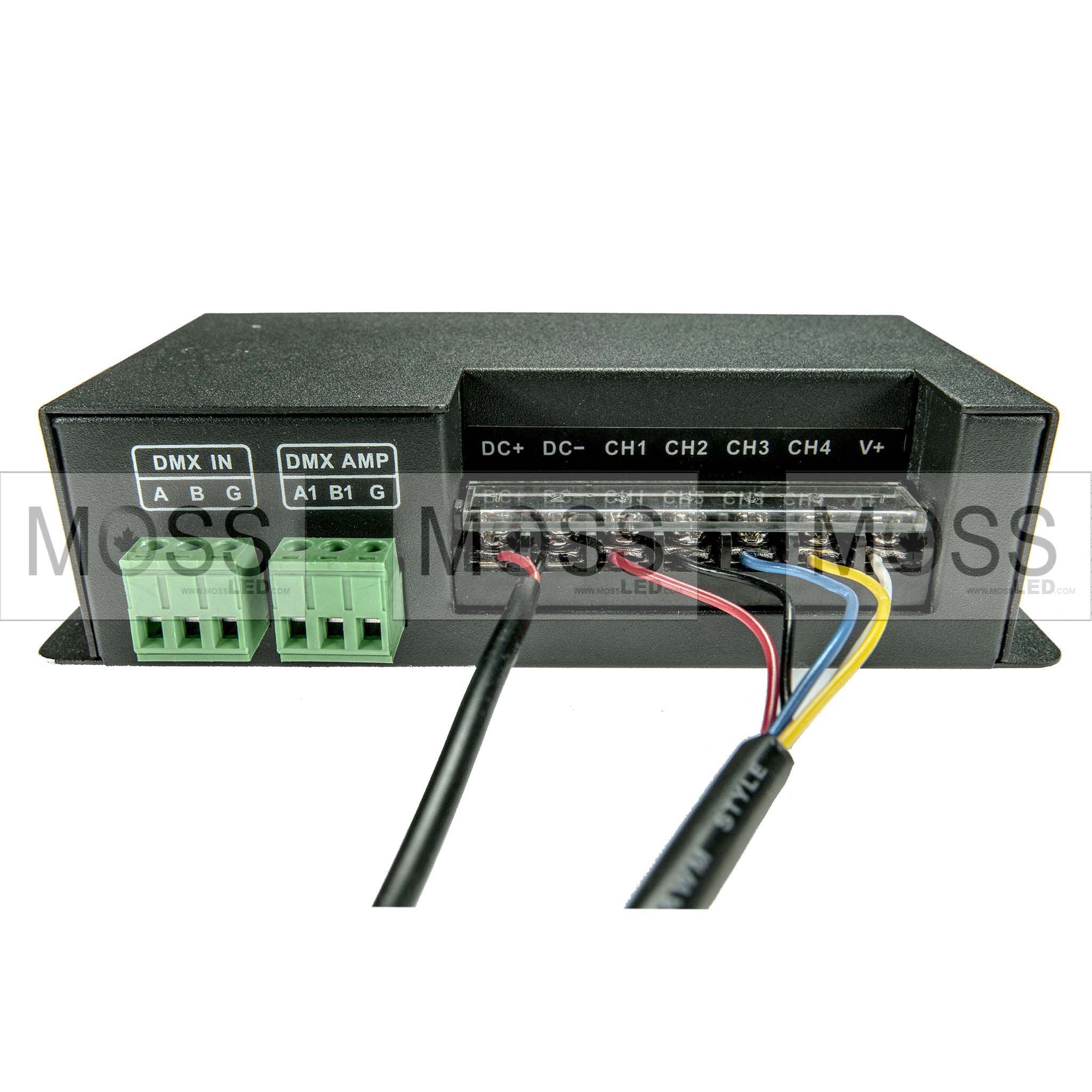

  • DMX 512 Connectors: XLR-3 / RJ45 / Phoenix Connectors
  • Working Temperature: -30C - +65C
  • Dimension: 156 X 78 X 40 MM
  • Weight: 430g
  • PWM Refresh Rate: 2kHz
  • LT-840-6A

**Connector Tails Not Included**
