DMX512 4 Channel Dimmer



Notify me when this product is available:

Collections: DMX Dimmers

Category: 12V, 24V, Controller, DMX

Type: Controller

This Controller can be used with all of our FlexLED Tape lines and Modules

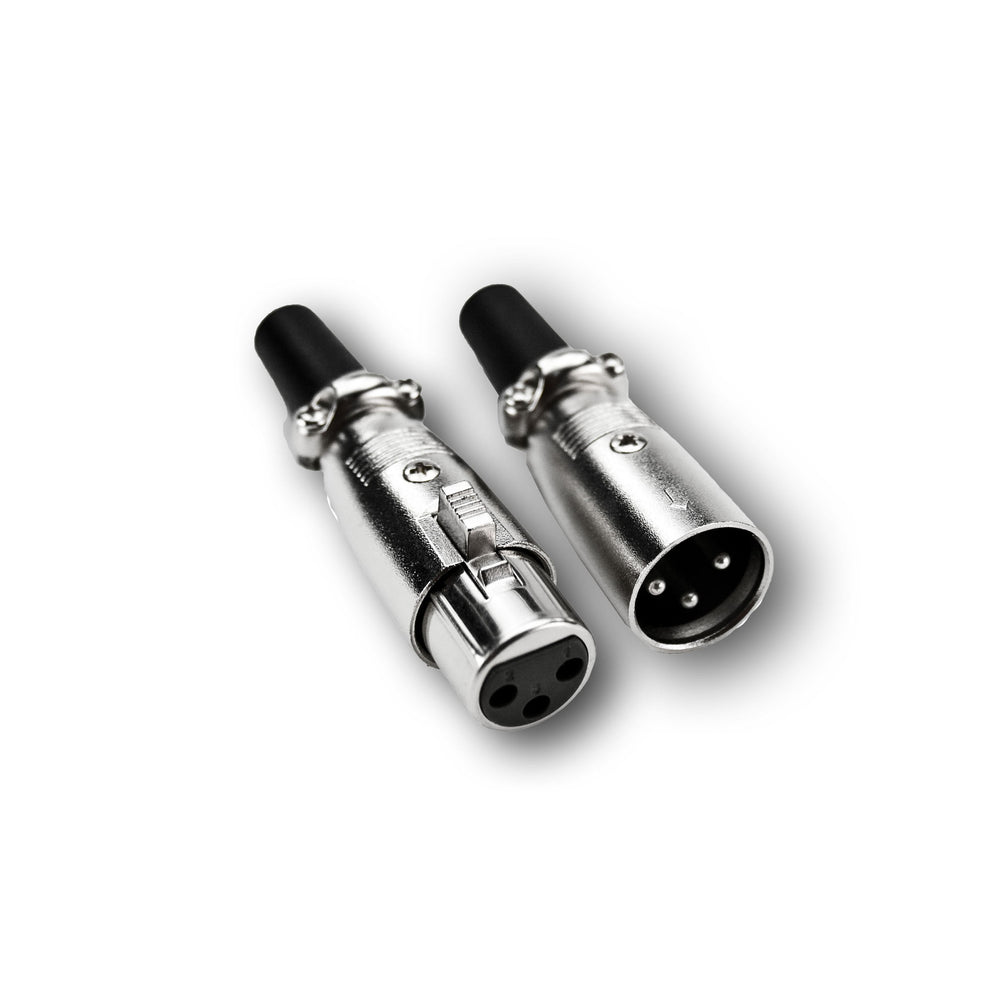

  • Uses 3-Pin XLR Cables to control LEDs via any lighting console or through computer software.
  • Can create over 16 million colours when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape.

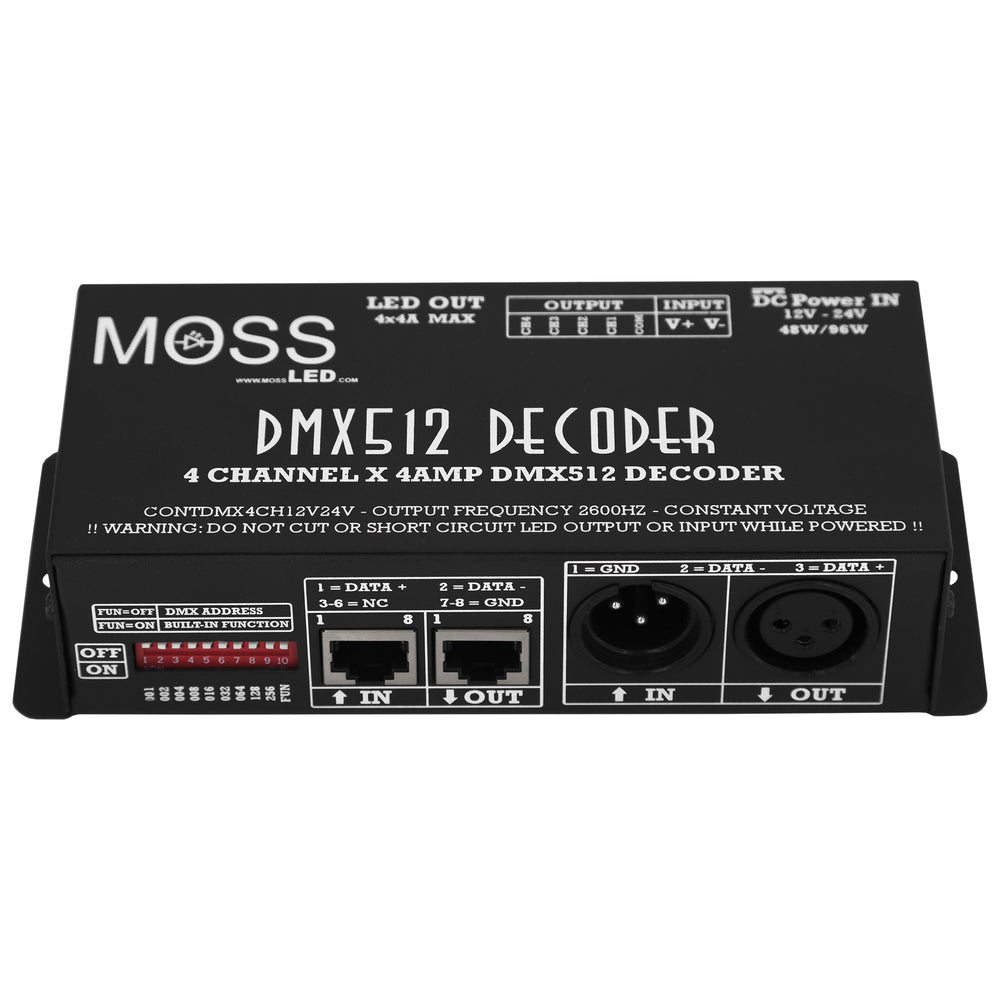

  • Dip switches provide a stand-alone mode that includes static colors and two chases.

Technical Parameters

  • Supply Voltage: 5V / 12V - 24V DC
  • Output: 3 Channels OR 4 Channels
  • Output Current: 3CH @ 4A/CH = MAX 12A
  • Output Current: 4CH @ 4A/CH = MAX 16A
  • Output Power: 60W @ 5V / 144W @ 12V / 288W @ 24V
  • PWM Frequency: 2.6 KHz
  • External Dimension (mm): L165*W68*H40
  • Packing Size (mm): L180*W95*H60
  • Net Weight: 320g
  • Gross Weight: 355g
  • Working Temperature: -20 to 60 C

**Connector Tails Not Included**
