3-Inch Recessed Downlight - Dim-To-Warm (Auto-Dim) Dynamic White 3200K - 1800K

SKU DLFX-I24VO91115-183090-CV12W24B
by MossLED
$84.71
Colour Temperature
Beam Angle

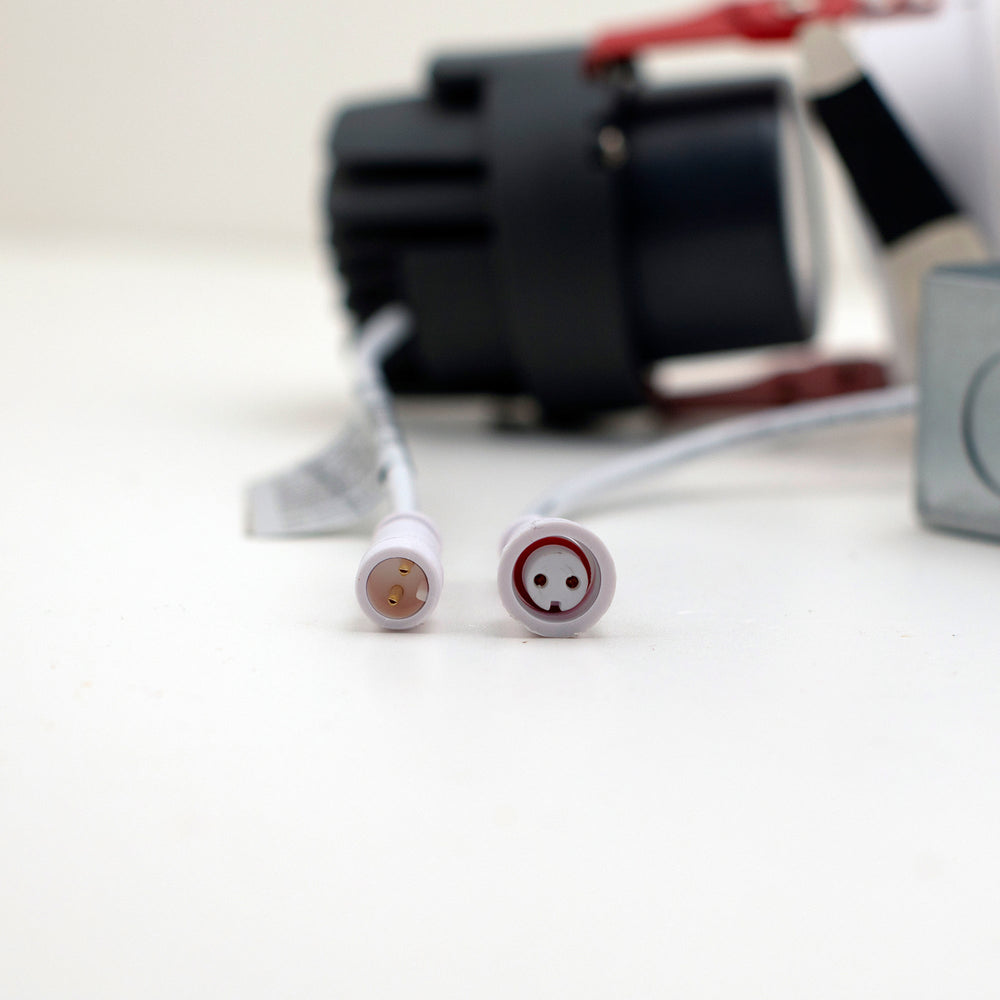

Connector
Availability: Translation missing: en.general.icons.icon_check_circle icon 50 in stock, ready to be shipped

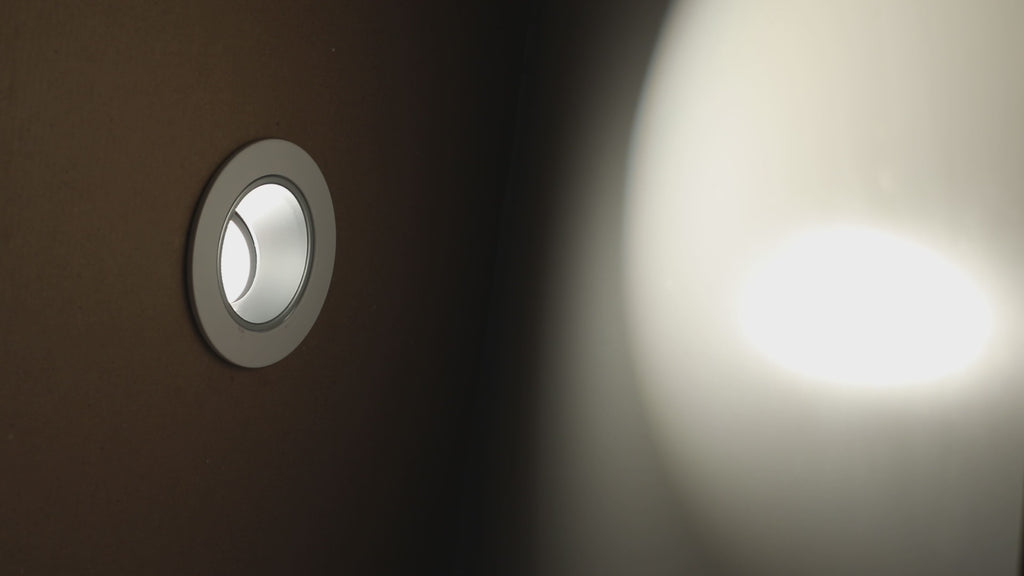

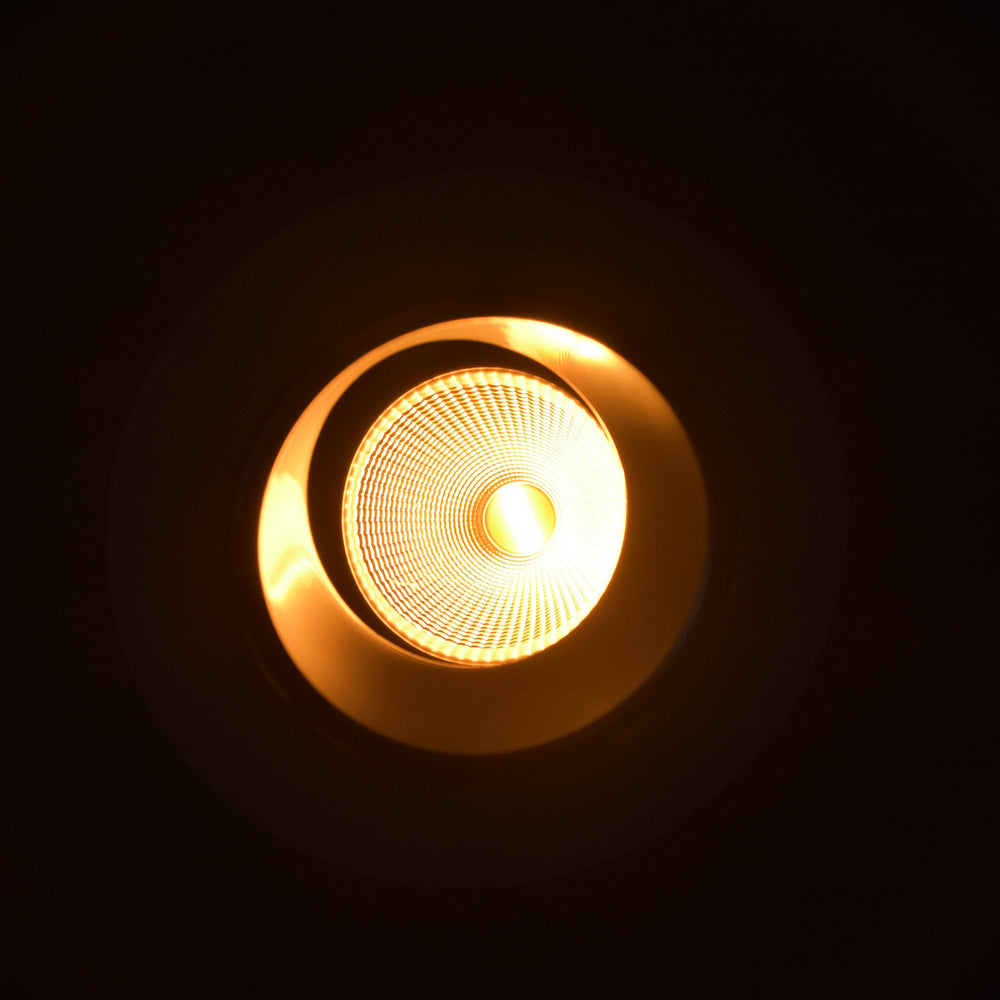

Meet our 3-Inch recessed downlight with Dim-To-Warm technology - a dynamic LED that can dim and adjust from 3200K to 1800K. When at full brightness, the light outputs a comfortable 3200k. As you dim the light, via any standard TRIAC dimmer, it slowly gets less bright as well as shifts colour temperature to 1800k. This mimics the effect of a traditional halogen bulb. Enjoy the light emitted from this high CRI 90+ lighting and smooth, flicker-free dimming via an electronic DC LED driver. Shifts automatically from 3200k to 1800k as you lower the level on your dimmer. The LED is placed 3" deep from the face of the downlight which allows for optimal anti-glare conditions.


Features

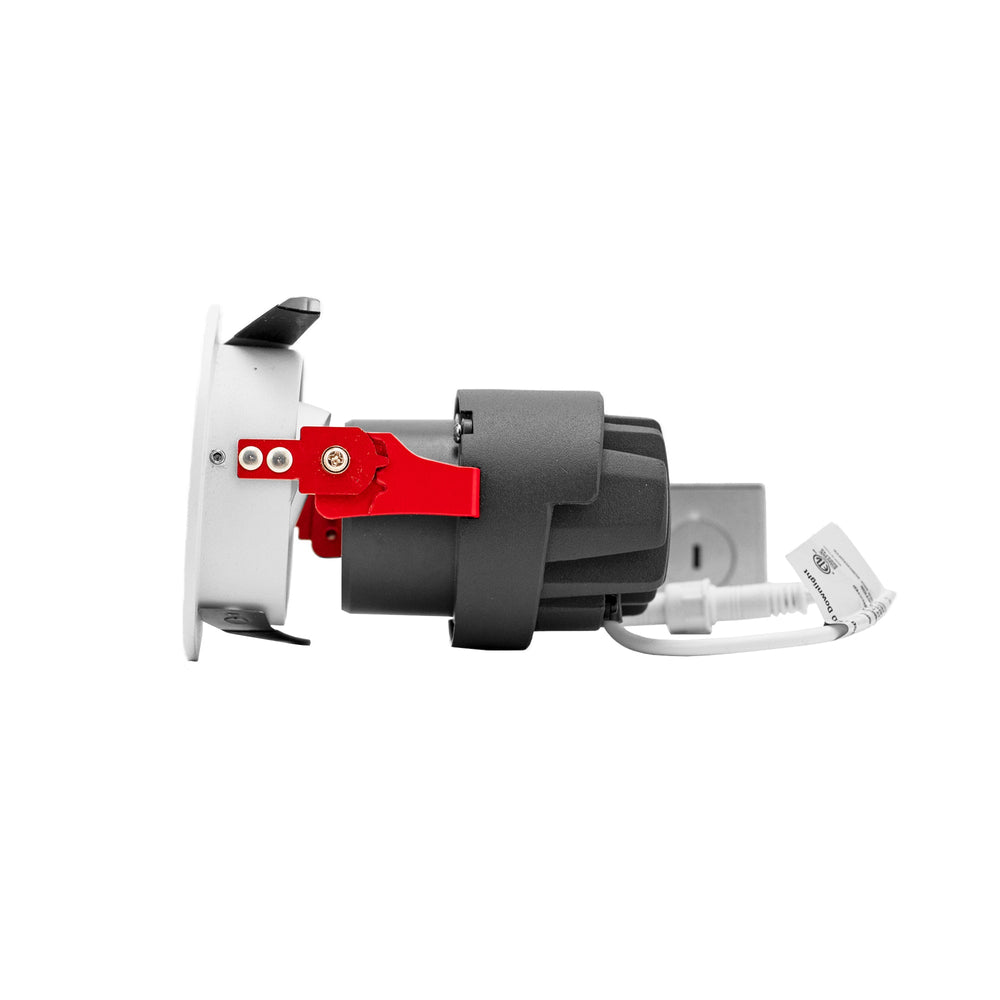

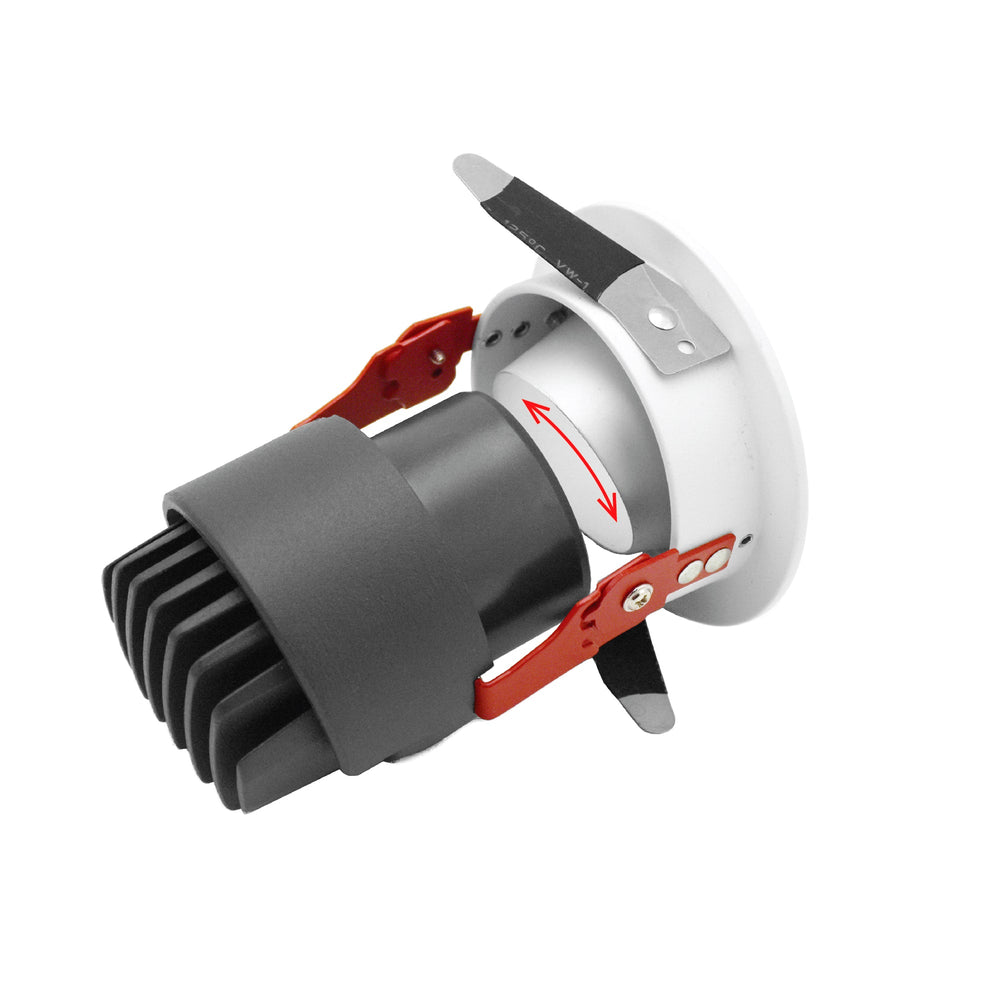

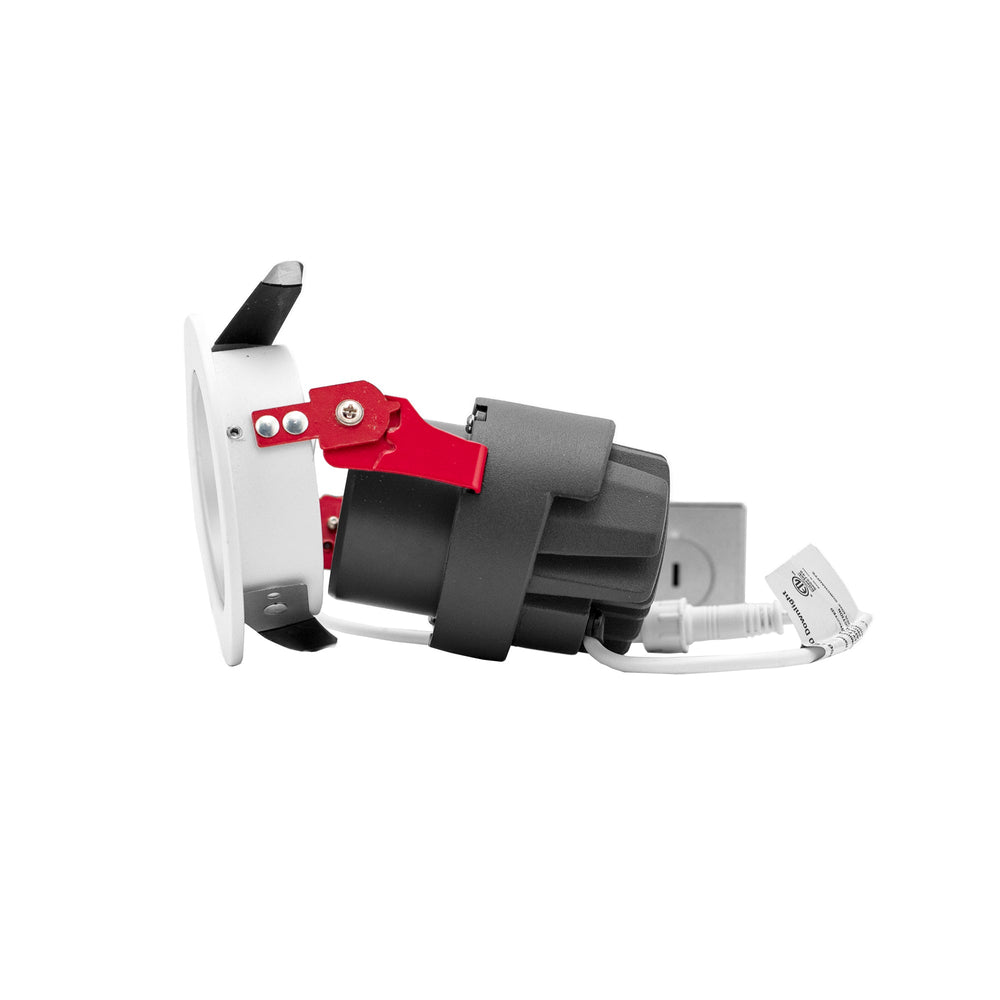

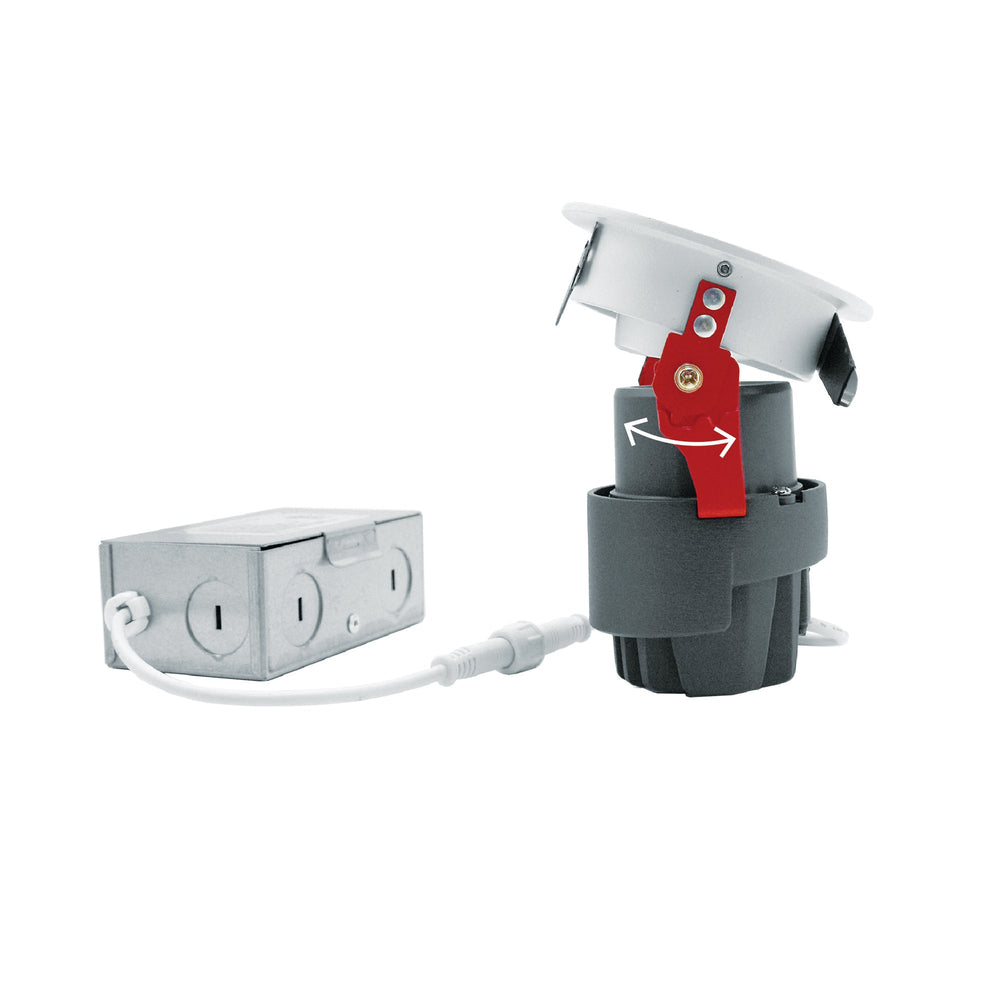

Adjustable anti-glare recessed LED downlight
Die-cast high efficacy aluminum heat sink
12W. 1020LM, CRI>90, Flicker-free dimming
CCT: 3200K-1800K (Dim to Warm)
Beam Angle: 24°
Dimming: 0 - 100%
Matte sliver reflector with White flange
Size: Ø91xH115mm
Cut out: 75mm (2.95")
Suitable For Dry and Damp locations
cETLus listed
5 Years Warranty
Conforms to ANSI/UL Standard 1598
Certified to Canada/CSA Standards C22.2 No.250.0
IC Rated

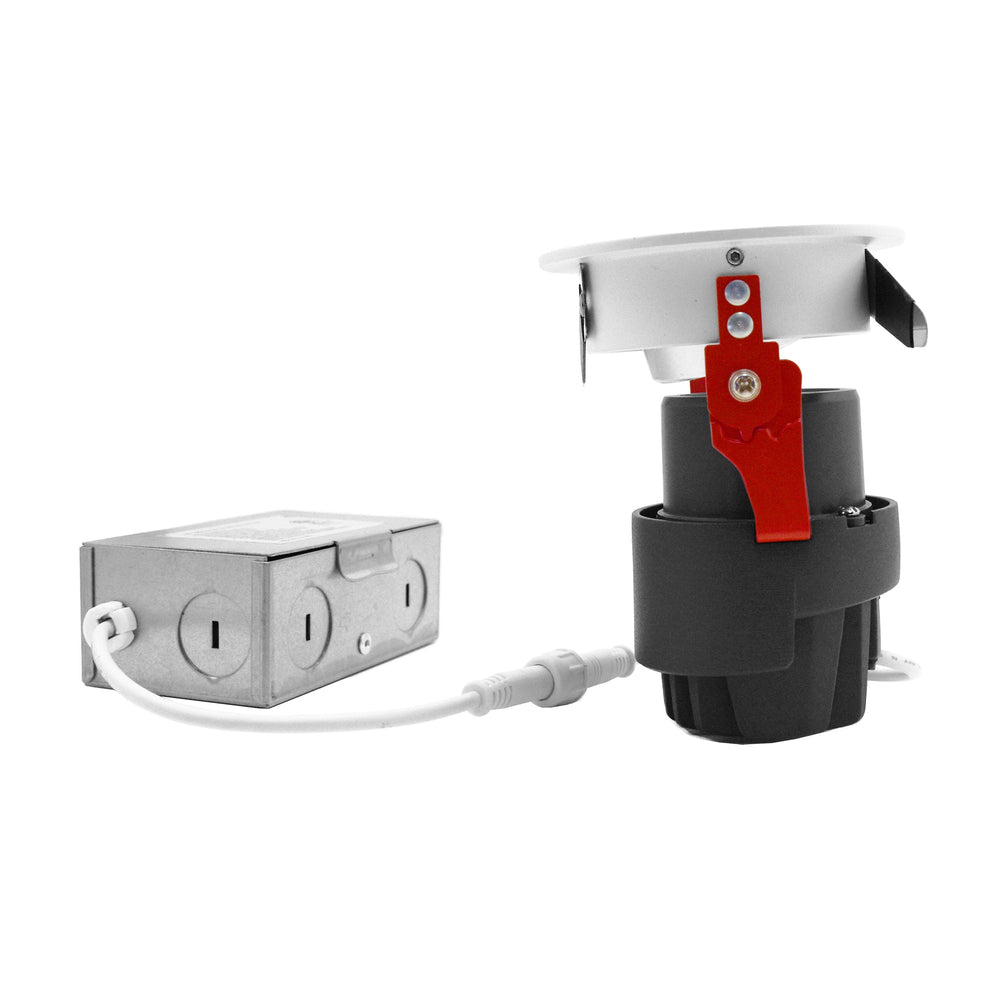

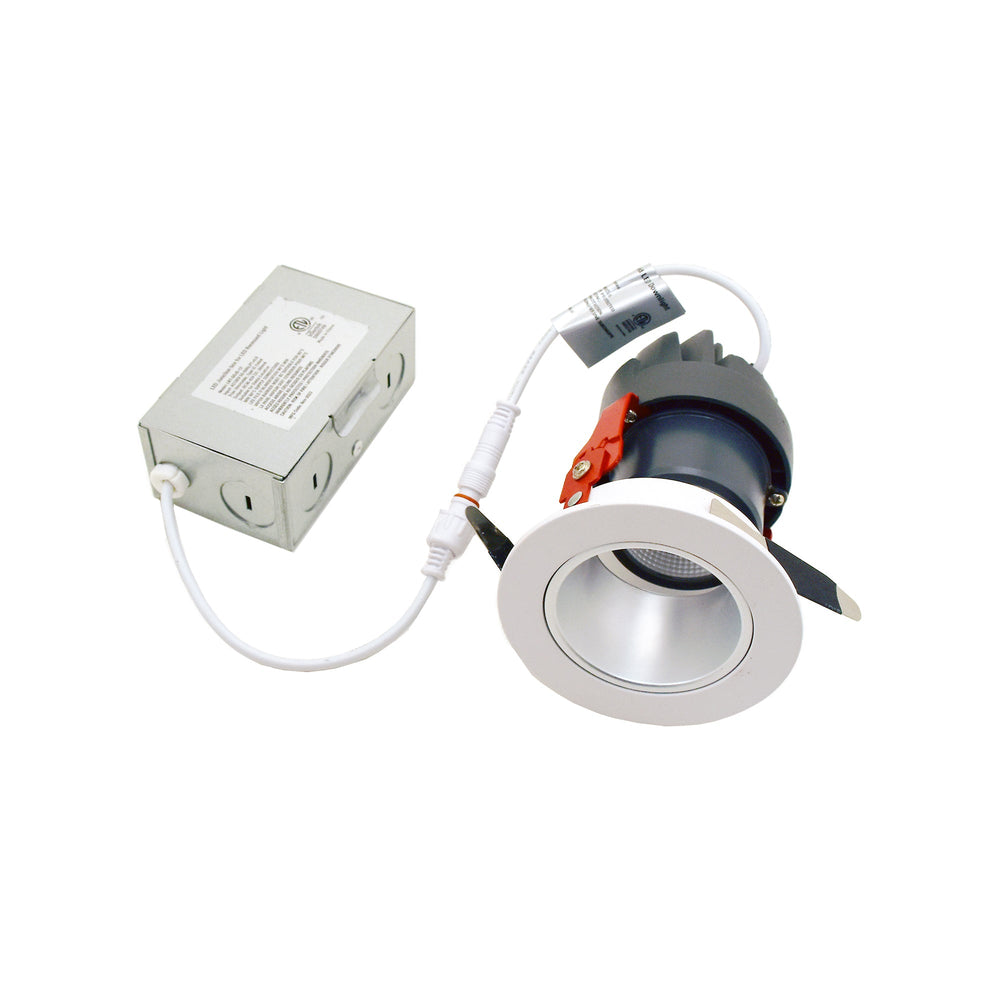

LED Driver and Junction Box in One Unit
120-Volt LED Driver compatible with incandescent, MLV, ELV dimming.
Electronic direct current LED driver integrally mounted in an aluminum IC-rated junction box with 1/2" trade size knockouts located on the sides. The wiring compartment meets junction box requirements of CSA C22.2 No. 250.0 & UL1598 standards.


SPECIFICATIONS - INDOOR PRODUCT

Product Type : Dim-To-Warm
Product Code : DLFX-I24VO91115-183090-CV12W24B
CRI : 90
Kelvin : 3200k - 1800k
PCB Color : White
Current, Rating : 0.5 A
Voltage : 120VAC - 50/60Hz
Wattage : 12 W
CC / CV : Constant Current
IP Rating : IP43 (Damp Locations)
Lumens @ Full : 1020 lumens @ Full
Lumen / Watt : 85
Lifetime : 30,000 hours
Number of Contacts : 2
LED Type : COB
Hole Cut Out : 75MM
Temperature, Operating, Maximum : 40°C
Temperature, Operating, Minimum : -40°C
Agency Ratings : cETLus, CE, RoHS
Dimensions
: Ø91 x H115 mm  (75MM / 2.95" Hole Cut-Out)
Maximum Number on One 15A Circuit : 20
Beam Angle : 24°
Adhesion : Mechanical

DOWNLOADS

  1. Specification Sheet
