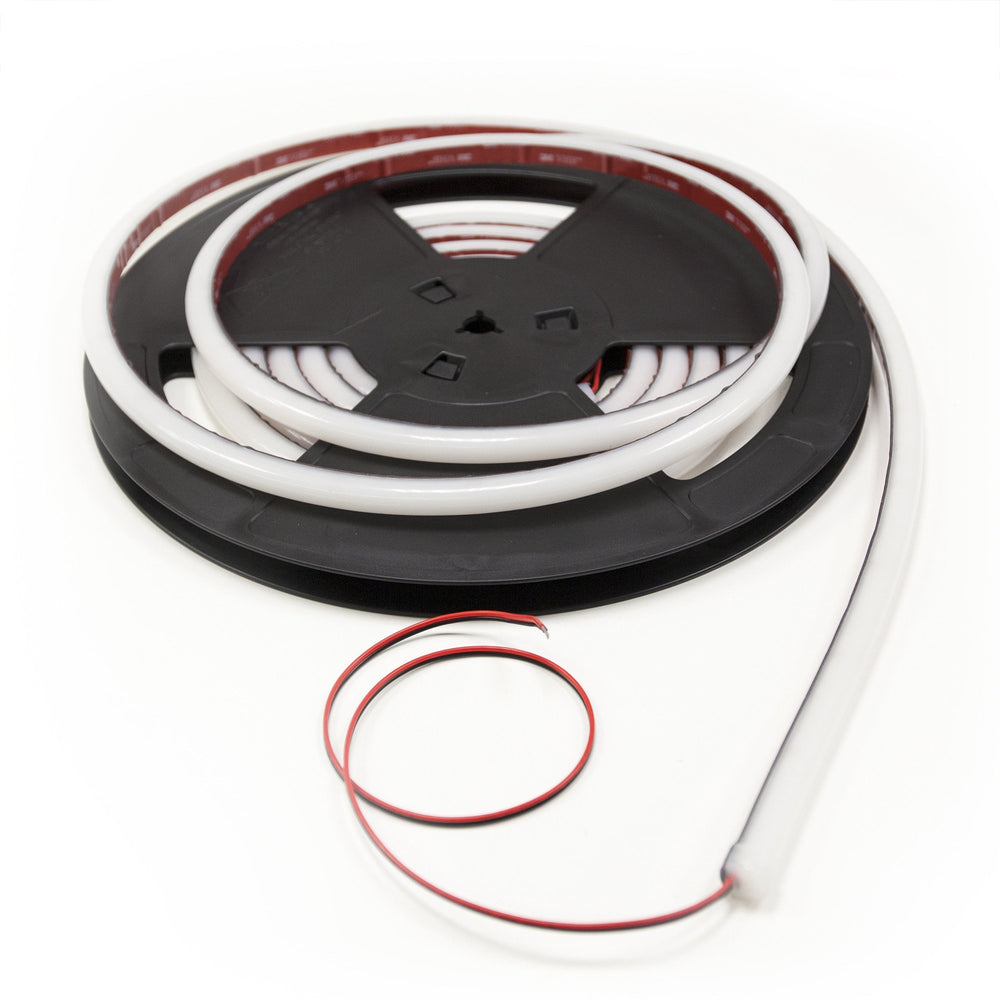

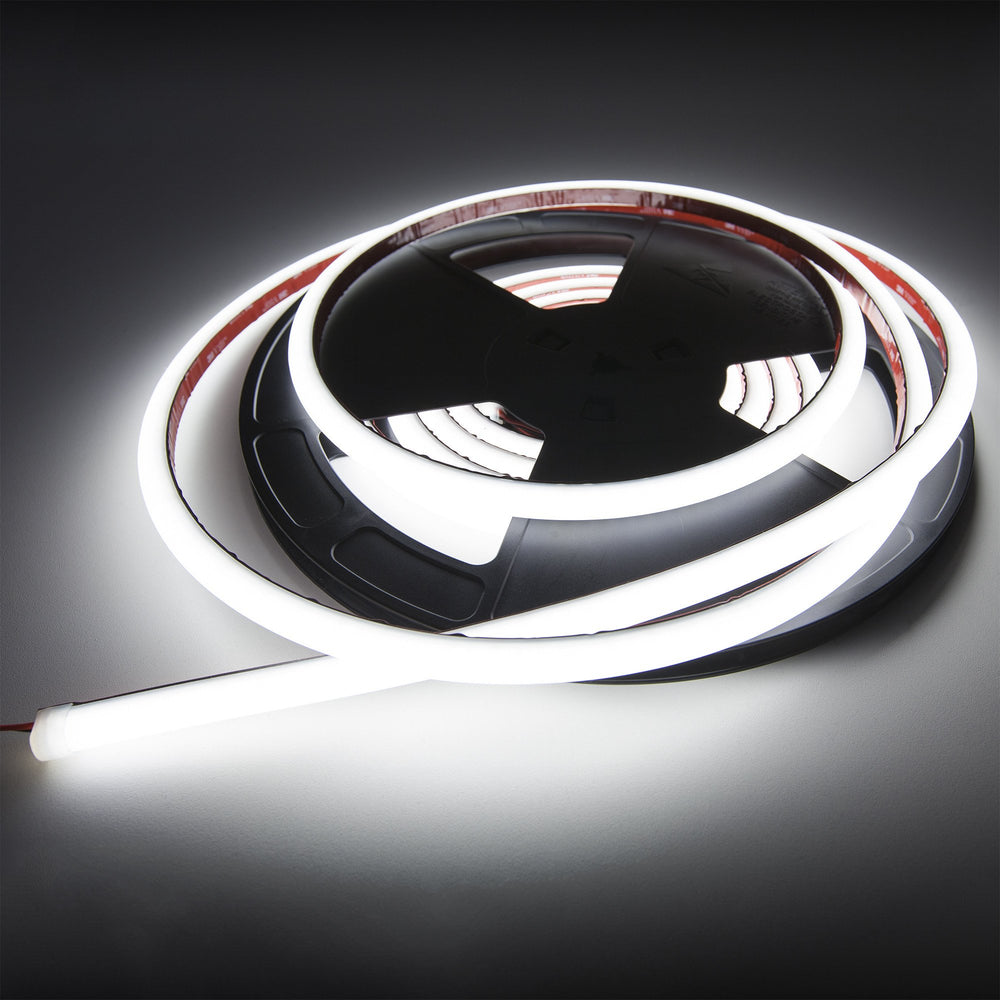

Pre-Diffused Flexible LED strips. You asked for it and now it's here! Tired of the pixelized look of

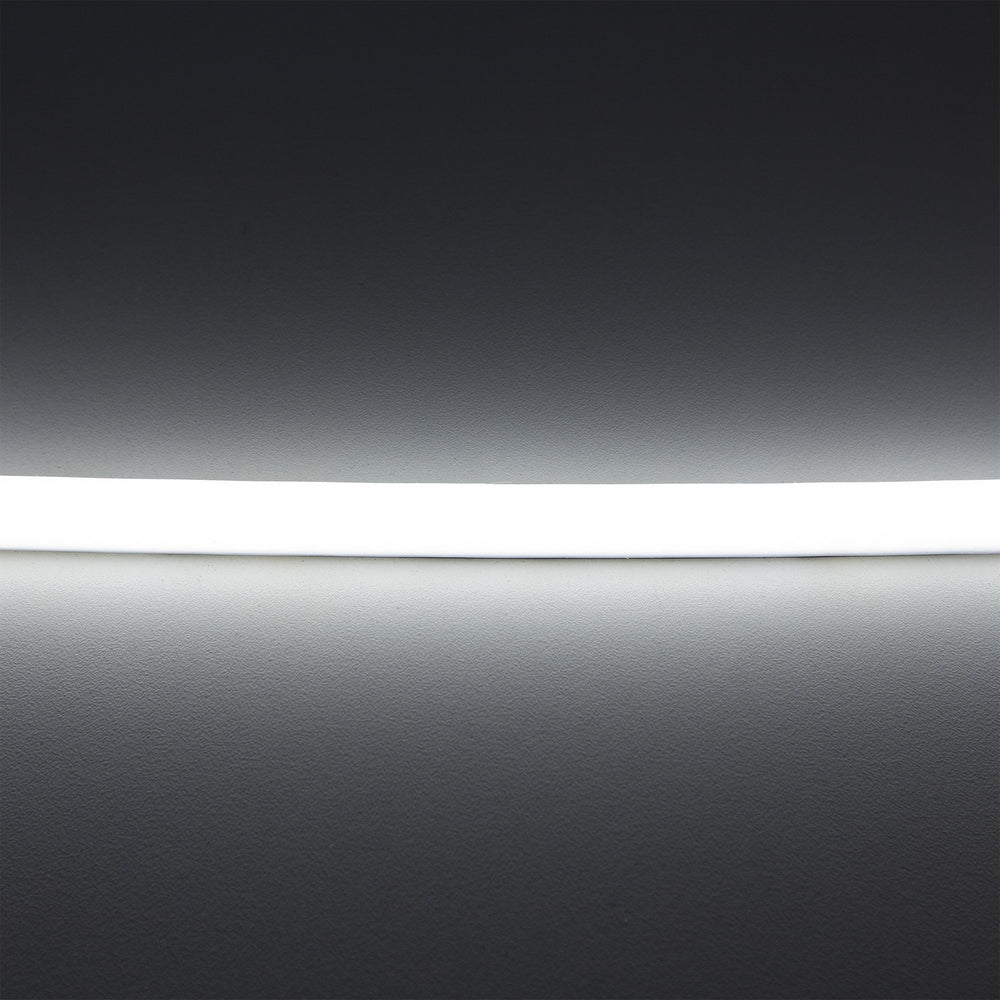

our classic FlexLED strips? Our DiffuseFLEX™ LED is the solution! Beautiful uniform look provides seemless, even output across a full 10 or 5 meters. Customized lengths are available upon request. IP67 rated for outdoor use and 35,000 hour lifespan.
• Suitable for on-camera use, or anywhere a high-quality white light is required.
• High CRI (Colour Rendering Index) >90. No green spike or colour spectrum deficiencies.
• Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick. • Waterproof must be mounted using silicone (not provided)
• Maximum recommended length in order to prevent line-loss is 10m (32')
• Controller, Power supply and Extension Cables sold separately
• Quantity Discounts and Custom Color Temperatures available. Please call to inquire.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
Pricing is for 10 meters (32.81')
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | White Only | Bi-Colour (2700k - 6000k) | RGB | RGB+W | Pixel APA-102 |
| Product Code | : | DFLX-O24V-XXYY-140-10M | DFLX-O24V-BC2760-280-10M | DFLX-O24V-RGB-120-10M | DFLX-O24V-RGBWXX-120-10M | DFLX-O5V-RGBAPA102-144-4.5M |
| CRI | : | ≥97 | ≥97 | N/A | ≥95 | N/A |
| Kelvin | : | 2700k/3000k/4000k/5500k | Adjustable 2700k - 6000k | Colour Changing | Colour Changing plus White (2700k/4000k/5500k) | Colour Changing |
| PCB Color | : | White | White | White | White | White |
| Current, Rating | : | 0.832 A / meter | 0.832 A / meter | 0.832 A / meter | 0.832 A / meter | 8.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 5 VDC |
| Wattage | : | 20 W / meter | 20 W / meter | 20 W / meter | 20 W / meter | 43 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Current (Pixel Control) |
| IP Rating | : | IP65 | IP65 | IP65 | IP65 | IP65 |
| Lumens @ Full | : | 1000lm ~ 1400lm / meter | 800~ 1200 lm / meter | 875lm / meter | XX lm / meter | XX lm / meter |
| Lumen / Watt | : | N/A | N/A | N/A | N/A | N/A |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |
| Cutting Length | : | 5 CM | 5 CM | 5 CM | 5 CM | 6.55 MM |
| LED Quantity | : | 140 LED / meter | 280 LED / meter | 120 LED / meter | 120 LED / meter | 144 LED / meter |
| Number of Contacts | : | 2 | 3 | 4 | 5 | 4 |
| LED Type | : | 3528 | 2016 | 5050 | 5060 | 5050 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 50 C | 50 C | 50 C | 50 C | 70 C |
| Temperature, Operating, Minimum | : | -35 C | -35 C | -35 C | -35 C | -40 C |
| Agency Ratings | : | UL E489028, CE, RoHS | UL E489028, CE, RoHS | UL E489028, CE, RoHS | UL E489028, CE, RoHS | UL E489028, CE, RoHS |

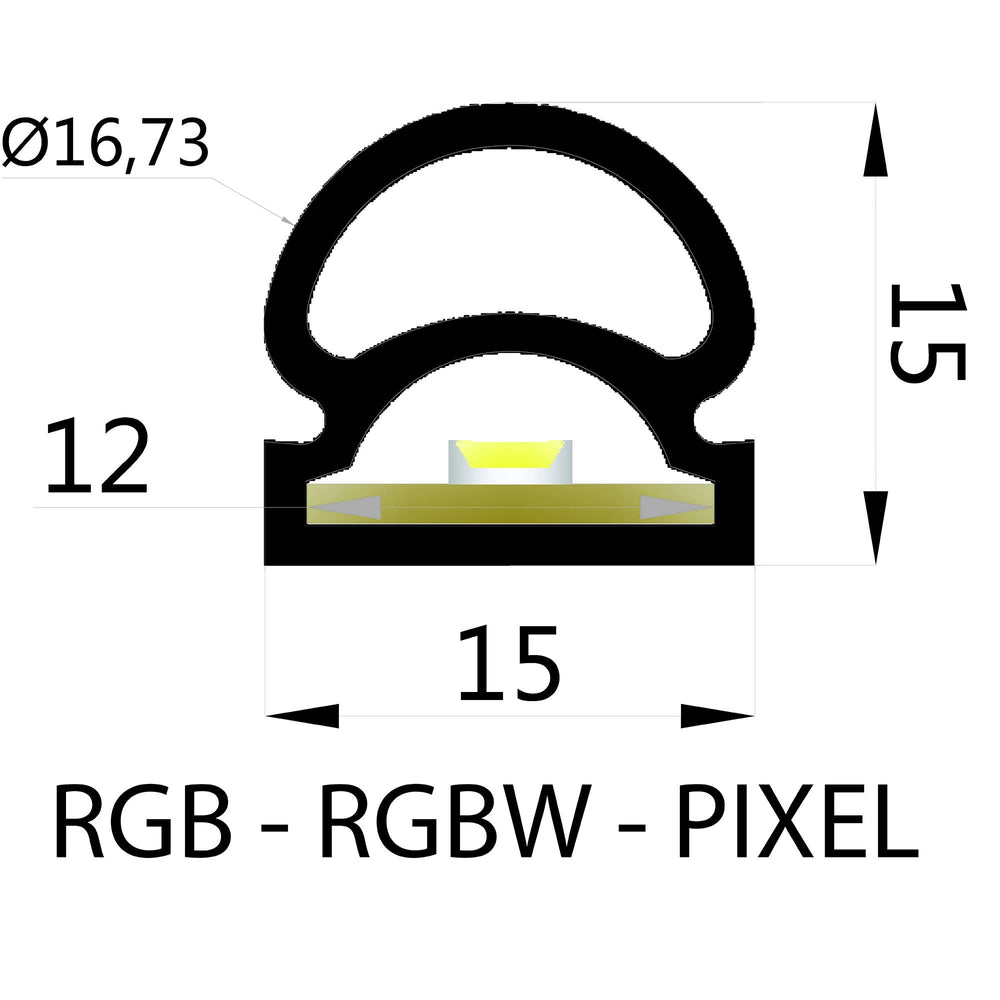

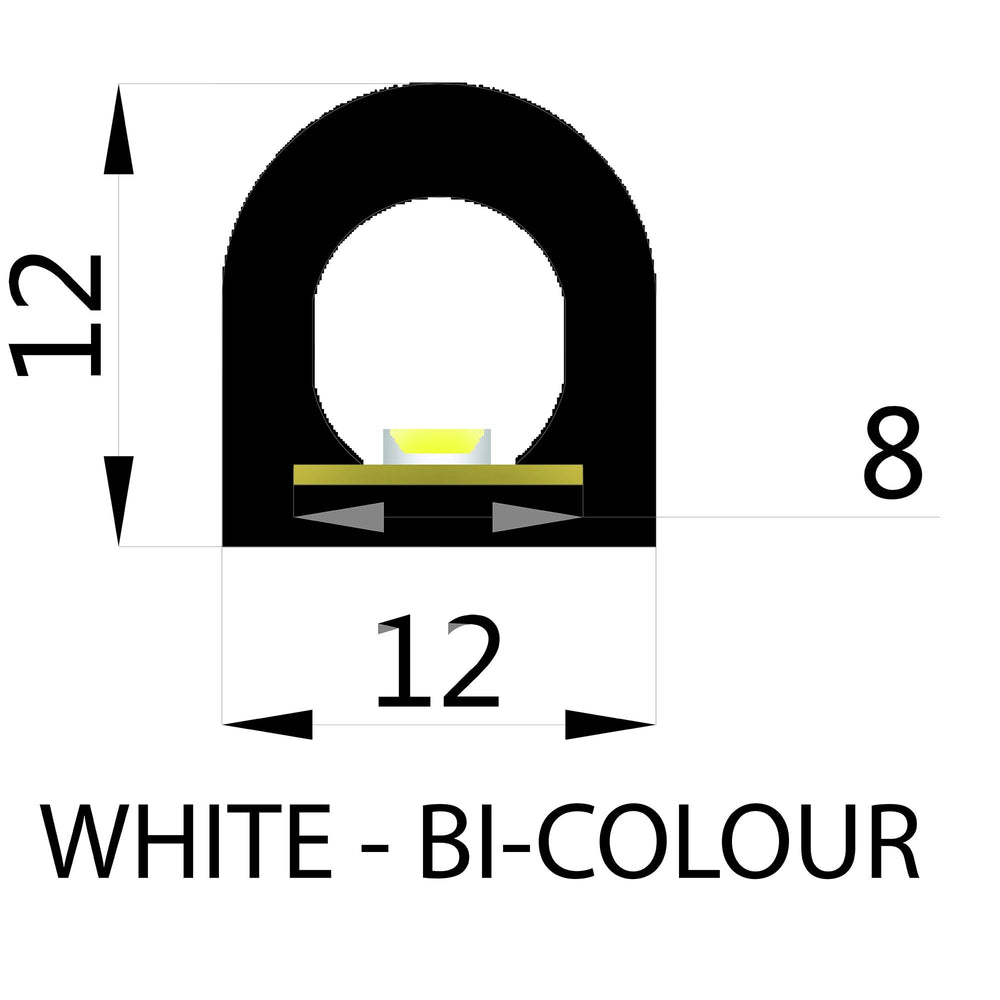

| Width | : | 12 MM | 12 MM | 15MM | 15MM | 12MM |
| Maximum Recommended Length | : | 10 meters | 10 meters | 10 meters | 10 meters | 4.5 meters |
| Viewing Angle | : | 180 | 180 | 180 | 180 | 180 |
| Adhesion | : | VHB 5952 | VHB 5952 | VHB 5952 | VHB 5952 | VHB 5952 |
DOWNLOADS
DiffuseFLEX™ Specification Sheet- VHB 5952 Tape Specification Sheet
- Installation Guide
- CE Declaration of Conformity
*nominal lifetime - dependent on installation location
