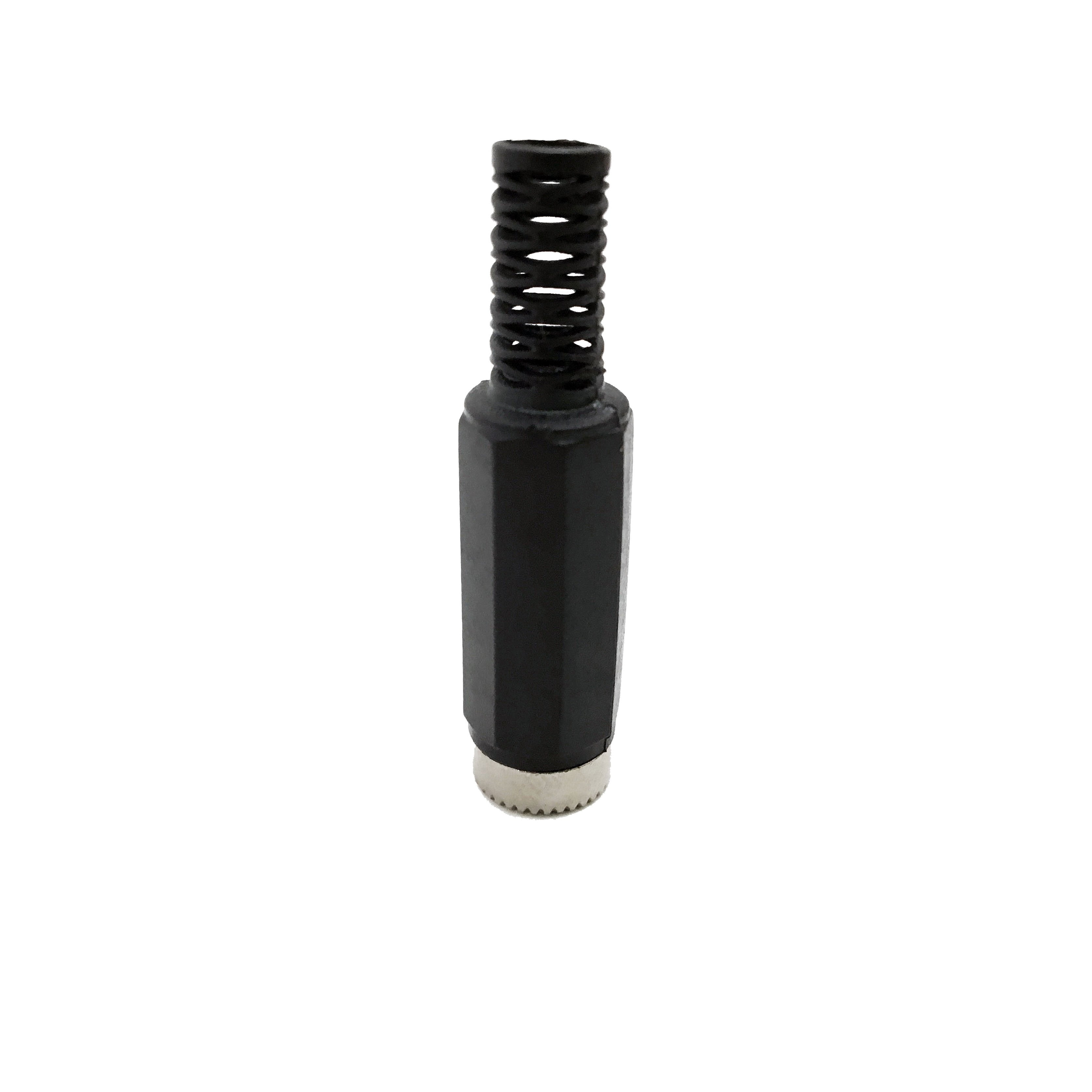

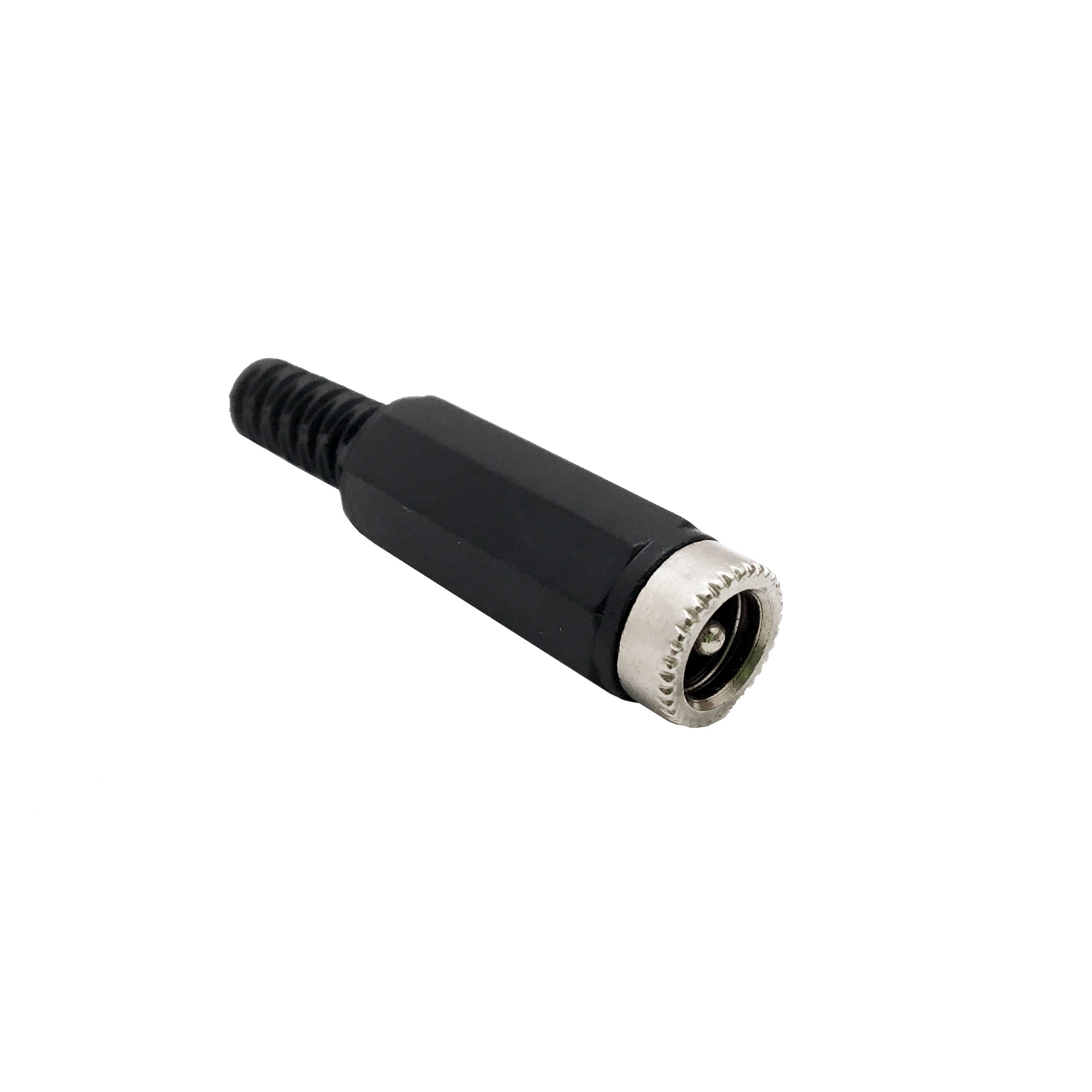

Make your own cables with our field installable plugs. Our standard DC barrel connector is 2.1MM center pin and 5.5MM outside diameter. If you are looking to make other connections please order these SKUs based on your application.
BP100 battery pack output port I (16/19/24V) - DCFFIP-2.1X5.5X14
BP100 battery pack output port II (12V) - DCFFIP-1.7X4X9.5
SPECIFICATIONS
SKU
|
: |
DCFFIP |
DCFFIP-2.1X5.5X14 |
DCFFIP-1.7X4X9.5 |
| Center Pin (MM) |
: |
2.1 |
2.1 |
1.7 |
| Outer Contact (MM) |
: |
5.5 |
5.5 |
4 |
| Contact Length (MM) |
: |
9.5 |
14 |
9.5 |
| Color |
: |
Black |
Black |
Black |
| Current Rating |
: |
5 A |
8 |
5 |
| Mounting Style |
: |
Cable |
Cable |
Cable |
| Number of Conductors |
: |
2 |
2 |
2 |
| Voltage Rating (VDC) |
: |
24 |
24 |
24 |
| IP Rating |
: |
IP20 |
IP20 |
IP20 |
| Shielding |
: |
No |
No |
No |
| Internal Switches |
: |
No |
No |
No |
DOWNLOADS
DCFFIP - Plug Specification
