DC Cables

SKU DCMYDCF2WYL
by MossLED
$7.66
Type
Locking Connector
Availability: Translation missing: en.general.icons.icon_check_circle icon 553 in stock, ready to be shipped
Accessories
DC Cables for connecting LED strips.

Secifications

Specs

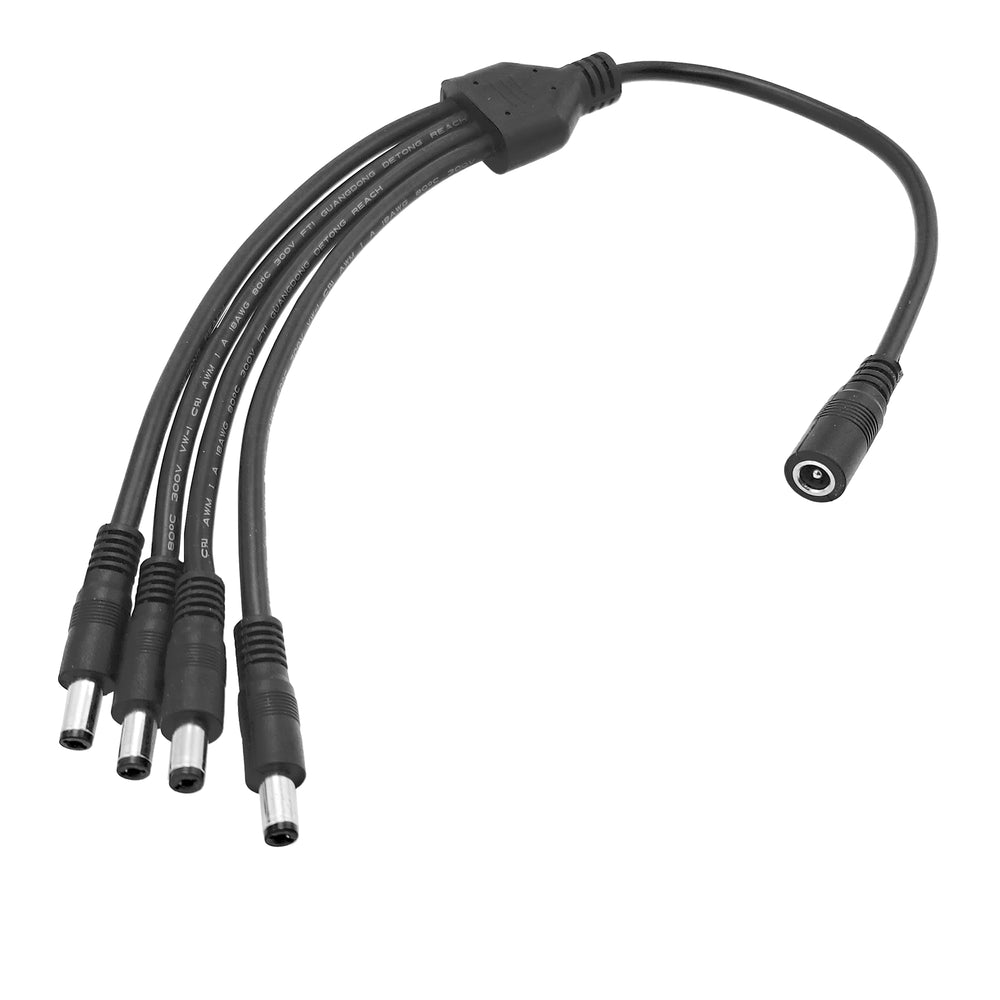

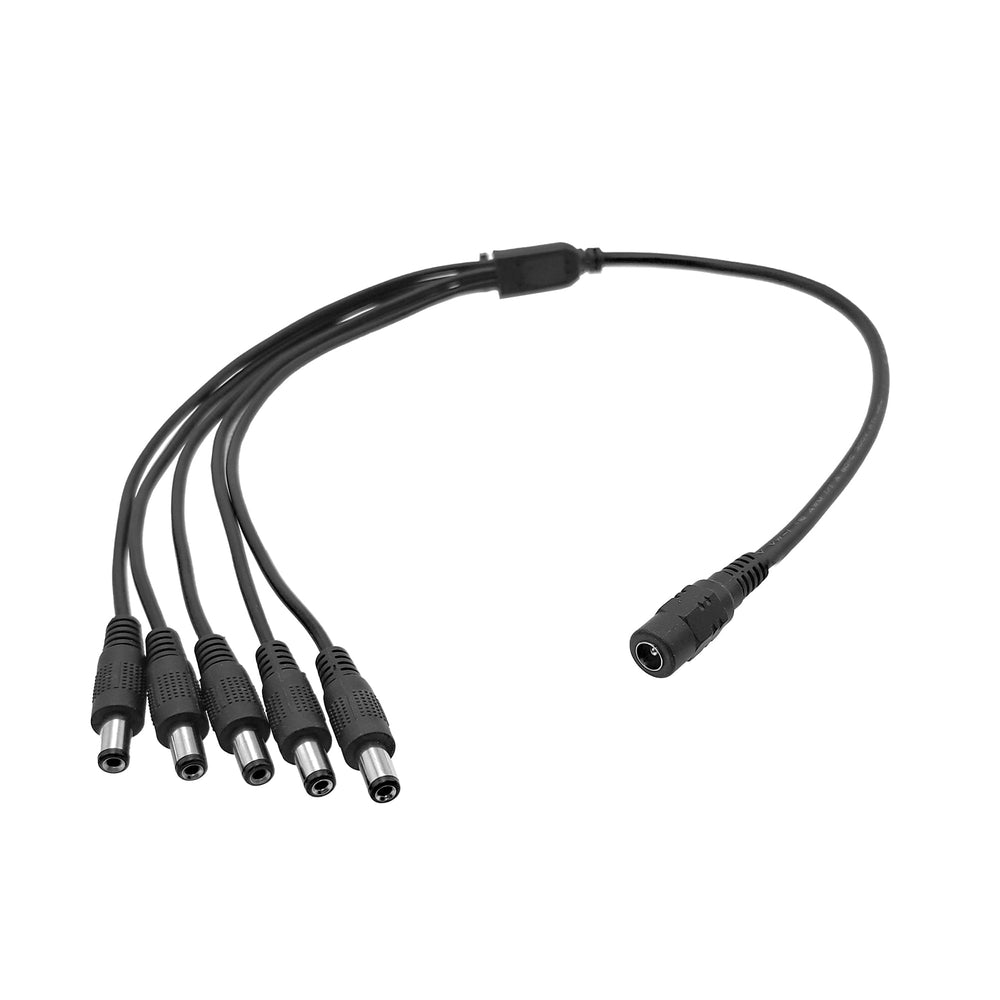

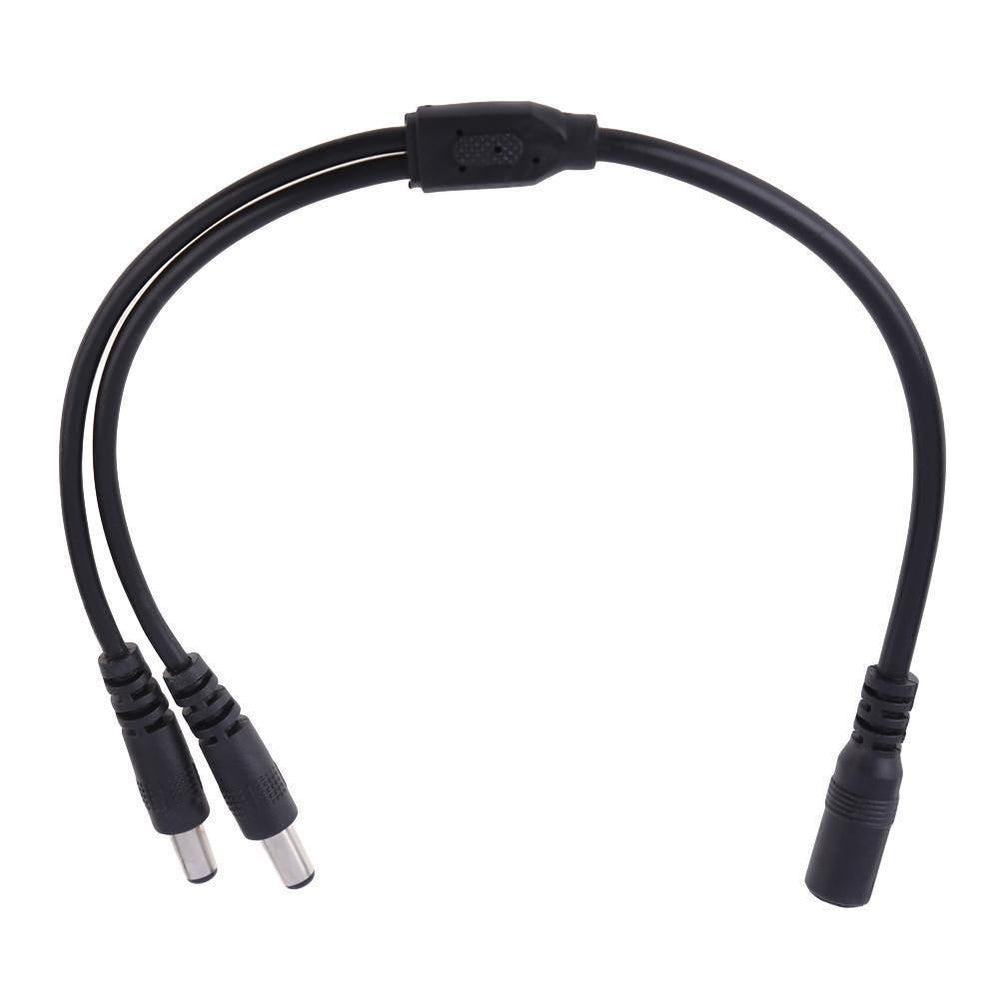

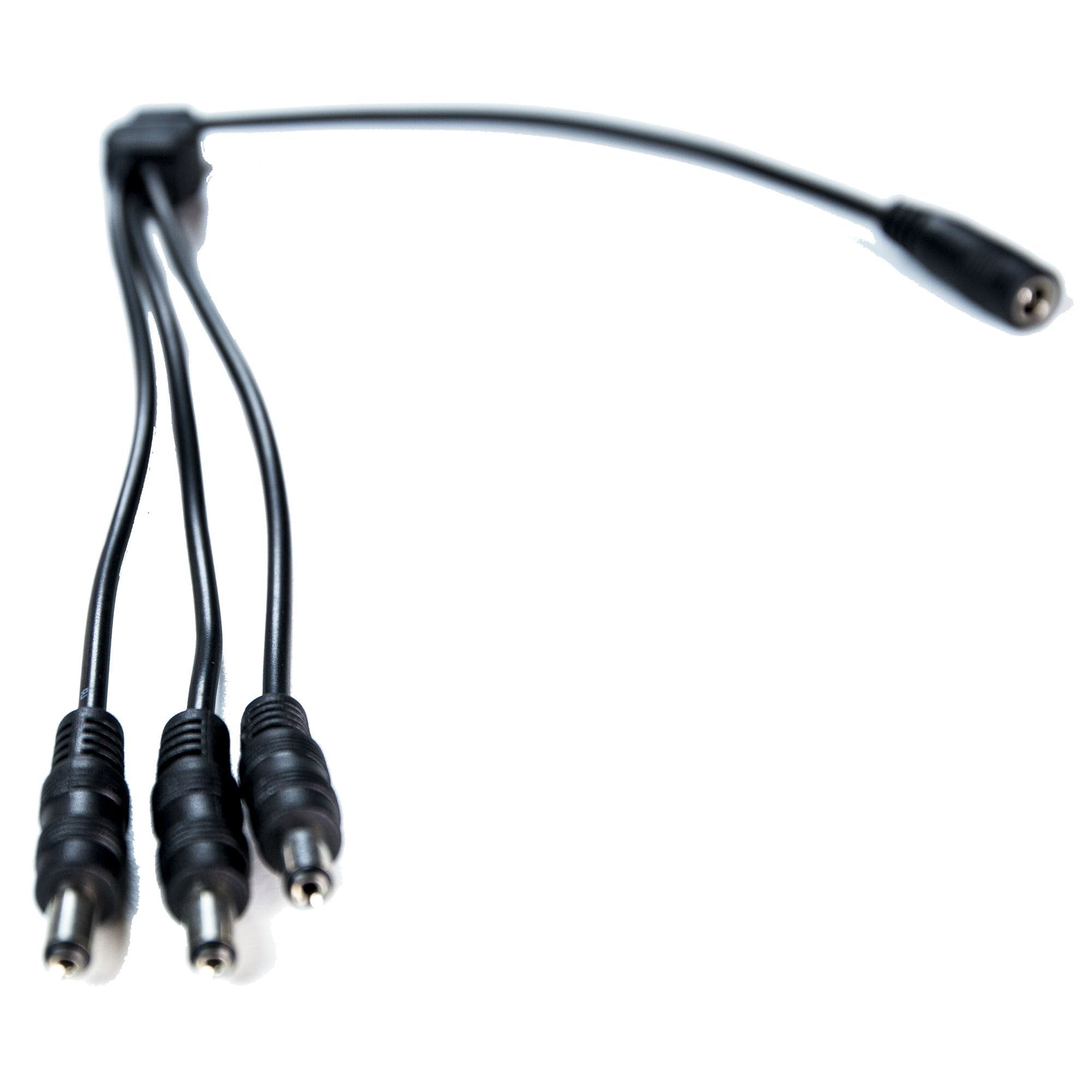

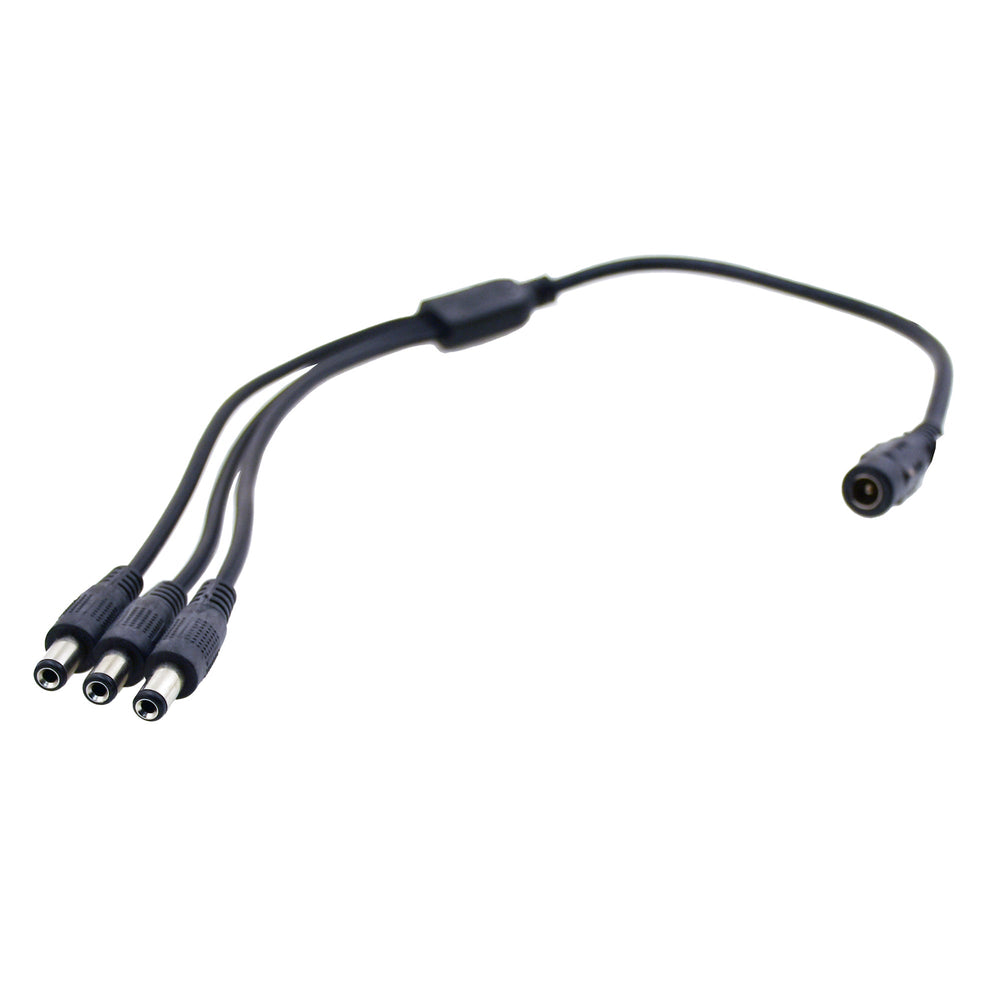

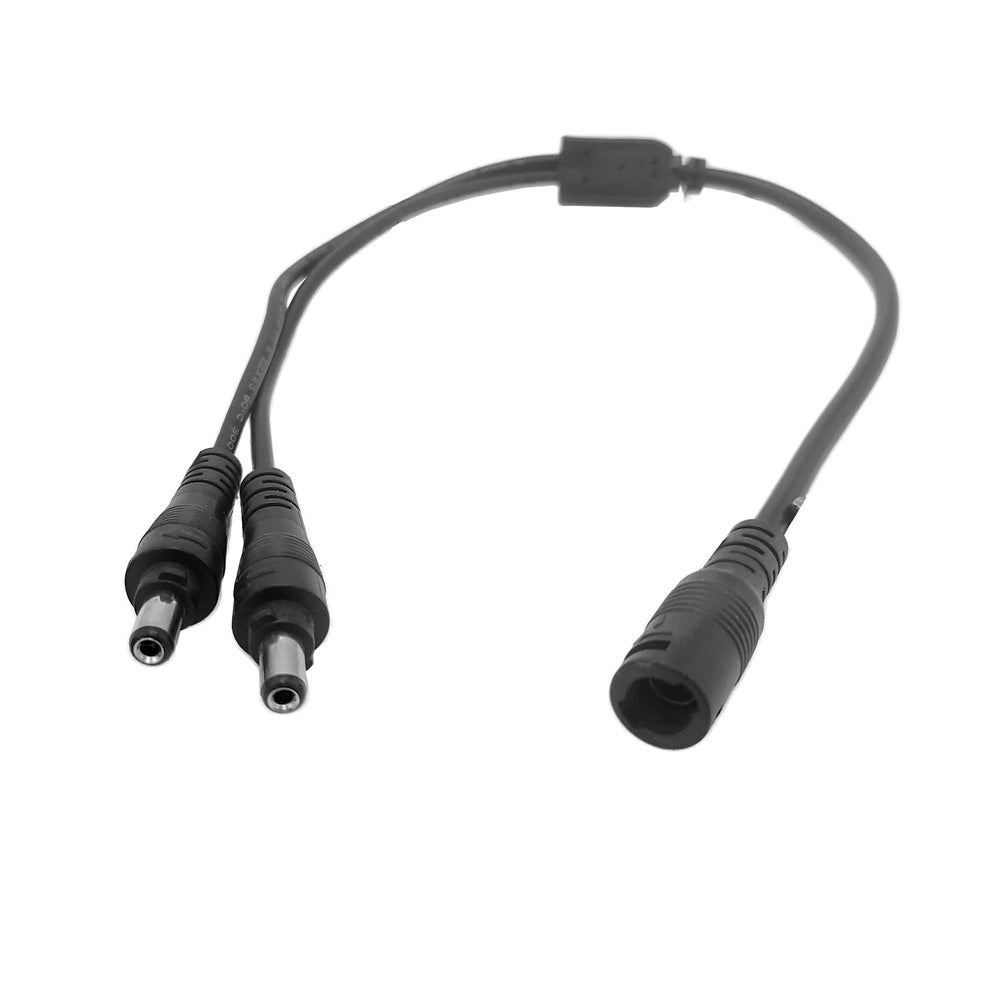

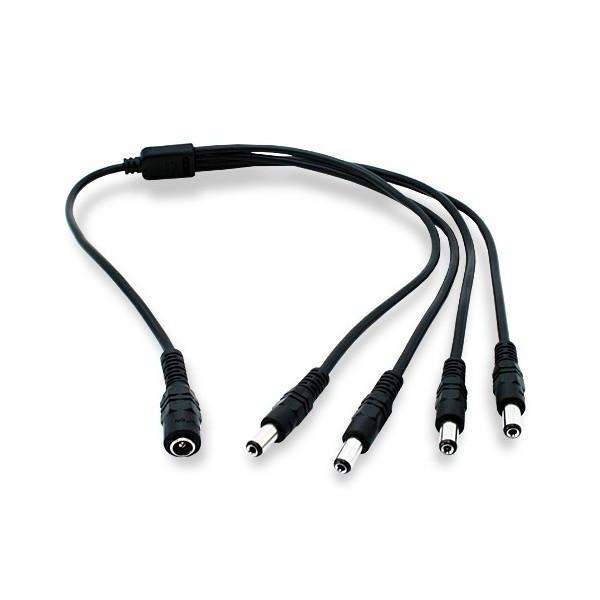

DC 2-Way/3-Way/4-Way/5-Way

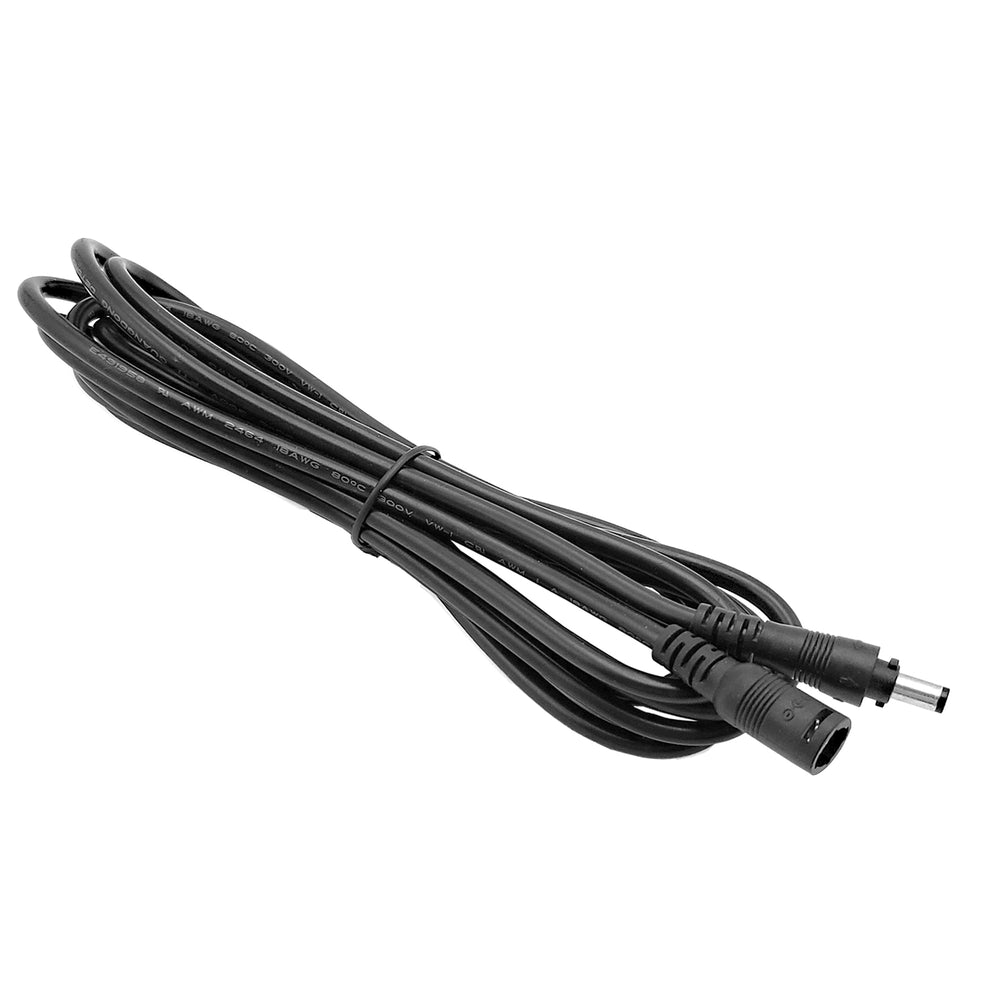

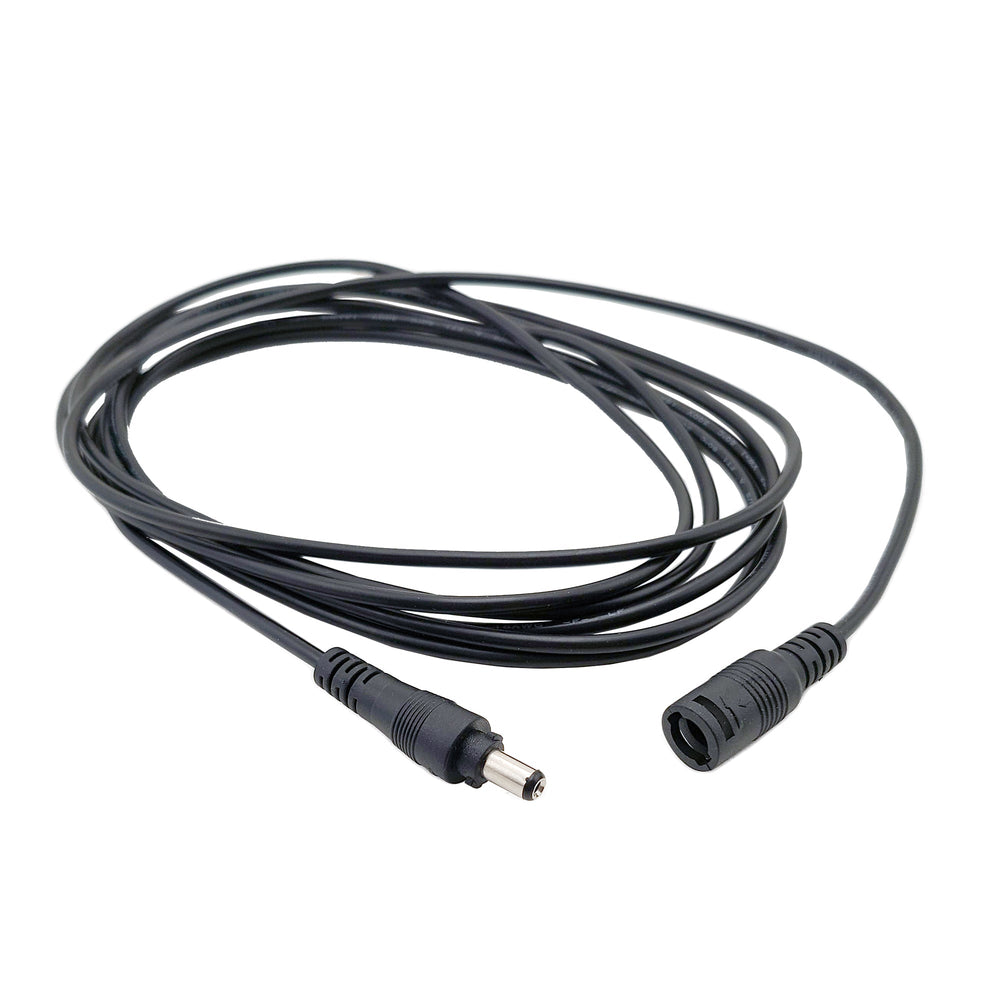

DC Cable Extension 1M/2M/3M

DC Male Connector Tail to Single Collar Quick Clip DC Barrel Male Connector Tail

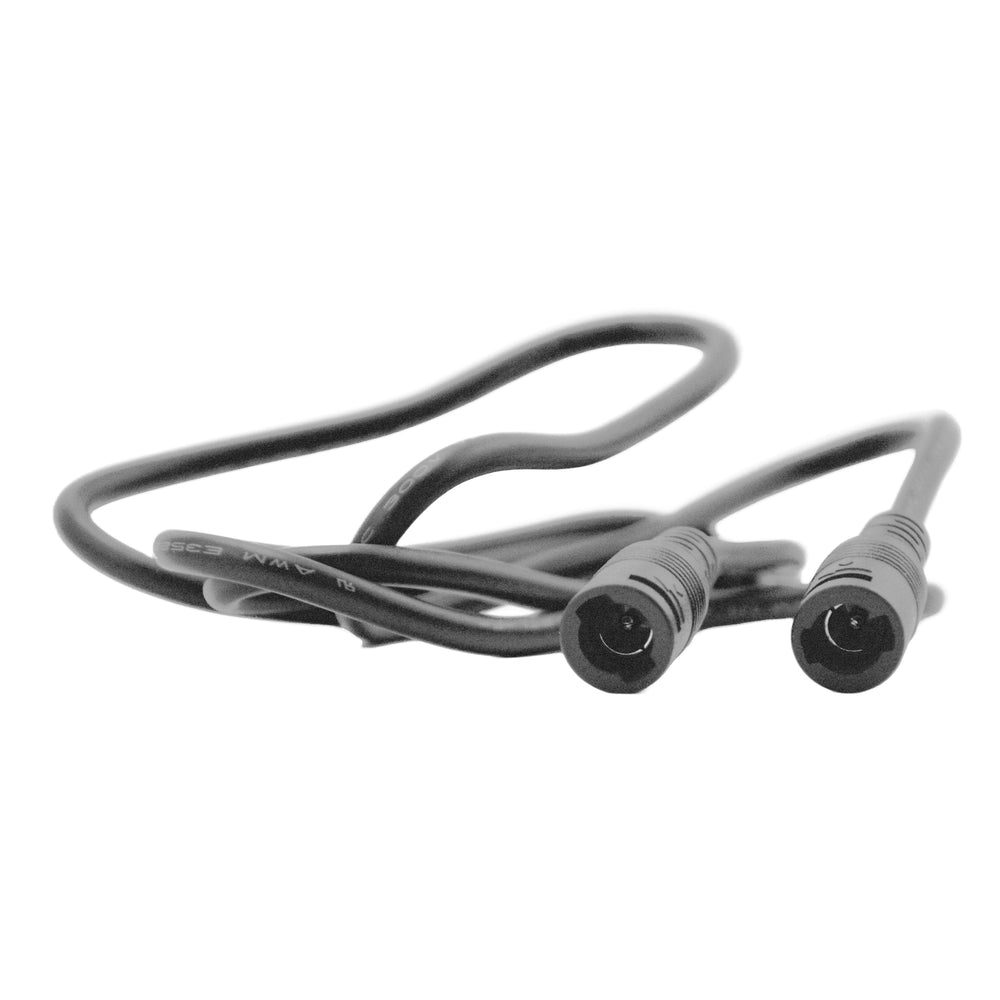

DC Barrel Female to Female Locking

DC Barrel Female Connector Tail 18 AWG

DC Male Connector Tail 18AWG

SKU

DCMYDCF(X)WY

X= # of splits

DCM0(X)00DCF

X=length

DCBRLMLQKCLIP

DCF0100DCF

DCF0030BW_18AWG

DCM0030BW

Agency Approvals

UL 1185

UL 1185

UL 1185

UL 1185

UL 1185

UL 1185

Amperage

8A

8 A

8 A

8 A

8 A

8 A

Color

BLACK

Black

Black

Black

Black

Black

Current, Rating

8 A -> 2 X 4A

8A

8A

8A

8A

8A

Cord (NO/MM)

41/0.160 -> 17/0.160

41/0.160 -> 17/0.160

41/0.160 -> 17/0.160

41/0.160 -> 17/0.160

41/0.160 -> 17/0.160

41/0.160 -> 17/0.160

Insulation Material

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Polyvinylchloride (PVC)

Flammability

VW-1

VW-1

VW-1

VW-1

VW-1

VW-1

IP Rating (Indoor Use Only)

IP20

IP20

IP20

IP20

IP20

IP20

Cable Type

Tinned Copper Strands

Tinned Copper Strands

Tinned Copper Strands

Tinned Copper Strands

Tinned Copper Strands

Tinned Copper Strands

Material, Contact

Copper Alloy, Tin Plated

Copper Alloy, Tin Plated

Copper Alloy, Tin Plated

Copper Alloy, Tin Plated

Copper Alloy, Tin Plated

Copper Alloy, Tin Plated

DC Plug Rating

5A

5A

5A

5A

5A

5A

Material, Housing

Nylon

Nylon

Nylon

Nylon

Nylon

Nylon

NEMA Type

1-15P

1-15P

1-15P

1-15P

1-15P

1-15P

# of Contacts

2

2

2

2

2

2

Inside Contact Diameter

2.1mm

2.1mm

2.1mm

2.1mm

2.1mm

2.1mm

OutsideContact Diameter

5.5mm

5.5mm

5.5mm

5.5mm

5.5mm

5.5mm

Temperature, Operating Maximum

+70℃

+70℃

+70℃

+70℃

+70℃

+70℃

Temperature, Operating Minimum

-40℃

-40℃

-40℃

-40℃

-40℃

-40℃

Outer Diameter

3.5MM

3.5MM

3.5MM

3.5MM

3.5MM

3.5MM

Type

1 X Male DC Plug -> 2 X Female DC Plug *non locking*

Female DC Plug & Male DC Plug

Male DC Plug

Male DC Plug

Female DC Plug

Male DC Plug

Voltage, Rating

24 V DC

24 V DC

24 V DC

24 V DC

24 V DC

24 V DC

Weight

0.3 lbs.

0.1 lbs.

0.1 lbs.

0.1 lbs.

0.1 lbs.

0.1 lbs.

Wire, AWG

#18/22

#18

#18

#18

#18

#18

DOWNLOADS

18AWG Cable Specifications
22AWG Cable Specifications
